Chapter 3: Configuring the 2085-IT8-SC/IT-16-SC Using CCW
The Disable option is only available for voltage measurement.
4
User's Manual Pub. 0300322-01 Rev. B

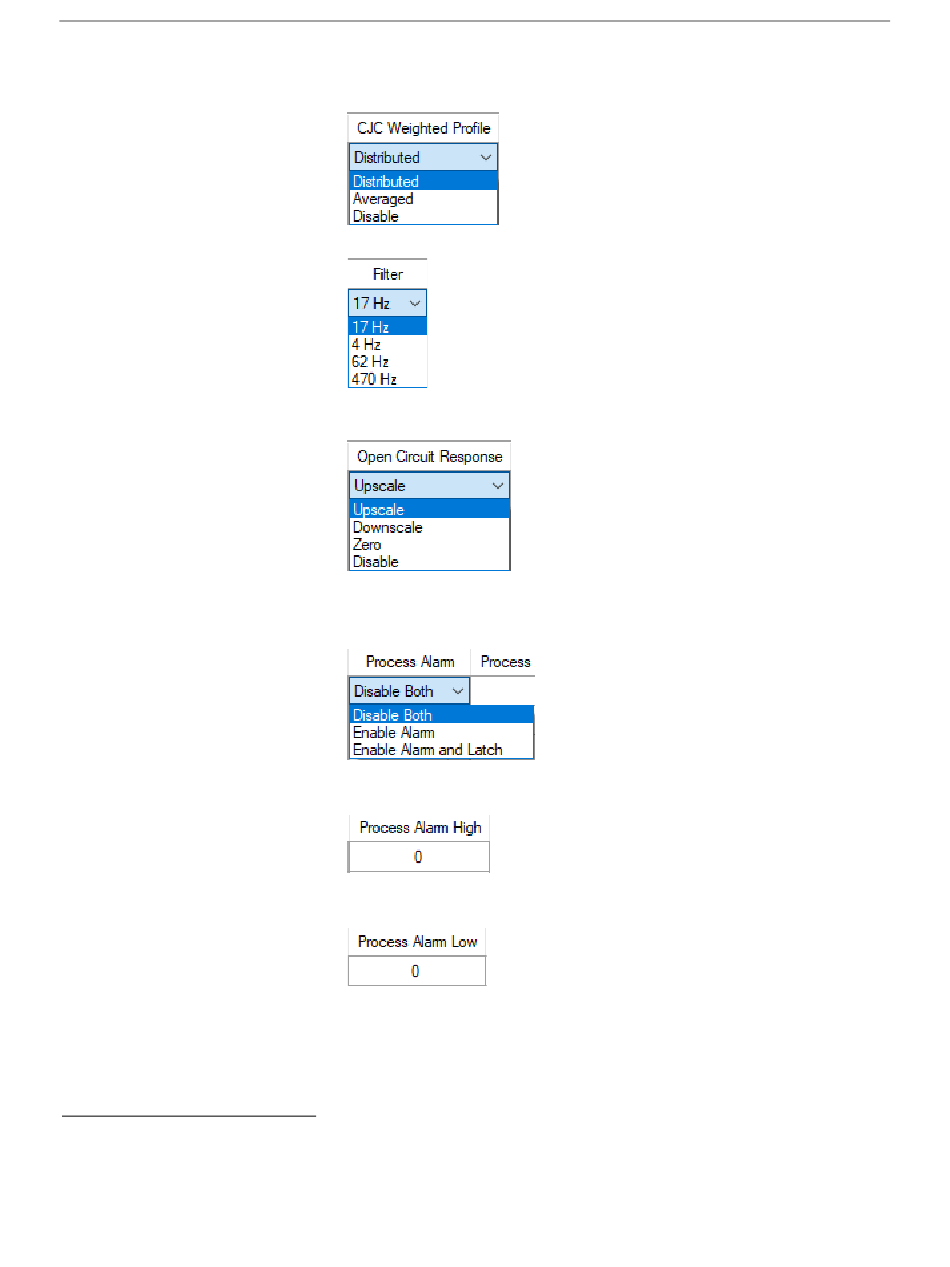

CJC Weighted Profile. Defines whether the profile is distributed or
averaged. Default is Distributed:
Filter. Specifies which filter to use. Default is 17 Hz.
Open Circuit Response. Specifies how to respond to an open circuit
condition. Default is Upscale
Process Alarm . Specifies whether a warning on under- or over-
range detection (from user-defined values) is turned on for the
channel, disabled, or enabled for both alarm and latch.
Process Alarm High. Specify over range value of a user-defined
value for the module to monitor.
Process Alarm Low. Specify under range value of a user-defined
pair of high and low values for the module to monitor.
Channel Bias. Specifies individual channel bias values. Default bias
is 0. Range may be -32768 to 32767.
6. When finished making selections, click Generate.
