2-8 Chapter 2: Installation and Wiring

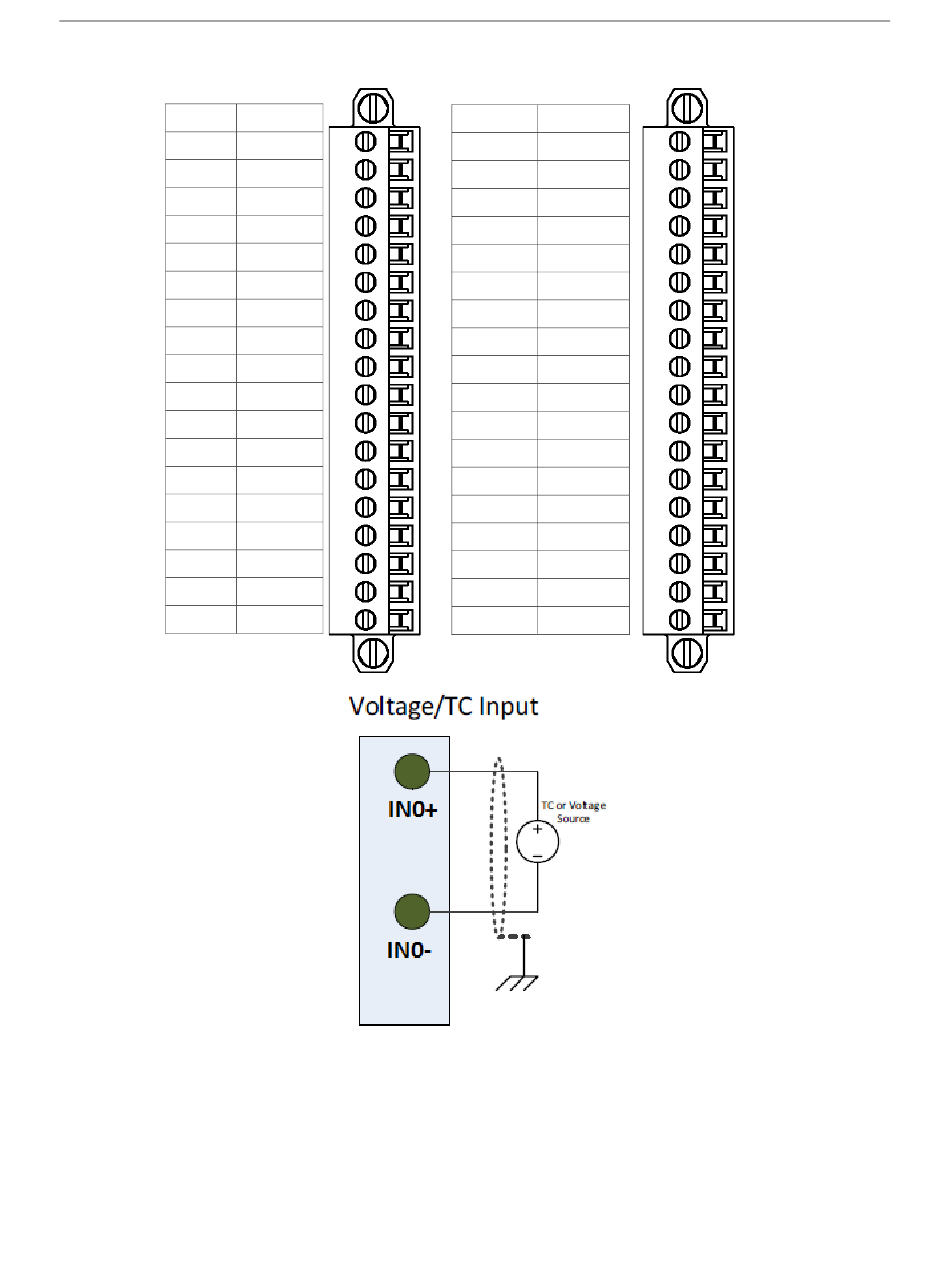

RTB1#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
User's Manual Pub. 0300322-01 Rev. B
2085-IT16-SC
Name
IN0+
IN0-
IN1+
IN1-
IN2+
IN2-
IN3+
IN3-
IN4+
IN4-
IN5+
IN5-
IN6+
IN6-
IN7+
IN7-
CJC1+
CJC1-
RTB2# Name
19 CJC2+
20 CJC2-
21 IN8+
22 IN8-
23 IN9+
24 IN9-
25 IN10+
26 IN10-
27 IN11+
28 IN11-
29 IN12+
30 IN12-
31 IN13+
32 IN13-
33 IN14+
34 IN14-
35 IN15+
36 IN15-
