3-10
Chapter 3: Configuring the 2085-IT8-SC/IT-16-SC Using CCW
User's Manual Pub. 0300322-01 Rev. B
Example. C:\Program Files (x86)\Rockwell
Automation\CCW\SpectrumTool

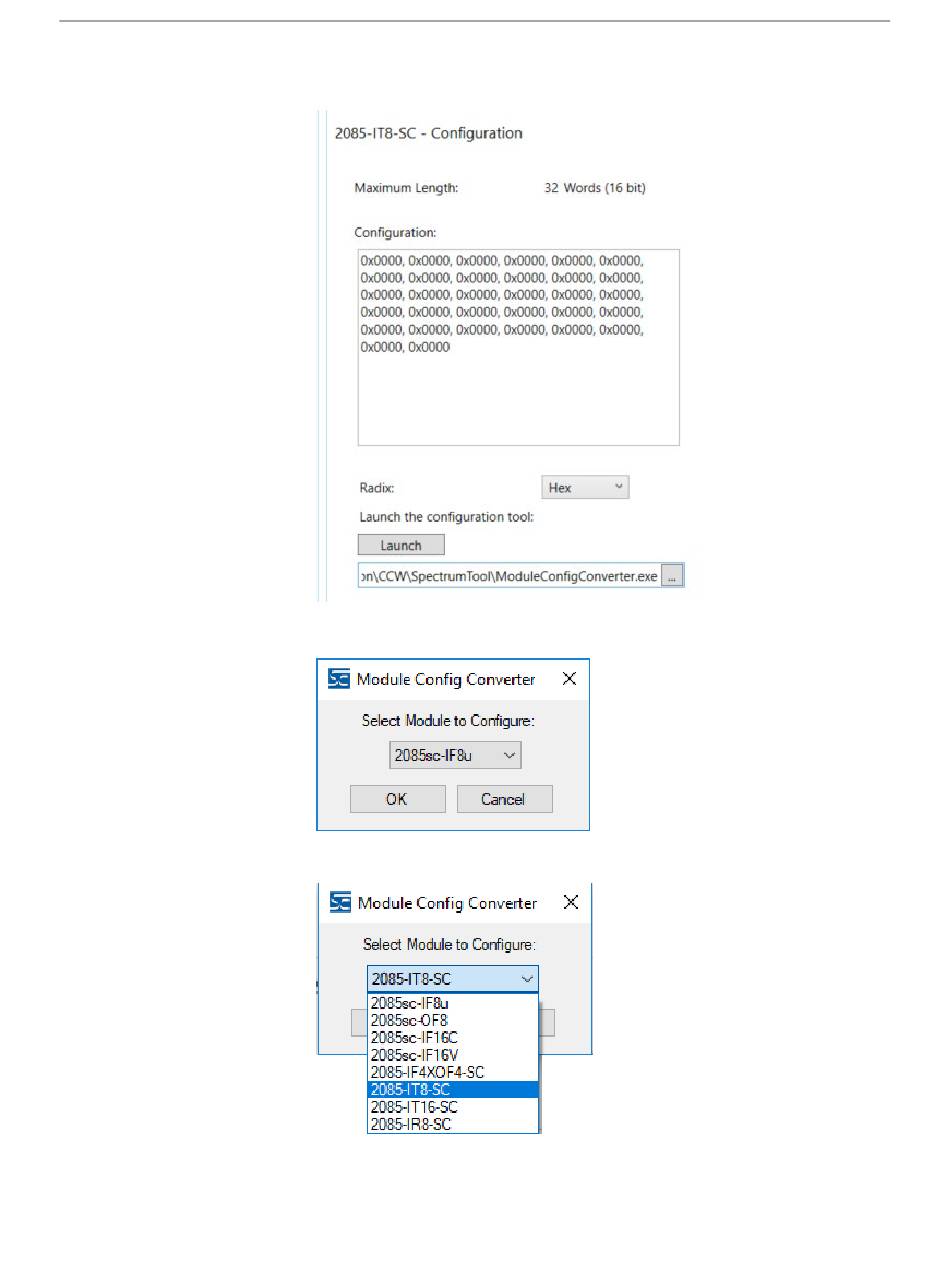

3. To run the tool, click Launch.
The Module Config Converter dialog appears:
4. Select the 2085-IT8-SC module from the drop-down menu, and click
OK:
