3-8
Chapter 3: Configuring the 2085-IT8-SC/IT-16-SC Using CCW
User's Manual Pub. 0300322-01 Rev. B

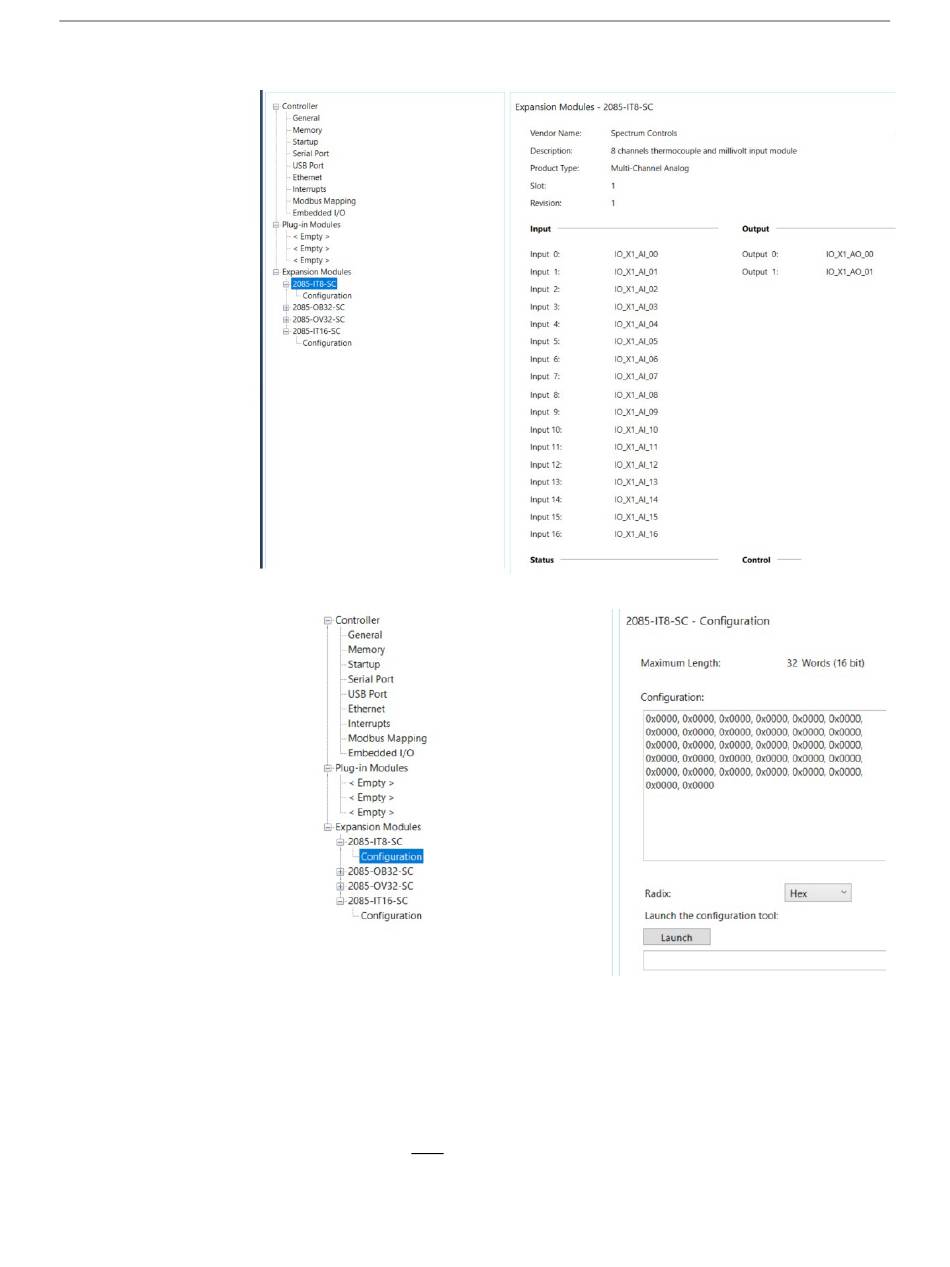

The same variables can also be found on the CCW Global Variables Tab:
3. To view the configuration tab, click the Configuration option:
Maximum Length. Shows maximum number of words available.
Each word is 16-bit.
Configuration. The textbox lists out the whole module configuration
value.
Radix. The drop-down menu contains the following number formats
for indicating module configuration value. Options are:
-
Hex. Default option. Characters represented as hexadecimal.
Example: 0×7FFF as 32767 in decimal format.
