START-UP AND OPERATION: THERMOSTAT / MAIN POWER SWITCH / LIGHTS SWITCH / FILTER
1. Merchandiser Start-Up
Do not use an extension cord with this appliance.
Do not operate this equipment with a damaged
cord, plug or outlet.
Ensure that the main power switch is off.
Plug cord into a certified 110V electrical outlet with
ground.
Turn main power switch on (see location at rear of
case in illustration below)
Coil fans should turn on.
From inside of the case, check for discharge
air from front baffle, to confirm that the fans
are functioning properly.
When the case is in a start-up mode or has been
idle for a long period of time, unit may require 75
minutes running time to pull-down temperature.
Turn lights on.
Light switch is located on the ceiling of mer-
chandising area.
The lights should come on at the same time.
Always maintain front and rear airflow clearance
of twelve inches.

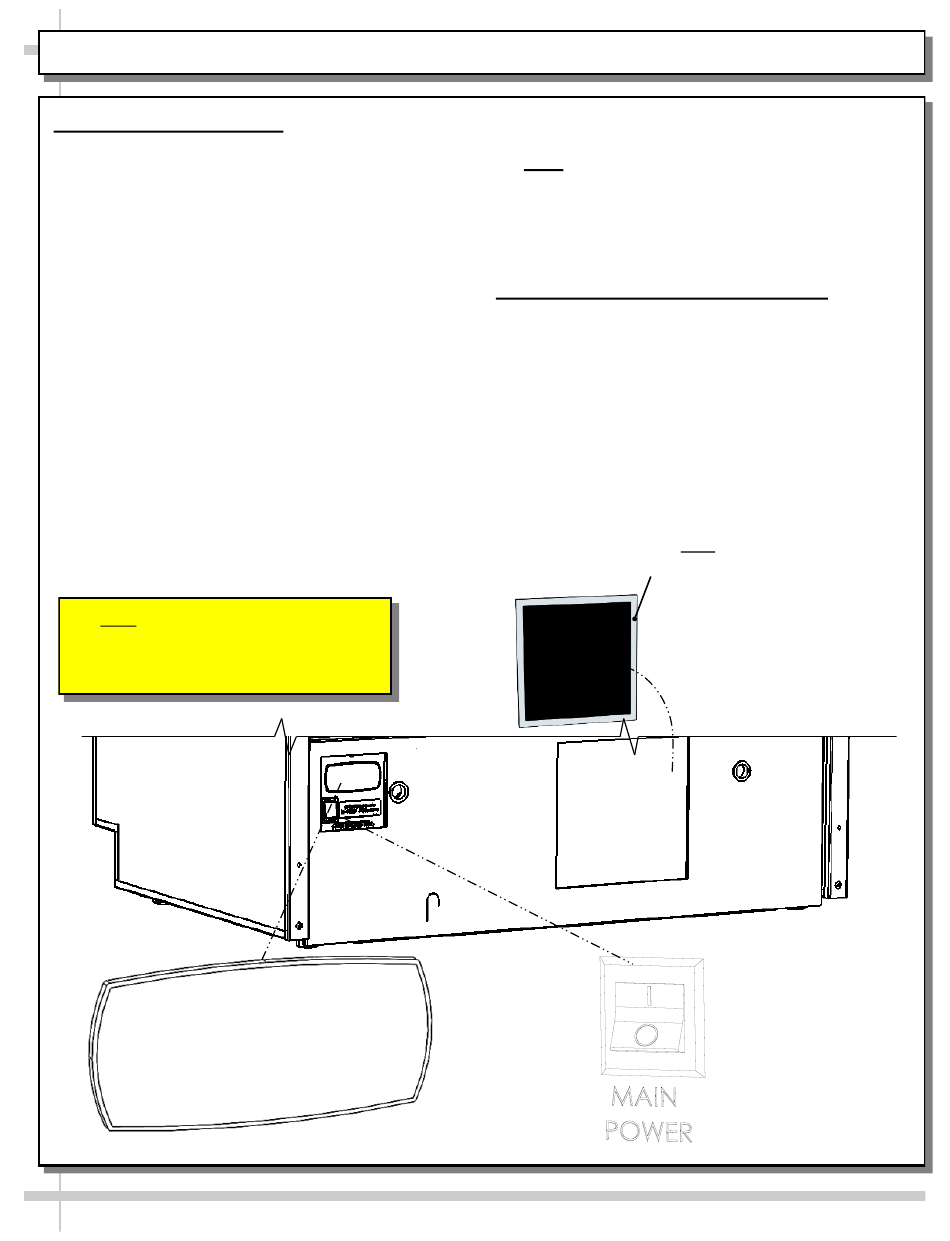

Note: Illustration Shown Reflects
REAR ACCESS Condenser Package.
Optional FRONT ACCESS Condenser
Package Has Similar Electrical Layout.
Obstruction or restriction of air can void
warranty.
Note: Case temperature setting is determined by
case size. Temperature is controlled by a
thermostat. If a temperature setting change is
required, refer to instructions in
PROGRAMMBLE CONTROLLER sections of
this manual.
2. Removable, Condenser Coil Filter
A removable filter prevents impurities (dust, dirt
and debris) from entering condenser coil.
Filter must be removed weekly and cleaned.
See GENERAL CLEANING (TO BE
PERFORMED BY STORE PERSONNEL) -
EXTERIOR in this operating manual for
cleaning instructions.
Removable, Magnetic Condenser
Coil Filter (Optional). Note: Filter is
Placed over Condenser Coil Grille.
