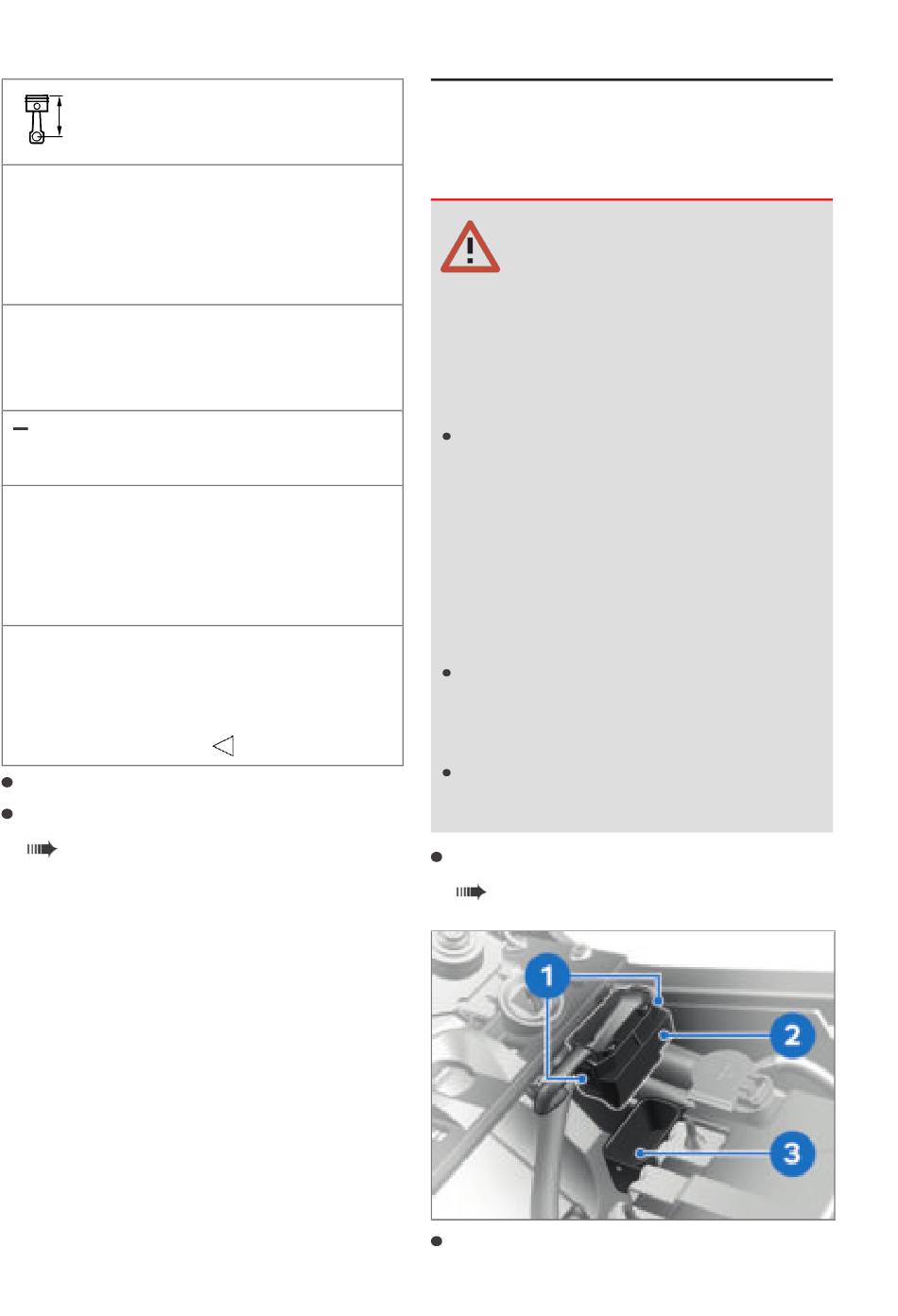

214 MAINTENANCE
Fuse box
10 A (Slot 1: instrument
cluster, alarm system (DWA),
ignition lock, diagnostic
socket, coil main relay)
7.5 A (Slot 2: multifunction
switch left, tyre pressure con-
trol (RDC))
with single seat with radio
transceiver box
10 A (Slot 1: instrument
cluster, alarm system (DWA),
ignition lock, diagnostic
socket, coil main relay)
7.5 A (Slot 2: multifunction
switch left, tyre pressure con-
trol (RDC), unlocking for radio
transceiver box)
Insert the fuse box.
Install the rider's seat.
( 120)
OE

DIAGNOSTIC CONNECTOR

Disengaging diagnostic
socket
CAUTION
Incorrect disconnection of
the diagnostic socket for on-
board diagnosis
Malfunctions of the vehicle
Do not disconnect the
diagnostic socket or allow
it to be disconnected
except in the course of a
BMW Motorrad service by
a specialist workshop or by
other authorised persons.
Have the work carried out
by appropriately trained per-
sonnel.
Comply with the stipulations
of the vehicle manufacturer.
Remove the front seat.
( 119)
Press locks 1 on both sides.
