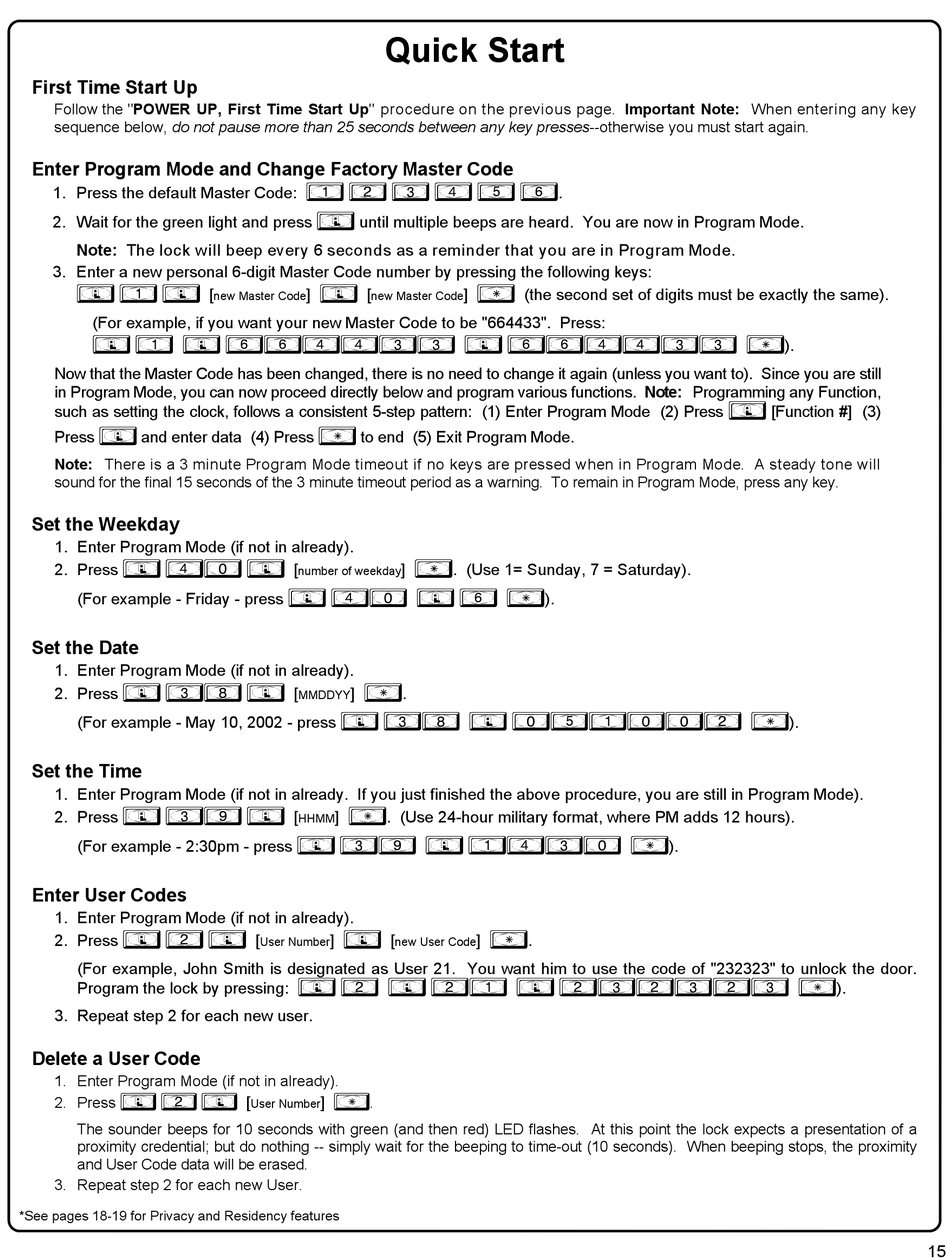

Quick Start - Alarm Lock Wireless Networx PDLN4100 Programming Instructions Manual

First Time Start Up
Follow the "POWER UP, First Time Start Up" procedure on the previous page. Important Note: When entering any key
sequence below, do not pause more than 25 seconds between any key presses--otherwise you must start again.
Enter Program Mode and Change Factory Master Code
1. Press the default Master Code: 1 2 3 4 5 6.
2. Wait for the green light and press ; until multiple beeps are heard. You are now in Program Mode.
Note: The lock will beep every 6 seconds as a reminder that you are in Program Mode.
3. Enter a new personal 6-digit Master Code number by pressing the following keys:
; 1 ; [
(For example, if you want your new Master Code to be "664433". Press:
; 1 ; 664433 ; 664433 :).
Now that the Master Code has been changed, there is no need to change it again (unless you want to). Since you are still
in Program Mode, you can now proceed directly below and program various functions. Note: Programming any Function,
such as setting the clock, follows a consistent 5-step pattern: (1) Enter Program Mode (2) Press ; [Function #] (3)
Press ; and enter data (4) Press : to end (5) Exit Program Mode.
Note: There is a 3 minute Program Mode timeout if no keys are pressed when in Program Mode. A steady tone will
sound for the final 15 seconds of the 3 minute timeout period as a warning. To remain in Program Mode, press any key.
Set the Weekday
1. Enter Program Mode (if not in already).
2. Press ; 40 ; [
(For example - Friday - press ; 40 ; 6 :).
Set the Date
1. Enter Program Mode (if not in already).
2. Press ; 38 ; [
(For example - May 10, 2002 - press ; 38 ; 051002 :).
Set the Time
1. Enter Program Mode (if not in already. If you just finished the above procedure, you are still in Program Mode).
2. Press ; 39 ; [
(For example - 2:30pm - press ; 39 ; 1430 :).
Enter User Codes
1. Enter Program Mode (if not in already).
2. Press ; 2 ; [
(For example, John Smith is designated as User 21. You want him to use the code of "232323" to unlock the door.
Program the lock by pressing: ; 2 ; 21 ; 232323 :).
3. Repeat step 2 for each new user.
Delete a User Code
1. Enter Program Mode (if not in already).
2. Press ; 2 ;
The sounder beeps for 10 seconds with green (and then red) LED flashes. At this point the lock expects a presentation of a
proximity credential; but do nothing -- simply wait for the beeping to time-out (10 seconds). When beeping stops, the proximity
and User Code data will be erased.
3. Repeat step 2 for each new User.
*See pages 18-19 for Privacy and Residency features

Quick Start

] ; [
new Master Code new Master Code
number of weekday
] :.
MMDDYY
] :. (Use 24-hour military format, where PM adds 12 hours).
HHMM
] ; [
User Number
[ ] :.
User Number
] : (the second set of digits must be exactly the same).
] :. (Use 1= Sunday, 7 = Saturday).
] :.
new User Code
