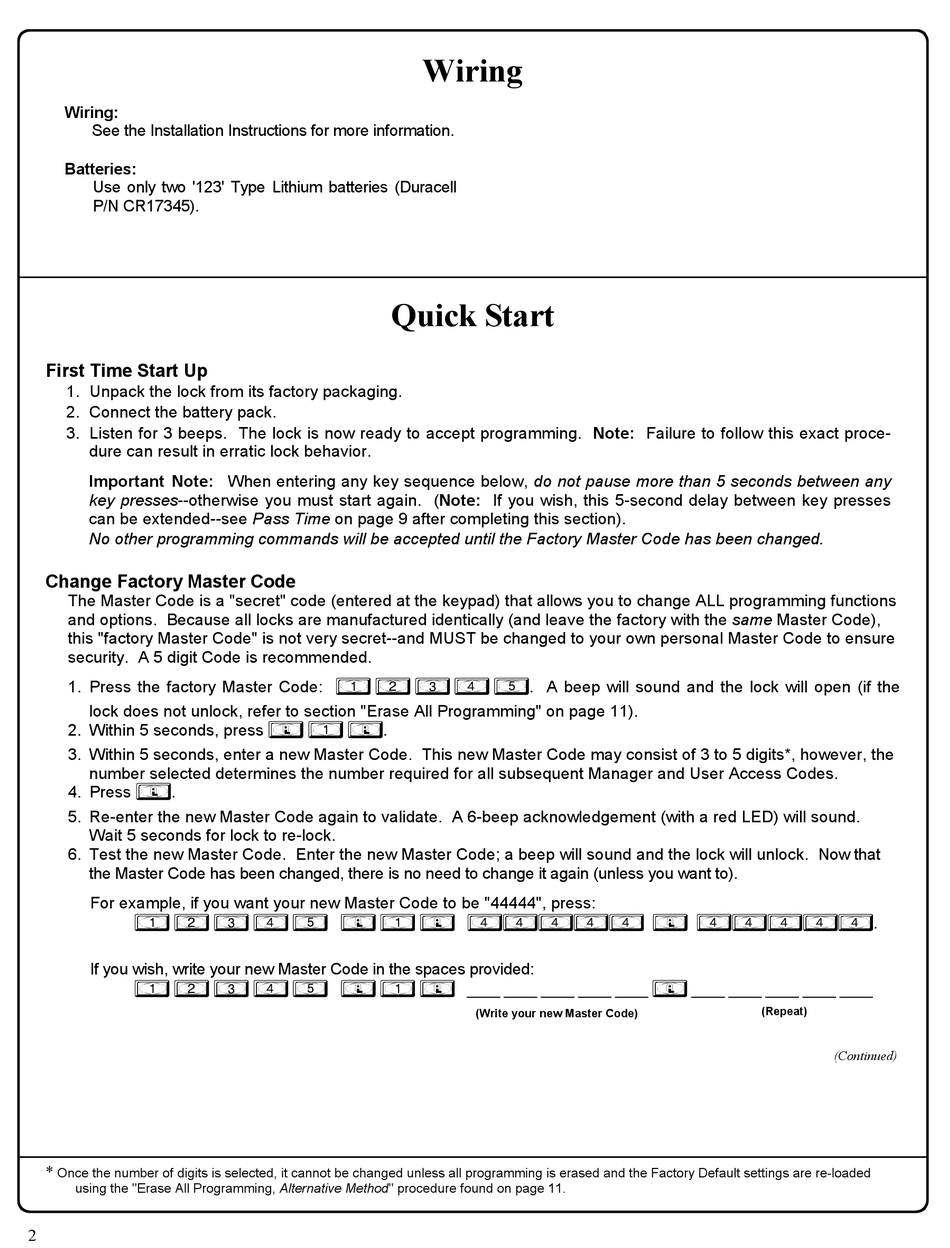

Wiring; Quick Start - Alarm Lock Trilogy DL1200 Programming Instructions Manual

Wiring:

See the Installation Instructions for more information.
Batteries:
Use only two '123' Type Lithium batteries (Duracell
P/N CR17345).
First Time Start Up
1. Unpack the lock from its factory packaging.
2. Connect the battery pack.
3. Listen for 3 beeps. The lock is now ready to accept programming. Note: Failure to follow this exact proce-
dure can result in erratic lock behavior.
Important Note: When entering any key sequence below, do not pause more than 5 seconds between any
key presses--otherwise you must start again. (Note: If you wish, this 5-second delay between key presses
can be extended--see Pass Time on page 9 after completing this section).
No other programming commands will be accepted until the Factory Master Code has been changed.
Change Factory Master Code
The Master Code is a "secret" code (entered at the keypad) that allows you to change ALL programming functions
and options. Because all locks are manufactured identically (and leave the factory with the same Master Code),
this "factory Master Code" is not very secret--and MUST be changed to your own personal Master Code to ensure
security. A 5 digit Code is recommended.
1. Press the factory Master Code:
lock does not unlock, refer to section "Erase All Programming" on page 11).
2. Within 5 seconds, press
3. Within 5 seconds, enter a new Master Code. This new Master Code may consist of 3 to 5 digits*, however, the
number selected determines the number required for all subsequent Manager and User Access Codes.
4. Press ; .
5. Re-enter the new Master Code again to validate. A 6-beep acknowledgement (with a red LED) will sound.
Wait 5 seconds for lock to re-lock.
6. Test the new Master Code. Enter the new Master Code; a beep will sound and the lock will unlock. Now that
the Master Code has been changed, there is no need to change it again (unless you want to).
For example, if you want your new Master Code to be "44444", press:
1 2 3 4 5 ; 1 ; 44444 ; 44444
If you wish, write your new Master Code in the spaces provided:
1 2 3 4 5 ; 1 ; ____ ____ ____ ____ ____ ; ____ ____ ____ ____ ____
*
Once the number of digits is selected, it cannot be changed unless all programming is erased and the Factory Default settings are re-loaded
using the "Erase All Programming, Alternative Method" procedure found on page 11.
2
Wiring

Quick Start

1 2 3 4 5
; 1 ; .
. A beep will sound and the lock will open (if the
(Write your new Master Code)
.
(Repeat)
(Continued)
