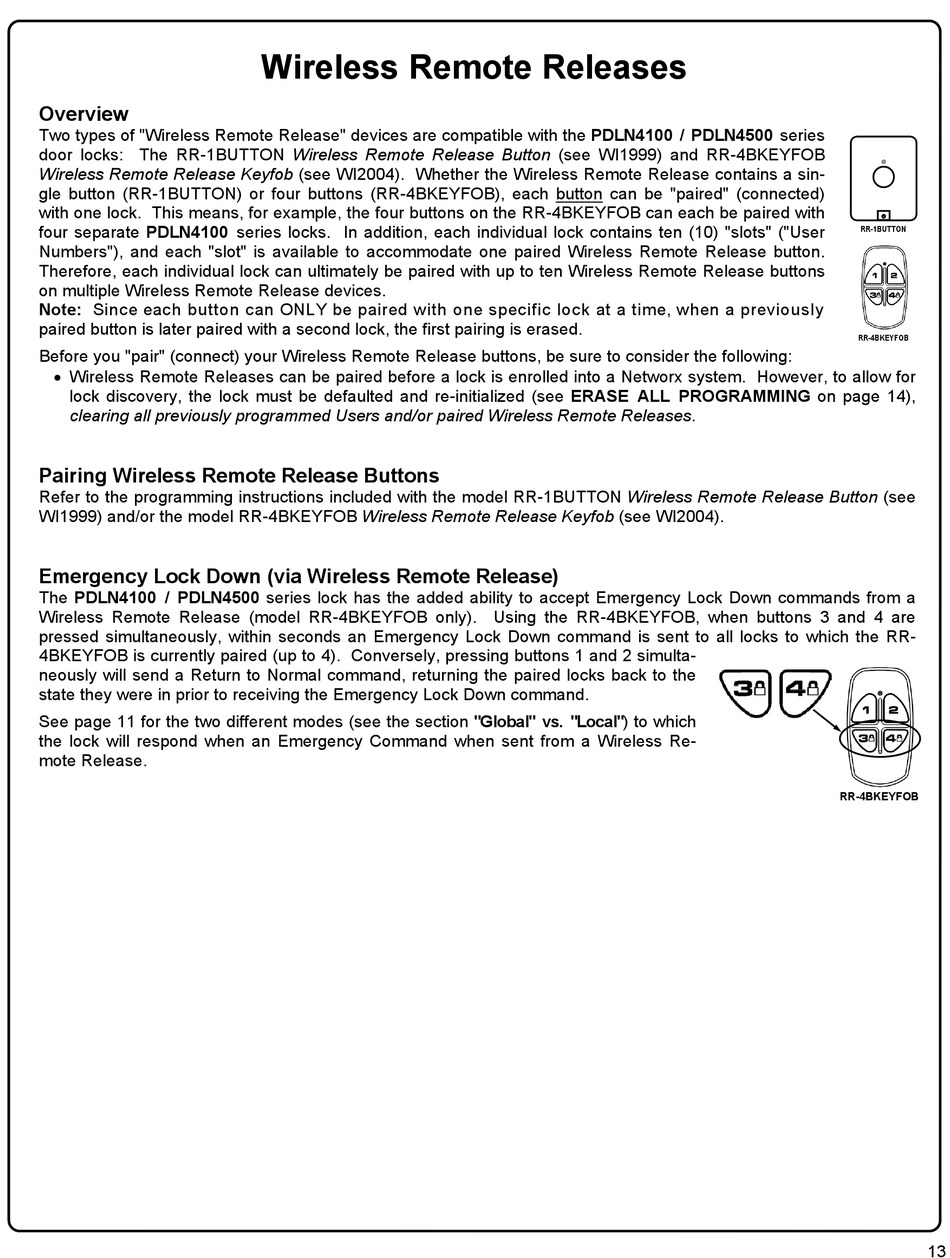

Wireless Remote Releases - Alarm Lock Wireless Networx PDLN4100 Programming Instructions Manual

Overview
Two types of "Wireless Remote Release" devices are compatible with the PDLN4100 / PDLN4500 series
door locks: The RR-1BUTTON Wireless Remote Release Button (see WI1999) and RR-4BKEYFOB
Wireless Remote Release Keyfob (see WI2004). Whether the Wireless Remote Release contains a sin-
gle button (RR-1BUTTON) or four buttons (RR-4BKEYFOB), each button can be "paired" (connected)
with one lock. This means, for example, the four buttons on the RR-4BKEYFOB can each be paired with
four separate PDLN4100 series locks. In addition, each individual lock contains ten (10) "slots" ("User
Numbers"), and each "slot" is available to accommodate one paired Wireless Remote Release button.
Therefore, each individual lock can ultimately be paired with up to ten Wireless Remote Release buttons
on multiple Wireless Remote Release devices.
Note: Since each button can ONLY be paired with one specific lock at a time, when a previously
paired button is later paired with a second lock, the first pairing is erased.
Before you "pair" (connect) your Wireless Remote Release buttons, be sure to consider the following:
 Wireless Remote Releases can be paired before a lock is enrolled into a Networx system. However, to allow for
lock discovery, the lock must be defaulted and re-initialized (see ERASE ALL PROGRAMMING on page 14),
clearing all previously programmed Users and/or paired Wireless Remote Releases.
Pairing Wireless Remote Release Buttons
Refer to the programming instructions included with the model RR-1BUTTON Wireless Remote Release Button (see
WI1999) and/or the model RR-4BKEYFOB Wireless Remote Release Keyfob (see WI2004).
Emergency Lock Down (via Wireless Remote Release)
The PDLN4100 / PDLN4500 series lock has the added ability to accept Emergency Lock Down commands from a
Wireless Remote Release (model RR-4BKEYFOB only). Using the RR-4BKEYFOB, when buttons 3 and 4 are
pressed simultaneously, within seconds an Emergency Lock Down command is sent to all locks to which the RR-
4BKEYFOB is currently paired (up to 4). Conversely, pressing buttons 1 and 2 simulta-
neously will send a Return to Normal command, returning the paired locks back to the
state they were in prior to receiving the Emergency Lock Down command.
See page 11 for the two different modes (see the section "Global" vs. "Local") to which
the lock will respond when an Emergency Command when sent from a Wireless Re-
mote Release.

Wireless Remote Releases

RR-1BUTTON
RR-4BKEYFOB
RR-4BKEYFOB
