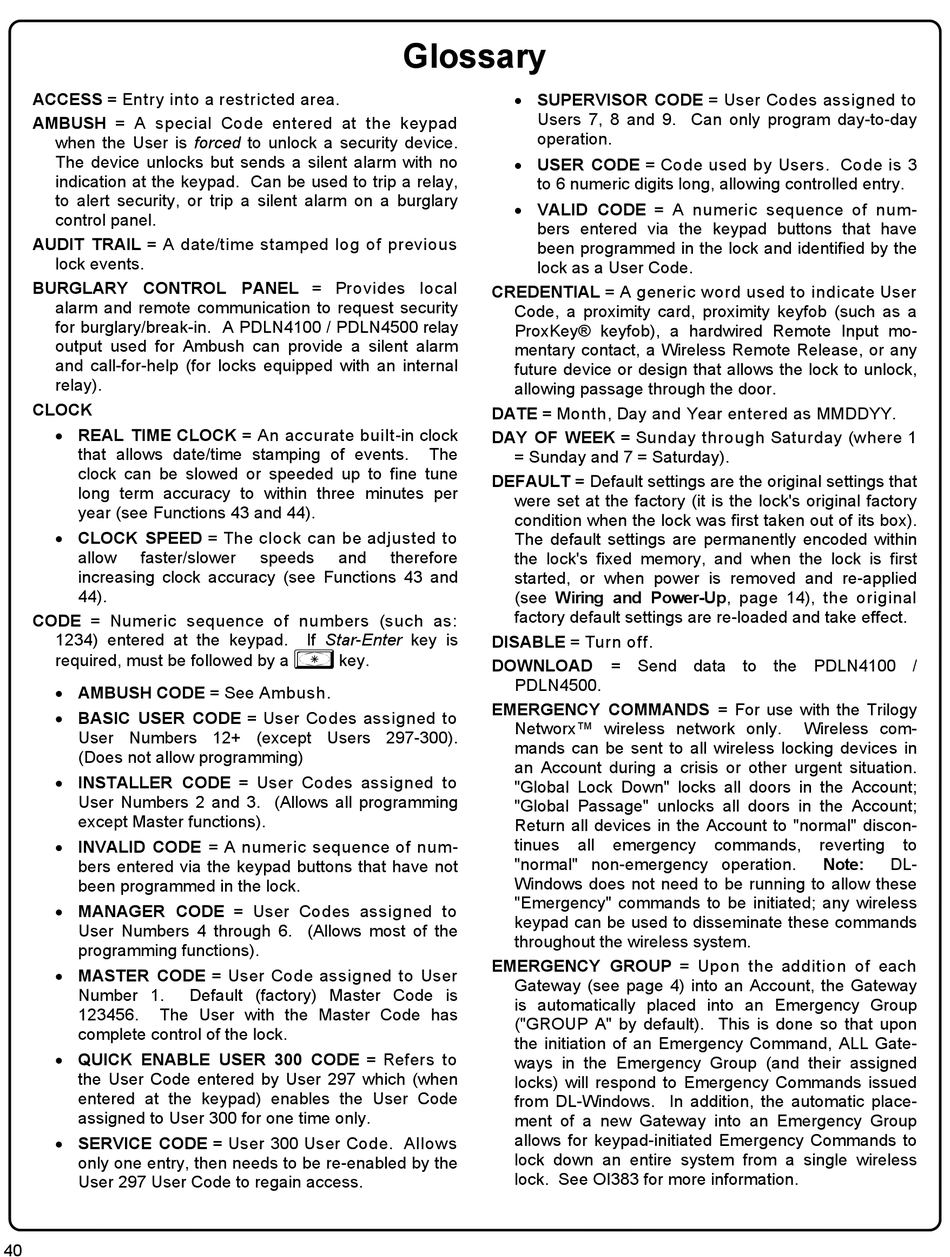

Glossary - Alarm Lock Wireless Networx PDLN4100 Programming Instructions Manual

ACCESS = Entry into a restricted area.
AMBUSH = A special Code entered at the keypad
when the User is forced to unlock a security device.
The device unlocks but sends a silent alarm with no
indication at the keypad. Can be used to trip a relay,
to alert security, or trip a silent alarm on a burglary
control panel.
AUDIT TRAIL = A date/time stamped log of previous
lock events.
BURGLARY CONTROL PANEL = Provides local
alarm and remote communication to request security
for burglary/break-in. A PDLN4100 / PDLN4500 relay
output used for Ambush can provide a silent alarm
and call-for-help (for locks equipped with an internal
relay).
CLOCK
 REAL TIME CLOCK = An accurate built-in clock
that allows date/time stamping of events.
clock can be slowed or speeded up to fine tune
long term accuracy to within three minutes per
year (see Functions 43 and 44).
 CLOCK SPEED = The clock can be adjusted to
allow faster/slower
increasing clock accuracy (see Functions 43 and
44).
CODE = Numeric sequence of numbers (such as:
1234) entered at the keypad.
required, must be followed by a : key.
 AMBUSH CODE = See Ambush.
 BASIC USER CODE = User Codes assigned to
User Numbers 12+ (except Users 297-300).
(Does not allow programming)
 INSTALLER CODE = User Codes assigned to
User Numbers 2 and 3. (Allows all programming
except Master functions).
 INVALID CODE = A numeric sequence of num-
bers entered via the keypad buttons that have not
been programmed in the lock.
 MANAGER CODE = User Codes assigned to
User Numbers 4 through 6. (Allows most of the
programming functions).
 MASTER CODE = User Code assigned to User
Number 1.
123456. The User with the Master Code has
complete control of the lock.
 QUICK ENABLE USER 300 CODE = Refers to
the User Code entered by User 297 which (when
entered at the keypad) enables the User Code
assigned to User 300 for one time only.
 SERVICE CODE = User 300 User Code. Allows
only one entry, then needs to be re-enabled by the
User 297 User Code to regain access.
40
speeds and
If Star-Enter key is
Default (factory) Master Code is

Glossary

 SUPERVISOR CODE = User Codes assigned to
Users 7, 8 and 9. Can only program day-to-day
operation.
 USER CODE = Code used by Users. Code is 3
to 6 numeric digits long, allowing controlled entry.
 VALID CODE = A numeric sequence of num-
bers entered via the keypad buttons that have
been programmed in the lock and identified by the
lock as a User Code.
CREDENTIAL = A generic word used to indicate User
Code, a proximity card, proximity keyfob (such as a
ProxKey® keyfob), a hardwired Remote Input mo-
mentary contact, a Wireless Remote Release, or any
future device or design that allows the lock to unlock,
allowing passage through the door.
DATE = Month, Day and Year entered as MMDDYY.
DAY OF WEEK = Sunday through Saturday (where 1
The
= Sunday and 7 = Saturday).
DEFAULT = Default settings are the original settings that
were set at the factory (it is the lock's original factory
condition when the lock was first taken out of its box).
The default settings are permanently encoded within
therefore
the lock's fixed memory, and when the lock is first
started, or when power is removed and re-applied
(see Wiring and Power-Up, page 14), the original
factory default settings are re-loaded and take effect.
DISABLE = Turn off.
DOWNLOAD
PDLN4500.
EMERGENCY COMMANDS = For use with the Trilogy
Networx™ wireless network only.
mands can be sent to all wireless locking devices in
an Account during a crisis or other urgent situation.
"Global Lock Down" locks all doors in the Account;
"Global Passage" unlocks all doors in the Account;
Return all devices in the Account to "normal" discon-
tinues
"normal" non-emergency operation.
Windows does not need to be running to allow these
"Emergency" commands to be initiated; any wireless
keypad can be used to disseminate these commands
throughout the wireless system.
EMERGENCY GROUP = Upon the addition of each
Gateway (see page 4) into an Account, the Gateway
is automatically placed into an Emergency Group
("GROUP A" by default). This is done so that upon
the initiation of an Emergency Command, ALL Gate-
ways in the Emergency Group (and their assigned
locks) will respond to Emergency Commands issued
from DL-Windows. In addition, the automatic place-
ment of a new Gateway into an Emergency Group
allows for keypad-initiated Emergency Commands to
lock down an entire system from a single wireless
lock. See OI383 for more information.
= Send data to the PDLN4100 /
all emergency commands,
Wireless com-
reverting to
Note: DL-
