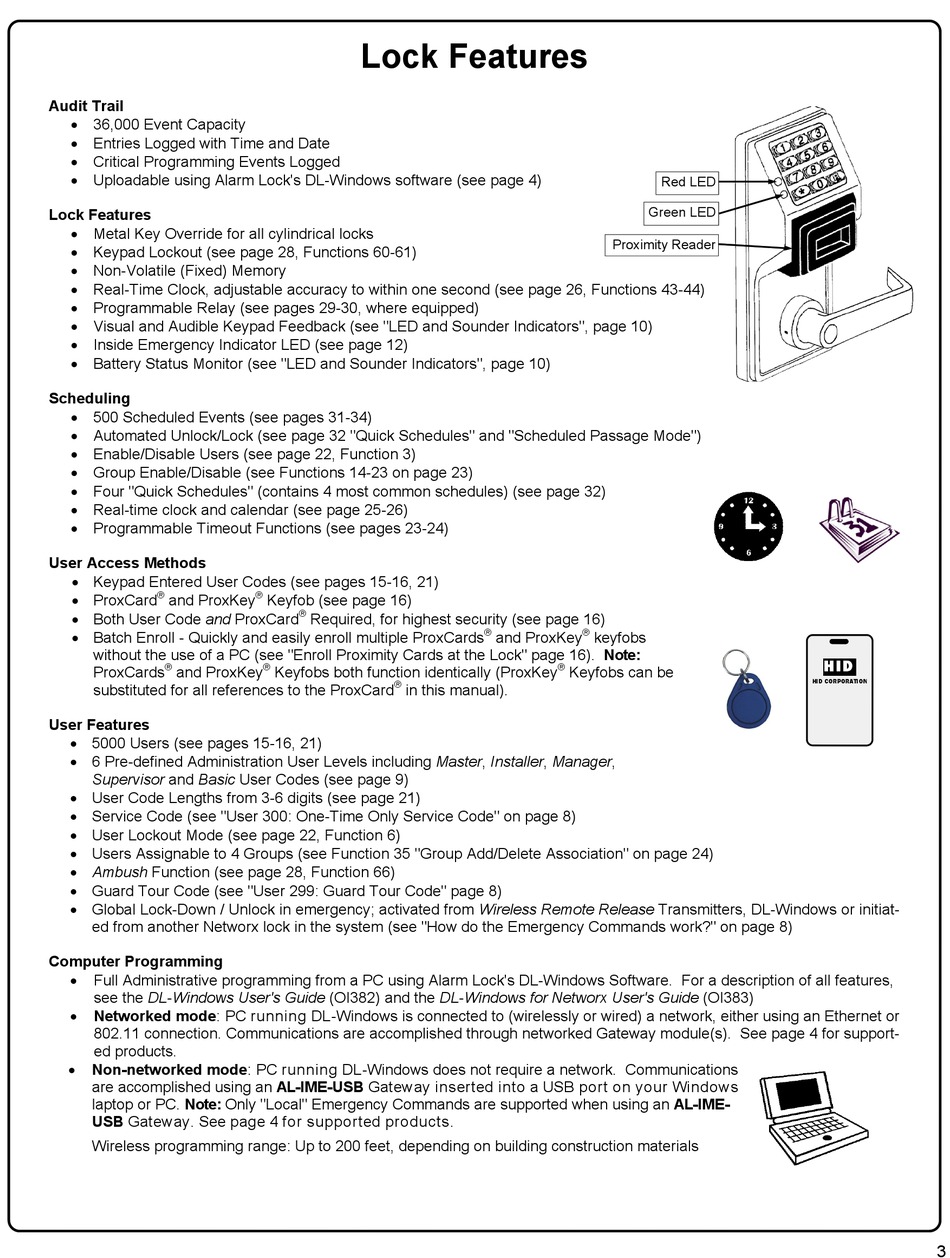

Lock Features - Alarm Lock Wireless Networx PDLN4100 Programming Instructions Manual

Audit Trail
 36,000 Event Capacity
 Entries Logged with Time and Date
 Critical Programming Events Logged
 Uploadable using Alarm Lock's DL-Windows software (see page 4)

Lock Features

 Metal Key Override for all cylindrical locks
 Keypad Lockout (see page 28, Functions 60-61)
 Non-Volatile (Fixed) Memory
 Real-Time Clock, adjustable accuracy to within one second (see page 26, Functions 43-44)
 Programmable Relay (see pages 29-30, where equipped)
 Visual and Audible Keypad Feedback (see "LED and Sounder Indicators", page 10)
 Inside Emergency Indicator LED (see page 12)
 Battery Status Monitor (see "LED and Sounder Indicators", page 10)
Scheduling
 500 Scheduled Events (see pages 31-34)
 Automated Unlock/Lock (see page 32 "Quick Schedules" and "Scheduled Passage Mode")
 Enable/Disable Users (see page 22, Function 3)
 Group Enable/Disable (see Functions 14-23 on page 23)
 Four "Quick Schedules" (contains 4 most common schedules) (see page 32)
 Real-time clock and calendar (see page 25-26)
 Programmable Timeout Functions (see pages 23-24)
User Access Methods
 Keypad Entered User Codes (see pages 15-16, 21)
®
 ProxCard
and ProxKey
 Both User Code and ProxCard
 Batch Enroll - Quickly and easily enroll multiple ProxCards
without the use of a PC (see "Enroll Proximity Cards at the Lock" page 16). Note:
®
ProxCards and ProxKey
substituted for all references to the ProxCard
User Features
 5000 Users (see pages 15-16, 21)
 6 Pre-defined Administration User Levels including Master, Installer, Manager,
Supervisor and Basic User Codes (see page 9)
 User Code Lengths from 3-6 digits (see page 21)
 Service Code (see "User 300: One-Time Only Service Code" on page 8)
 User Lockout Mode (see page 22, Function 6)
 Users Assignable to 4 Groups (see Function 35 "Group Add/Delete Association" on page 24)
 Ambush Function (see page 28, Function 66)
 Guard Tour Code (see "User 299: Guard Tour Code" page 8)
 Global Lock-Down / Unlock in emergency; activated from Wireless Remote Release Transmitters, DL-Windows or initiat-
ed from another Networx lock in the system (see "How do the Emergency Commands work?" on page 8)
Computer Programming
 Full Administrative programming from a PC using Alarm Lock's DL-Windows Software. For a description of all features,
see the DL-Windows User's Guide (OI382) and the DL-Windows for Networx User's Guide (OI383)
 Networked mode: PC running DL-Windows is connected to (wirelessly or wired) a network, either using an Ethernet or
802.11 connection. Communications are accomplished through networked Gateway module(s). See page 4 for support-
ed products.
 Non-networked mode: PC running DL-Windows does not require a network. Communications
are accomplished using an AL-IME-USB Gateway inserted into a USB port on your Windows
laptop or PC. Note: Only "Local" Emergency Commands are supported when using an AL-IME-
USB Gateway. See page 4 for supported products.
Wireless programming range: Up to 200 feet, depending on building construction materials
Lock Features
®
Keyfob (see page 16)
®
Required, for highest security (see page 16)
®
Keyfobs both function identically (ProxKey
®
in this manual).
Red LED
Green LED
Proximity Reader
® ®
and ProxKey keyfobs
®
Keyfobs can be
H I D
HID CORPORATION
3
