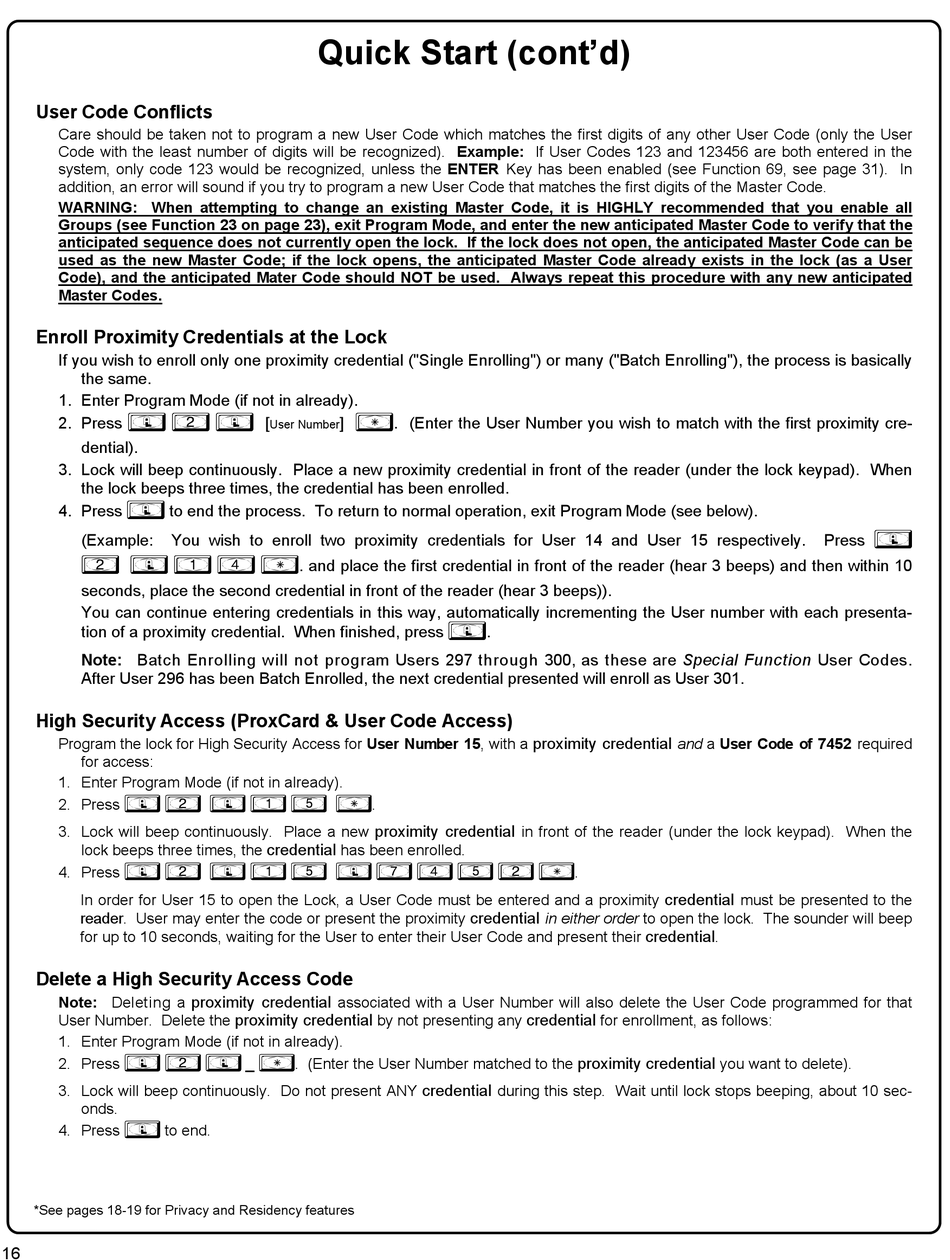

Alarm Lock Wireless Networx PDLN4100 Programming Instructions Manual page 16

User Code Conflicts
Care should be taken not to program a new User Code which matches the first digits of any other User Code (only the User
Code with the least number of digits will be recognized). Example: If User Codes 123 and 123456 are both entered in the
system, only code 123 would be recognized, unless the ENTER Key has been enabled (see Function 69, see page 31). In
addition, an error will sound if you try to program a new User Code that matches the first digits of the Master Code.
WARNING: When attempting to change an existing Master Code, it is HIGHLY recommended that you enable all
Groups (see Function 23 on page 23), exit Program Mode, and enter the new anticipated Master Code to verify that the
anticipated sequence does not currently open the lock. If the lock does not open, the anticipated Master Code can be
used as the new Master Code; if the lock opens, the anticipated Master Code already exists in the lock (as a User
Code), and the anticipated Mater Code should NOT be used. Always repeat this procedure with any new anticipated
Master Codes.
Enroll Proximity Credentials at the Lock
If you wish to enroll only one proximity credential ("Single Enrolling") or many ("Batch Enrolling"), the process is basically
the same.
1. Enter Program Mode (if not in already).
2. Press ; 2 ; [
dential).
3. Lock will beep continuously. Place a new proximity credential in front of the reader (under the lock keypad). When
the lock beeps three times, the credential has been enrolled.
4. Press ; to end the process. To return to normal operation, exit Program Mode (see below).
(Example: You wish to enroll two proximity credentials for User 14 and User 15 respectively.
2 ; 1 4 :. and place the first credential in front of the reader (hear 3 beeps) and then within 10
seconds, place the second credential in front of the reader (hear 3 beeps)).
You can continue entering credentials in this way, automatically incrementing the User number with each presenta-
tion of a proximity credential. When finished, press ;.
Note: Batch Enrolling will not program Users 297 through 300, as these are Special Function User Codes.
After User 296 has been Batch Enrolled, the next credential presented will enroll as User 301.
High Security Access (ProxCard & User Code Access)
Program the lock for High Security Access for User Number 15, with a
for access:
1. Enter Program Mode (if not in already).
2. Press ; 2 ; 1 5 :.
3. Lock will beep continuously. Place a new
lock beeps three times, the
4. Press ; 2 ; 1 5 ; 7 4 5 2 :.
In order for User 15 to open the Lock, a User Code must be entered and a proximity
reader . User may enter the code or present the proximity credential in either order to open the lock. The sounder will beep
for up to 10 seconds, waiting for the User to enter their User Code and present their
Delete a High Security Access Code
Note: Deleting a
User Number. Delete the
1. Enter Program Mode (if not in already).
2. Press ; 2 ; _ :. (Enter the User Number matched to the
3. Lock will beep continuously. Do not present ANY
onds.
4. Press ; to end.
*See pages 18-19 for Privacy and Residency features
16
Quick Start (cont'd)
] :. (Enter the User Number you wish to match with the first proximity cre-
User Number
credential
has been enrolled.
proximity credential
associated with a User Number will also delete the User Code programmed for that
proximity credential
proximity credential
proximity credential in front of the reader (under the lock keypad). When the
credential
by not presenting any
credential
during this step. Wait until lock stops beeping, about 10 sec-
and a User Code of 7452 required
credential must be presented to the
credential
.
for enrollment, as follows:
proximity credential
you want to delete).
Press ;
