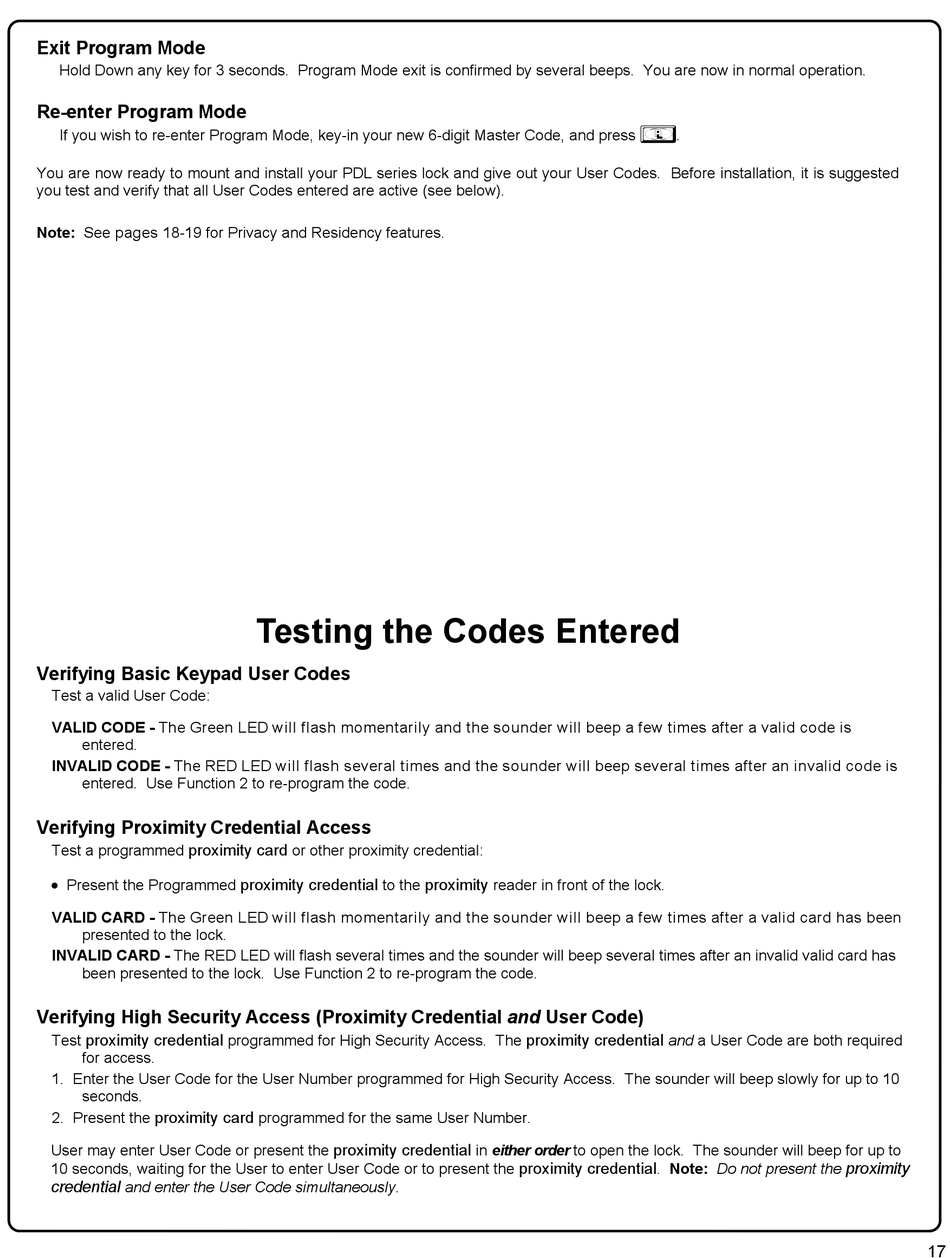

Exit Program Mode

Hold Down any key for 3 seconds. Program Mode exit is confirmed by several beeps. You are now in normal operation.

Re-enter Program Mode

If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;.

You are now ready to mount and install your PDL series lock and give out your User Codes. Before installation, it is suggested

you test and verify that all User Codes entered are active (see below).

Note: See pages 18-19 for Privacy and Residency features.

Verifying Basic Keypad User Codes

Test a valid User Code:

VALID CODE - The Green LED will flash momentarily and the sounder will beep a few times after a valid code is

entered.

INVALID CODE - The RED LED will flash several times and the sounder will beep several times after an invalid code is

entered. Use Function 2 to re-program the code.

Verifying Proximity Credential Access

proximity card

Test a programmed



Present the Programmed

VALID CARD - The Green LED will flash momentarily and the sounder will beep a few times after a valid card has been

presented to the lock.

INVALID CARD - The RED LED will flash several times and the sounder will beep several times after an invalid valid card has

been presented to the lock. Use Function 2 to re-program the code.

Verifying High Security Access (Proximity Credential and User Code)

Test

proximity credential

for access.

1. Enter the User Code for the User Number programmed for High Security Access. The sounder will beep slowly for up to 10

seconds.

proximity card

2. Present the

User may enter User Code or present the

10 seconds, waiting for the User to enter User Code or to present the

credential

and enter the User Code simultaneously.
