Summary of Contents for Alarm Lock 4100

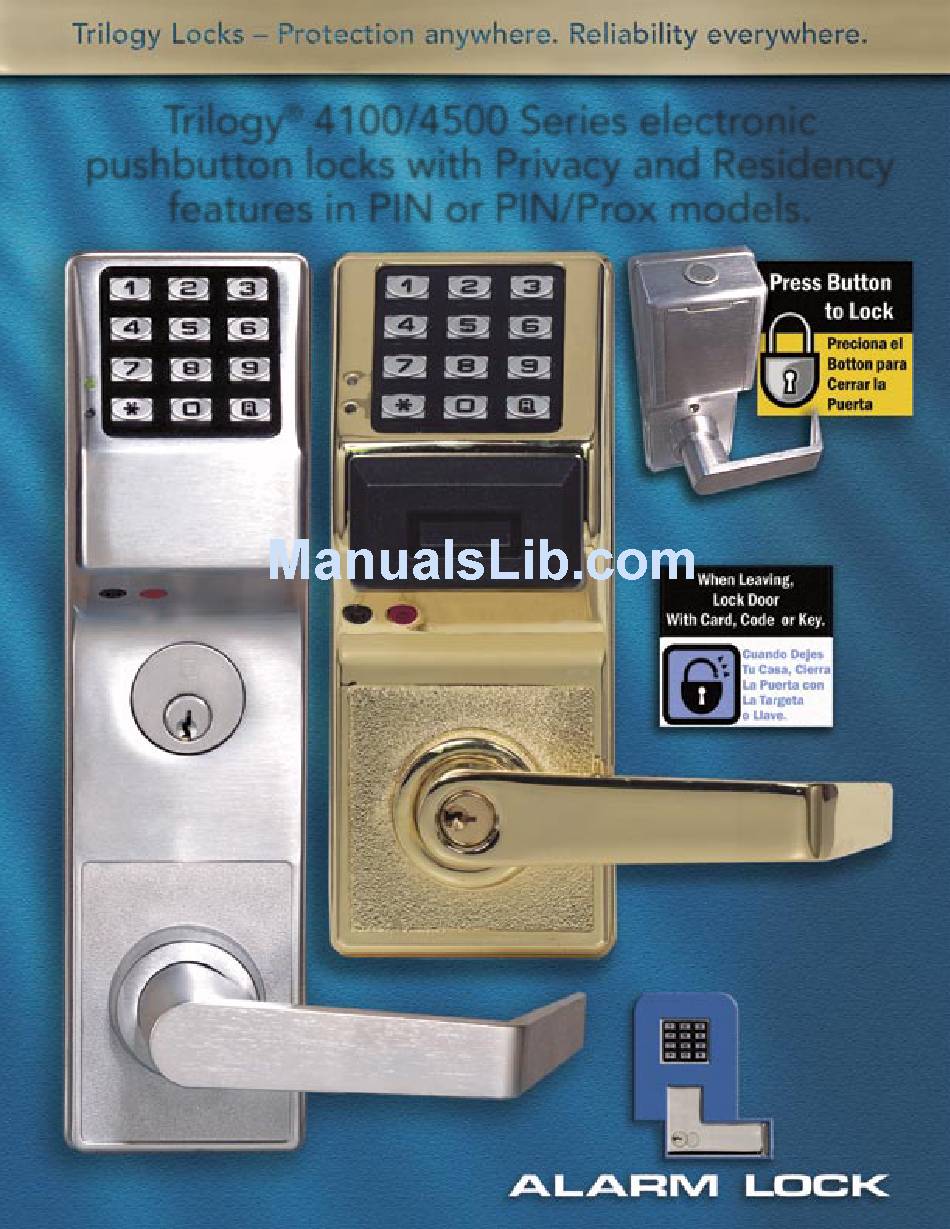

Page 1
Trilogy 4100/4500 Series electronic ® pushbutton locks with Privacy and Residency features in PIN or PIN/Prox models.
Page 2
Privacy and • Field-proven, standalone rugged keyless locks with vandal-proof, all- No wiring; long-life metal keypad residency features battery operation. (Key override with IC core option.) have been added • “Privacy” feature ideal for bathrooms, dressing rooms, etc. With the push of a button on the back of the lock (inner to Trilogy, the door), the lock cannot be opened...
Page 3
larm Lock,the leader in electronic pushbutton During any privacy-session, the red standalone locks, introduces Trilogy Electronic LED on the outer, keypad-side of ® Digital Privacy Locks. The 4100 and 4500 the door will flash to indicate that Series, in cylindrical and mortise lock styles, the room is occupied.
Page 4
4100 Cylindrical Specifications 4500 Mortise Specifications Operation: Operation: Authorized digital code or prox technology ID allows Authorized digital code or prox technology ID (e.g HID lever to retract latch. Inside lever is always in passage mode and card) enables outside lever to retract latchbolt, deadlocking latch and permits instant egress.
Page 5
Trilogy provides a simple solution to implementing HIPAA regulations and securing private health information records with the minumum effort and fuss – guaranteed. For all those who handle patient records: Are they secure around the clock? Who accessed them, when? Effective with April 2004’s deadline, those who access these files must be logged for later reference.
Page 6
– all on just one serial port. 9V Battery operation. Right-hand Reverse (RHR) Use Trilogy P/DL4500L OUTSIDE ® NAPCO Security Group, 345 Bayview Ave, Amityville, New York 11701 • 1-800-ALA-LOCK • Fax 631-789-3383 • www.alarmlock.com...
