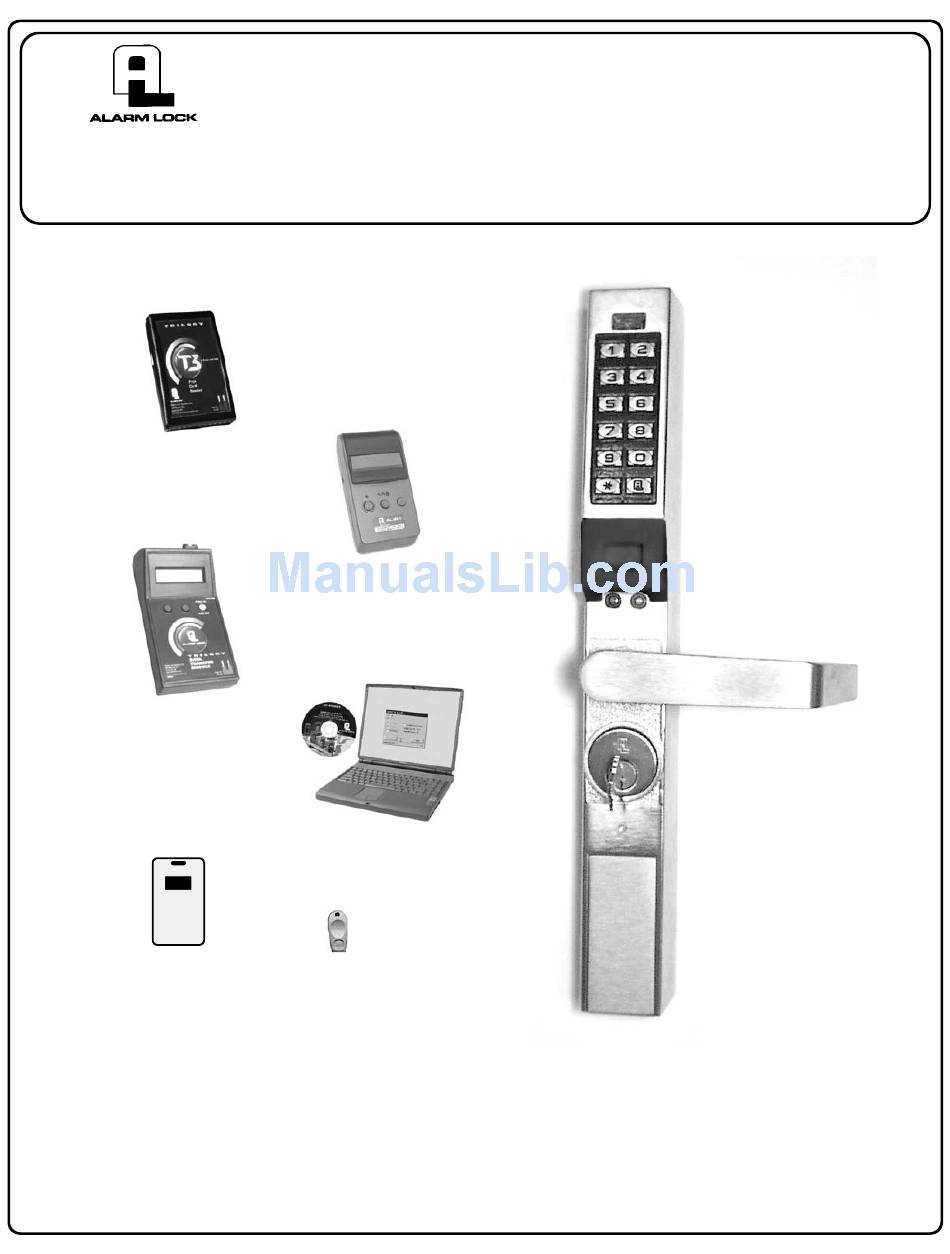

PDL1300

Programming Instructions

345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ
Symbol: NSSC
© ALARM LOCK 2007
OI312A 6/07
®
AL-PRE PROXCARD
READER / ENROLLER
AL-IR1 PRINTER
AL-DTM
DATA TRANSFER
MODULE
DL-WINDOWS PROGRAMMING
SOFTWARE
H I D
HID CORPORATION
®
PROXCARD
®
PROXKEY
KEYFOB

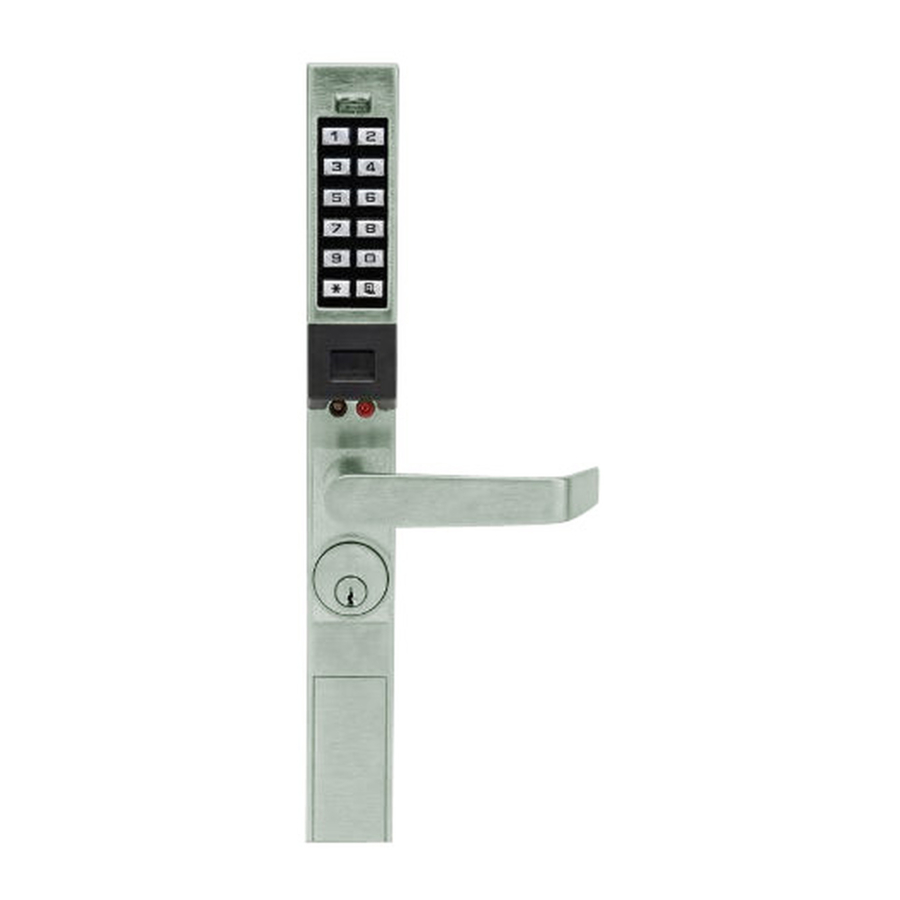

PDL1300
PDL Trilogy Series
Stand-Alone Access Control Systems
with ProxCard
Access
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDL1300 and is the answer not in the manual?

Questions and answers

Nicole
June 9, 2025

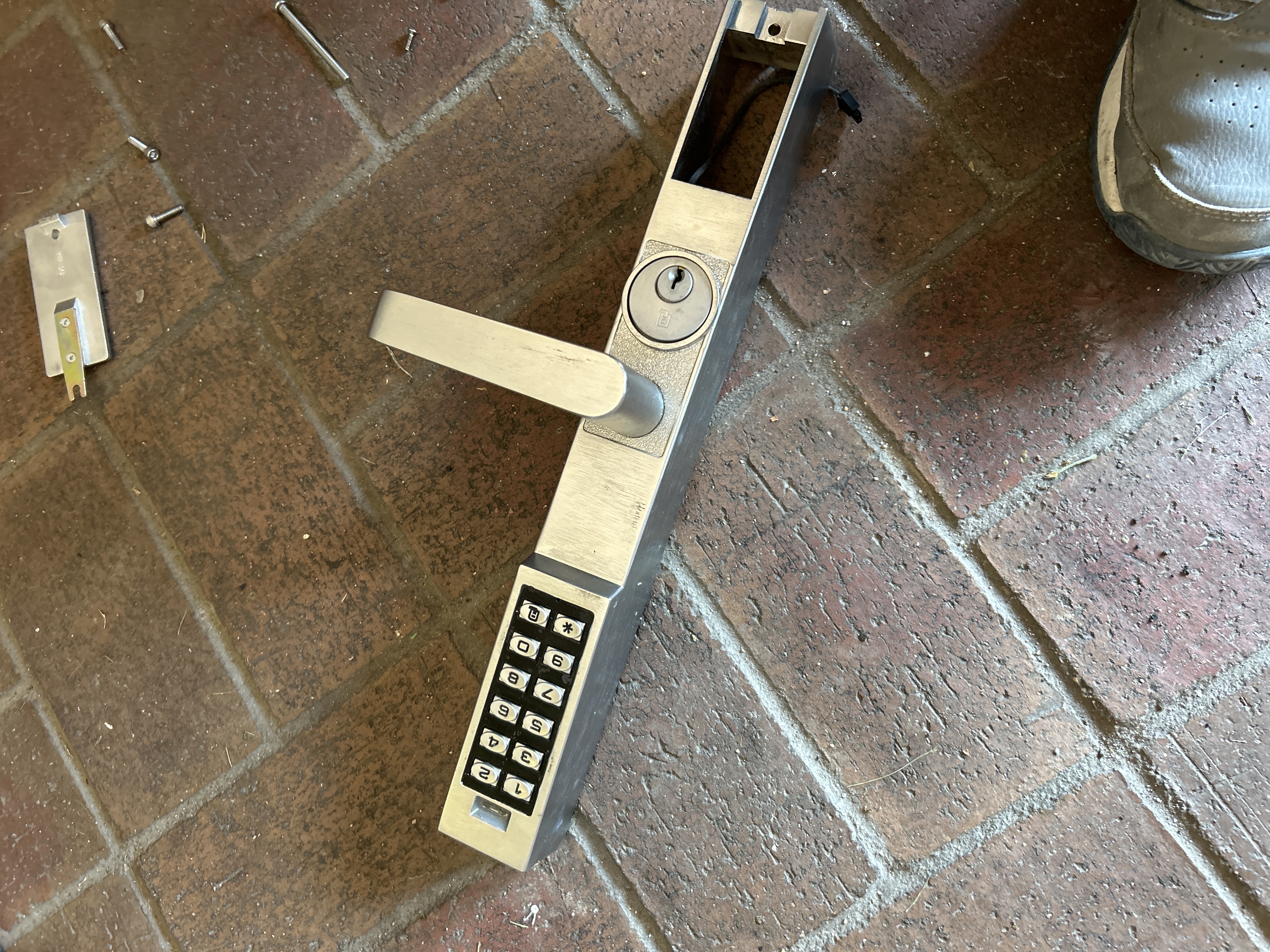

How do I change the door code on my keypad

User image 68475be4c9f95
0

Subscribe to Our Youtube Channel

Related Manuals for Alarm Lock PDL1300

Summary of Contents for Alarm Lock PDL1300

  • Page 1: Programming Instructions

    Programming Instructions 345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2007 OI312A 6/07 ® AL-PRE PROXCARD READER / ENROLLER AL-IR1 PRINTER AL-DTM DATA TRANSFER...

  • Page 2: Table Of Contents

    NTRY AND ROXIMITY ECURITY PDL1300 Your new PDL1300 Alarm Lock Trilogy electronic digital lock is a mortise-based ® manually programmable narrow stile entry trim for Adams Rite 4710, 4730 and 4900 deadlatch locks, and 1850, 1950, 4070, MS1850S and MS1950S series deadbolts for narrow stile aluminum doors*.

  • Page 3: Audit Trail

    User Lockout Mode (see page 17, Function 6) • Users Assignable to 4 Groups (see page 28) Keypad and Computer Programming • All programming may be performed manually from the keypad, or from a PC using Alarm Lock's DL- Windows Software (see page 5)

  • Page 4: Supported Products

    Corporation. AL-PCI Cable An ALARM LOCK AL-PCI cable is required to communicate between your computer’s RS-232 serial com- munications port (COM 1-4) and the AL-DTM or lock. One end of the AL-PCI cable is designed to be used on a 9-pin serial Com Port. If your computer has a 25-pin Com Port only, a 25-pin to 9-pin adapter must be used.

  • Page 5: Lock Design Overview

    The answer lies in the advantage of software. Software (also called "firmware") is not "hard" or "fixed" like hardware is. Software is "soft" -- flexible and changeable to your needs. Software exists inside your Alarm Lock™ series lock, and can be programmed (and re-programmed again and again) to suit your changing requirements.

  • Page 6: Terminology Used In This Manual

    Terminology Used in this Manual What is a Lock Program? What is a Programming Level? A Lock Program contains the instructions that a lock uses to per- The Programming Level defines the range of programming tasks a form its various functions. You can use the keypad to create a User is allowed to perform.
  • Page 7 DL-Windows is a computer program that allows you to program enter the User 297 User Code and the User 300 User Code will your ALARM LOCK T3 Security Lock. You do not need DL- be re-enabled (again for one time only).

  • Page 8: Programming Levels

    Programming Levels The Programming Level defines the range of programming (Abbreviated as Programming Level = 4). tasks a User is allowed to perform. The higher the Level, the Manager: Always associated with Users 4, 5, and 6. Can more programming tasks the User is allowed (with Master program all functions except functions relating to lock allowing ALL tasks).

  • Page 9: Conventions Used In This Manual

    Conventions Used in this Manual Enabling/Disabling Users (By User Number) Minimum Required Program Level User Number must be between 2 and 2000. Program Levels are abbreviated as follows: NOTE: Will Enable/Disable users even if the user is associated with an enabled group. Function M = Master Description...

  • Page 10: Product Communication Examples

    Product Communication Examples Send to lock Receive from lock If your computer does not have a serial COM port AL-PCI CABLE (DB-9 male) available, you can plug your AL-PCI2 CONNECT TO SERIAL PORT (COM 1-4) cable into a special USB to RS-232 cable. Order part PCI-USB for the USB to RS-232 cable only, or ALPCI2-U for...

  • Page 11: Wiring And Power Up

    Wiring and Power Up WIRING 1. Enter the current Master Code (if not known, proceed directly to ALTERNATIVE METHOD, below). Wait for See the Installation Manual for more information. the green light and press ; until multiple beeps are Batteries: heard.

  • Page 12: Quick Start

    Quick Start First Time Start Up 1. Unpack the lock. 2. With the batteries disconnected, hold down the ; key for 10 seconds and release. 3. Connect the batteries and listen for 3 beeps. 4. Wait 15 seconds, and listen for 6 additional beeps (LED will flash twice). The lock is ready to program when it unlocks.
  • Page 13 Quick Start (cont’d) Program the lock by pressing: ; 2 ; 21 ; 232323 :). 3. Repeat step 2 for each new user. Delete a User Code 1. Enter Program Mode (if not in already). 2. Press ; 2 ; [User Number] :. The lock will flash a green LED and beep continuously for 6 seconds.

  • Page 14: Testing The Codes Entered

    Delete a High Security Access Code Note: Deleting a ProxCard associated with a User number will also delete the User Code programmed for that User Number. Delete the ProxCard by not presenting any card for enrollment, as follows: 1. Enter Program Mode (if not in already). 2.

  • Page 15: Programming Functions Overview

    Programming Functions--Overview Function 1 Change Master Code See page 16 Function 48 Enable Passage Mode See page 22 See page 16 Function 2 Add/Delete/Change User Codes Function 49 Disable Passage Mode See page 22 See page 17 Function 3 User Disable (By User Number) See page 22 Function 50 Return Lock to Normal Passage...

  • Page 16: Programming Functions

    Programming Functions USERS 1. New Master Code [ _ _ _ _ _ _ ] [ _ _ _ _ _ _ ] (User Number 1) (New Master Code) (Confirm New Master Code) • Master Code must be 6 digits-only. •...
  • Page 17 Programming Functions (cont'd) USERS (Continued) User Enable/Disable (By User Number) • User Number must be between 2 and 2000. NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Feature 3 to disable a specific User Number and their associated User Code.
  • Page 18 Programming Functions (cont'd) CLEAR FUNCTIONS 12. Clear All Schedules and Timeout Functions ; 1 2 ; 0 0 0 : Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions 5, 25 through 34 and Function 47.
  • Page 19 Programming Functions (cont'd) NOTE: Clear All Timeout Functions by entering Function 13. GROUPS Group Enable/Disable with Timeout (Enter Timeout, XXX Hours) (Functions 25-34 are enabled through the keypad only) • Hours must be between 1-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours. NOTE: Only 4 Timeout Functions are allowed at any one time.
  • Page 20 Programming Functions (cont'd) CLOCK SETTINGS 38. Set Date [ _ _ _ _ _ _ ] ; 3 8 (Date) • Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero. •...
  • Page 21 Programming Functions (cont'd) CLOCK ADJUST Clock Adjust Number of seconds to adjust (speed up/slow down) the clock each day must be be- tween 0-55 seconds. Note: Repeated use of these Functions are not "cumulative" (this means, for example, if the clock has already been set to speed up 10 seconds per day, and then is found to Clock Accuracy need an additional 10 seconds, then program 20 seconds using Function 43).
  • Page 22 Programming Functions (cont'd) PERMANENT PASSAGE MODE Passage Mode Enable/Disable - Schedule will not Override • Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function 49. • Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required that programmed schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46.
  • Page 23 Programming Functions (cont'd) PRINTER Hold the printer's infrared reader in front of the lock’s infrared LED as shown in Figure 1 and Figure 2 below. If the printer has been idle for some time, press the paper feed button to wake up the printer. Infrared Infrared Infrared...
  • Page 24 Programming Functions (cont'd) LOCKOUT 60. Number of Attempts Before Lockout [ _ ] ; 6 0 (Number of Attempts) • Number of attempts before lockout must be 1-9 attempts. • The number of attempts is reduced by half every time the keypad is locked out without a successful code entry (default is 6 attempts).

  • Page 25: Enter Key

    Programming Functions (cont'd) ENTER KEY Enter Key • When this function is enabled, the User must press after any valid User Code entry. Therefore, this Function allows User Codes to be subsets of other User Codes. Examples: 1 2 3 : can be a valid user code; 1 2 3 4 : can be a valid user code within the same lock.
  • Page 26 Programming Functions (cont'd) QUICK SCHEDULES Quick Schedules - Enable Group For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their User Codes into the keypad to unlock the lock.
  • Page 27 Programming Functions (cont'd) Scheduled Group 4 Enable (Group 1 Activated) Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered within this window, Group 4 members will be enabled. (Group 4 members will still need to enter their User Codes to enter). For additional information, see Group 1 Activated Features on page 28.

  • Page 28: Groups And Scheduled Group 1 Examples

    The following examples detail the more advanced features of the PDL series locks. Although all features and device functions can be programmed using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock security lock.
  • Page 29 Groups and Scheduled Group 1 Examples (cont'd.) Functions 92/93: Use Function 92 and 93 (see page 27) to create a window of time where if any Group 1 User Code is entered within the programmed window, Group 4 Users will be enabled. Note: Disabling Group 1 will not prevent this function from executing if any Group 1 mem- ber is also a member of Group 2 or 3.

  • Page 30: Programming Record Sheet

    Default Values are shown in parentheses. Function Function Name Programming Number(s) 43/44 Clock Adjust 0-55 Seconds 52/53/54 Pass Time (3 sec) 10 sec 15 sec Set Lockout Attempts 1-9 Attempts Set Lockout Time 1-60 seconds 69/70 Enter Key Enable (Disable)

  • Page 31: User Code Record Sheet

    User Number User Code Group User Name (1-2000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from either the remote printer (Program Function 56) or using the DL-WINDOWS Software.
  • Page 32 User Number User Code Group User Name (1-2000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from either the remote printer (Program Function 56) or using the DL-WINDOWS Software.

  • Page 33: Schedule Record Sheet

    Day(s) Up to 500 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week Enter time of day in 24-hour format (00:00- 23:59)
  • Page 34 Day(s) Up to 500 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week Enter time of day in 24-hour format (00:00- 23:59)

  • Page 35: Glossary

    Glossary ACCESS = Entry into a restricted area. DISABLE = Turn off. AUDIT TRAIL = A date/time stamped log of previous lock events. DOOR NUMBER = Identification of each door with a specific number. (Used with AL-DTM Transfer Module) CLOCK DOWNLOAD = Send data to lock or AL-DTM.

  • Page 36: Warranty

    ALARM LOCK is not an insurer of either the property or safety of the user's family or employees, and limits its liability for any loss or damage including incidental or consequential damages to ALARM LOCK's original selling price of the product regardless of the cause of such loss or damage.
