WIRING
See the Installation Manual for more information.
Batteries:
Use four 1.5 volt size-C batteries (Alkaline only) or an
Alarm Lock pre-wired battery pack assembly.
External Power:
Red / Black wires - External 7.5 VDC Power Source
must be used for operation without batteries.
Remote Input:
White / White wires - For Remote Release functionali-
ty, wire a Normally Open Contact to wires. Momen-
tarily close the contact to allow person to pass through
door.
NOTE: Remote Input is enabled from the factory.
(See Functions 64 and 65)
Relay (where equipped):
COM-Orange / NO-Green / NC-Yellow - See Function
67 for the relay programming features.
Wiring to Disarm a Burglary Control Panel
Burglary Control Panel wiring. See page 33.
POWER UP
First Time Start Up
1. Unpack the lock from its factory packaging.
2. With the batteries disconnected, hold down the
key for 10 seconds and release.
3. Connect the batteries and listen for 3 beeps;
immediately press and hold
gins, release the
Important: If you do not hear these 3 beeps, you
must start over at step 2.
4. The lock will continue to beep and flash the red LED
while residual programmed data clears and the lock
initializes.
A final 2 beep/green flash sequence will
occur, indicating completion of the power up procedure.
Note: This step can take up to 15 seconds. The
lock is now ready to program.
Failure to follow this exact procedure can result in errat-
ic lock behavior.
Power Re-Applied
When power is re-applied to a lock that was already
operational, proceed as follows:
1. Disconnect battery pack connector.
2. With battery power disconnected, press and hold
down
;
for 10 seconds to insure discharge of all
capacitors.
3. Re-connect battery pack (lock will sound 3 short
beeps). If beeps are not heard, then restart at step 1.
4. Do not press any keys for 15 seconds.
5. After 15 seconds, the LED will flash red 6 times and 6
beeps will sound.
The lock is now ready for use. The pre-existing program is
loaded from fixed memory.
Windows or functions 38, 39 and 40.
14

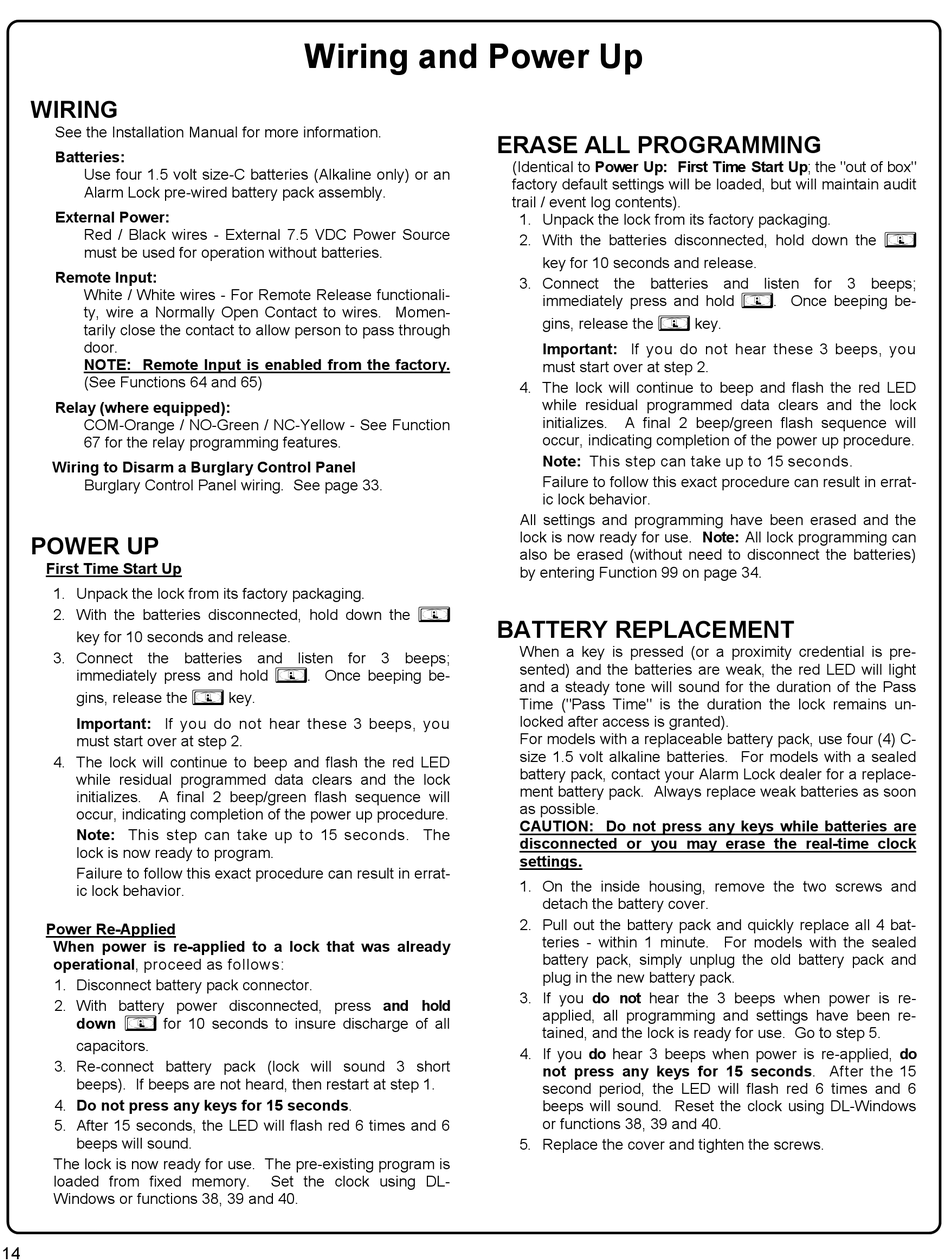

Wiring and Power Up
;
. Once beeping be-
key.
;
Set the clock using DL-
ERASE ALL PROGRAMMING
(Identical to Power Up: First Time Start Up; the "out of box"
factory default settings will be loaded, but will maintain audit
trail / event log contents).
1. Unpack the lock from its factory packaging.
2. With the batteries disconnected, hold down the
key for 10 seconds and release.
3. Connect the batteries and listen for 3 beeps;
immediately press and hold
gins, release the
Important: If you do not hear these 3 beeps, you
must start over at step 2.
4. The lock will continue to beep and flash the red LED
while residual programmed data clears and the lock
initializes.
occur, indicating completion of the power up procedure.
Note: This step can take up to 15 seconds.
Failure to follow this exact procedure can result in errat-
ic lock behavior.
All settings and programming have been erased and the
lock is now ready for use. Note: All lock programming can
also be erased (without need to disconnect the batteries)
by entering Function 99 on page 34.
;
BATTERY REPLACEMENT
When a key is pressed (or a proximity credential is pre-
sented) and the batteries are weak, the red LED will light
and a steady tone will sound for the duration of the Pass
Time ("Pass Time" is the duration the lock remains un-
locked after access is granted).
For models with a replaceable battery pack, use four (4) C-
size 1.5 volt alkaline batteries. For models with a sealed
battery pack, contact your Alarm Lock dealer for a replace-
ment battery pack. Always replace weak batteries as soon
as possible.
CAUTION: Do not press any keys while batteries are
disconnected or you may erase the real-time clock
settings.
1. On the inside housing, remove the two screws and
detach the battery cover.
2. Pull out the battery pack and quickly replace all 4 bat-
teries - within 1 minute. For models with the sealed
battery pack, simply unplug the old battery pack and
plug in the new battery pack.
3. If you do not hear the 3 beeps when power is re-
applied, all programming and settings have been re-
tained, and the lock is ready for use. Go to step 5.
4. If you do hear 3 beeps when power is re-applied, do
not press any keys for 15 seconds. After the 15
second period, the LED will flash red 6 times and 6
beeps will sound. Reset the clock using DL-Windows
or functions 38, 39 and 40.
5. Replace the cover and tighten the screws.
. Once beeping be-
;
;
key.
A final 2 beep/green flash sequence will
;
