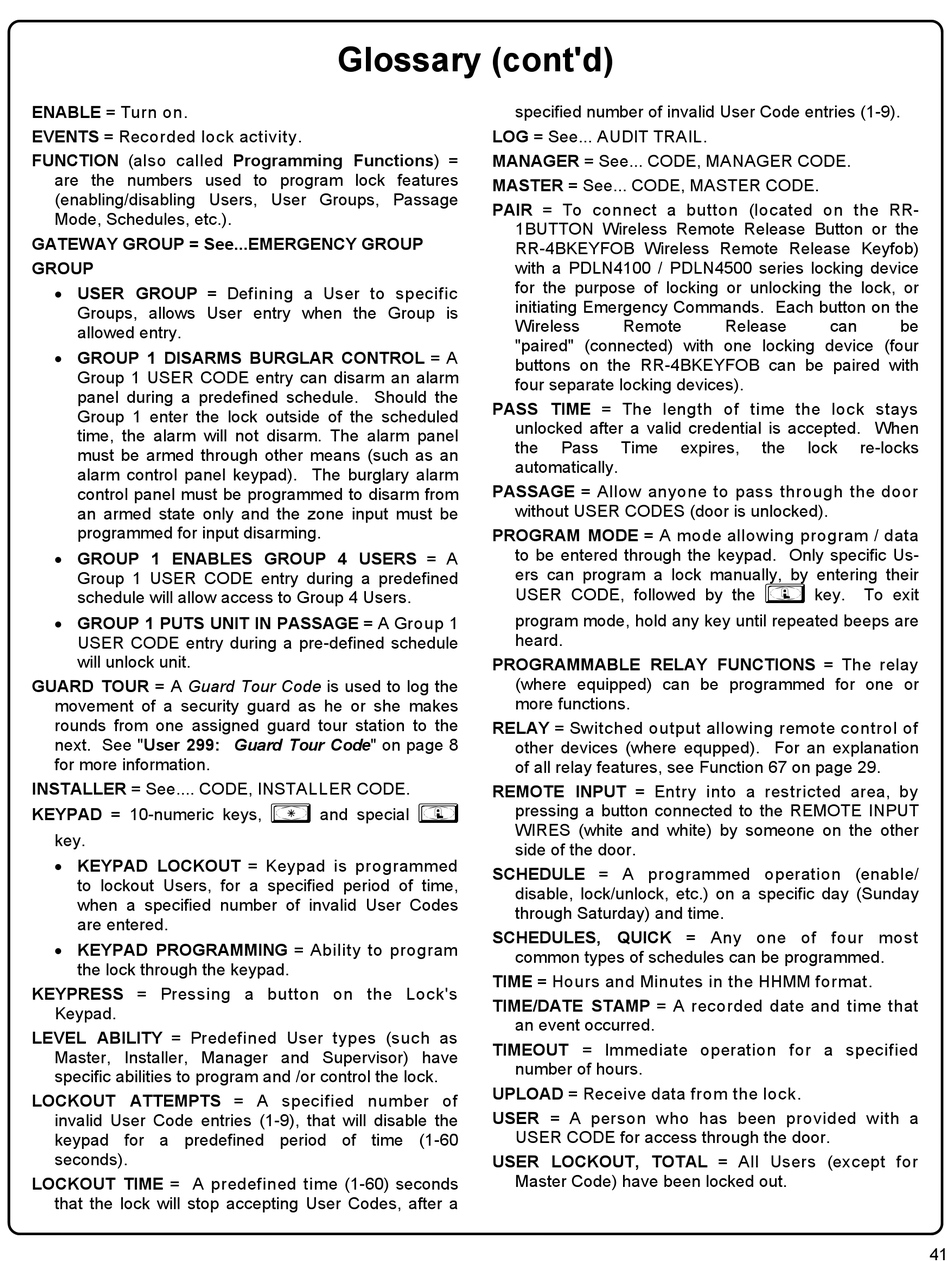

Alarm Lock Wireless Networx PDLN4100 Programming Instructions Manual page 41

ENABLE = Turn on.
EVENTS = Recorded lock activity.
FUNCTION (also called Programming Functions) =
are the numbers used to program lock features
(enabling/disabling Users, User Groups, Passage
Mode, Schedules, etc.).
GATEWAY GROUP = See...EMERGENCY GROUP
GROUP
 USER GROUP = Defining a User to specific
Groups, allows User entry when the Group is
allowed entry.
 GROUP 1 DISARMS BURGLAR CONTROL = A
Group 1 USER CODE entry can disarm an alarm
panel during a predefined schedule. Should the
Group 1 enter the lock outside of the scheduled
time, the alarm will not disarm. The alarm panel
must be armed through other means (such as an
alarm control panel keypad). The burglary alarm
control panel must be programmed to disarm from
an armed state only and the zone input must be
programmed for input disarming.
 GROUP 1 ENABLES GROUP 4 USERS = A
Group 1 USER CODE entry during a predefined
schedule will allow access to Group 4 Users.
 GROUP 1 PUTS UNIT IN PASSAGE = A Group 1
USER CODE entry during a pre-defined schedule
will unlock unit.
GUARD TOUR = A Guard Tour Code is used to log the
movement of a security guard as he or she makes
rounds from one assigned guard tour station to the
next. See "User 299: Guard Tour Code" on page 8
for more information.
INSTALLER = See.... CODE, INSTALLER CODE.
KEYPAD = 10-numeric keys, : and special ;
key.
 KEYPAD LOCKOUT = Keypad is programmed
to lockout Users, for a specified period of time,
when a specified number of invalid User Codes
are entered.
 KEYPAD PROGRAMMING = Ability to program
the lock through the keypad.
KEYPRESS = Pressing a button on the Lock's
Keypad.
LEVEL ABILITY = Predefined User types (such as
Master, Installer, Manager and Supervisor) have
specific abilities to program and /or control the lock.
LOCKOUT ATTEMPTS = A specified number of
invalid User Code entries (1-9), that will disable the
keypad for a predefined period of time (1-60
seconds).
LOCKOUT TIME = A predefined time (1-60) seconds
that the lock will stop accepting User Codes, after a
Glossary (cont'd)
specified number of invalid User Code entries (1-9).
LOG = See... AUDIT TRAIL.
MANAGER = See... CODE, MANAGER CODE.
MASTER = See... CODE, MASTER CODE.
PAIR = To connect a button (located on the RR-
1BUTTON Wireless Remote Release Button or the
RR-4BKEYFOB Wireless Remote Release Keyfob)
with a PDLN4100 / PDLN4500 series locking device
for the purpose of locking or unlocking the lock, or
initiating Emergency Commands. Each button on the
Wireless
"paired" (connected) with one locking device (four
buttons on the RR-4BKEYFOB can be paired with
four separate locking devices).
PASS TIME = The length of time the lock stays
unlocked after a valid credential is accepted. When
the
automatically.
PASSAGE = Allow anyone to pass through the door
without USER CODES (door is unlocked).
PROGRAM MODE = A mode allowing program / data
to be entered through the keypad. Only specific Us-
ers can program a lock manually, by entering their
USER CODE, followed by the ; key.
program mode, hold any key until repeated beeps are
heard.
PROGRAMMABLE RELAY FUNCTIONS = The relay
(where equipped) can be programmed for one or
more functions.
RELAY = Switched output allowing remote control of
other devices (where equpped). For an explanation
of all relay features, see Function 67 on page 29.
REMOTE INPUT = Entry into a restricted area, by
pressing a button connected to the REMOTE INPUT
WIRES (white and white) by someone on the other
side of the door.
SCHEDULE = A programmed operation (enable/
disable, lock/unlock, etc.) on a specific day (Sunday
through Saturday) and time.
SCHEDULES, QUICK = Any one of four most
common types of schedules can be programmed.
TIME = Hours and Minutes in the HHMM format.
TIME/DATE STAMP = A recorded date and time that
an event occurred.
TIMEOUT = Immediate operation for a specified
number of hours.
UPLOAD = Receive data from the lock.
USER = A person who has been provided with a
USER CODE for access through the door.
USER LOCKOUT, TOTAL = All Users (except for
Master Code) have been locked out.
Remote Release
Pass Time expires,
can be
the lock re-locks
To exit
41
