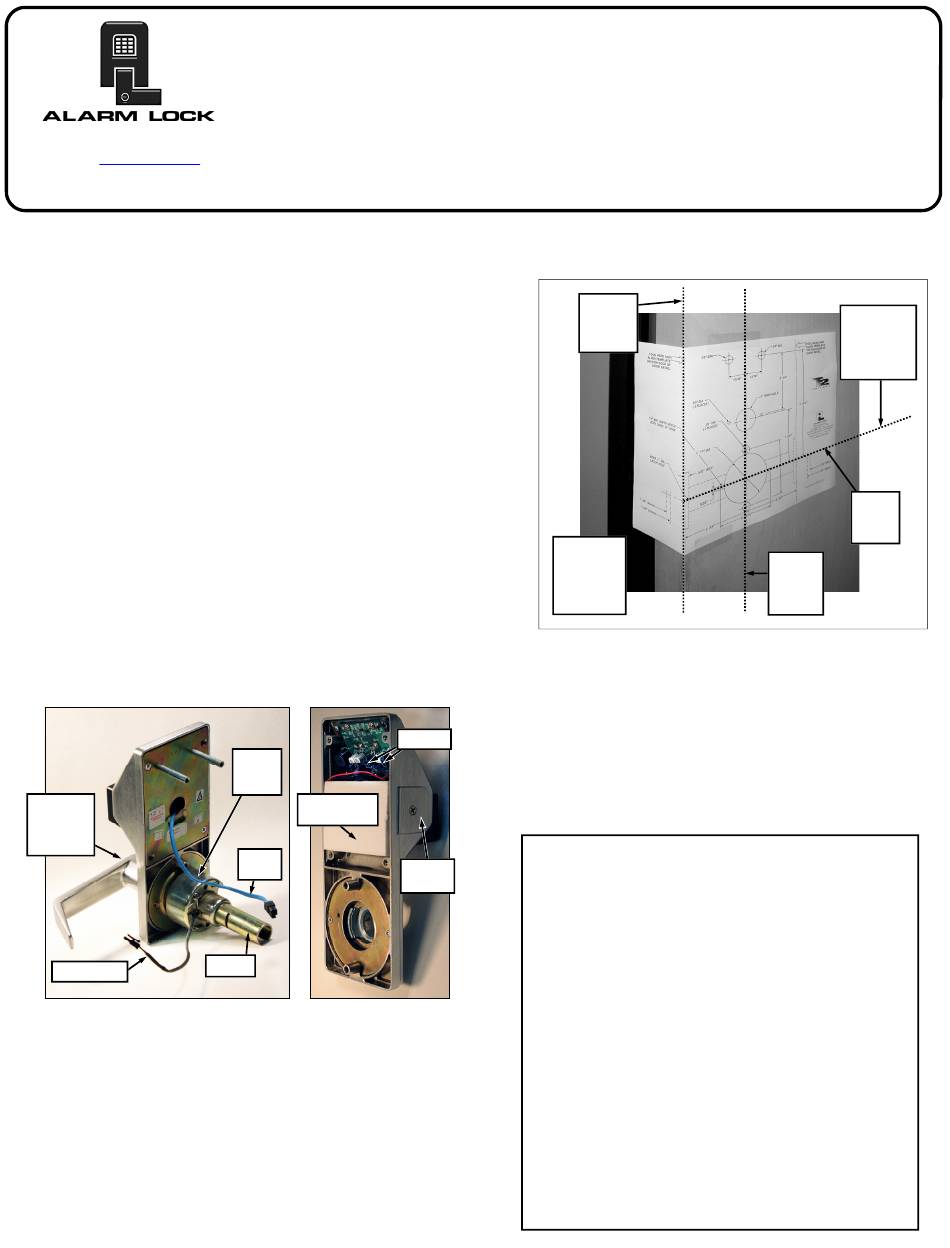

GENERAL DESCRIPTION

This double-sided stand-alone door lock provides con-
trolled entry and exit at locations such as airport security
areas and police stations. The PDL6300 fully supports
Version 2 Gateways and Expanders and features an HID
compatible ProxCard
calendar that automatically adjusts for Daylight Saving
Time and allows for automated programming of events.
Double-Sided Description
Both sides of the lock contain keypads, keyholes, levers
and proximity readers. To differentiate between the two
sides of the lock, these instructions refer to the "Primary"
side and the "Secondary" side. The Primary side has the
Lock Body Housing attached; inserting the metal key into
the Primary side lock cylinder will always unlock the latch,
allowing entry or exit. The Secondary side contains the
battery; inserting the metal key into its lock cylinder will
NEVER unlock the latch. The key inserted into the Sec-
ondary side ONLY allows secure removal / installation of
the Secondary side Lever. Note: To remove the Sec-
ondary side Lever, the metal key must be used to allow
the Lever Catch to be depressed.
METAL KEY
HERE
ALWAYS
UNLOCKS
MOTOR WIRE
"PRIMARY SIDE"
Important: Because the radio antenna is located in
the front of the Primary housing, the lock should be in-
stalled with the Primary side facing the Gateway for the
best radio range.
PDL6300 Installation Instructions
Installation Instructions
®
reader, and a real-time clock/
LOCK
BODY
HOUSING
FOAM BATTERY
HOLDER
4-WIRE
CABLE
SPINDLE
"SECONDARY SIDE"
Trilogy Networx
Double-Sided PDL6300

DOOR PREPARATION

1-3/4" (44MM)
1-3/8" (35MM)
DOOR
THICKNESS
1. Fold and place template on high edge of door at the rec-
ommended height from floor. See Fig. 1.
2. Mark hole centers on door and door edge.
3. Drill 3/8" thru-bolt holes first, then drill 2-1/8" hole.
SOCKETS
For Hardwood Doors:
Notch on both sides of 2-1/8" hole to accommodate
Mounting Plate tabs.
BATTERY
DOOR
GENERAL DESCRIPTION ............................................... 1
DOOR PREPARATION ..................................................... 1
INSTALLATION JIG ....................................................... 2
LATCH INSTALLATION ................................................ 2
STRIKE INSTALLATION ............................................... 2
LOCK PREPARATION ...................................................... 2
ADJUSTING FOR DOOR THICKNESS ....................... 3
TO REVERSE LEVER HANDING ................................ 3
LOCK INSTALLATION ................................................... 3-5
INTERCHANGEABLE (IC) LOCKS ............................... 5
INSTALL INTERCHANGEABLE (IC) CORES ............... 5
CHANGING AN EXISTING IC CORE ............................. 6
REMOVING THE IC CORE & LEVER ............................ 6
PROGRAMMING ........................................................ 6
TROUBLESHOOTING ................................................ 6
WIRE CONNECTIONS ............................................... 7
NAPCO LIMITED WARRANTY ........................................ 8
™
C
L
OF DOOR
EDGE
OR
FIG. 1: FOLD AND PLACE TEMPLATE ON DOOR
MAIN PROCEDURES
WI2294LF 1/18
HORIZONTAL
C
L
OF
LEVER
MARK
HEIGHT
LINE
VERTICAL
C
L
OF
LOCK
