IEI Technology KINO-PVN-D5251 User Manual

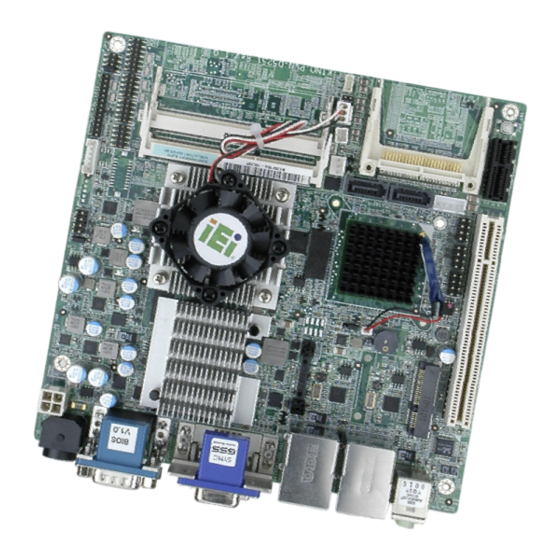

Mini itx sbc with intel atom d525 1.8ghz/1mb l2 cache,. ddr3, vga/ dvi-i dl/ hdmi by nvidia gt218,
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KINO-PVN-D5251/D4251/ Mini ITX SBC
IEI Technology Corp.
MODEL:
KINO-PVN-D5251/D4251
Mini ITX SBC with Intel® Atom™ processor D425/D525
VGA, DVI-DL, HDMI Supported by Nvidia GT218
Dual GbE LAN, Eight USB 2.0, Two SATA 3Gb/s
RS-232, RS-232/422/485, PCIe, PCIe Mini, Audio, RoHS
Rev. 1.01 – 6 July, 2011
User Manual
Page i

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology KINO-PVN-D5251

Summary of Contents for IEI Technology KINO-PVN-D5251

  • Page 1 KINO-PVN-D5251/D4251/ Mini ITX SBC IEI Technology Corp. MODEL: KINO-PVN-D5251/D4251 Mini ITX SBC with Intel® Atom™ processor D425/D525 VGA, DVI-DL, HDMI Supported by Nvidia GT218 Dual GbE LAN, Eight USB 2.0, Two SATA 3Gb/s RS-232, RS-232/422/485, PCIe, PCIe Mini, Audio, RoHS...
  • Page 2 KINO-PVN-D5251/D4251/ Mini ITX SBC Revision Date Version Changes 6 July, 2011 1.01 Added Graphics Driver Installation Reminder to Section 4.10 Software Installation. 28 January, 2011 1.00 Initial release Page ii...
  • Page 3 KINO-PVN-D5251/D4251/ Mini ITX SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    KINO-PVN-D5251/D4251/ Mini ITX SBC Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 C ......................4 ONNECTORS 1.3 D ....................... 5 IMENSIONS 1.4 D ........................ 6 1.5 T ..................7 ECHNICAL PECIFICATIONS 2 UNPACKING ....................... 10 2.1 A ..................11...
  • Page 5 KINO-PVN-D5251/D4251/ Mini ITX SBC 3.2.13 Serial Port Connector (RS-232)..............28 3.2.14 SMBus Connector ..................29 3.2.15 SPI Flash Connector..................30 3.2.16 USB Connectors..................... 30 3.3 E ......... 31 XTERNAL ERIPHERAL NTERFACE ONNECTOR ANEL 3.3.1 Audio Connector ....................32 3.3.2 Ethernet and USB Connector................32 3.3.3 Power Connector .....................
  • Page 6 KINO-PVN-D5251/D4251/ Mini ITX SBC 4.9.5 VGA Monitor Connection ................54 4.9.6 DVI Display Device Connection..............55 4.10 S ..................56 OFTWARE NSTALLATION 5 BIOS SCREENS......................60 5.1 I ......................61 NTRODUCTION 5.1.1 Starting Setup....................61 5.1.2 Using Setup ...................... 61 5.1.3 Getting Help.....................
  • Page 7 KINO-PVN-D5251/D4251/ Mini ITX SBC B.2.1 Hardware and BIOS Setup ................95 B.2.2 Create Partitions ..................... 96 B.2.3 Install Operating System, Drivers and Applications ........99 B.2.4 Build-up Recovery Partition................100 B.2.5 Create Factory Default Image............... 102 B.3 S ................107...
  • Page 8 Figure 3-18: SMBus Connector Locations .................29 Figure 3-19: SPI Flash Connector ....................30 Figure 3-20: USB Connector Pinout Locations .................31 Figure 3-21: KINO-PVN-D5251/D4251 External Peripheral Interface Connector....32 Figure 3-22: Audio Connector .....................32 Figure 3-23: RJ-45 Ethernet Connector..................33 Figure 3-24: VGA Connector .......................35...
  • Page 9 KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 4-1: SO-DIMM Installation ....................41 Figure4-2: SO-DIMM Connector Location ..................41 Figure 4-3: CompactFlash® Card Installation ................42 Figure 4-4: AT/ATX Power Select Jumper Location..............44 Figure 4-5: Clear CMOS Jumper ....................45 Figure 4-6: CompactFlash® Setup Jumper Location ...............46 Figure 4-7: Serial Port Jumper Locations ..................46...
  • Page 10 KINO-PVN-D5251/D4251/ Mini ITX SBC Figure B-17: Compress Image....................105 Figure B-18: Image Creation Confirmation ................106 Figure B-19: Image Creation Complete ................... 106 Figure B-20: Image Creation Complete ................... 106 Figure B-21: Press Any Key to Continue ................107 Figure B-22: Partitions for Linux....................108 Figure B-23: System Configuration for Linux.................
  • Page 11 KINO-PVN-D5251/D4251/ Mini ITX SBC List of Tables Table 1-1: Technical Specifications....................9 Table 3-1: Peripheral Interface Connectors ................16 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: 12 V Power Connector Pinouts .................17 Table 3-4: CompactFlash® Slot Pinouts ..................19 Table 3-5: Digital I/O Connector Pinouts..................20 Table 3-6: CPU Fan Connector Pinouts..................20...
  • Page 12 KINO-PVN-D5251/D4251/ Mini ITX SBC Table 4-4: CompactFlash® Setup Jumper Settings ..............45 Table 4-5: Serial Port Jumper Settings..................46 Table 5-1: BIOS Navigation Keys ....................62 Page xii...
  • Page 13 KINO-PVN-D5251/D4251/ Mini ITX SBC BIOS Menus BIOS Menu 1: Main ........................63 BIOS Menu 2: Advanced ......................64 BIOS Menu 3: ACPI Settings .......................65 BIOS Menu 4: CPU Configuration ....................66 BIOS Menu 5: IDE Configuration....................67 BIOS Menu 6: USB Configuration ....................68 BIOS Menu 7: Super IO Configuration..................69 BIOS Menu 8: Serial Port n Configuration Menu...............70...
  • Page 14 KINO-PVN-D5251/D4251/ Mini ITX SBC Page xiv...

  • Page 15: Introduction

    KINO-PVN-D5251/D4251/ Mini ITX SBC Chapter Introduction Page 1...

  • Page 16: Introduction

    KINO-PVN-D5251/D4251/ Mini ITX SBC 1.1 Introduction Figure 1-1: KINO-PVN-D5251/D4251 Front view Figure 1-2: KINO-PVN-D5251/D4251 Solder view Page 2...
  • Page 17 SATA 3Gb/s drives and provides 5 V SATA power. The KINO-PVN-D5251/D4251 supports dual display via HDMI and VGA, HDMI and DVI, VGA and DVI, or VGA and VGA (by DVI to VGA adapter). Eight USB 2.0 channels, one PCI slot, one PCIe Mini socket, and one PCIe x1 slot provide flexible expansion options.

  • Page 18: Connectors

    KINO-PVN-D5251/D4251/ Mini ITX SBC 1.2 Connectors The connectors on the KINO-PVN-D5251/D4251 are shown in the figure below. Figure 1-3: Connectors Front view Figure 1 4: Connectors Solder view Page 4...

  • Page 19: Dimensions

    KINO-PVN-D5251/D4251/ Mini ITX SBC 1.3 Dimensions The dimensions of the board are listed below:  Length: 170 mm  Width: 170 mm Figure 1-5: KINO-PVN-D5251/D4251 Dimensions (mm) Page 5...

  • Page 20: Data Flow

    KINO-PVN-D5251/D4251/ Mini ITX SBC 1.4 Data Flow F igure 1-6 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter. Figure 1-6: Data Flow Block Diagram...

  • Page 21: Technical Specifications

    KINO-PVN-D5251/D4251/ Mini ITX SBC 1.5 Technical Specifications KINO-PVN-D5251/D4251 technical specifications are listed in table below. Specification KINO-PVN-D5251/D4251 Mini ITX Form Factor Intel® Atom™ processor D525, 1.8 GHz/1 MB L2 cache CPU Options Intel® Atom™ processor D425, 1.8 GHz/512 KB L2 cache Intel®...
  • Page 22 KINO-PVN-D5251/D4251/ Mini ITX SBC Specification KINO-PVN-D5251/D4251 Dual display supported by HDMI+VGA/ HDMI+DVI / Display Ports VGA+DVI/ VGA+VGA (by DVI to VGA adapter) Analog CRT support by Nvidia GT218 (Resolution support up to 2048x1536) CRT hot plug supported Dual Link DVI-I support by Nvidia GT218 with DDR3 512MB...

  • Page 23: Table 1-1: Technical Specifications

    KINO-PVN-D5251/D4251/ Mini ITX SBC Specification KINO-PVN-D5251/D4251 Physical Specifications Dimensions 170 mm x 170 mm Weight GW/NW 900 g / 360 g Table 1-1: Technical Specifications Page 9...

  • Page 24: Unpacking

    KINO-PVN-D5251/D4251/ Mini ITX SBC Chapter Unpacking Page 10...

  • Page 25: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the KINO-PVN-D5251/D4251 is unpacked, please do the following:  Follow the antistatic guidelines above.

  • Page 26: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-PVN-D5251/D4251 was purchased from or contact an IEI sales representative directly by sending an email to ales@iei.com.tw.

  • Page 27: Optional Items

    KINO-PVN-D5251/D4251/ Mini ITX SBC Mini jumper pack (2.0mm) (P/N: 33100-000033-RS) Utility CD Quick Installation Guide 2.3.1 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image LPT cable (P/N: 32200-015100-RS) KB/MS PS/2 Y-cable...

  • Page 28: Connectors

    KINO-PVN-D5251/D4251/ Mini ITX SBC Chapter Connectors Page 14...

  • Page 29: Peripheral Interface Connectors

    KINO-PVN-D5251/D4251/ Mini ITX SBC 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 KINO-PVN-D5251/D4251 Layout The figures below show all the connectors and jumpers. Figure 3-1: Connector and Jumper Locations Front view Figure 3 2: Connector and Jumper Locations Solder view...

  • Page 30: Peripheral Interface Connectors

    KINO-PVN-D5251/D4251/ Mini ITX SBC 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label 12 V Power connector 4-pin connector PWR2 CompactFlash® slot 50-pin header Digital I/O connector 10-pin header DIO1 Fan connector (CPU)

  • Page 31: External Interface Panel Connectors

    VGA+DVI port connector 15-pin connector, DVIVGA1 24-pin connector Table 3-2: Rear Panel Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the KINO-PVN-D5251/D4251. 3.2.1 12V Power Connector CN Label: PWR2 CN Type: 4-pin Molex power connector (1x4)

  • Page 32: Compactflash® Slot

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 3-3: 12 V Power Connector 3.2.2 CompactFlash® Slot CN Label: CN Type: CompactFlash® card slot CN Location: See Figure 3-4 CN Pinouts: See Table 3-4 A CompactFlash® Type I/II card can be used in this slot.

  • Page 33: Digital I/O Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Description CSEL# VS2# RESET# WAIT# INPACK# REG# BVD2 BVD1 IOCS16# CD2# GND2 Table 3-4: CompactFlash® Slot Pinouts 3.2.3 Digital I/O Connector CN Label: DIO1 CN Type: 10-pin header CN Location: See Figure 3-5 CN Pinouts: See Table 3-5 The digital I/O connector provides programmable input and output for external devices.

  • Page 34: Fan Connector (Cpu)

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Description Ground DOUT3 DOUT2 DOUT1 DOUT0 DIN3 DIN2 DIN1 DIN0 Table 3-5: Digital I/O Connector Pinouts 3.2.4 Fan Connector (CPU) CN Label: CPU_FAN1 CN Type: 4-pin wafer CN Location: See Figure 3-6 CN Pinouts: See Table 3-6 The fan connector attaches to a CPU cooling fan.

  • Page 35: Flash Spi Rom (Gt218)

    KINO-PVN-D5251/D4251/ Mini ITX SBC 3.2.5 Flash SPI ROM (GT218) CN Label: SPI2 6-pin header (2x4) CN Type: CN Location: See Figure 3-7 CN Pinouts: See Table 3-7 The connector provides a GT218 BIOS update. Figure 3-7: Flash SPI ROM (GT218) Connector Location...

  • Page 36: Keyboard/Mouse Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 3-8: Front Panel Connector Location FUNCTION DESCRIPTION FUNCTION DESCRIPTION Power Button PWRBTSW- Power LED GROUND GROUND HDD LED Reset SYSRST- -HDLED GROUND Table 3-8: Front Panel Connector Pinouts 3.2.7 Keyboard/Mouse Connector CN Label: KB/MS1 CN Type:...

  • Page 37: Parallel Port Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Table 3-9: Keyboard/Mouse Connector Pinouts 3.2.8 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin box header CN Location: See Figure 3-10 See Table 3-10 CN Pinouts: The parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 38: Pcie Mini Card Slot

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Description PRINTER SELECT Table 3-10: Parallel Port Connector Pinouts 3.2.9 PCIe Mini Card Slot CN Label: CN Type: PCIe Mini card slot F igure 3-11 CN Location: CN Pinouts: See Table 3-11 The PCIe Mini card slot is for installing PCIe Mini expansion cards.

  • Page 39: Sata Drive Connectors

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Description PERP2 1.5 V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ VCC3 VCC3 1.5 V VCC3 Table 3-11: PCIe Mini Card Slot Pinouts 3.2.10 SATA Drive Connectors CN Label: SATA1, SATA2 CN Type: 7-pin SATA drive connectors...

  • Page 40: Sata Power Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Table 3-12: SATA Drive Connector Pinouts 3.2.11 SATA Power Connector CN Label: SATA_PWR1 CN Type: 2-pin wafer CN Location: See Figure 3-13 CN Pinouts: See Table 3-13 The SATA Power Connector provides power output to the SATA connectors.

  • Page 41: Serial Port Connectors (Rs-232)

    KINO-PVN-D5251/D4251/ Mini ITX SBC CN Location: See Figure 3-14 CN Pinouts: See Table 3-14 The SATA Power Connector provides power output to the SATA connectors. Figure 3-14: SATA Power Connector Locations Description Table 3-14: SATA Power Connector Pinouts 3.2.12 Serial Port Connectors (RS-232)

  • Page 42: Serial Port Connector (Rs-232)

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 3-16: Serial Port (COM3) Connector Pinout Locations Description Description Data Carrier Direct (DCD) Data Set Ready (DSR) Receive Data (RXD) Request To Send (RTS) Transmit Data (TXD) Clear To Send (CTS) Data Terminal Ready (DTR)

  • Page 43: Smbus Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Description TXD485+ TXD485# RXD485+ RXD485# Table 3-16: Serial Port (COM2) Connector Pinouts 3.2.14 SMBus Connector CN Label: SMB1 4-pin wafer (1x4) CN Type: CN Location: See Figure 3-18 CN Pinouts: See Table 3-17 The SMBus Connector provides a connection to a SMBus (System Management Bus) device.

  • Page 44: Spi Flash Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC 3.2.15 SPI Flash Connector CN Label: SPI1 8-pin header (2x4) CN Type: CN Location: See Figure 3-19 CN Pinouts: See Table 3-18 The 8-pin SPI Flash connector is used to flash the BIOS. Figure 3-19: SPI Flash Connector...

  • Page 45: External Peripheral Interface Connector Panel

    DATA+ DATA- Table 3-19: USB Port Connector Pinouts 3.3 External Peripheral Interface Connector Panel F igure 3-21 shows the KINO-PVN-D5251/D4251 external peripheral interface connector (EPIC) panel. The KINO-PVN-D5251/D4251 EPIC panel consists of the following:  4 x USB connectors ...

  • Page 46: Audio Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 3-21: KINO-PVN-D5251/D4251 External Peripheral Interface Connector 3.3.1 Audio Connector CN Label: JAUDIO1 CN Type: Line-out, Mic CN Location: F igure 3-21 The audio jacks connect to external audio devices.  Line-out port (Lime): Connects to a headphone or a speaker. With multi-channel configurations, this port can also connect to front speakers.

  • Page 47: Figure 3-23: Rj-45 Ethernet Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC The KINO-PVN-D5251/D4251 is equipped with two built-in RJ-45 Ethernet controllers. The controllers can connect to the LAN through the RJ-45 LAN connectors. Description Description 3.3V supply LAN signal differential pair (0+) LAN signal differential pair (0-)

  • Page 48: Power Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description DATA0- DATA0+ DATA1- DATA1+ Table 3-22: USB Pinouts 3.3.3 Power Connector CN Label: PWR1 CN Type: 5-pin connector CN Location: F igure 3-21 CN Pinouts: T able 3-23 The connector supports the 12V power adapter.

  • Page 49: Vga+Dvi Port Connector

    KINO-PVN-D5251/D4251/ Mini ITX SBC CN Pinouts: See Table 3-24 The serial port connects to a RS-232 serial communications device. Description DATA CARRIER DETECT (DCD) DATA SET READY (DSR) RECEIVE DATA (RXD) REQUEST TO SEND (RTS) TRANSMIT DATA (TXD) CLEAR TO SEND (CTS)

  • Page 50: Table 3-25: Vga Connector Pinouts

    KINO-PVN-D5251/D4251/ Mini ITX SBC Description Description BLUE CRT_VCC Display_GND DDCDAT HSYNC VSYNC DDCCLK Table 3-25: VGA Connector Pinouts The 25-pin Digital Visual Interface (DVI) connector connects to high-speed, high-resolution digital displays. The DVI-I connector supports both digital and analog signals.

  • Page 51: Installation

    KINO-PVN-D5251/D4251/ Mini ITX SBC Chapter Installation Page 37...

  • Page 52: Anti-Static Precautions

    KINO-PVN-D5251/D4251 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-PVN-D5251/D4251. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-PVN-D5251/D4251 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 53: Installation Considerations

    4.2 Installation Considerations NOTE: The following installation notices and installation considerations should be read and understood before the KINO-PVN-D5251/D4251 is installed. All installation notices pertaining to the installation of the KINO-PVN-D5251/D4251 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the KINO-PVN-D5251/D4251 and injury to the person installing the motherboard.

  • Page 54: Unpacking

    Chapter 3 are indeed present. If any of the unpacking list items are not available please contact the KINO-PVN-D5251/D4251 vendor reseller/vendor where the KINO-PVN-D5251/D4251 was purchased or contact an IEI sales representative. 4.4 SO-DIMM Installation SO-DIMM is a critical component of the KINO-PVN-D5251/D4251. If it is not installed the KINO-PVN-D5251/D4251 cannot run. Page 40...

  • Page 55: So-Dimm Installation

    KINO-PVN-D5251/D4251/ Mini ITX SBC 4.4.1 SO-DIMM Installation To install a SO-DIMM, please follow the steps below and refer to Figure 4-1. Figure 4-1: SO-DIMM Installation Step 1: Locate the SO-DIMM socket on the board (See the figure below). Place the board on an anti-static mat.

  • Page 56: Compactflash® Installation

    KINO-PVN-D5251/D4251/ Mini ITX SBC 4.5 CompactFlash® Installation NOTE: Both CompactFlash® Type I and Type II cards are supported. To install the CompactFlash® card, please follow the steps below. Step 1: Locate the CF card socket. Locate the CompactFlash® slot. Step 2: Align the CF card.

  • Page 57: Jumper Settings

    OPEN a jumper means removing the plastic clip from a jumper. Before the KINO-PVN-D5251/D4251 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the KINO-PVN-D5251/D4251 are listed in T able 4-1.

  • Page 58: Clear Cmos Jumper

    Jumper Location: F igure 4-5 If the KINO-PVN-D5251/D4251 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 59: Compactflash® Card Setup Jumper

    KINO-PVN-D5251/D4251/ Mini ITX SBC After having done one of the above, save the changes and exit the CMOS Setup menu. The clear CMOS jumper settings are shown in T able 4-3. Clear CMOS Description Short 1 - 2 Keep CMOS Setup...

  • Page 60: Serial Port Setting Jumper

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 4-6: CompactFlash® Setup Jumper Location 4.6.4 Serial Port Setting Jumper Jumper Label: Jumper Type: 8-pin header See Table 4-5 Jumper Settings: Jumper Location: See Figure 4-7 Used for RS-232/422/485 communications. Description Short 1-2 RS-232 (Default)

  • Page 61: Chassis Installation

    The KINO-PVN-D5251/D4251 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 62: Figure 4-8: Power Cable To Motherboard Connection

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 1: Locate the power cable. The power cable is shown in the packing list in Chapter 3. Step 2: Connect the Power Cable to the Motherboard. Connect the 4-pin (2x2) Molex type power cable connector to the AT/ATX power connector on the motherboard.

  • Page 63: Single Rs-232 Cable With Slot Bracket

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 4-9: Connect Power Cable to Power Supply 4.8.2 Single RS-232 Cable with Slot Bracket The single RS-232 cable consists of one serial port connectors attached to a serial communications cable that is then attached to a D-sub 9 male connector that is mounted onto a bracket.

  • Page 64: External Peripheral Interface Connection

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 4-10: Single RS-232 Cable Installation Step 3: Secure the bracket. The single RS-232 connector has one D-sub 9 male connector secured to a bracket. To secure the bracket to the chassis please refer to the reference material that came with the chassisStep 0: 4.9 External Peripheral Interface Connection...

  • Page 65: Audio Connector

    4.9.1 Audio Connector The audio jacks on the external audio connector enable the KINO-PVN-D5251/D4251 to be connected to a stereo sound setup. To install the audio devices, follow the steps below. Step 1: Identify the audio plugs.

  • Page 66: Lan Connection (Dual Connector)

    RJ-45 connector into the on-board RJ-45 connector. Step 0: 4.9.3 Serial Device Connection The KINO-PVN-D5251/D4251 has a single female DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the KINO-PVN-D5251/D4251.

  • Page 67: Usb Connection (Quad Connector)

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in Chapter 3. Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into the DB-9 connector on the external peripheral interface. See Figure 4-13.

  • Page 68: Vga Monitor Connection

    Figure 4-14: USB Connector 4.9.5 VGA Monitor Connection The KINO-PVN-D5251/D4251 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the KINO-PVN-D5251/D4251, please follow the instructions below.

  • Page 69: Dvi Display Device Connection

    Step 0: 4.9.6 DVI Display Device Connection The KINO-PVN-D5251/D4251 has a single female DVI-I connector on the external peripheral interface panel. The DVI-I connector is connected to a digital display device. To connect a digital display device to the KINO-PVN-D5251/D4251, please follow the instructions below.

  • Page 70: Software Installation

    Step 0: 4.10 Software Installation All the drivers for the KINO-PVN-D5251/D4251 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 71: Figure 4-17: Introduction Screen

    KINO-PVN-D5251/D4251/ Mini ITX SBC NOTE: If the installation program doesn't start automatically: Click "Start->My Computer->CD Drive->autorun.exe" Step 2: The driver main menu appears (Figure 4-17). Figure 4-17: Introduction Screen Step 3: Click KINO-PVN-D5251/D4251. Step 4: A new screen with a list of available drivers appears (Figure 4-18).

  • Page 72: Figure 4-18: Available Drivers

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 4-18: Available Drivers Step 5: Install all of the necessary drivers in this menu. S t e p 0 : IMPORTANT: In order for system graphics to function correctly, user MUST install the ION driver. See Figure 4-19.

  • Page 73: Figure 4-19: Graphics Driver Installation Reminder

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure 4-19: Graphics Driver Installation Reminder Page 59...

  • Page 74: Bios Screens

    KINO-PVN-D5251/D4251/ Mini ITX SBC Chapter BIOS Screens Page 60...

  • Page 75: Introduction

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 76: Getting Help

    KINO-PVN-D5251/D4251/ Mini ITX SBC Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F9 key Load optimized defaults F10 key Save changes and Exit BIOS Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 77: Main

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 78: Advanced

    KINO-PVN-D5251/D4251/ Mini ITX SBC  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices...

  • Page 79: Acpi Settings

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced ACPI Sleep State [S3 (Suspend to R…)] : Select Screen...

  • Page 80: Cpu Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.2 CPU Configuration Use the CPU Configuration menu (BIOS Menu 4) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Processor Type Intel(R) Atom(TM) CPU CPU D425 @ 1.80GHz...

  • Page 81: Sata Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.3 SATA Configuration Use the SATA Configuration menu (BIOS Menu 5) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced...

  • Page 82: Usb Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC  Configure SATA as [IDE] Use the Configure SATA as option to configure SATA devices as normal IDE devices.  Configures SATA devices as normal IDE device. EFAULT  AHCI Configures SATA devices as AHCI device.

  • Page 83: Super Io Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC  Enabled Legacy USB support enabled EFAULT  Legacy USB support disabled Disabled  Auto Legacy USB support disabled if no USB devices are connected 5.3.5 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports.

  • Page 84: Serial Port 1 Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.5.1 Serial Port 1 Configuration Use the Serial Port 1 Configuration menu (BIOS Menu 8) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Serial Port 1 Configuration...
  • Page 85 KINO-PVN-D5251/D4251/ Mini ITX SBC  IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4 address is IRQ3 and IRQ4  Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3 and IRQ4 IRQ=3, 4 ...
  • Page 86 KINO-PVN-D5251/D4251/ Mini ITX SBC  IO=2D8h; Serial Port I/O port address is 2D8h and the interrupt IRQ=10, 11 address is IRQ10, 11  Serial Port 2 Mode [RS232] Use the Serial Port 2 Mode option to set the Serial Port 2 signaling mode.
  • Page 87 KINO-PVN-D5251/D4251/ Mini ITX SBC  IO=2D8h; Serial Port I/O port address is 2D8h and the interrupt IRQ=10, 11 address is IRQ10, 11 5.3.5.1.4 Serial Port 4 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 88: Parallel Port Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.5.2 Parallel Port Configuration Use the Parallel Port Configuration menu (BIOS Menu 8) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Parallel Port Configuration Parallel Port [Enabled] Device Settings IO=378h;...
  • Page 89 KINO-PVN-D5251/D4251/ Mini ITX SBC  IO=3BCh; Parallel Port I/O port address is 3BCh and the IRQ=7 interrupt address is IRQ7  Parallel Port I/O port address is 378h IO=378h  IO=278h Parallel Port I/O port address is 278h  IO=3BCh Parallel Port I/O port address is 3BCh ...

  • Page 90: H/W Monitor

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.6 H/W Monitor The H/W Monitor menu (BIOS Menu 10) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced PC Health Status CPU Temperature :+39 C...
  • Page 91 KINO-PVN-D5251/D4251/ Mini ITX SBC  Voltages: V_core Vcc5 Vcc12 V1_5VDDR VSB3V VBAT  CPU Smart Fan control [Auto Mode] Use the CPU Smart Fan control option to configure the CPU fan.  Auto Mode The fan adjusts its speed using these settings:...

  • Page 92: Serial Port Console Redirection

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 11) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.

  • Page 93: Chipset

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.4 Chipset Use the Chipset menu (BIOS Menu 12) to access the Northbridge and Southbridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 94: Host Bridge Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.4.1 Host Bridge Configuration Use the Host Bridge Configuration menu (BIOS Menu 13) to configure the Northbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Initate Graphic Adapter [ION] ******* Memory Information *******...

  • Page 95: South Bridge Configuration

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.4.2 South Bridge Configuration Use the South Bridge Configuration menu (BIOS Menu 14) to configure the Southbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Auto Power Button Function [Disabled] Restore AC Power Loss...
  • Page 96 KINO-PVN-D5251/D4251/ Mini ITX SBC  USB Function [Enabled] Use the USB Function BIOS option to enable or disable USB function support.  USB function support disabled Disabled  Enabled USB function support enabled EFAULT  USB 2.0 (EHCI) Support [Enabled] Use the USB 2.0 (EHCI) Support BIOS option to enable or disable USB 2.0 support.

  • Page 97: Boot

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.5 Boot Use the Boot menu (BIOS Menu 15) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Boot NumLock State...
  • Page 98 KINO-PVN-D5251/D4251/ Mini ITX SBC  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  Enabled OEM Logo displayed instead of POST messages EFAULT ...

  • Page 99: Security

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.6 Security Use the Security menu (BIOS Menu 16) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup.

  • Page 100: Exit

    KINO-PVN-D5251/D4251/ Mini ITX SBC 5.7 Exit Use the Exit menu (BIOS Menu 17) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save &...
  • Page 101 KINO-PVN-D5251/D4251/ Mini ITX SBC  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. Page 87...

  • Page 102: Abios Options

    KINO-PVN-D5251/D4251/ Mini ITX SBC Appendix BIOS Options Page 88...
  • Page 103 KINO-PVN-D5251/D4251/ Mini ITX SBC Below is a list of BIOS configuration options in the BIOS chapter. 　 BIOS Information .........................63 　 System Date [xx/xx/xx] ......................63 　 System Time [xx:xx:xx] .......................64 　 ACPI Sleep State [S3 (Suspend to RAM)]................65 　 ATA/IDE Configurations [Enhanced] .................67 　...
  • Page 104 KINO-PVN-D5251/D4251/ Mini ITX SBC 　 Administrator Password .....................85 　 User Password ........................85 　 Set User Password ......................85 　 Save Changes and Reset ....................86 　 Discard Changes and Reset ....................86 　 Restore Defaults ........................86 　 Save as User Defaults ......................86 　...

  • Page 105: B One Key Recovery

    KINO-PVN-D5251/D4251/ Mini ITX SBC Appendix One Key Recovery Page 91...

  • Page 106: One Key Recovery Introduction

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. The one key recovery provides quick and easy shortcuts for creating a backup and reverting to that backup or for reverting to the factory default settings.

  • Page 107: System Requirement

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.1.1 System Requirement NOTE: The recovery CD can only be used with IEI products. The software will fail to run and a warning message will appear when used on non-IEI hardware. To create the system backup, the main storage device must be split into two partitions (three partitions for Linux).

  • Page 108: Supported Operating System

    KINO-PVN-D5251/D4251/ Mini ITX SBC NOTE: Specialized tools are required to change the partition size if the operating system is already installed. B.1.2 Supported Operating System The recovery CD is compatible with both Microsoft Windows and Linux operating system (OS). The supported OS versions are listed below.

  • Page 109: Setup Procedure For Windows

    KINO-PVN-D5251/D4251/ Mini ITX SBC NOTE: Installing unsupported OS versions may cause the recovery tool to fail. B.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore Windows system, a few setup procedures are required. Step 1: Hardware and BIOS setup (see Section B.2.1)

  • Page 110: Create Partitions

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 4: Turn on the system. Step 5: Press the <F2> key as soon as the system is turned on to enter the BIOS. boot device. (Boot  Boot Step 6: Select the connected optical disk drive as the 1 Device Priority ...

  • Page 111: Figure B-3: Recovery Tool Setup Menu

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 3: The recovery tool setup menu is shown as below. Figure B-3: Recovery Tool Setup Menu Step 4: Press <5> then <Enter>. Figure B-4: Command Mode Step 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions.

  • Page 112: Figure B-5: Partition Creation Commands

    KINO-PVN-D5251/D4251/ Mini ITX SBC system32>format F: /fs:ntfs /q /v:Recovery /y system32>exit Figure B-5: Partition Creation Commands Page 98...

  • Page 113: Install Operating System, Drivers And Applications

    KINO-PVN-D5251/D4251/ Mini ITX SBC NOTE: Use the following commands to check if the partitions were created successfully. Step 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build-up Recovery Partition.S t e p 0 :...

  • Page 114: Build-Up Recovery Partition

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.2.4 Build-up Recovery Partition Step 1: Put the recover CD in the optical drive. Step 2: Start the system. Step 3: Boot the system from recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be...

  • Page 115: Figure B-8: Build-Up Recovery Partition

    KINO-PVN-D5251/D4251/ Mini ITX SBC recovery files in Section B.2.2 is hidden and the recovery tool is saved in this partition. Figure B-8: Build-up Recovery Partition Step 6: After completing the system configuration, press any key in the following window to reboot the system.

  • Page 116: Create Factory Default Image

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 117: Figure B-12: About Symantec Ghost Window

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure B-12: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below (Figure B-13). Figure B-13: Symantec Ghost Path Step 5: Select the local source drive (Drive 1) as shown in Figure B-14. Then click OK.

  • Page 118: Figure B-14: Select A Local Source Drive

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure B-14: Select a Local Source Drive Step 6: Select a source partition (Part 1) from basic drive as shown in Figure B-15. Then click OK. Figure B-15: Select a Source Partition from Basic Drive Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called...

  • Page 119: Figure B-16: File Name To Copy Image To

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure B-16: File Name to Copy Image to Step 8: When the Compress Image screen in Figure B-17 prompts, click High to make the image file smaller. Figure B-17: Compress Image Page 105...

  • Page 120: Figure B-18: Image Creation Confirmation

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 9: The Proceed with partition image creation window appears, click Yes to continue. Figure B-18: Image Creation Confirmation Step 10: The Symantec Ghost starts to create the factory default image (Figure B-19). Figure B-19: Image Creation Complete Step 11: When the image creation completes, a screen prompts as shown in Figure B-20.

  • Page 121: Setup Procedure For Linux

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure B-21: Press Any Key to Continue B.3 Setup Procedure for Linux The initial setup procedures for Linux system are mostly the same with the procedure for Microsoft Windows.

  • Page 122: Figure B-22: Partitions For Linux

    KINO-PVN-D5251/D4251/ Mini ITX SBC NOTE: Please reserve enough space for partition 3 for saving recovery images. Figure B-22: Partitions for Linux Step 3: Create a recovery partition. Insert the recovery CD into the optical disk drive. Follow Step 1 Step 3 described in Section B.2.2.

  • Page 123: Figure B-23: System Configuration For Linux

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure B-23: System Configuration for Linux Step 5: Access the recovery tool main menu by modifying the “menu.lst”. To first access the recovery tool main menu, the menu.lst must be modified. In Linux system, enter Administrator (root). When prompt appears, type: cd /boot/grub vi menu.lst...

  • Page 124: Recovery Tool Functions

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 7: The recovery tool menu appears. (Figure B-25) Figure B-25: Recovery Tool Menu Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section B.2.5 to create a factory default image.

  • Page 125: Figure B-26: Recovery Tool Main Menu

    KINO-PVN-D5251/D4251/ Mini ITX SBC Figure B-26: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section B.2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 126: Factory Restore

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.4.1 Factory Restore To restore the factory default image, please follow the steps below. Step 1: Type <1> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the factory default. A factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 127: Backup System

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.4.2 Backup System To backup the system, please follow the steps below. Step 1: Type <2> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 128: Restore Your Last Backup

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.4.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 1: Type <3> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 129: Manual

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.4.4 Manual To restore the last system backup, please follow the steps below. Step 1: Type <4> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 130: Other Information

    KINO-PVN-D5251/D4251/ Mini ITX SBC B.5 Other Information B.5.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 131 KINO-PVN-D5251/D4251/ Mini ITX SBC Step 5: When the following window appears, press <S> to select “Specify Additional Device”. Step 6: In the following window, select a SATA controller mode used in the system. Then press <Enter>. The user can now start using the SATA HDD.

  • Page 132: System Memory Requirement

    KINO-PVN-D5251/D4251/ Mini ITX SBC Step 7: After pressing <Enter>, the system will get into the recovery tool setup menu. Continue to follow the setup procedure from Step 4 in Section B.2.2 Create Partitions to finish the whole setup process. S t e p 0 : B.5.2 System Memory Requirement...

  • Page 133: C Terminology

    KINO-PVN-D5251/D4251/ Mini ITX SBC Appendix Terminology Page 119...
  • Page 134 KINO-PVN-D5251/D4251/ Mini ITX SBC AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 135 KINO-PVN-D5251/D4251/ Mini ITX SBC Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 136 KINO-PVN-D5251/D4251/ Mini ITX SBC Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 137: D Digital I/O Interface

    KINO-PVN-D5251/D4251/ Mini ITX SBC Appendix Digital I/O Interface Page 123...

  • Page 138: Introduction

    KINO-PVN-D5251/D4251/ Mini ITX SBC D.1 Introduction The DIO connector on the KINO-PVN-D5251/D4251 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 139: Assembly Language Samples

    KINO-PVN-D5251/D4251/ Mini ITX SBC D.3 Assembly Language Samples D.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 140: E Watchdog Timer

    KINO-PVN-D5251/D4251/ Mini ITX SBC Appendix Watchdog Timer NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working.
  • Page 141 KINO-PVN-D5251/D4251/ Mini ITX SBC AH – 6FH Sub-function: Time-out value (Its unit-second is dependent on the item “Watchdog Timer unit select” in CMOS setup). Table E-1: AH-6FH Sub-function Call sub-function 2 to set the time-out period of Watchdog Timer first. If the time-out value is not zero, the Watchdog Timer starts counting down.
  • Page 142 KINO-PVN-D5251/D4251/ Mini ITX SBC EXIT_AP, 1 ;is the application over? W_LOOP ;No, restart the application AX, 6F02H ;disable Watchdog Timer BL, 0 ; EXIT ; Page 128...

  • Page 143: F Hazardous Materials Disclosure

    KINO-PVN-D5251/D4251/ Mini ITX SBC Appendix Hazardous Materials Disclosure Page 129...

  • Page 144: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    KINO-PVN-D5251/D4251/ Mini ITX SBC F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 145 KINO-PVN-D5251/D4251/ Mini ITX SBC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 146 KINO-PVN-D5251/D4251/ Mini ITX SBC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 镉 六价铬 多溴联苯 多 溴 二 苯 铅 汞 醚 (Pb) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 XXXX XXXX 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池...
