IEI Technology KINO-DAL-N1 User Manual

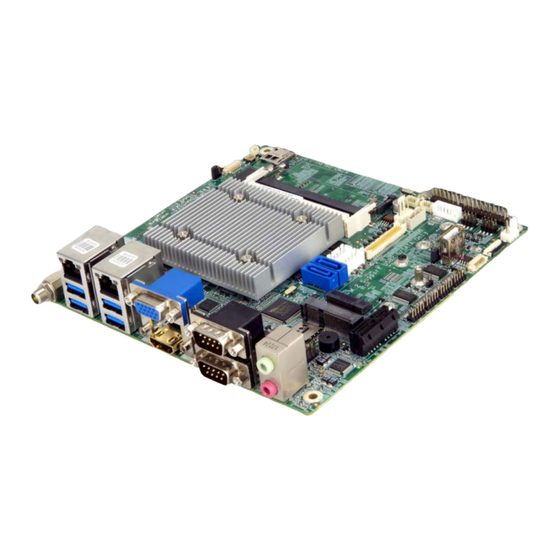

Kino-dal series mini-itx sbc intel 14nm atom, pentium or celeron on-board soc supports dual-channel ddr3l so-dimms; com, usb 3.0, sata 6gb/s, m.2, emmc 5.0 and audio support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KINO-DAL SBC
KINO-DAL CPU Card
MODEL:
KINO-DAL
Mini-ITX SBC with 14nm Intel® Atom™, Pentium® or Celeron®
On-board SoC, HDMI, LVDS, VGA, Dual PCIe GbE, USB 3.0,
PCIe Mini, M.2, SATA 6Gb/s, RS-232/422/485, Audio, TPM and RoHS
User Manual
Page I
Rev. 1.01 - March 27, 2018

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology KINO-DAL-N1

Summary of Contents for IEI Technology KINO-DAL-N1

  • Page 1 KINO-DAL SBC KINO-DAL CPU Card MODEL: KINO-DAL Mini-ITX SBC with 14nm Intel® Atom™, Pentium® or Celeron® On-board SoC, HDMI, LVDS, VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, RS-232/422/485, Audio, TPM and RoHS User Manual Page I Rev.
  • Page 2 KINO-DAL SBC Revision Date Version Changes March 27, 2018 1.01 Changed the SIM card slot to optional item January 4, 2018 1.00 Initial release Page II...
  • Page 3 KINO-DAL SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 KINO-DAL SBC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    KINO-DAL SBC Table of Contents 1 INTRODUCTION ......................1 1.1 I ......................2 NTRODUCTION 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 C ......................4 ONNECTORS 1.5 D ....................... 5 IMENSIONS 1.6 D ........................ 6 1.7 T ..................
  • Page 6 KINO-DAL SBC 3.2.3 LAN LED Connectors ..................28 3.2.1 LCD Inverter Connector .................. 29 3.2.1 LVDS Connector ....................30 3.2.2 M.2 Slot ......................31 3.2.3 microSD Slot (Optional) .................. 32 3.2.4 PCIe Mini Card Slot ..................32 3.2.5 PCIe x1 Card Slot .................... 34 3.2.6 RS-232 Serial Port Connector .................
  • Page 7 KINO-DAL SBC 4.7.2 Clear CMOS Button ..................66 4.7.3 Flash Descriptor Security Override Jumper ............ 67 4.7.1 LVDS Voltage Select Jumper ................68 4.7.2 LVDS Panel Resolution Select Switch ............. 69 4.7.3 M.2 and SATA2 Select Switch ................70 4.8 C ....................
  • Page 8 KINO-DAL SBC 5.3.8.1 Legacy Console Redirection Settings ............94 5.3.9 IEI Feature ....................... 95 5.4 C ........................96 HIPSET 5.4.1 North Bridge Configuration ................97 5.4.1.1 Intel IGD Configuration ................98 5.4.1.2 LCD Control ................... 100 5.4.2 South Bridge Configuration ................102 5.4.2.1 HD-Audio Configuration ................
  • Page 9 KINO-DAL SBC List of Figures Figure 1-1: KINO-DAL ........................2 Figure 1-2: Connectors (Front Side) ..................... 4 Figure 1-3: Dimensions (mm) ......................5 Figure 1-4: Data Flow Diagram ...................... 6 Figure 3-1: Connector and Jumper Locations ................15 Figure 3-2: Audio Connector Location ..................18 Figure 3-3: Battery Connector Location ..................
  • Page 10 KINO-DAL SBC Figure 3-28: External Peripheral Interface Connector .............. 45 Figure 3-29: Audio Connector ..................... 46 Figure 3-30: HDMI Connector ...................... 47 Figure 3-31: LAN Connector ......................48 Figure 3-32: USB 3.0 Port Pinout Locations ................49 Figure 3-33: Power Jack ......................50 Figure 3-34: Serial Port Pinouts ....................
  • Page 11 KINO-DAL SBC List of Tables Table 1-1: KINO-DAL Model Variations ..................3 Table 1-2: Technical Specifications ....................9 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: Audio Connector Pinouts ..................18 Table 3-4: Battery Connector Pinouts ..................20 Table 3-5: Chassis Intrusion Connector Pinouts ..............
  • Page 12 KINO-DAL SBC Table 3-30: VGA Connector Pinouts ................... 52 Table 4-1: AT/ATX Mode Select Switch Settings ............... 65 Table 4-2: Flash Descriptor Security Override Jumper Settings ..........67 Table 4-3: LVDS Voltage Select Jumper Settings ..............68 Table 4-4: LVDS Panel Resolution Selection ................69 Table 4-5: M.2 and SATA2 Select Switch Settings ..............
  • Page 13 KINO-DAL SBC List of BIOS Menus BIOS Menu 1: Main ........................76 BIOS Menu 2: Advanced ......................77 BIOS Menu 3: ACPI Settings ....................... 78 BIOS Menu 4: F81866 Super IO Configuration ................79 BIOS Menu 5: Serial Port n Configuration ................. 79 BIOS Menu 6: iWDD H/W Monitor ....................

  • Page 15: Introduction

    KINO-DAL SBC Chapter Introduction Page 1...

  • Page 16: Introduction

    KINO-DAL SBC 1.1 Introduction Figure 1-1: KINO-DAL The KINO-DAL series is a Mini-ITX form factor single bard computer. It has an on-board ® ® ® Atom ™ , Pentium 14nm Intel or Celeron processor, and supports two 204-pin 1867/1600 MHz dual-channel DDR3 Low Voltage (DDR3L) SDRAM SO-DIMM slots with up to 8.0 GB of memory.

  • Page 17: Model Variations

    Operating Temp. ® ® Intel Pentium N4200 12 V DC -20°C ~ 70°C KINO-DAL-N2 ® ® KINO-DAL-N1 Intel Celeron N3350 12 V DC -20°C ~ 70°C ® KINO-DAL-E3W2* Intel Atom™ E3950 9 V ~ 30 V DC -40°C ~ 85°C ®...

  • Page 18: Connectors

    KINO-DAL SBC 1.4 Connectors The connectors on the KINO-DAL are shown in the figure below. Figure 1-2: Connectors (Front Side) Page 4...

  • Page 19: Dimensions

    KINO-DAL SBC 1.5 Dimensions The dimensions of the board are listed below: Figure 1-3: Dimensions (mm) Page 5...

  • Page 20: Data Flow

    KINO-DAL SBC 1.6 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 21: Technical Specifications

    KINO-DAL SBC 1.7 Technical Specifications KINO-DAL technical specifications are listed below. Specification KINO-DAL Form Factor Mini-ITX ® ® Intel Pentium N4200 on-board SoC (up to 2.5 GHz, quad-core, 2 MB cache, TDP=6 W) ® ® Intel Celeron N3350 on-board SoC (up to 2.4 GHz, dual-core, 2 MB cache, TDP=6 W) ®...
  • Page 22 KINO-DAL SBC Specification KINO-DAL Realtek ALC662 HD Audio codec Audio Watchdog Timer Software programmable support 1~255 sec. system reset I/O Interface Audio Connector 2 x Audio jack (line-out, mic-in) 1 x Front audio by 10-pin (2x5) header Ethernet 2 x RJ-45 GbE port Keyboard/Mouse 1 x KB/MS by 6-pin (1x6) wafer Serial Ports...

  • Page 23: Table 1-2: Technical Specifications

    KINO-DAL SBC Specification KINO-DAL Default: 12 V DC input Power Supply Optional: 9 V ~ 30 V DC input (KINO-DAL-ExW2) AT/ATX mode supported 1 x External DC power jack (ø5.5 mm) Power Connector 1 x Internal power connector by 4-pin (2x2) connector ®...

  • Page 24: Unpacking

    KINO-DAL SBC Chapter Unpacking Page 10...

  • Page 25: Anti-Static Precautions

    KINO-DAL SBC 2.1 Anti-static Precautions WARNING! Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user. Make sure to adhere to the following guidelines:  Wear an anti-static wristband: Wearing an anti-static wristband can prevent electrostatic discharge.

  • Page 26: Packing List

    KINO-DAL SBC 2.3 Packing List NOTE: If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-DAL was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 27: Optional Items

    KINO-DAL SBC 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image KB/MS PS/2 Y-cable, 135 mm, P=2.0 (P/N: 32000-023800-RS) Dual USB cable (wo bracket), 210mm, P=2.0 (P/N: 32000-070301-RS) RS-232 cable, 200mm, P=2.0 (P/N: 32205-002700-100-RS) Infineon TPM 2.0 module, 20-pin, firmware v5.5 (P/N: TPM-IN02-R20)

  • Page 28: Connectors

    KINO-DAL SBC Chapter Connectors Page 14...

  • Page 29: Peripheral Interface Connectors

    KINO-DAL SBC 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 KINO-DAL Layout The figures below show all the connectors and jumpers. Figure 3-1: Connector and Jumper Locations Page 15...

  • Page 30: Peripheral Interface Connectors

    KINO-DAL SBC 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label Audio connector 10-pin header HDA1 Battery connector 2-pin wafer Chassis intrusion connector 2-pin header J_CS1 DC-IN power connector 4-pin Molex PWR3 Digital I/O connector 10-pin header J_DIO1...

  • Page 31: External Interface Panel Connectors

    KINO-DAL SBC COM3, COM4, RS-232 serial port connectors 10-pin header COM5, COM6 SATA 6Gb/s drive connectors 7-pin SATA connector SATA1, SATA2 SATA_PWR1, SATA power connectors 4-pin wafer SATA_PWR2 SIM card slot (optional) micro-SIM card slot SIM1 SMBus connector 4-pin wafer J_SMB1 SPI flash connector, BIOS 6-pin wafer...

  • Page 32: Internal Peripheral Connectors

    KINO-DAL SBC 3.2 Internal Peripheral Connectors The section describes all of the connectors on the KINO-DAL. 3.2.1 Audio Connector CN Label: HDA1 CN Type: 10-pin header, p=2.54 mm CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 The audio connector supporting High-Definition Audio is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system.

  • Page 33: Battery Connector

    KINO-DAL SBC 3.2.2 Battery Connector CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. NOTE: It is recommended to attach the RTC battery onto the system chassis in which the KINO-DAL is installed.

  • Page 34: Chassis Intrusion Connector

    KINO-DAL SBC Description RTC Battery+ RTC Battery- Table 3-4: Battery Connector Pinouts 3.2.1 Chassis Intrusion Connector CN Label: J_CS1 CN Type: 2-pin header, , p=2.0 mm CN Location: See Figure 3-4 See Table 3-5 CN Pinouts: The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or replaced.

  • Page 35: Dc-In Power Connector

    See Figure 3-5 CN Pinouts: See Table 3-6 The connector supports power input. The input voltage varies by models:  12 V DC: KINO-DAL-N2 KINO-DAL-N1  9 V ~ 30 V DC: KINO-DAL-E3W2 KINO-DAL-E2W2 KINO-DAL-E1W2 Figure 3-5: DC-IN Power Connector Location...

  • Page 36: Digital I/O Connector

    KINO-DAL SBC 3.2.2 Digital I/O Connector CN Label: J_DIO1 10-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-6 CN Pinouts: See Table 3-7 The 8-bit digital I/O connector provides programmable input and output for external devices. Figure 3-6: Digital I/O Connector Location Description Description D_OUT3...

  • Page 37: Fan Connector, Cpu

    KINO-DAL SBC 3.2.3 Fan Connector, CPU CN Label: CPU_FAN1 4-pin wafer, p=2.54 mm CN Type: CN Location: See Figure 3-7 CN Pinouts: See Table 3-8 The fan connector attaches to a cooling fan. Figure 3-7: CPU Fan Connector Locations Description FAN_IO FANCTL Table 3-8: CPU Fan Connector Pinouts...

  • Page 38: Fan Connector, System

    KINO-DAL SBC 3.2.1 Fan Connector, System CN Label: SYS_FAN1 3-pin wafer, p=2.54 mm CN Type: CN Location: See Figure 3-8 CN Pinouts: See Table 3-9 The fan connector attaches to a cooling fan. Figure 3-8: System Fan Connector Locations Description FAN_IN Table 3-9: System Fan Connector Pinouts Page 24...

  • Page 39: Front Panel Connector

    KINO-DAL SBC 3.2.2 Front Panel Connector CN Label: F_PANEL1 14-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-10 The front panel connector connects to the indicator LEDs, buttons and speaker on the system front panel. Figure 3-9: Front Panel Connector Location Description Description...

  • Page 40: I 2 C Connector

    KINO-DAL SBC 3.2.1 I C Connector CN Label: J_I2C1 4-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-10 CN Pinouts: See Table 3-11 The I C connector is used to connect I C-bus devices to the mainboard. Figure 3-10: I2C Connector Pinout Locations Description I2C_DATA I2C_CLK...

  • Page 41: Keyboard And Mouse Connector

    KINO-DAL SBC 3.2.2 Keyboard and Mouse Connector CN Label: J_KB/MS1 6-pin wafer, p=2.00 mm CN Type: CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 42: Lan Led Connectors

    KINO-DAL SBC 3.2.3 LAN LED Connectors CN Label: JLAN_LED1, JLAN_LED2 2-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-12 CN Pinouts: See Table 3-13 The LAN LED connectors connect to the LAN link LEDs on the system. Figure 3-12: LAN LED Connector Locations Description LED+ LED-...

  • Page 43: Lcd Inverter Connector

    KINO-DAL SBC 3.2.1 LCD Inverter Connector CN Label: INV1 5-pin wafer, p=2.00 mm CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-14 Use the LCD inverter connector provides power to an LCD panel. Figure 3-13: LCD Inverter Connector Location Description LCD Adjust +12V...

  • Page 44: Lvds Connector

    KINO-DAL SBC 3.2.1 LVDS Connector CN Label: LVDS1 40-pin crimp CN Type: CN Location: See Figure 3-14 CN Pinouts: See Table 3-15 The LVDS connector is for connecting 18-bit/24-bit dual channel LVDS devices. Figure 3-14: LVDS Connector Location Description Description A_DATA0- A_DATA1- A_DATA0+...

  • Page 45: Slot

    KINO-DAL SBC Description Description Clock2- A_DATA7- Clcok2+ A_DATA7+ LVDS Detect (GND)* LCD VCC LCD VCC LCD VCC LCD VCC LCD VCC LCD VCC *LVDS Detect must be connected to GND. Table 3-15: LVDS Connector Pinouts 3.2.2 M.2 Slot CN Label: M2_1 CN Type: M.2 B-key slot...

  • Page 46: Microsd Slot (Optional)

    KINO-DAL SBC 3.2.3 microSD Slot (Optional) CN Label: microSD card slot CN Type: CN Location: See Figure 3-16 The microSD card slot accepts a microSD card for storage. Figure 3-16: microSD Card Slot Location 3.2.4 PCIe Mini Card Slot CN Label: MPCIE1 CN Type: Half-size/Full-size PCIe Mini card slot...

  • Page 47: Figure 3-17: Pcie Mini Card Slot Location

    KINO-DAL SBC Figure 3-17: PCIe Mini Card Slot Location Description Description PCIE_WAKE# VCC3 1.5 V PCIE_CLKREQ# SIM_VCC SIM_IO CLK- SIM_CLK CLK+ SIM_RST SIM_VPP WLAN_EN BUF_PLT_RST# PCIE_RXN3 VCC3A PCIE_RXP3 1.5 V SMBCLK PCIE_TXN3 SMBDATA PCIE_TXP3 USB2- USB2+ VCC3 Page 33...

  • Page 48: Pcie X1 Card Slot

    KINO-DAL SBC Description Description VCC3 1.5 V VCC3 Table 3-16: PCIe Mini Card Slot Pinouts 3.2.5 PCIe x1 Card Slot CN Label: PCIE1 CN Type: PCIe x1 slot CN Location: See Figure 3-18 CN Pinouts: See Table 3-17 The PCIe x1 slot is for PCIe x1 expansion cards. Figure 3-18: PCIe x1 Slot Location Description Description...

  • Page 49: Serial Port Connector

    KINO-DAL SBC Description Description SMDAT JTAG3 JTAG4 +3.3V JTAG5 JTAG1 +3.3V 3.3 Vaux +3.3V WAKE# PWRGD RSVD REFCLK+ HSOp(0) REFCLK- HSOn(0) HSIp(0) PRSNT#2 HSIn(0) Table 3-17: PCIe x1 Slot Pinouts 3.2.6 RS-232 Serial Port Connector CN Label: COM3, COM4, COM5, COM6 10-pin header, p=2.00 mm CN Type: CN Location:...

  • Page 50: Figure 3-19: Rs-232 Serial Port Connector Locations

    KINO-DAL SBC Figure 3-19: RS-232 Serial Port Connector Locations Description Description Table 3-18: RS-232 Serial Port Connector Pinouts Page 36...

  • Page 51: Sata 6Gb/S Drive Connectors

    KINO-DAL SBC 3.2.7 SATA 6Gb/s Drive Connectors CAUTION: If an M.2 module is installed in the M.2 slot (M2_1), the SATA port 2 (SATA2) will be disabled. Choose either the SATA2 connector or the M.2 module for storage. CN Label: SATA1, SATA2 CN Type: 7-pin SATA connector...

  • Page 52: Sata Power Connectors

    KINO-DAL SBC 3.2.8 SATA Power Connectors CN Label: SATA_PWR1, SATA_PWR2 CN Type: 4-pin wafer, p=2.54 mm CN Location: See Figure 3-21 CN Pinouts: See Table 3-19 The SATA power connector provides +5 V and +12 V power output to the SATA connector.

  • Page 53: Sim Card Slot (Optional)

    KINO-DAL SBC 3.2.9 SIM Card Slot (Optional) CN Label: SIM1 micro-SIM card slot CN Type: CN Location: See Figure 3-22 The SIM card slot accepts a SIM card for 3G network communication. Figure 3-22: SIM Card Slot Location Page 39...

  • Page 54: Smbus Connector

    KINO-DAL SBC 3.2.1 SMBus Connector CN Label: J_SMB1 4-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-23 CN Pinouts: See Table 3-20 The SMBus (System Management Bus) connector provides low-speed system management communications. Figure 3-23: SMBus Connector Location Description SMB_DATA SMB_CLK...

  • Page 55: Spi Flash Connector, Bios

    KINO-DAL SBC 3.2.2 SPI Flash Connector, BIOS CN Label: J_SPI1 6-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-24 CN Pinouts: See Table 3-21 The 6-pin SPI Flash connector is used to flash the BIOS. Figure 3-24: BIOS SPI Flash Connector Location Description +3.3V MISO...

  • Page 56: Spi Flash Connector, Ec

    KINO-DAL SBC 3.2.1 SPI Flash Connector, EC CN Label: J_EC1 6-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-25 CN Pinouts: See Table 3-22 The 6-pin SPI Flash connector is used to flash the EC. Figure 3-25: EC SPI Flash Connector Location Description +3.3V MISO...

  • Page 57: Tpm Connector

    KINO-DAL SBC 3.2.2 TPM Connector CN Label: TPM1 CN Type: 20-pin header, p=2.54 mm CN Location: See Figure 3-26 CN Pinouts: See Table 3-23 The Trusted Platform Module (TPM) connector secures the system on bootup. Figure 3-26: TPM Connector Location Description Description Clock...

  • Page 58: Usb Connectors

    KINO-DAL SBC 3.2.3 USB Connectors CN Label: USB1, USB2 CN Type: 8-pin header, p=2.00 mm CN Location: See Figure 3-27 CN Pinouts: See Table 3-24 The USB connectors provide four USB 2.0 ports by dual-port USB cable. Figure 3-27: USB Connector Locations Description Description DATA-...

  • Page 59: Figure 3-28: External Peripheral Interface Connector

    KINO-DAL SBC  1 x HDMI connector (HDMI1)  2 x RS-232/422/485 serial port (COM1, COM2)  4 x USB 3.0 connector (USB01, USB23)  1 x VGA connector (VGA1) Figure 3-28: External Peripheral Interface Connector Page 45...

  • Page 60: Audio Jacks

    KINO-DAL SBC 3.3.1 Audio Jacks CN Label: AUDIO1 Audio jack CN Type: CN Location: See Figure 3-28 The audio jacks connect to external audio devices.  Line Out port (Lime): Connects to a headphone or a speaker. With multi-channel configurations, this port can also connect to front speakers. ...

  • Page 61: Hdmi Connector

    KINO-DAL SBC 3.3.1 HDMI Connector CN Label: HDMI1 23-pin HDMI port CN Type: CN Location: See Figure 3-28 CN Pinouts: See Figure 3-30 and Table 3-25 The HDMI connector can connect to an HDMI device. Description Description HDMI_DATA2 HDMI_DATA2# HDMI_DATA1 HDMI_DATA1# HDMI_DATA0 HDMI_DATA0#...

  • Page 62: Lan & Usb 3.0 Combo Connectors

    KINO-DAL SBC 3.3.2 LAN & USB 3.0 Combo Connectors CN Label: LAN1_USB01_1, LAN2_USB23_1 RJ-45, USB 3.0 CN Type: CN Location: See Figure 3-28 The LAN connector connects to a local network. Figure 3-31: LAN Connector Description Description MDIA0+ MDIA2- MDIA0- MDIA1- MDIA1+ MDIA3+...

  • Page 63: Figure 3-32: Usb 3.0 Port Pinout Locations

    KINO-DAL SBC Description Description USB3P0_RXDN1 USB3P0_RXDN2 USB3P0_RXDP1 USB3P0_RXDP2 USB3P0_TXDN1 USB3P0_TXDN2 USB3P0_TXDP1 USB3P0_TXDP2 Table 3-28: USB 3.0 Port Pinouts Figure 3-32: USB 3.0 Port Pinout Locations Page 49...

  • Page 64: Power Connector

    CN Type: CN Location: See Figure 3-28 The power connector supports a power adapter. The input voltage varies by models:  12 V DC: KINO-DAL-N2 KINO-DAL-N1  9 V ~ 30 V DC: KINO-DAL-E3W2 KINO-DAL-E2W2 KINO-DAL-E1W2 Figure 3-33: Power Jack...

  • Page 65: Rs-232/422/485 Serial Port Connectors (Com1, Com2)

    KINO-DAL SBC 3.3.1 RS-232/422/485 Serial Port Connectors (COM1, COM2) CN Label: COM1, COM2 DB-9 connector CN Type: CN Location: See Figure 3-28 CN Pinouts: See Figure 3-34 and Table 3-29 These two connectors provide RS-232, RS-422 or RS-485 communications. The default mode is set to RS-232 by BIOS configuration.

  • Page 66: Vga Connector

    KINO-DAL SBC 3.3.1 VGA Connector CN Label: VGA1 15-pin Female CN Type: CN Location: See Figure 3-28 CN Pinouts: See Figure 3-35 and Table 3-30 The VGA connector connects to a monitor that accepts a standard VGA input. Figure 3-35: VGA Connector Description Description GREEN...

  • Page 67: Installation

    KINO-DAL SBC Chapter Installation Page 53...

  • Page 68: Anti-Static Precautions

    KINO-DAL SBC 4.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the KINO-DAL may result in permanent damage to the KINO-DAL and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-DAL.
  • Page 69 KINO-DAL SBC WARNING: The installation instructions described in this manual should be carefully followed in order to prevent damage to the KINO-DAL, KINO-DAL components and injury to the user. Before and during the installation please DO the following:  Read the user manual: The user manual provides a complete description of the KINO-DAL installation instructions and configuration options.

  • Page 70: So-Dimm Installation

    KINO-DAL SBC 4.3 SO-DIMM Installation To install an SO-DIMM, please follow the steps below and refer to Figure 4-1. Figure 4-1: SO-DIMM Installation Step 1: Locate the SO-DIMM socket. Place the board on an anti-static mat. Step 2: Align the SO-DIMM with the socket. Align the notch on the memory with the notch on the memory socket.

  • Page 71: Module Installation

    KINO-DAL SBC 4.4 M.2 Module Installation CAUTION: If an M.2 module is installed in the M.2 slot (M2_1), the SATA port 2 (SATA2) will be disabled. Choose either the SATA2 connector or the M.2 module for storage. To install an M.2 module, please follow the steps below. Step 1: Locate the M.2 module slot.

  • Page 72: Figure 4-3: Inserting The M.2 Module Into The Slot At An Angle

    KINO-DAL SBC Step 3: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 4-3). Figure 4-3: Inserting the M.2 Module into the Slot at an Angle Step 4: Put the plastic ring onto the screw holes.

  • Page 73: Pcie Mini Card Installation

    KINO-DAL SBC 4.5 PCIe Mini Card Installation The PCIe Mini card slot on the KINO-DAL allows installation of either a full-size or half-size PCIe Mini card. 4.5.1 Full-size PCIe Mini Card Installation To install a full-size PCIe Mini card, please follow the steps below. Step 1: Locate the PCIe Mini card slot.

  • Page 74: Figure 4-6: Inserting The Full-Size Pcie Mini Card Into The Slot At An Angle

    KINO-DAL SBC Figure 4-6: Inserting the Full-size PCIe Mini Card into the Slot at an Angle Step 4: Secure the full-size PCIe Mini card with the retention screw previously removed (Figure 4-7). Figure 4-7: Securing the Full-size PCIe Mini Card Page 60...

  • Page 75: Half-Size Pcie Mini Card Installation

    KINO-DAL SBC 4.5.2 Half-size PCIe Mini Card Installation To install a half-size PCIe Mini card, please follow the steps below. Step 1: Locate the PCIe Mini card slot. See Chapter 3. Step 2: Remove the retention screw first, then unscrew and remove the standoff secured on the motherboard.

  • Page 76: Figure 4-9: Installing The Standoff

    KINO-DAL SBC Figure 4-9: Installing the Standoff Step 4: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the slot at an angle of about 20º (Figure 4-10). Figure 4-10: Inserting the Half-size PCIe Mini Card into the Slot at an Angle Step 5: Secure the half-size PCIe Mini card with the retention screw previously removed (Figure 4-11).

  • Page 77: Sim Card Installation (Optional)

    KINO-DAL SBC Figure 4-11: Securing the Half-size PCIe Mini Card 4.6 SIM Card Installation (Optional) To install a SIM card, please follow the steps below. Step 1: Locate the SIM card slot. See Section 3.2.9. Step 2: Unlock the SIM card slot cover by sliding the cover in the direction as shown by the arrow in Figure 4-12.

  • Page 78: Figure 4-13: Sim Card Installation

    KINO-DAL SBC Step 3: Open the slot cover and place a SIM card onto the slot. The cut mark on the corner should be facing away from the slot as shown in Figure 4-13. Figure 4-13: SIM Card Installation Step 4: Close the slot cover and lock it by sliding it in the direction as shown by the arrow in Figure 4-14.

  • Page 79: System Configuration

    KINO-DAL SBC 4.7 System Configuration The system configuration is controlled by buttons, jumpers and switches. The system configuration should be performed before installation. 4.7.1 AT/ATX Mode Select Switch The AT/ATX mode select switch (SW_A/T1) specifies the systems power mode as AT or ATX.

  • Page 80: Clear Cmos Button

    KINO-DAL SBC 4.7.2 Clear CMOS Button If the KINO-DAL fails to boot due to improper BIOS settings, use the button to clear the CMOS data and reset the system BIOS information. The location of the clear CMOS button (J_CMOS1) is shown in Figure 4-16 Figure 4-16: Clear CMOS Button Location Page 66...

  • Page 81: Flash Descriptor Security Override Jumper

    KINO-DAL SBC 4.7.3 Flash Descriptor Security Override Jumper The Flash Descriptor Security Override jumper (TXE_OV1, p=2.00 mm) allows users to enable or disable the ME firmware update. Refer to Figure 4-17 and Table 4-2 for the jumper location and settings. Setting Description Short 1-2...

  • Page 82: Lvds Voltage Select Jumper

    KINO-DAL SBC 4.7.1 LVDS Voltage Select Jumper WARNING: Permanent damage to the screen and KINO-DAL may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that came with the monitor to select the correct voltage. The LVDS voltage selection jumper (J_PW1, p=2.00 mm) allows setting the voltage provided to the monitor connected to the LVDS connector.

  • Page 83: Lvds Panel Resolution Select Switch

    KINO-DAL SBC 4.7.2 LVDS Panel Resolution Select Switch The SW1 selects the resolution of the LCD panel connected to the LVDS connector. Refer to Figure 4-19 and Table 4-4 for the jumper location and settings. * ON=0, OFF=1 SW1 (4-3-2-1) Description 0000 800x600 18-bit (default)

  • Page 84: And Sata2 Select Switch

    KINO-DAL SBC 4.7.3 M.2 and SATA2 Select Switch Use the M.2 and SATA2 select switch (J_SATA1) to set the priority of M2_1 and SATA2 connectors since the M.2 (M2_1) slot is co-lay with the SATA2 connector. The M.2 and SATA2 select switch settings are shown in Table 4-5. Setting Description Automatically detect M.2 or SATA2 (Default)

  • Page 85: Chassis Installation

    KINO-DAL SBC 4.8 Chassis Installation 4.8.1 Airflow WARNING: Airflow is critical for keeping components within recommended operating temperatures. The chassis should have fans and vents as necessary to keep things cool. The KINO-DAL must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface.

  • Page 86: Figure 4-21: Sata Drive Cable Connection

    KINO-DAL SBC Figure 4-21: SATA Drive Cable Connection NOTE: The connector locations in the diagram above are just for reference. For the exact locations, please see Section 3.2.7 and 3.2.8. Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive.

  • Page 87: Bios

    KINO-DAL SBC Chapter BIOS Page 73...

  • Page 88: Introduction

    KINO-DAL SBC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 89: Getting Help

    KINO-DAL SBC Function Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu –...

  • Page 90: Main

    KINO-DAL SBC The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

  • Page 91: Advanced

    KINO-DAL SBC  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus: WARNING! Setting the wrong values in the sections below may cause the system to malfunction.

  • Page 92: Acpi Settings

    KINO-DAL SBC 5.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced ACPI Settings ACPI Sleep State [S3 (Suspend to RAM] ---------------------- : Select Screen ↑...

  • Page 93: F81866 Super Io Configuration

    KINO-DAL SBC 5.3.2 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 4) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced F81866 Super IO Configuration Set Parameters of Serial Port 1 (COMA) Super IO Chip...

  • Page 94: Serial Port 1 Configuration

    KINO-DAL SBC 5.3.2.1.1 Serial Port 1 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [IO=3F8h; IRQ=4] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 95: Serial Port 2 Configuration

    KINO-DAL SBC 5.3.2.1.2 Serial Port 2 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [IO=2F8h; IRQ=11] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 96: Serial Port 3 Configuration

    KINO-DAL SBC 5.3.2.1.3 Serial Port 3 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [IO=3E8h; IRQ=10] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 97: Serial Port 4 Configuration

    KINO-DAL SBC 5.3.2.1.4 Serial Port 4 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [IO=2E8h; IRQ=10] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 98: Serial Port 5 Configuration

    KINO-DAL SBC 5.3.2.1.5 Serial Port 5 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [IO=3E0h; IRQ=10] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 99: Serial Port 6 Configuration

    KINO-DAL SBC 5.3.2.1.6 Serial Port 6 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [IO=2E0h; IRQ=10] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 100: Iwdd H/W Monitor

    KINO-DAL SBC 5.3.3 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 6) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select System temperature :+37 °C...

  • Page 101: Smart Fan Mode Configuration

    KINO-DAL SBC +5VSB +3.3V +3.3VSB 5.3.3.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 7) to configure fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced Smart Fan Mode Configuration Smart Fan Mode Select CPU_FAN1 Smart Fan Control [Manual Mode]...

  • Page 102: Usb Configuration

    KINO-DAL SBC 5.3.4 USB Configuration Use the USB Configuration menu (BIOS Menu 8) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. AUTO option USB Devices: disables legacy support 1 Keyboard, 1 Hub...

  • Page 103: Cpu Configuration

    KINO-DAL SBC  Enabled Legacy USB support enabled EFAULT  Legacy USB support disabled Disabled  Auto Legacy USB support disabled if no USB devices are connected 5.3.5 CPU Configuration Use the CPU Configuration menu (BIOS Menu 9) to view detailed CPU specifications and configure the CPU.
  • Page 104 KINO-DAL SBC  EIST [Enabled] ® Use the EIST option to enable or disable the Intel Speed Step Technology.  ® Disables the Intel Speed Step Technology. Disabled  ® Enables the Intel Speed Step Technology. Enabled EFAULT  C-States [Disabled] Use the C-States option to enable or disable the C-states.

  • Page 105: Rtc Wake Settings

    KINO-DAL SBC 5.3.6 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 10) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event. When enabled, System will wake on the date::hr::min::sec...

  • Page 106: Power Saving Configuration

    KINO-DAL SBC Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 5.3.7 Power Saving Configuration Use the Power Saving Configuration menu (BIOS Menu 11) to configure system to reduce power consumption in system off state.

  • Page 107: Serial Port Console Redirection

    KINO-DAL SBC 5.3.8 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 12) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port. Aptio Setup Utility –...

  • Page 108: Legacy Console Redirection Settings

    KINO-DAL SBC 5.3.8.1 Legacy Console Redirection Settings The Legacy Console Redirection Settings menu (BIOS Menu 13) allows the legacy console redirection options to be configured. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced Select a COM port to Legacy Serial Redirection Port [COM1] display redirection of...

  • Page 109: Iei Feature

    KINO-DAL SBC 5.3.9 IEI Feature Use the IEI Feature menu (BIOS Menu 14) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically within 10 min, when OS...

  • Page 110: Chipset

    KINO-DAL SBC 5.4 Chipset Use the Chipset menu (BIOS Menu 15) to access the north bridge and south bridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. Aptio Setup Utility –...

  • Page 111: North Bridge Configuration

    KINO-DAL SBC 5.4.1 North Bridge Configuration Use the North Bridge Configuration menu (BIOS Menu 16) to configure the Intel IGD settings. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset > Intel IGD Configuration Intel IGD Configuration > LCD Control Memory Information --------------------- : Select Screen...

  • Page 112: Intel Igd Configuration

    KINO-DAL SBC 5.4.1.1 Intel IGD Configuration Use the Intel IGD Configuration menu (BIOS Menu 17) to configure the video device connected to the system. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Intel IGD Configuration Select which of IGD/PCIe Primary Display [IGD] Graphics device should...
  • Page 113 KINO-DAL SBC  DVMT Pre-Allocated [256MB] Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots. The system memory allocated can then only be used as graphics memory, and is no longer available to applications or the operating system.

  • Page 114: Lcd Control

    KINO-DAL SBC 5.4.1.2 LCD Control Use the LCD Control menu (BIOS Menu 18) to configure the display device connected to the system. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset LCD Control Select the Video Device which will be activated Primary IGFX Boot Display [Auto] during POST.
  • Page 115 KINO-DAL SBC  Backlight Control Mode [LED] Use the Backlight Control Mode option to specify the backlight control mode. Configuration options are listed below.  EFAULT  CCFL  Backlight Control Type [DC] Use the Backlight Control Type option to specify the backlight control type. Configuration options are listed below.

  • Page 116: South Bridge Configuration

    KINO-DAL SBC 5.4.2 South Bridge Configuration Use the South Bridge Configuration menu (BIOS Menu 19) to configure the south bridge chipset. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Auto Power Button Status [Disable (ATX)] HD-Audio Configuration >...
  • Page 117 KINO-DAL SBC  USB SW1 [+5V DUAL] Use the USB SW1 BIOS option to configure whether to provide power to the two external USB 3.0 connectors labeled USB23 (the one close to power input connector) when the system is in S3/S4 sleep state. ...

  • Page 118: Hd-Audio Configuration

    KINO-DAL SBC 5.4.2.1 HD-Audio Configuration Use the HD-Audio Configuration menu (BIOS Menu 20) to configure the HD Audio. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset HD-Audio Configuration Enable/Disable HD-Audio HD-Audio Support [Enable] Support --------------------- : Select Screen ↑...

  • Page 119: Pci Express Configuration

    KINO-DAL SBC 5.4.2.2 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 21) to configure the PCI Express. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset PCI Express Configuration Compliance Mode > Onboard LAN1 Enable/Disable >...

  • Page 120: Onboard Lan

    KINO-DAL SBC 5.4.2.2.1 Onboard LAN Use the Onboard LAN menus (BIOS Menu 22) to configure the LAN 1 or LAN 2 port. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Onboard LAN1 [Auto] Control the PCI Express Root Port.

  • Page 121: Mpcie1

    KINO-DAL SBC 5.4.2.2.2 MPCIE1 Use the MPCIE1 menu (BIOS Menu 23) to configure the PCIe Mini slot. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset MPCIE1 [Auto] Control the PCI Express PCIe Speed [Auto] Root Port. AUTO: To disable unused root port automatically for the most optimum power savings.

  • Page 122: Sata Configuration

    KINO-DAL SBC  PCIe Speed [Auto] Use the PCIe Speed option to configure PCIe Mini slot speed.  Configure PCIe Mini slot speed to auto Auto EFAULT  Configure PCIe Mini slot speed to Gen1 Gen 1  Gen 2 Configure PCIe Mini slot speed to Gen2 5.4.2.2.3 SATA Configuration Use the SATA Configuration menu (BIOS Menu 24) to change and/or set the...
  • Page 123 KINO-DAL SBC  STAT Controller [Enable] Use the STAT Controller option to enable or disable the SATA device.  Enables the SATA device. Enable EFAULT  Disables the SATA device. Disable  SATA Mode Selection [AHCI] Use the SATA Mode Selection option to configure SATA devices as AHCI devices. ...

  • Page 124: Security

    KINO-DAL SBC 5.5 Security Use the Security menu (BIOS Menu 25) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup...

  • Page 125: Boot

    KINO-DAL SBC 5.6 Boot Use the Boot menu (BIOS Menu 26) to configure system boot options. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard Bootup NumLock State [On] NumLock state Quiet Boot...
  • Page 126 KINO-DAL SBC  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT  Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 127: Save & Exit

    KINO-DAL SBC 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 27) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot...
  • Page 128 KINO-DAL SBC  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. Page 114...

  • Page 129: Software Drivers

    KINO-DAL SBC Chapter Software Drivers Page 115...

  • Page 130: Software Installation

    KINO-DAL SBC 6.1 Software Installation All the drivers for the KINO-DAL are available on IEI Resource Download Center (https://download.ieiworld.com). Type KINO-DAL and press Enter to find all the relevant software, utilities, and documentation. Figure 6-1: IEI Resource Download Center IEI provides the following drivers for Windows 7, Windows 8 and Windows 10 operating systems.
  • Page 131 KINO-DAL SBC NOTE: Intel TXE requires that Microsoft's “Kernel-Mode Driver Framework (KMDF) version 1.11 update for Windows 7” must be installed first on Windows 7 OS. If the KMDF is not installed, either error 37 or error 28 may appear on the Intel TXE device in Device Manager.

  • Page 132: A Regulatory Compliance

    KINO-DAL SBC Appendix Regulatory Compliance Page 118...
  • Page 133 KINO-DAL SBC DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules.

  • Page 134: B Product Disposal

    KINO-DAL SBC Appendix Product Disposal Page 120...
  • Page 135 KINO-DAL SBC CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 136: Cbios Menu Options

    KINO-DAL SBC Appendix BIOS Menu Options Page 122...
  • Page 137 KINO-DAL SBC System Date [xx/xx/xx] ......................76 System Time [xx:xx:xx] ....................... 77 ACPI Sleep State [S3 (Suspend to RAM)] ................78 Serial Port [Enabled] ......................80 Change Settings [IO=3F8h; IRQ=4] ..................80 Transfer Mode [RS232] ......................80 Serial Port [Enabled] ......................81 Change Settings [IO=2F8h;...
  • Page 138 KINO-DAL SBC DVMT Total Gfx Mem [MAX] ....................99 Primary IGFX Boot Display [Auto] ...................100 Backlight Control Mode [LED] ..................101 Backlight Control Type [DC] .....................101 Backlight Control Voltage Level [3.3V] ................101 Restore on AC Power Loss [Last State] ................102 USB SW1 [+5V DUAL] ......................103 USB SW2 [+5V DUAL] ......................103 HD-Audio Support [Enable] ....................104 Onboard LAN1/2 [Auto] .....................106...

  • Page 139: D Terminology

    KINO-DAL SBC Appendix Terminology Page 125...
  • Page 140 KINO-DAL SBC ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface. The Advanced Technology Attachment (ATA) interface connects storage devices including hard disks and CD-ROM drives to a computer.
  • Page 141 KINO-DAL SBC analog signals. Double Data Rate refers to a data bus transferring data on both the rising and falling edges of the clock signal. Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory.
  • Page 142 KINO-DAL SBC POST The Power-on Self Test (POST) is the pre-boot actions the system performs when the system is turned-on. QVGA Quarter Video Graphics Array (QVGA) refers to a display with a resolution of 320 x 240 pixels. Random Access Memory (RAM) is a form of storage used in computer. RAM is volatile memory, so it loses its data when power is lost.

  • Page 143: E Digital I/O Interface

    KINO-DAL SBC Appendix Digital I/O Interface Page 129...
  • Page 144 KINO-DAL SBC The DIO connector on the KINO-DAL is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 8-bit digital inputs and 8-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.
  • Page 145 KINO-DAL SBC AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O output value Assembly Language Sample 2 AX, 6F09H ;setting the digital port as output BL, 09H ;digital value is 09H Digital Output is 1001b Page 131...

  • Page 146: F Watchdog Timer

    KINO-DAL SBC Appendix Watchdog Timer Page 132...
  • Page 147 KINO-DAL SBC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs. The Watchdog Timer ensures that standalone systems like ATMs will automatically attempt to restart in the case of system problems.
  • Page 148 KINO-DAL SBC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown. EXAMPLE PROGRAM: ;...

  • Page 149: G Hazardous Materials Disclosure

    KINO-DAL SBC Appendix Hazardous Materials Disclosure Page 135...
  • Page 150 KINO-DAL SBC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 151 KINO-DAL SBC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...
