IEI Technology DRPC-124-EHL Series User Manual

Fanless embedded system with intel celeron j6412 2.0ghz (up to 2.6 ghz, quad core, tdp 10w), on board 8gb lpddr4x memory, 4 x usb, 1 x hdmi, 4 x gbe lan, 12-28v dc, rohs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

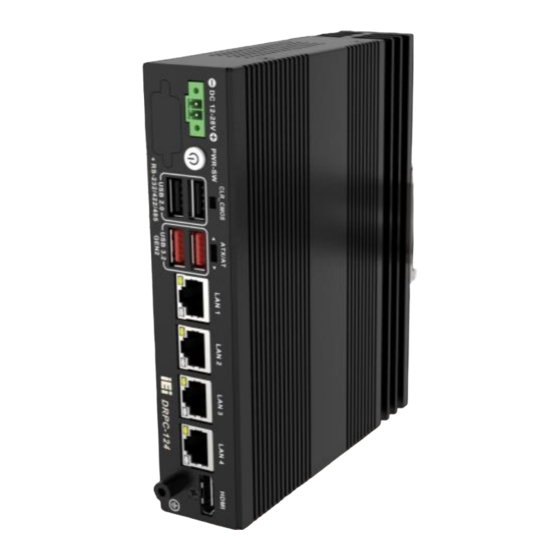

DRPC-124-EHL
MODEL:
DRPC-124-EHL Series
Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6
GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 4 x USB, 1 x
HDMI, 4 x GbE LAN, 12-28V DC, RoHS
User Manual
Page I
Rev. 1.00 – July 28, 2023
[MODEL NAME]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRPC-124-EHL Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology DRPC-124-EHL Series

Summary of Contents for IEI Technology DRPC-124-EHL Series

  • Page 1 DRPC-124-EHL MODEL: DRPC-124-EHL Series Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 4 x USB, 1 x HDMI, 4 x GbE LAN, 12-28V DC, RoHS User Manual Page I Rev.
  • Page 2 DRPC-124-EHL Revision Date Version Changes July 28, 2023 1.00 Initial release Page II [MODEL NAME]...
  • Page 3 DRPC-124-EHL Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 DRPC-124-EHL Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    DRPC-124-EHL Table of Content 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 T ..................3 ECHNICAL PECIFICATIONS 1.4 F ......................4 RONT ANEL 1.5 P ....................5 HYSICAL IMENSIONS 2 UNPACKING ......................... 6 2.1 A ..................
  • Page 6 DRPC-124-EHL 4.1 O ........................ 25 VERVIEW 4.2 L ........................25 AYOUT 4.3 P ..............26 ERIPHERAL NTERFACE ONNECTORS 4.4 C CMOS B ............... 27 LEAR UTTON ONNECTOR 4.5 AT/ATX P ................28 OWER ETTING 4.6 DNX M .................. 29 ETTING UMPER 4.7 F ............
  • Page 7 DRPC-124-EHL 5.3.3 IT5571 Super IO Configuration ............... 63 5.3.3.1 Serial Port 1 Configuration ............... 63 5.3.3.2 Serial Port 2 Configuration ............... 65 5.3.4 IT5571 H/W Monitor ..................66 5.3.5 Serial Port Console Redirection ..............66 5.3.5.1 Console Redirection Settings ..............67 5.3.6 NVMe Configuration ..................
  • Page 8 DRPC-124-EHL List of Figures Figure 1-1: DRPC-124-EHL Series ....................2 Figure 1-2: Front Panel ........................4 Figure 1-3: Physical Dimensions ....................5 Figure 3-1: Remove the Cover .....................12 Figure 3-2: Inserting the M.2 Module into the Slot at an Angle..........13 Figure 3-3: Securing the M.2 Module ..................13...
  • Page 9 DRPC-124-EHL Figure 4-14: Internal USB 2.0 Connectors Locations ...............40 Figure 4-15: Digital I/O Connector Location ................41 Figure 4-16: Front panel Connector Location ................42 Figure 4-17: M.2 B-key Slot Location ..................43 Figure 4-18: M.2 B-key Slot Location ..................45 Figure 4-19: M.2 M-key Slot Location ..................47 Figure 5-1: BIOS Starting Menu ....................50 Figure 5-2: BIOS Navigation Keys ....................51 Figure 5-3: BIOS On-screen Navigation Keys ................52...
  • Page 10 DRPC-124-EHL List of Tables Table 1-1: Technical Specifications ....................4 Table 3-1: LAN4 GbE RJ-45 Ethernet Connector LEDs ............19 Table 3-2: LAN1-3 2.5GbE RJ-45 Ethernet Connector LEDs ............19 Table 3-3: Power Connector Pinouts ..................19 Table 4-1: Peripheral Interface Connectors ................26 Table 4-2: Clear CMOS Pinouts ....................27 Table 4-3: AT/ATX Power Mode Switch Pinouts ................28 Table 4-4: DNX Mode setting Jumper Pinouts ................29...
  • Page 11 DRPC-124-EHL BIOS Menus BIOS Menu 1: Main (1/2) .......................54 BIOS Menu 2: Main (2/2) .......................54 BIOS Menu 3: Advanced ......................57 BIOS Menu 4: CPU Configuration (1/3)..................58 BIOS Menu 5: CPU Configuration (2/3)..................58 BIOS Menu 6: CPU Configuration (3/3)..................59 BIOS Menu 7: Trusted Computing ....................62 BIOS Menu 8: IT5571 Super IO Configuration ................63 BIOS Menu 9: Serial Port 1 Configuration Menu ...............63 BIOS Menu 10: Serial Port 2 Configuration Menu ..............65...

  • Page 13: Introduction

    DRPC-124-EHL Chapter Introduction Page 1...

  • Page 14: Overview

    DRPC-124-EHL 1.1 Overview Figure 1-1: DRPC-124-EHL Series The DRPC-124-EHL series embedded system adopts Intel® Elkhart Lake processor with onboard 8GB LPDDR4x memory (up to 16GB), and including one HDMI, four GbE LAN ports, four USB ports, one RS-232 /422/485 (optional).

  • Page 15: Technical Specifications

    DRPC-124-EHL 1.3 Technical Specifications The DRPC-124-EHL Series technical specifications are listed in (Table 1-1). Model Name DRPC-124-EHL Black Color 159 x 132.5 x 35 Dimension( WxDxH)(mm) Chassis Fanless System Fan Extruded aluminum alloy Chassis Construction Intel® Celeron® J6412 2.0GHz (up to 2.6GHz, quad-core, TDP 10W)

  • Page 16: Front Panel

    CE, FCC, UKCA Safety / EMC Programmable 1~255 sec/min Watchdog timer Microsoft® Windows® 10/11, Linux Supported OS Table 1-1: Technical Specifications 1.4 Front Panel The front panel of the DRPC-124-EHL Series has the following features. Figure 1-2: Front Panel Page 4...

  • Page 17: Physical Dimensions

    DRPC-124-EHL 1.5 Physical Dimensions The physical dimensions of the DRPC-124-EHL Series are shown in (Figure 1-3). Figure 1-3: Physical Dimensions Page 5...

  • Page 18: Unpacking

    DRPC-124-EHL Chapter Unpacking Page 6...

  • Page 19: Anti-Static Precautions

    DRPC-124-EHL Series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the DRPC-124-EHL Series. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the DRPC-124-EHL Series or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 20: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the DRPC-124-EHL Series from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com.
  • Page 21 DRPC-124-EHL The following table lists the optional items that can be purchased separately. Optional Power Adapter (P/N: 63040-430084-000-RS) Serial cable (P/N: 32205-008000-100-RS) DC Power Cord (P/N: 32102-045700-100-RS) Wall mounting kit (P/N: 41020-0522C2-00-HF*2) AC Power Cord (P/N: 32702-000202-100-RS) Page 9...

  • Page 22: Installation

    DRPC-124-EHL Chapter Installation Page 10...

  • Page 23: Installation Precautions

    Electric shock and personal injury might occur if the rear panel of the DRPC-124-EHL Series is opened while the power cord is still connected to an electrical outlet.

  • Page 24: Back Cover Removal

    DRPC-124-EHL 3.2 Back Cover Removal Before installing or maintaining the internal components, the back cover must be removed from the DRPC-124-EHL. Follow the steps below to complete the task. Step 1: Loosen the 7 screws on the top cover. Step 2: Take off the back cover (Figure 3-1).

  • Page 25: Storage Installation

    Secure the M.2 module with the previously removed retention screw (Figure 3-3). Figure 3-3: Securing the M.2 Module 3.4 IO extension Installation (Optional) DRPC-124-EHL series products have reserved serial port expansion capabilities, and provide optional wire. To install, follow the steps below. Page 13...

  • Page 26: Figure 3-4: Rs-232 Cable Installation

    DRPC-124-EHL Step 1: Locate the Serial port connector. See Section 4.10 Step 2: Connect the serial cable to the serial connector on the mainboard. (Figure 3-4) Figure 3-4: RS-232 Cable Installation Step 3: Knock out the reserved holes on the chassis and Secure the DB9 end of the serial cable to the panel.

  • Page 27: Back Cover Installation

    DRPC-124-EHL 3.5 Back Cover Installation Install the back cover, and fasten the 7 screws on the side. (Figure 3-6) Figure 3-6: Back Cover Installation 3.6 Mounting The System DRPC-124-EHL comes with standard rail mounting bracket and optional wall mounting bracket. Follow these steps to install. 3.6.1 DIN-Rail Installation Step 1: Turn the embedded system over.

  • Page 28: Wall Mounting Installation

    DRPC-124-EHL Step 2: Align the retention screw holes in each bracket with the corresponding retention screw holes on the rear surface. Step 3: Secure the brackets to the system by inserting retention screws (Figure 3-7) Figure 3-7: DIN Rail Mounting Bracket Installation 3.6.2 Wall Mounting Installation Step 1: Turn the embedded system over.

  • Page 29: External Peripheral Interface Connectors

    Secure the brackets to the system by inserting retention screws into each bracket （Figure 3-8） Figure 3-8: Mounting Bracket Retention Screw 3.7 External Peripheral Interface Connectors The DRPC-124-EHL Series has the following connectors. Detailed descriptions of the connectors can be found in the subsections below. ▪ Ethernet ▪...

  • Page 30: Lan Connectors

    Chapter 1 Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the DRPC-124-EHL Series. See Figure 3-10: LAN Connection Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the on-board RJ-45 connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow.

  • Page 31: Power Connector

    DRPC-124-EHL Figure 3-11: RJ-45 Ethernet Connector Activity/Link LED Speed LED STATUS DESCRIPTION STATUS DESCRIPTION No link 10 Mbps connection Yellow Linked Green 100 Mbps connection Blinking TX/RX activity Orange 1 Gbps connection Table 3-1: LAN4 GbE RJ-45 Ethernet Connector LEDs Activity/Link LED Speed LED STATUS...

  • Page 32: Usb Connectors

    DRPC-124-EHL Figure 3-12: Power Connector 3.7.4 USB Connectors The DRPC-124-EHL has two USB 3.2 & two USB 2.0 ports. To connect a USB device, please follow the instructions below Step 1: Located the USB connectors. The locations of the USB connectors are shown in Chapter 1 Step 2: Align the connectors.

  • Page 33: Powering On/Off The System

    DRPC-124-EHL 3.8 Powering On/Off the System WARNING: Make sure a power supply with the correct input voltage is being fed into the system. Incorrect voltages applied to the system may cause damage to the internal electronic components and may also cause injury to the user. The power of the system needs more than 12-28V 60W.

  • Page 34: Available Drivers

    DRPC-124-EHL 3.9 Available Drivers All the drivers for the DRPC-124-EHL Series are available on IEI Resource Download Center (https://download.ieiworld.com). Type DRPC-124-EHL Series and press Enter to find all the relevant software, utilities, and documentation. IEI Resource Download Center 3.9.1 Driver Download To download drivers from IEI Resource Download Center, follow the steps below.
  • Page 35 DRPC-124-EHL Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download ( NOTE: To install software from the downloaded ISO image file in Windows 10 (or later), double-click the ISO file to mount it as a virtual drive to view its content.

  • Page 36: System Motherboard

    DRPC-124-EHL Chapter System Motherboard Page 24...

  • Page 37: Overview

    DRPC-124-EHL 4.1 Overview The connectors and jumpers of the system motherboard are listed in the following sections. 4.2 Layout The following diagram shows the locations of the internal/external connectors and jumpers on the motherboard. Figure 4-1: Connector and Jumper Locations Page 25...

  • Page 38: Peripheral Interface Connectors

    DRPC-124-EHL 4.3 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label Clear CMOS button Button J_CMOS1 AT/ATX power mode setting Switch J_ATX_AT1 Mini SATA Connector iSATA connector Flash descriptor override setting jumper 3-pin header J_FLASH1 DNX mode setting jumper 2-pin header...

  • Page 39: Clear Cmos Button Connector

    DRPC-124-EHL 4.4 Clear CMOS Button Connector CN Label: J_CMOS1 CN Type: Button CN Location: See Figure 4-2 CN Pinouts: See Table 4-2 To clear the CMOS Setup (for example if you have forgotten the password, you should clear the CMOS and then reset the password), you should disconnect the RTC battery and press the button for about 3 seconds.

  • Page 40: At/Atx Power Mode Setting

    DRPC-124-EHL 4.5 AT/ATX Power Mode Setting CN Label: J_ATX_AT1 CN Type: 3-pin switch CN Location: See Figure 4-3 CN Pinouts: See Table 4-3 The AT/ATX power mode selection is made through the AT/ATX power mode switch which is shown in Figure 4-3. Figure 4-3: AT/ATX Power Mode Switch Locations PIN NO.

  • Page 41: Dnx Mode Setting Jumper

    DRPC-124-EHL 4.6 DNX Mode Setting Jumper CN Label: J_DNX1 CN Type: 2-pin header, P=1.27mm CN Location: See Figure 4-4 CN Pinouts: See Table 4-4 The J_DNX1 connector is used for set DNX mode. Figure 4-4: DNX Mode Setting Jumper Location PIN NO.

  • Page 42: Flash Descriptor Override Setting Jumper

    DRPC-124-EHL 4.7 Flash Descriptor Override Setting Jumper CN Label: J_FLASH1 CN Type: 3-pin header, P=2.00mm CN Location: See Figure 4-5 CN Pinouts: See Table 4-5 The J_FLASH1 connector is used for Flash Descriptor Security Overide. Figure 4-5: Flash Descriptor Override Setting Jumper Locations PIN NO.

  • Page 43: Rtc Battery Connector

    Dispose of used batteries according to instructions and local regulations. NOTE: It is recommended to attach the RTC battery onto the system chassis in which the DRPC-124-EHL Series is installed. CN Label: BAT1 CN Type: 2-pin wafer, p=1.25 mm...

  • Page 44: Buzzer Connector

    DRPC-124-EHL Figure 4-6: Battery Connector Location Description VBATT Table 4-6: Battery Connector Pinouts 4.9 Buzzer Connector CN Label: CN Type: 2-pin wafer, p=1.25 mm CN Location: See Figure 4-7 CN Pinouts: See Table 4-7 The buzzer connector is connected with the buzzer to give a beep warning when the motherboard goes wrong.

  • Page 45: Figure 4-7: Buzzer Connector Location

    DRPC-124-EHL Figure 4-7: Buzzer Connector Location Description PC_BEEP Table 4-7: Buzzer Connector Pinouts Page 33...

  • Page 46: Rs-232/422/485 Serial Port Connector

    DRPC-124-EHL 4.10 RS-232/422/485 Serial Port Connector CN Label: COM1, COM2 CN Type: 10-pin header, p=2.00 mm CN Location: See Figure 4-8 CN Pinouts: See Table 4-8 The serial connector provides RS-232/422/485 connection. Figure 4-8: RS-232/422/485 Serial Port Connector Location DESCRIPTION PIN NO.

  • Page 47: Mini Sata Connector

    DRPC-124-EHL 4.11 Mini SATA Connector CN Label: CN Type: 20-pin Mini SATA connector CN Location: See Figure 4-9 CN Pinouts: See Table 4-9 The SATA 6Gb/s drive connector is connected to a SATA 6Gb/s drive. The SATA 6Gb/s drive transfers data at speeds as high as 6Gb/s. Figure 4-9: Mini SATA Connectors Location PIN NO.

  • Page 48: Flash Spi Rom Connector

    DRPC-124-EHL +5VS SATA_TX- +5VS SATA_TX+ +5VS Table 4-9: SATA 6Gb/s Drive Connectors Pinouts 4.12 Flash SPI ROM Connector CN Label: JBIOS1 CN Type: 6-pin wafer, p=1.25 mm CN Location: See Figure 4-10 CN Pinouts: See Table 4-10 The 6-pin Flash SPI ROM connector is used to flash the BIOS. Figure 4-10: Flash SPI ROM Connector Location Description +3.3V...

  • Page 49: Flash Ec Rom Connector

    DRPC-124-EHL Description SPI CLK SPI SI Table 4-10: Flash SPI ROM Connector Pinouts 4.13 Flash EC ROM Connector CN Label: EC_SPI1 CN Type: 8-pin header, p=1.27 mm CN Location: See Figure 4-11 CN Pinouts: See Table 4-11 The 8-pin Flash EC ROM connector is used to flash the EC internal ROM. Figure 4-11: Flash EC ROM Connector Location Page 37...

  • Page 50: I 2 C Connector

    DRPC-124-EHL Description Description SPI_CS# +3.3V SPI_SO EC_DET_FLASH SPI_CLK SPI_SI Table 4-11: Flash EC ROM Connector Pinouts 4.14 I C Connector CN Label: I2C1 CN Type: 4-pin wafer, p=1.25 mm CN Location: See Figure 4-12 CN Pinouts: See Table 4-12 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 51: Hdmi Debug Connector

    DRPC-124-EHL Description I2C_DATA I2C_CLK Table 4-12: I² C Connector Pinouts 4.15 HDMI Debug Connector CN Label: CN Type: 3-pin header, p=2.00 mm CN Location: See Figure 4-13 CN Pinouts: See Table 4-13 Figure 4-13: HDMI Debug Connector Location Description Description CSDA CSCL Table 4-13: HDMI Debug Connector Pinouts...

  • Page 52: Internal Usb 2.0 Connectors

    DRPC-124-EHL 4.16 Internal USB 2.0 Connectors CN Label: USB_CN3 CN Type: 8-pin header, p=2.00 mm CN Location: See Figure 4-14 CN Pinouts: See Table 4-14 Each USB connector provides two USB 2.0 ports by dual-port USB cable. Figure 4-14: Internal USB 2.0 Connectors Locations PIN NO.

  • Page 53: Front Panel Connector

    DRPC-124-EHL The 12-bit digital I/O connector provides programmable input and output for external devices. Figure 4-15: Digital I/O Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION DOUT5 DOUT4 DOUT3 DOUT2 DOUT1 DOUT0 DIN5 DIN4 DIN3 DIN2 DIN1 DIN0 Table 4-15: Digital I/O Connector Pinouts 4.18 Front Panel Connector CN Label: CN Type:...

  • Page 54: Figure 4-16: Front Panel Connector Location

    DRPC-124-EHL CN Location: See Figure 4-16 CN Pinouts: See Table 4-16 The front panel connector connects to the indicator LEDs & reset button on the system front panel. Figure 4-16: Front panel Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION PWRBTN_N PM_SYSRST_R# +V5S...

  • Page 55: B-Key Slot (B1)

    DRPC-124-EHL 4.19 M.2 B-key Slot (B1) CN Label: M2_B1 CN Type: M.2 B-key slot CN Location: See Figure 4-17 CN Pinouts: See Table 4-17 The M.2 B key (2242) slot with PCIe Gen3 x2 signals. Figure 4-17: M.2 B-key Slot Location Description Description +V3.3_B1...

  • Page 56: Table 4-17: M.2 B-Key Slot Pinouts

    DRPC-124-EHL Description Description PCIE_RXN7 PCIE_RXP7 PCIE_TXN7 PCIE_TXP7 M.2_SMCLK PCIE_RXN6 M.2_SMDAT PCIE_RXP6 PCIE_TXN6 PCIE_TXP6 PLT_RST_N CLK_M2_B_N CLK_M2_B_P +V3.3_B1 +V3.3_B1 +V3.3_B1 Table 4-17: M.2 B-Key Slot Pinouts Page 44...

  • Page 57: B-Key Slot (B2)

    DRPC-124-EHL 4.20 M.2 B-key Slot (B2) CN Label: M2_B2 CN Type: M.2 B-key slot CN Location: See Figure 4-18 CN Pinouts: See Table 4-18 The M.2 B key (2242) slot with SATA signal. Figure 4-18: M.2 B-key Slot Location Description Description +V3.3_B2 +V3.3_B2...

  • Page 58: M-Key Slot

    DRPC-124-EHL Description Description M.2_SMCLK SATA_RX0+ M.2_SMDAT SATA_RX0- SATA_RX0+ SATA_RX0- PLT_RST_N +V3.3_B2 +V3.3_B2 +V3.3_B2 Table 4-18: M.2 B-Key Slot Pinouts 4.21 M.2 M-key Slot CN Label: NGFF1 CN Type: M.2 M-key slot CN Location: See Figure 4-19 CN Pinouts: See Table 4-19 Page 46...

  • Page 59: Figure 4-19: M.2 M-Key Slot Location

    DRPC-124-EHL The M.2 M key (2280) slot with PCIe Gen3 x2 supports NVMe storage. Figure 4-19: M.2 M-key Slot Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3P3S_SSD +V3P3S_SSD M2M_LED_N +V3P3S_SSD +V3P3S_SSD +V3P3S_SSD +V3P3S_SSD PCIE_RXN5 PCIE_RXP5 PCIE_TXN5_C PCIE_TXP5_C M_1_SSD_SLP Page 47...

  • Page 60: Table 4-19: M.2 B-Key Slot Pinouts

    DRPC-124-EHL M.2_SMCLK PCIE_RXN4 M.2_SMDAT PCIE_RXP4 PCIE_TXN4 PCIE_TXP4 PLT_RST_N PLT_RST_N CLK_M2_M_N TP320 CLK_M2_M_P Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key TP321 +V3P3S_SSD +V3P3S_SSD +V3P3S_SSD Table 4-19: M.2 B-key Slot Pinouts Page 48...

  • Page 61: Bios

    DRPC-124-EHL Chapter BIOS Page 49...

  • Page 62: Introduction

    DRPC-124-EHL 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 63: Using Setup

    DRPC-124-EHL 5.1.2 Using Setup The BIOS Setup menu can be navigated by using a keyboard or a touchscreen. 5.1.2.1 Keyboard Navigation For keyboard navigation, use the navigation keys shown in (Figure 5-2). Function Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item on the left hand side...

  • Page 64: Touch Navigation

    DRPC-124-EHL 5.1.2.2 Touch Navigation For touchscreen navigation, use the on-screen navigation keys shown below (Figure 5-3). On-screen Button Function Previous Values Load the last value you set. Optimized Defaults Load the factory default values in order to achieve the best performance. Back Return to the previous menu.

  • Page 65: Getting Help

    DRPC-124-EHL 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window, press the key. 5.1.4 Unable to Reboot after Configuration Changes If the computer cannot boot after changes to the system configuration is made, CMOS defaults.

  • Page 66: Main

    DRPC-124-EHL 5.2 Main The Main BIOS menu (BIOS Menu 1 & BIOS Menu 2) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main (1/2) BIOS Menu 2: Main (2/2) ➔...
  • Page 67 DRPC-124-EHL ▪ BIOS Vendor: Installed BIOS vendor ▪ Core Version: Current BIOS version ▪ Compliancy: Current UEFI & PI version ▪ Project Version: the board version ▪ Build Date and Time: Date the current BIOS version was made ▪ Access Level: Administrator ▪...
  • Page 68 DRPC-124-EHL ▪ PMC FW Version: Displays the PMC Firmware Version The System Overview field also has two user configurable fields: ➔ System Date [xx:xx:xx] Use the System Date option to set the system date. Manually enter the day, month and year.

  • Page 69: Advanced

    DRPC-124-EHL 5.3 Advanced Use the Advanced menu (BIOS Menu 3 ) to configure the CPU and peripheral devices through the following sub-menus WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings made are compatible with the hardware.

  • Page 70: Cpu Configuration

    DRPC-124-EHL 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 4 & BIOS Menu 5 & BIOS Menu 6) to view detailed CPU specifications or enable the Intel Virtualization Technology. BIOS Menu 4: CPU Configuration (1/3) BIOS Menu 5: CPU Configuration (2/3) Page 58...
  • Page 71 DRPC-124-EHL BIOS Menu 6: CPU Configuration (3/3) ➔ Intel(R) SpeedStep(tm) [Enabled] Use the Intel(R) SpeedStep(tm) option to enable more than two frequency ranges to be supported. ➔ Disabled Disables more than two frequency ranges ➔ Enabled Enables more than two frequency ranges EFAULT ➔...
  • Page 72 DRPC-124-EHL ➔ Intel (VMX) Virtualization Technology [Disabled] Use the Intel (VMX) Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel® Virtualization technology allows several OSs to run on the same system at the same time. ➔...
  • Page 73 DRPC-124-EHL ➔ Turbo Mode [Enabled] Use the Turbo Mode option to enable or disable Turbo Mode which requires Intel Speed Step or Intel Speed Shift to be available and enabled. ➔ Disabled Disables Turbo Mode Technology ➔ Enabled Enables Turbo Mode Technology EFAULT Page 61...

  • Page 74: Trusted Computing

    DRPC-124-EHL 5.3.2 Trusted Computing The Trusted Computing menu (BIOS Menu 7) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM) BIOS Menu 7: Trusted Computing ➔ Security Device Support [Enable] Use the Security Device Support option to configure support for the Security Device. ➔...

  • Page 75: It5571 Super Io Configuration

    DRPC-124-EHL 5.3.3 IT5571 Super IO Configuration Use the IT5571 Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial ports. BIOS Menu 8: IT5571 Super IO Configuration 5.3.3.1 Serial Port 1 Configuration Use the Serial Port 1 Configuration menu (BIOS Menu 9) to configure the serial port n. BIOS Menu 9: Serial Port 1 Configuration Menu Page 63...
  • Page 76 DRPC-124-EHL ➔ Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. ➔ Disabled Disable the serial port ➔ Enabled Enable the serial port EFAULT ➔ Device Settings The Device Settings option shows the serial port IO port address and interrupt address. ➔...

  • Page 77: Serial Port 2 Configuration

    DRPC-124-EHL 5.3.3.2 Serial Port 2 Configuration Use the Serial Port 2 Configuration menu (BIOS Menu 10) to configure the serial port n. BIOS Menu 10: Serial Port 2 Configuration Menu ➔ Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. ➔...

  • Page 78: It5571 H/W Monitor

    DRPC-124-EHL 5.3.4 IT5571 H/W Monitor The IT5571 H/W Monitor menu (BIOS Menu 11) contains the state of H/W real-time operating temperature and system voltages BIOS Menu 11: IT5571 H/W Monitor ➔ PC Health Status The following system parameters and values are shown. The system parameters that are monitored are: CPU Temperature System Temperature...

  • Page 79: Console Redirection Settings

    DRPC-124-EHL BIOS Menu 12:Serial Port Console Redirection ➔ Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function. ➔ Disabled Disabled the console redirection function. EFAULT ➔ Enabled Enabled the console redirection function. The Console Redirection Settings submenu will be available when the Console Redirection option is enabled.

  • Page 80: Bios Menu 13: Com Console Redirection Settings

    DRPC-124-EHL BIOS Menu 13: COM Console Redirection Settings Terminal Type [ANSI] ➔ Use the Terminal Type option to specify the remote terminal type. ➔ VT100 The target terminal type is VT100 ➔ VT100+ The target terminal type is VT100+ ➔ VT-UTF8 The target terminal type is VT-UTF8 ➔...
  • Page 81 DRPC-124-EHL ➔ 115200 Sets the serial port transmission speed at 115200. EFAULT ➔ Data Bits [8] Use the Data Bits option to specify the number of data bits. ➔ Sets the data bits at 7. ➔ Sets the data bits at 8. EFAULT ➔...

  • Page 82: Nvme Configuration

    DRPC-124-EHL 5.3.6 NVMe Configuration Use the NVMe Configuration (BIOS Menu 14) menu to display the NVMe controller. BIOS Menu 14: NVMe configuration 5.4 Chipset Use the Chipset menu (BIOS Menu 15) to access the PCH IO and System Agent (SA) configuration menus.

  • Page 83: System Agent (Sa) Configuration

    DRPC-124-EHL BIOS Menu 15: Chipset 5.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 16) to configure the System Agent (SA) parameters. BIOS Menu 16: System Agent (SA) Configuration ➔ VT-d [Enabled] Use the VT-d option to enable or disable the VT-d capability. Page 71...
  • Page 84 DRPC-124-EHL ➔ Disabled Disable the VT-d capability ➔ Enabled Enable the VT-d capability EFAULT Page 72...

  • Page 85: Memory Configuration

    DRPC-124-EHL 5.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 17) to view memory information. BIOS Menu 17: Memory Configuration Page 73...

  • Page 86: Graphics Configuration

    DRPC-124-EHL 5.4.1.2 Graphics Configuration Use the Graphics Configuration (BIOS Menu 18) menu to configure the video device connected to the system. BIOS Menu 18: Graphics Configuration ➔ Primary Display [Auto] Use the Primary Display option to select the primary graphics controller the system uses. The following options are available: ▪...
  • Page 87 DRPC-124-EHL Use the Internal Graphics option to configure whether to keep IGFX enabled. If user wants to support dual display by internal graphics and external graphics, this Internal Graphics option should be set to Enabled and the above Primary Display option should be set to IGFX.

  • Page 88: Pch-Io Configuration

    DRPC-124-EHL 5.4.2 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 19 & BIOS Menu 20) to configure the PCH parameters. BIOS Menu 19: PCH-IO Configuration (1/2) BIOS Menu 20: PCH-IO Configuration (2/2) Page 76...
  • Page 89 DRPC-124-EHL ➔ Auto Power Button Function [Enabled (AT)] Use the Auto Power Button Function BIOS option to show the power mode state. Use the J_ATX_AT1 to switch the AT/ATX power mode. ➔ Enabled (AT) The system power mode is AT. ➔...

  • Page 90: Figure 5-4: Bios Options And Configured Usb Ports

    DRPC-124-EHL ➔ USB Power SW2 [+5V DUAL] Use the USB Power SW2 BIOS option to configure the USB power source for the corresponding USB connectors (Figure 5-4). ➔ +5V DUAL Sets the USB power source to +5V dual EFAULT ➔ Sets the USB power source to +5V ➔...

  • Page 91: Pci Express Configuration

    DRPC-124-EHL 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 21) to configure the PCI Express slots. BIOS Menu 21: PCI Express Configuration Page 79...

  • Page 92: Pci Express Root Port Setting

    DRPC-124-EHL 5.4.2.1.1 PCI Express Root Port Setting Use the M2_B1 and M.2 submenu (BIOS Menu 22) to configure the PCI Root Port Setting. BIOS Menu 22: PCIe Slot Configuration Submenu ➔ PCIe Speed [Auto] Use the PCIe Speed option to specify the PCI Express port speed. Configuration options are listed below.
  • Page 93 DRPC-124-EHL ➔ Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to configure whether to detect if a non-compliance PCI Express device is connected to the PCI Express port. ➔ Disabled Do not detect if a non-compliance PCI Express EFAULT device is connected to the PCI Express port.

  • Page 94: Sata Configuration

    DRPC-124-EHL 5.4.2.2 SATA Configuration Use the SATA Configuration menu (BIOS Menu 23) to change and/or set the configuration of the SATA devices installed in the system. BIOS Menu 23: SATA Configuration ➔ SATA Mode Selection [AHCI] Use the SATA Mode Selection option to determine how the SATA devices operate. ➔...

  • Page 95: Hd Audio Configuration

    DRPC-124-EHL 5.4.2.3 HD Audio Configuration Use the HD Audio Configuration menu (BIOS Menu 24) to configure the PCH Azalia settings. BIOS Menu 24: HD Audio Configuration ➔ HD Audio [Enabled] Use the HD Audio option to enable or disable the High Definition Audio controller. ➔...

  • Page 96: Security

    DRPC-124-EHL 5.5 Security Use the Security menu (BIOS Menu 25) to set system and user passwords. BIOS Menu 25: Security ➔ Administrator Password Use the Administrator Password to set or change a administrator password. ➔ User Password Use the User Password to set or change a user password. Page 84...

  • Page 97: Boot

    DRPC-124-EHL 5.6 Boot Use the Boot menu (BIOS Menu 26) to configure system boot options. BIOS Menu 26: Boot 5.6.1 Boot Configuration ➔ Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. ➔...

  • Page 98: Boot Option Priorities

    DRPC-124-EHL 5.6.2 Boot Option Priorities Use the Boot Option # N to choose the system boots from the peripherals you selected The following Boot Options are listed as an example. ➔ Boot Option #1 Sets the system boot order ADATA SP580 as the first priority. ➔...

  • Page 99: Save & Exit

    DRPC-124-EHL 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 27) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 27: Save & Exit ➔ Save Changes and Reset Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system.
  • Page 100 DRPC-124-EHL ➔ Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. Page 88...
  • Page 101 DRPC-124-EHL Appendix Regulatory Compliance Page 89...
  • Page 102 DRPC-124-EHL DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ◼...
  • Page 103 DRPC-124-EHL Appendix Product Disposal Page 91...
  • Page 104 DRPC-124-EHL CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.
  • Page 105 DRPC-124-EHL Appendix Error Beep Code Page 93...
  • Page 106 DRPC-124-EHL C.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available C.2 DXE Beep Codes Number of Beeps...
  • Page 107 DRPC-124-EHL Appendix Hazardous Materials Disclosure Page 95...
  • Page 108 DRPC-124-EHL D.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).
  • Page 109 DRPC-124-EHL D.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 97...
