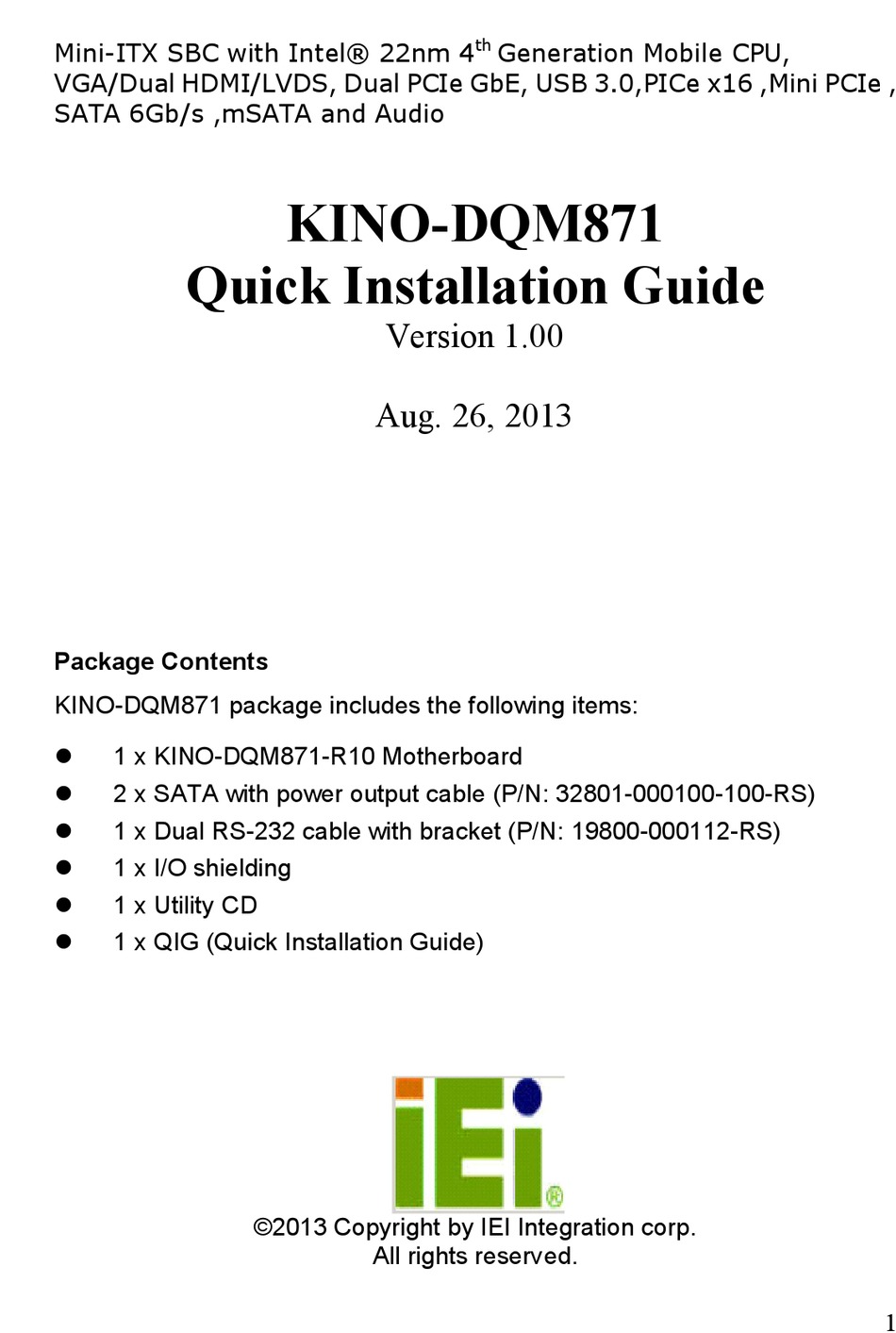

Mini-ITX SBC with Intel® 22nm 4
VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0,PICe x16 ,Mini PCIe ,
SATA 6Gb/s ,mSATA and Audio
Quick Installation Guide
Package Contents
KINO-DQM871 package includes the following items:

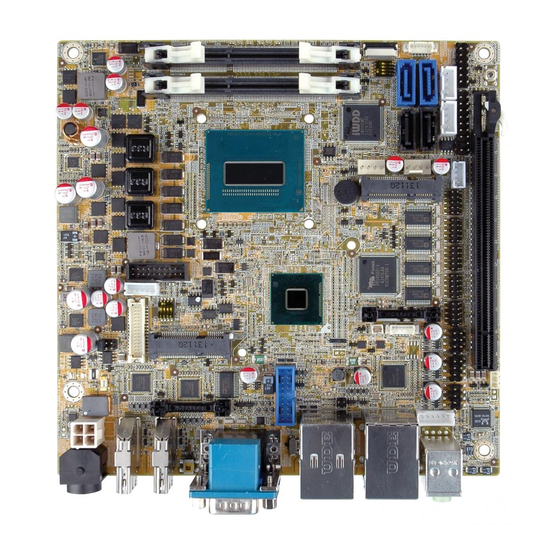

1 x KINO-DQM871-R10 Motherboard
2 x SATA with power output cable (P/N: 32801-000100-100-RS)
1 x Dual RS-232 cable with bracket (P/N: 19800-000112-RS)
1 x I/O shielding
1 x Utility CD
1 x QIG (Quick Installation Guide)
KINO-DQM871
Version 1.00
Aug. 26, 2013
©2013 Copyright by IEI Integration corp.
All rights reserved.
th
Generation Mobile CPU,
1
Advertisement
Related Manuals for IEI Technology KINO-DQM871
Summary of Contents for IEI Technology KINO-DQM871
- Page 1 SATA 6Gb/s ,mSATA and Audio KINO-DQM871 Quick Installation Guide Version 1.00 Aug. 26, 2013 Package Contents KINO-DQM871 package includes the following items: 1 x KINO-DQM871-R10 Motherboard 2 x SATA with power output cable (P/N: 32801-000100-100-RS) 1 x Dual RS-232 cable with bracket (P/N: 19800-000112-RS) ...
- Page 2 Specifications CPU: BGA 1364 type for Intel® 22nm 4 Generation processor ® System Chipset: Intel QM87 BIOS: UEFI BIOS System memory: Two 204-pin 1066/1333/1600 MHz DDR3 dual-channel SO-DIMMs (Support up to 16GB) Ethernet: ® 1 x Intel I211 PCIe GbE LAN controller (PCIe x1 interface) with ®...
-
Page 3: Ordering Information
Dimensions: 170 mm x 170 mm Weight: GW: 900g; NW: 450g Ordering Information KINO-DQM871-I7/I5/I5E/I3/I3E/C/CE-R10: Mini-ITX SBC with Intel® 4 Generation mobile CPU, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS... - Page 4 Jumpers setting table LABEL FUNCTION J_CMOS1 CMOS state setting J_ATXCTL1 Select ATX or AT mode JLCD_PWR1 LCD Voltage Selector J_PID1 LVDS Panel Resolution Selection LVDS Panel Resolution Selection J_ATXCTL1: AT/ATX Power Mode Setting J_CMOS1: Clear CMOS Setup J_SPI DESCRIPTION J_CMOS1 DESCRIPTION Short 1-2 Push Clear CMOS...
- Page 5 Table of Connectors LABEL FUNCTION PWR1 & PWR2 ADAPTER & Power Supply DC12V Power IN HDMI1,HDMI2 HDMI Connector COM1/VGA1 DB9 COM PORT and DB15 VGA Connector LAN_USB1 RJ45 LAN and USB 3.0 Connector LAN_USB2 RJ45 LAN and USB 2.0 Connector AUDIO1 Internal Audio Module Connector MINI-PCIE1...
- Page 6 HDM1,HDMI2 : HDMI connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2+ HDMI_CLK# HDMI_DATA2#- HDMI_DATA1+ HDMI_SCL HDMI_DATA1#- HDMI_SDA HDMI_DATA0+ +5VCC HDMI_DATA0#- HDMI_HPD HDMI_CLK+ COM1: External Serial Port DB9 Connector (RS-232) PIN NO. DESCRIPTION DATA CARRIER DETECT (DCD#) RECEIVE DATA (RXD) TRANSMIT DATA (TXD) DATA TERMINAL READY (DTR#)
- Page 7 LAN_USB1 : RJ-45 LAN pin define PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA3+ MDIA1+ MDIA3- MDIA2+ MDIA2- MDIA0- MDIA1- MDIA0+ LAN_USB1: USB3.0 pin define PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBUS STDA_SSRX1_P GND_DRAIN STDA_STX1_N STDA_STX1_P STDA_SSRX1_N LAN_USB2 : RJ-45 LAN pin define PIN NO.
- Page 8 MINI-PCIE1 & M-SATA1: PCIe Mini and mSATA Card Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V CLK- CLK+ PCIRST# VCC3 PCIRST# PERN2 3VDual PERP2 1.5V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ SATA_DET4_R_N 1.5V MSATA_SEL# VCC3 INVERTER1: LVDS1 Panel Backlight +12V Power Source connector PIN NO.
- Page 9 LVDS1: 24-bit dual-channel LVDS Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3 B_Y3# VCC/VCC3 VCC/VCC3 VCC/VCC3 VCC/VCC3 DP1: Display Port PIN NO. DESCRIPTION PIN NO.
- Page 10 F_PANEL1 : Power button, Rest, HDD & Power LED Indicators Connector DESCRIPTION DESCRIPTION PWR_LED+ BEEP_PWR PWR_LED BUZZER PWR_LED- PWR_BTN- PC_BEEP PWRBTN HDD_LED+ EXTRST- RESET HDD_LED HDD_LED- GND+ TPM1 : TPM connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LCLK LFRAME# LRERST# LAD3 LAD2 LAD1...
- Page 11 USB1, USB2,USB3: Internal USB2.0 Connector x 3 PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC (+5V) DATA- DATA+ DATA+ DATA- VCC (+5V) KB_MS1: 6-pin PS/2 Keyboard/Mouse Connector PIN NO. DESCRIPTION VCC (+5V) Mouse Data Mouse Clock Keyboard Data Keyboard Clock S_ATA1~S_ATA4 : Serial ATA Connectors S_ATA 1 &...
- Page 12 COM2 ~COM5: Internal Serial Port Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION -NDCD -NDSR NSIN -NRTS NSOUT -NCTS -NDTR -XRI COM6: Wafer 4pin 2.0mm connector PIN NO. DESCRIPTION RXD485- (422RX-) RXD485+ (422RX+) TXD485+ (422TX+/485D+) TXD485- (422TX-/485D-) BAT1: +3V Battery Connector PIN NO.
- Page 13 LAN_ACT_LED1 : PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN1_LINK_ACT- V_3P3_LAN LAN2_LINK_ACT- +3.3A PWR_SW1: Power on button PWR_SW1 DESCRIPTION Push Power on...
-
Page 14: Board Layout: Jumper And Connector Locations
