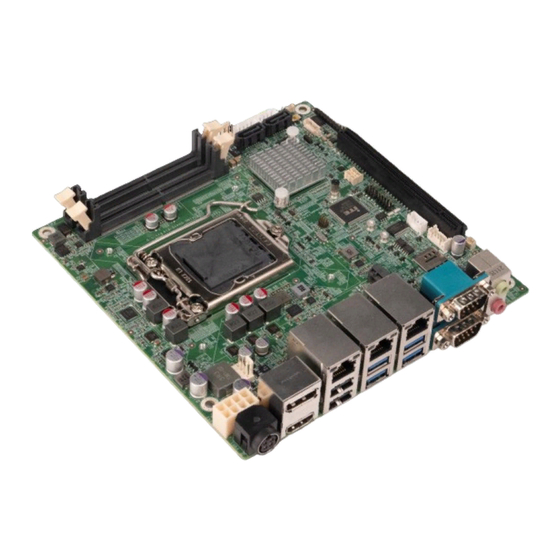

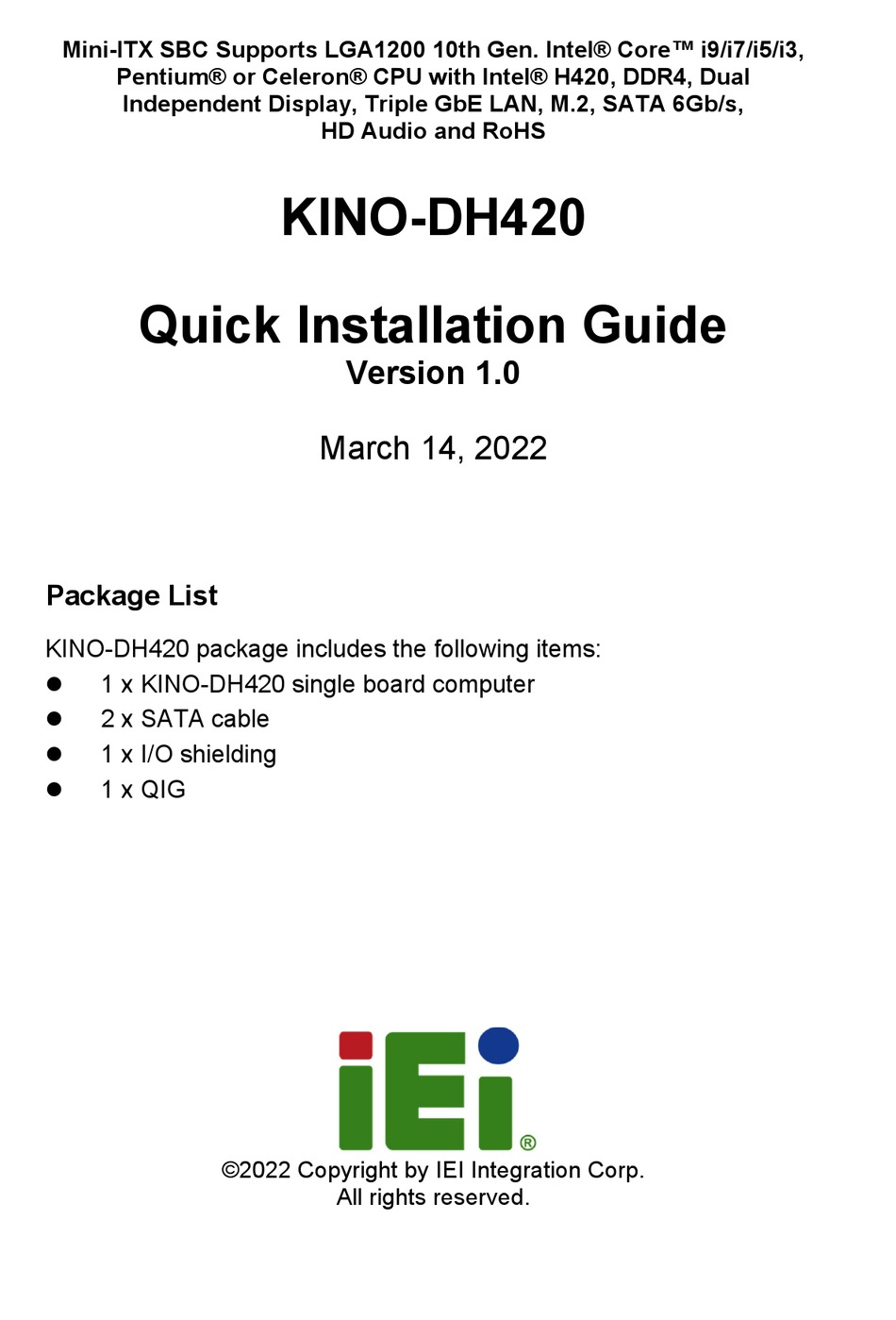

Mini-ITX SBC Supports LGA1200 10th Gen. Intel® Core™ i9/i7/i5/i3,
Pentium® or Celeron® CPU with Intel® H420, DDR4, Dual
Independent Display, Triple GbE LAN, M.2, SATA 6Gb/s,
Quick Installation Guide
Package List
KINO-DH420 package includes the following items:
1 x KINO-DH420 single board computer
2 x SATA cable
1 x I/O shielding
1 x QIG
HD Audio and RoHS
KINO-DH420
Version 1.0
March 14, 2022
©2022 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology KINO-DH420
Summary of Contents for IEI Technology KINO-DH420
- Page 1 Independent Display, Triple GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS KINO-DH420 Quick Installation Guide Version 1.0 March 14, 2022 Package List KINO-DH420 package includes the following items: 1 x KINO-DH420 single board computer 2 x SATA cable 1 x I/O shielding ...
-
Page 2: Specifications
Specifications CPU: LGA1200 10 Gen. Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors Chipset: Intel® H420 Memory: Two 260-pin 2933 MHz dual-channel DDR4 SO-DIMM slots supporting up to 64 GB memory BIOS: AMI UEFI BIOS Graphics Engine: Intel®... - Page 3 Audio: Realtek ALC888S HD Audio codec 2 x Audio jack (line-out, mic-in) 1 x Front audio (2x5 pin, p=2.54) Front Panel: 1 x Front panel (1x10 pin, p=2.54; power LED, HDD LED, power button, reset button) LAN LED: 2 x LAN LED (1x2 pin, p=2.0) Expansions: ...
- Page 4 IEI Resource Download Center All the drivers and utility for the KINO- https://download.ieiworld.com DH420 are available on IEI Resource Download Center. Type KINO-DH420 and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file as a virtual drive to view its content.
-
Page 5: Ordering Information
Ordering Information KINO-DH420-R10: Mini-ITX SBC supports LGA1200 10th Gen. Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® CPU with Intel® H420, DDR4, dual independent display, triple GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS 19800-000300-100-RS: RS-232 cable with bracket, 300mm, p=2.0 ... -
Page 6: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_ATX_AT1 AT/ATX power mode setting J_CMOS1 Clear CMOS jumper J_FLASH1 Flash descriptor security override jumper PWR2 12V power input connector AUDIO1 Audio connector BAT1 RTC battery connector Buzzer connector DIMM1, DIMM2 DDR4 SO-DIMM slots DIO1 Digital I/O connector DBG_PORT1... - Page 7 External GbE RJ-45 and USB 3.2 Gen 1 LAN1_USB1, LAN2_USB2 combo connectors External GbE RJ-45 and USB 2.0 combo LAN3_USB2 connector HDMI_DP1 External HDMI and DP combo connector PWR1 External power input connector COM1 External dual RS-232 connector J_ATX_AT1: AT/ATX Power Mode Setting PIN NO.
- Page 8 AUDIO1 : Internal Audio Connector for IEI Audio Module PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUD_GND LMIC2-L LMIC2-R PRESENCE# LLINE2-R MIC2-JD FRONT-IO LINE2-JD LLINE2-L BAT1: RTC Battery Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBATT SP1: Buzzer Connector PIN NO. DESCRIPTION PIN NO.
- Page 9 CPU_FAN1, SYS_FAN1: CPU/System Fan Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION FANIO +12V JSPI1: Flash SPI ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CLK SPI_CS# SPI_SI SPI_SO EC_SPI1: Flash EC ROM Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION CS#_EC SO_EC HOLD#_EC...
- Page 10 JP1: LAN1 Link LED Connector DESCRIPTION DESCRIPTION +3.3V LAN1_LED_LNK#_ACT JP2: LAN2 Link LED Connector DESCRIPTION DESCRIPTION +3.3V LAN2_LED_LNK#_ACT JP3: LAN3 Link LED Connector DESCRIPTION DESCRIPTION +3.3V LAN3_LED_LNK#_ACT COM3: RS-232 Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM4: RS-422/428 Serial Port Connectors PIN NO.
- Page 11 S_ATA1, S_ATA2: SATA 6Gb/s Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_RX‐ SATA_TX+ SATA RX+ SATA_TX‐ SATA_PWR1, SATA_PWR2: SATA Power Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V SMB1: SMBus Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_CLK SMB_DATA USB2: Internal USB 2.0 Connector PIN NO.
- Page 12 Module Key PCIE_TX+ PCIE_TX- PCIE_RX+ PCIE_RX1 PCIE_CLK+ PCIE_CLK- PLT_RST CLKREQ0# Pull up +3.3V PCIE_WAKE Pull up +3.3V +3.3V +3.3V...
- Page 13 M2_B1: M.2 B-key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V USB+ USB- Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key PCH_WAKE_N PCIE_RX1- SIM_RST PCIE_RX1+ SIM_CLK SIM_IO PCIE_TX1- SIM_VCC PCIE_TX1+ PCIE_RX0- PCIE_RX0+ PCIE_TX0- PCIE_TX0+...
- Page 14 LTE_RST PEDET +3.3V +3.3V +3.3V AUDIO_CV1: External Audio Jacks Jack Color DESCRIPTION Green Line-out: connect this port to headphone or speaker Pink Microphone: connect this port to microphone LAN1_USB1, LAN2_USB2 External GbE RJ-45 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA3- MDIA1+ MDIA3+...
- Page 15 LAN3_USB2 External GbE RJ-45 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA3- MDIA1+ MDIA3+ MDIA2+ MDIA2- MDIA0- MDIA1- MDIA0+ External USB 2.0 Connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ PWR1: External Power Input Connector PIN NO. DESCRIPTION PIN NO.
- Page 16 HDMI_DP1 External DP Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LANE0P LANE3N LANE0N AUX_CTRL_DET_C LANE1P LANE1N AUXP LANE2P AUXN LANE2N LANE3P External HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2 HDMI_CLK# HDMI_DATA2# HDMI_DATA1 HDMI_SCL HDMI_DATA1# HDMI_SDA HDMI_DATA0 HDMI_DATA0# HDMI_HPD HDMI_CLK...
- Page 17 Board Layout: Jumper and Connector Locations (Unit: mm)
