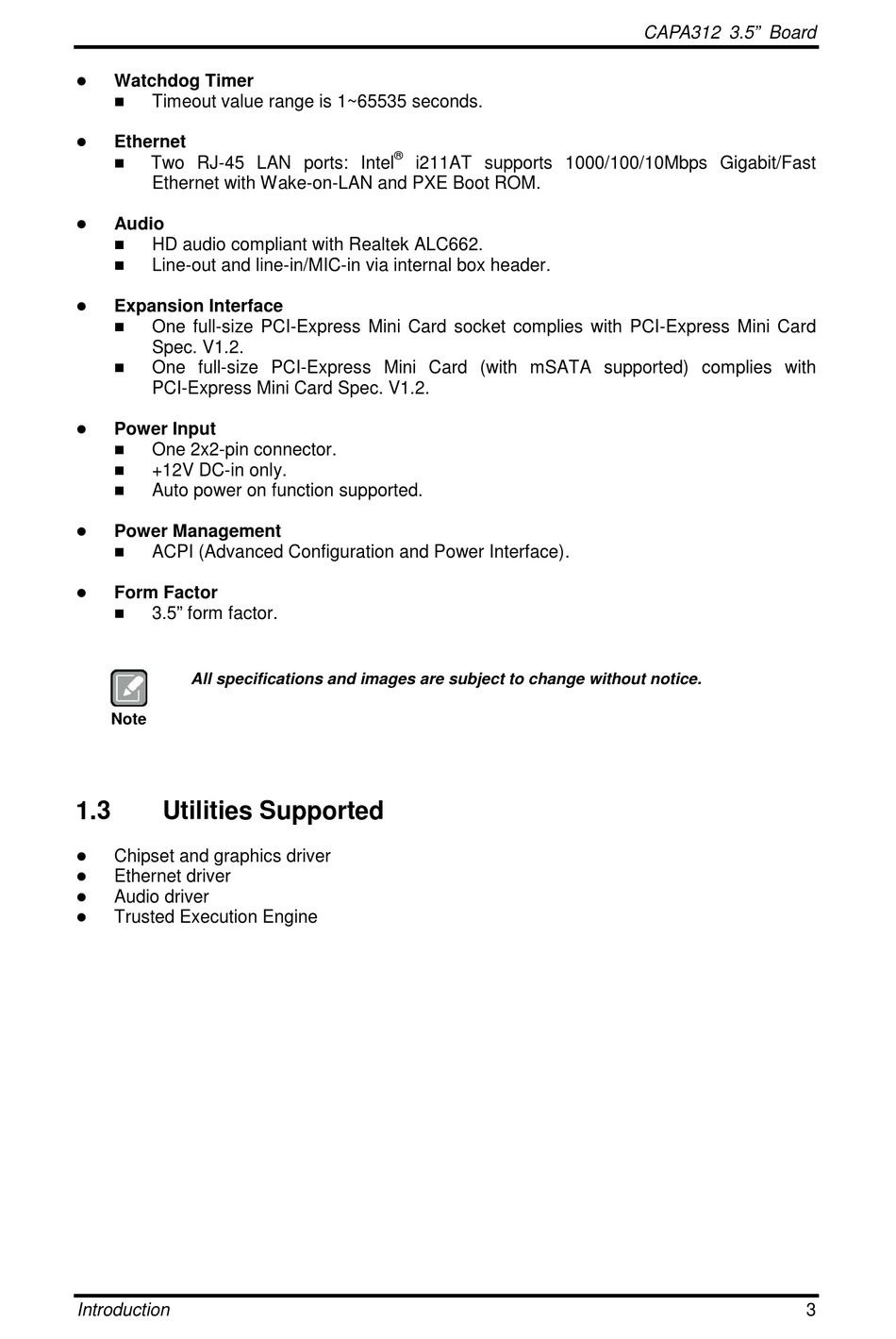

Utilities Supported - AXIOMTEK CAPA312 User Manual

 Watchdog Timer
 Timeout value range is 1~65535 seconds.
 Ethernet
 Two RJ-45 LAN ports: Intel
Ethernet with Wake-on-LAN and PXE Boot ROM.
 Audio
 HD audio compliant with Realtek ALC662.
 Line-out and line-in/MIC-in via internal box header.
 Expansion Interface
 One full-size PCI-Express Mini Card socket complies with PCI-Express Mini Card
Spec. V1.2.
 One full-size PCI-Express Mini Card (with mSATA supported) complies with
PCI-Express Mini Card Spec. V1.2.
 Power Input
 One 2x2-pin connector.
 +12V DC-in only.
 Auto power on function supported.

Power Management
 ACPI (Advanced Configuration and Power Interface).
 Form Factor
 3.5" form factor.
All specifications and images are subject to change without notice.
Note
1.3

Utilities Supported

 Chipset and graphics driver
 Ethernet driver
 Audio driver
 Trusted Execution Engine
Introduction
®
i211AT supports 1000/100/10Mbps Gigabit/Fast
CAPA312 3.5" Board
3
