5.5.7 Export results

The export dialog lets you configure the file type to be used to export results. You can select:
•
text file (*.txt), formatted for copy-and-paste into a spreadsheet
•
XML file (*.xml) for further processing in your workflow
For each measurement in the file list, a result file will be written to the export folder using the
given filename prefix and the current date as a suffix (fileName_YYYY-MM-DD.ext).

5.5.8 Connected LED-Panel

The status bar (Figure 15, ⑥) at the bottom of the application shows the serial number(s) of the
connected LED-Panel. By clicking a serial number, the specific LED-Panel display will start
flashing.

5.6 Measurement

Before analyzing images with the LED-Panel software, you should keep a few things in mind to
ensure proper functioning.
•
Make sure that the images are correctly exposed. Under- or overexposed images may
lead to a false-positive detection of LEDs due to noise or other artifacts in the image.
•
Align the LED-Panel device properly. Images with rotated or tilted devices may result in
a false or failed detection.
•
Please ensure that the whole device is visible in the image.
Image Engineering

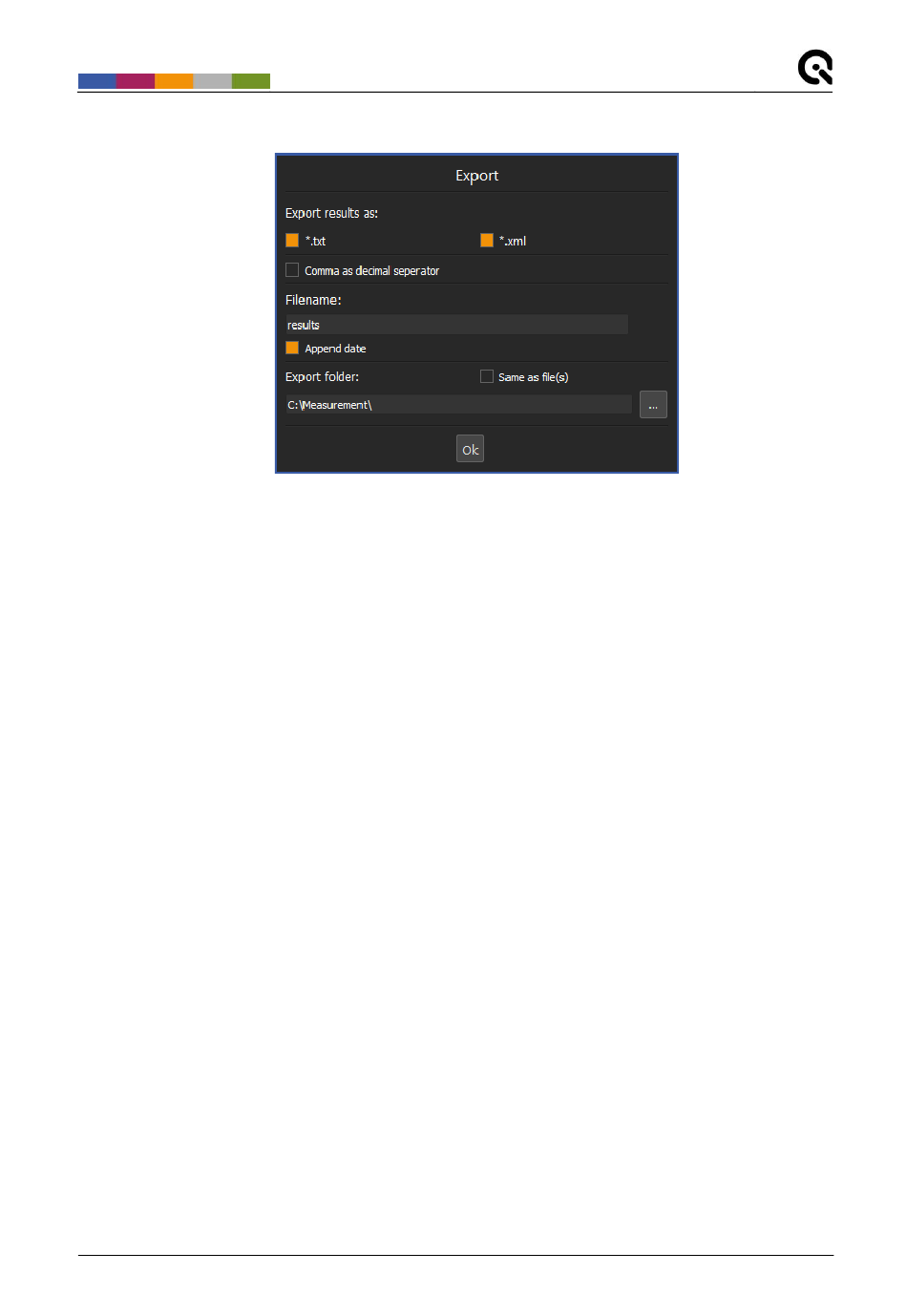

Figure 24
