3 OPERATING INSTRUCTIONS HARDWARE

3.1 Set up hardware

Connect the power cord to the power supply on LED-Panel V5. Connect the power supply to
electricity. Switch on LED-Panel V5 by setting the power switch to "I." The power switch is
located beside the power supply.

3.2 Hardware description

Operating element front:
•
LED array
•
Display
•
Trigger button
•
Mode button
Operating elements side:
•
Rotary knob for changing the frequency and dimming of the LED array and the display
•
USB Mini port (connection to PC)
•
Stop trigger (3.5 mm TRS connector, signal input *)
•
Camera trigger (3.5 mm TRS connector, signal input *)
•
iQ-Trigger (before: Digitus, 6.3 mm TRS connector, signal output *)
•
Defocus (6.3 mm TRS connector, signal output *)
•
Power switch
•
Power connection
The square array of 100 LEDs is separated into ten rows, each consisting of ten LEDs. The
LEDs light up one after another with the set speed/frequency.
The row beneath the square field consists of ten LEDs and is switched forward after all 100
LEDs have passed. Thus, the device can represent cycles of up to 1000 LEDs.
Image Engineering

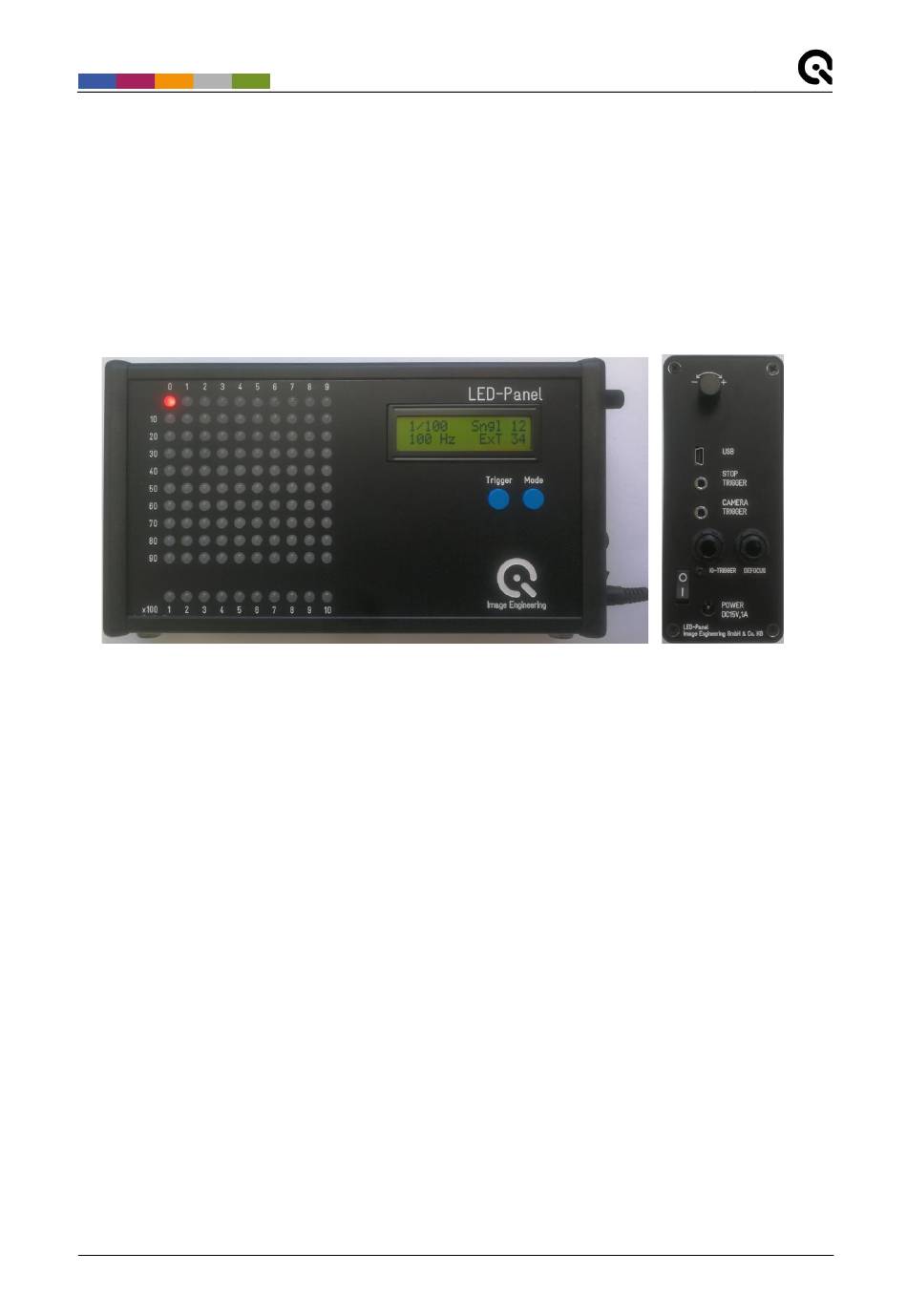

LED-Panel V5 front and side
