We recommend two LED-Panels in "Exposure Time" mode for software-based rolling shutter
analysis, one in the top left corner and one in the bottom right corner. For detailed information
on setting up two LED-Panels with your device under test, please see the following two
infographics.

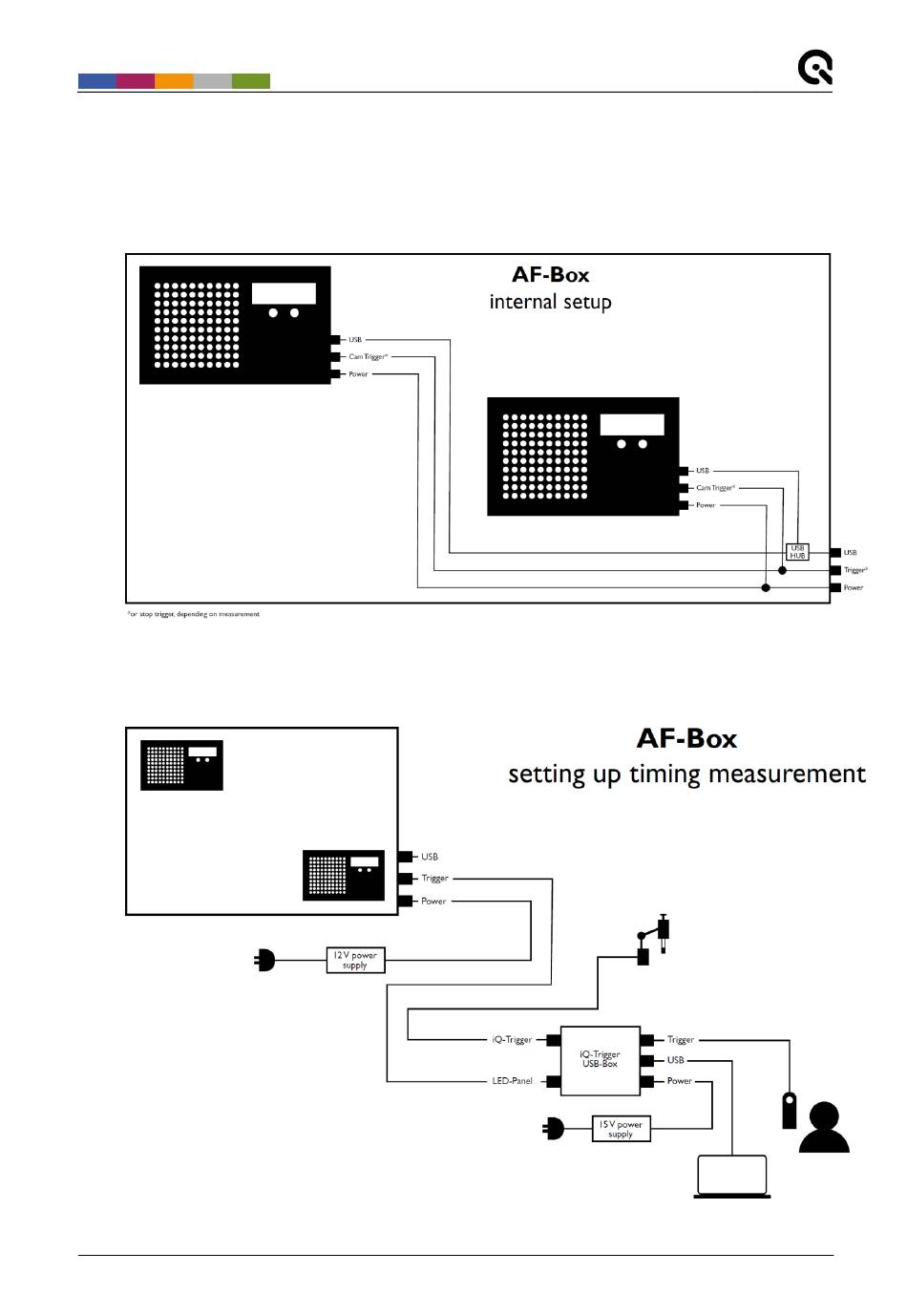

Figure 12: internal wiring
Figure 13: setting up for timing measurement
