5.5.5 Results

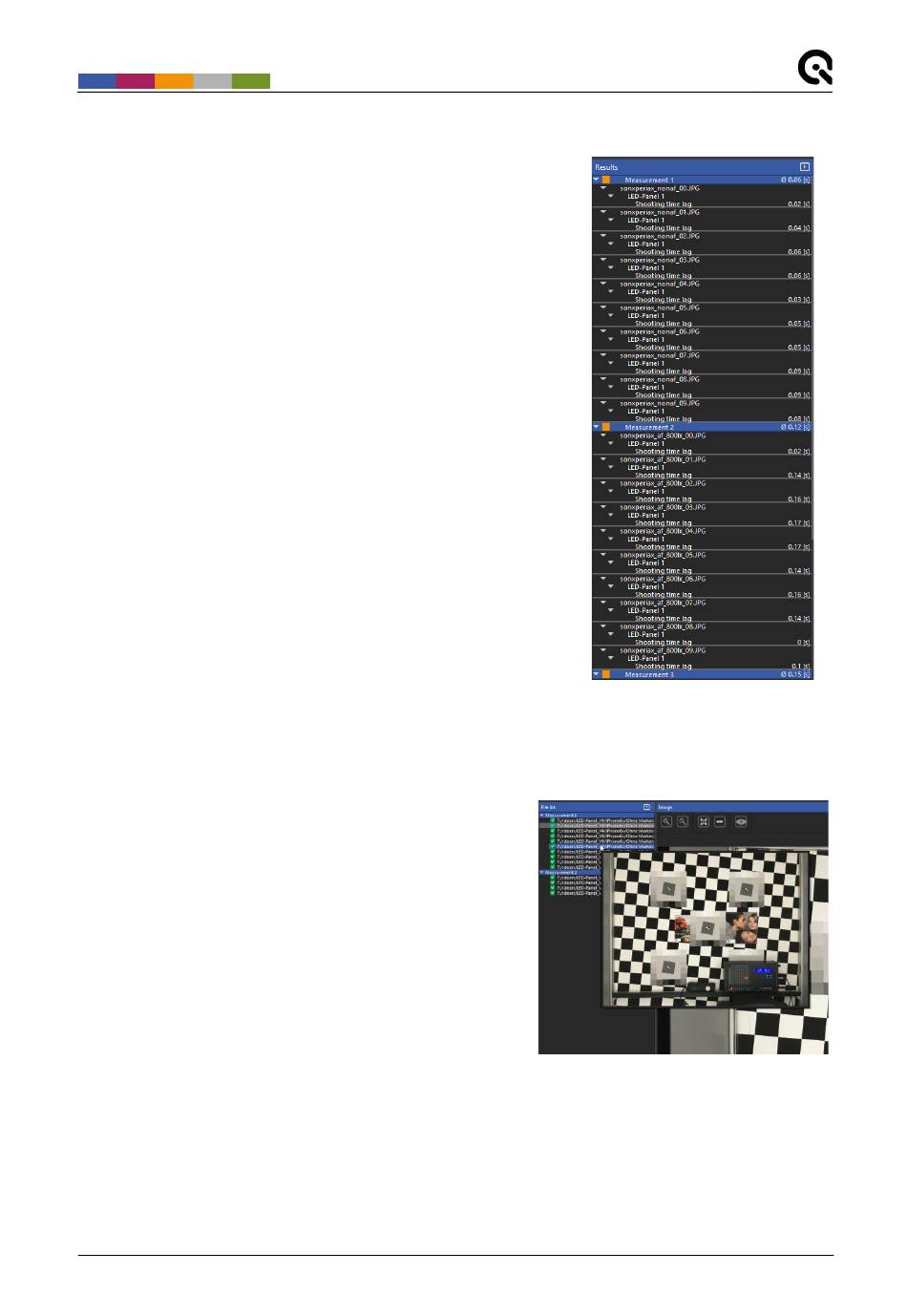

The results panel (Figure 22) shows analysis results as a
hierarchical tree with two columns, "Name" and "Time [s]."
The first column shows the measurements with the
assigned images. For each image, the detected LED-
Panels and measurement types are listed. The number of
LED-Panels depends on your setup; they are numbered
and counted clockwise starting from the top left.
The second column shows the measured time for each
LED-Panel and an average value for the measurement.
For example, if an image contains four LED-Panels, there
will be four LED-Panel entries for this particular image with
the measured time for each one of them.
The resulting tree can be collapsed or expanded by clicking
the arrow button in the top right corner.

5.5.6 Menu bar

The menu bar (Figure 15, ⑦) provides some quick accessible options.
File
Open:
Quit:
Options
Export:
View
Show full file path: toggles between the full file path
Image preview: shows a thumbnail image when the
Expand/Collapse: expands or collapses file list and
Help
About...:
Image Engineering
opens the "Open file" dialog
closes the application
opens the export setting dialog
(5.5.7 Export results)
and the file name in the file list
mouse hovers over the file list
(Figure 23)
results
shows general information about the application
Figure 22
Figure 23
