- Page 1 Quick Start Guide 31. January 2020 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 . 50169 Kerpen-Horrem . Germany T +49 2234 2273 99 99 1-0 . F +49 2234 2273 99 99 1-10 . www.image-engineering.com...
-
Page 2: Table Of Contents
4.1.1 Camera position and lenses used ..............5 4.1.2 Exposure ......................6 4.2 Spectral sensitivity (camSPECS) Module ..............6 4.3 Spectral sensitivity (iQ-LED) Module ................. 8 4.4 Validation module ..................... 9 4.5 Color Transforms Module ..................10 4.6 ICC profile evaluation ....................12... -
Page 3: Introduction

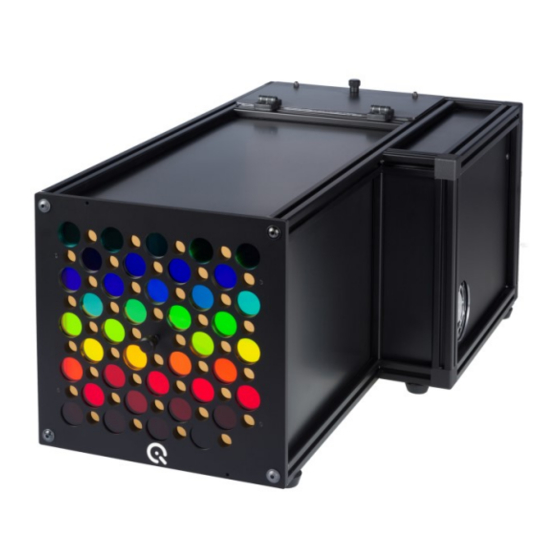

The plug for the power supply and the main switch are located at the back side of the box. Connect camSPECS with a power socket and switch it on and let it run for a couple of minutes until it reaches a stable temperature. -
Page 4: Spectral Sensitivity (Iq-Led) Module
For documentation purposes the spectral curves can be saved as an image file. 3.1.2 Spectral sensitivity (iQ-LED) module • Start the camSPECS software and switch to module Spectral sensitivity (iQ-LED). • Select the desired Spectral Sensitivity Database. • Select the Dark frame, if desired. -
Page 5: Icc Profile Evaluation Module
Note: Ensure that the filters are the only light sources that are captured by the camera. To avoid stray light or other light hitting the camera sensor the pictures should be taken in a dark room or the space between camera and the camSPECS device should be shielded. -
Page 6: Exposure
4.2 Spectral sensitivity (camSPECS) Module 1. Select the calibration file for your camSPECS device. With the '+' and '-' buttons calibration files can be added and removed from the list. Calibration files can be saved to a specified location with the ‘S’... - Page 7 (.txt) and an XML file in the same directory as the original image directory. For the camSPECS version a tile image is saved to the same directory as the origin of the images directory assembled from the single images. Check this image for correct positions of the ROIs or all filters.
-
Page 8: Spectral Sensitivity (Iq-Led) Module
6. Add Image Folder to select the folder containing the image capture files of each of the spectra specified in item 5 above. 7. Press Start to compute the spectral sensitivities of the test camera. 8. The Results panel shows the computed spectral sensitivities for the test camera. Image Engineering Seite 8 von 12... -
Page 9: Validation Module
Columns must be separated with a tabulator. The files in the /calibration_files/lightsource directory of the camSPECS program folder may be used as a template. Format your file corresponding to these files and copy it to this folder then restart camSPECS. -
Page 10: Color Transforms Module
4.5 Color Transforms Module 1. Select a Camera Spectral Sensitivites file that was created by camSPECS. 2. Select the desired Transform Type from those available. 3. Select the desired Reference illuminant spectral distribution file for the light source of the scene adopted white point. - Page 11 Test data is shown in split field for each color patch. 10. Display shows the results from the computed transform by default as a Delta E – Color Comparison. 11. Click Export… to save the transform. Image Engineering Seite 11 von...
-
Page 12: Icc Profile Evaluation
4. ICC profile test image 2 selects from a list of ICC profiles. To view the image color managed for viewing on an sRGB device, select the ICC profile just created in the CCM/ICC profile creation module. 5. Export image… saves the white balanced, 16 bit, linear RGB image with the ICC profile embedded. Image Engineering Seite 12 von...
