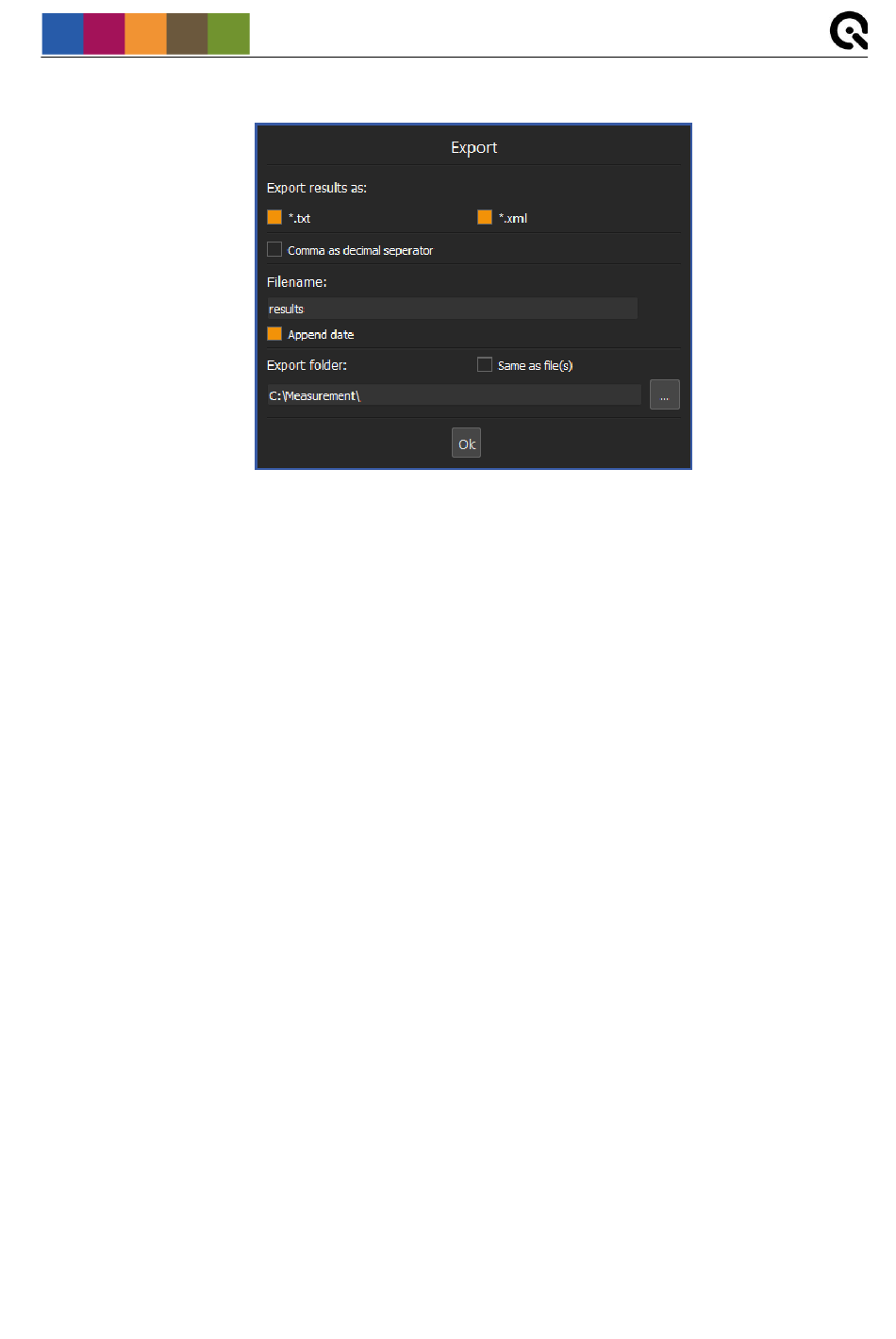

5.5.7 Export results

The export dialog lets you configure the file type to be used for the export of results. You can
select
•
text file (*.txt), formatted for copy-and-paste into a spreadsheet
•
XML file (*.xml) for further processing in your workflow or both.
For each measurement in the file list a result file will be written to the export folder using the
given file name prefix and the current date as a suffix (fileName_YYYY-MM-DD.ext).

5.5.8 Connected LED-Panel

The status bar (Figure 15, ⑥) at the bottom of the application shows the serial number(s) of the
connected LED-Panel. By clicking a serial number the specific LED-Panel display will start
flashing.

5.6 Measurement

Prior to analyzing images with the LED-Panel software there are a few things you should keep
in mind to ensure proper functioning.
•
Make sure that the images are exposed properly. Under- or overexposed images may
lead to a false positive detection of LEDs due to noise or other artefacts in the image.
•
Align the LED-Panel device properly. Images with rotated or tilted devices may result in
a false or failed detection.
•
Please ensure that the whole device is visible in the image.
Operating instructions software
Figure 24
