*For an electrical wiring diagram of these connectors, please see the
The LED-Panel V5 can be operated manually or via software (USB interface). Please refer to
chapter 3.3 for information about control software.

3.2.1 Trigger mode

The LED-Panel V5 can be operated manually using either an external (single) or internal
(continuous) trigger. The trigger mode can be changed by pressing the button Trigger. The
trigger is indicated on the LCD display in the top row:
•
Cont: Trigger Continuous
•
Sngl: Trigger Single
A remote release is connected to the LED-Panel for the external operating mode. When
connecting to the CAMERA TRIGGER input, the LED-Panel starts by pressing and stops by
releasing the remote release button (and returns to the start position).
The period between two triggered events can be calculated if a remote release is also
connected to the STOP TRIGGER input. The LED-Panel starts by pressing the CAMERA
TRIGGER (remote release) and stops by pressing the STOP TRIGGER (remote release). When
stopped, the LED-Panel does not return to the start position – but remains at the LED position lit
last. The only prerequisite is that the CAMERA TRIGGER remains pressed when stopped and
pressing the CAMERA TRIGGER again resets the LED-Panel.
Image Engineering
LED-Panel

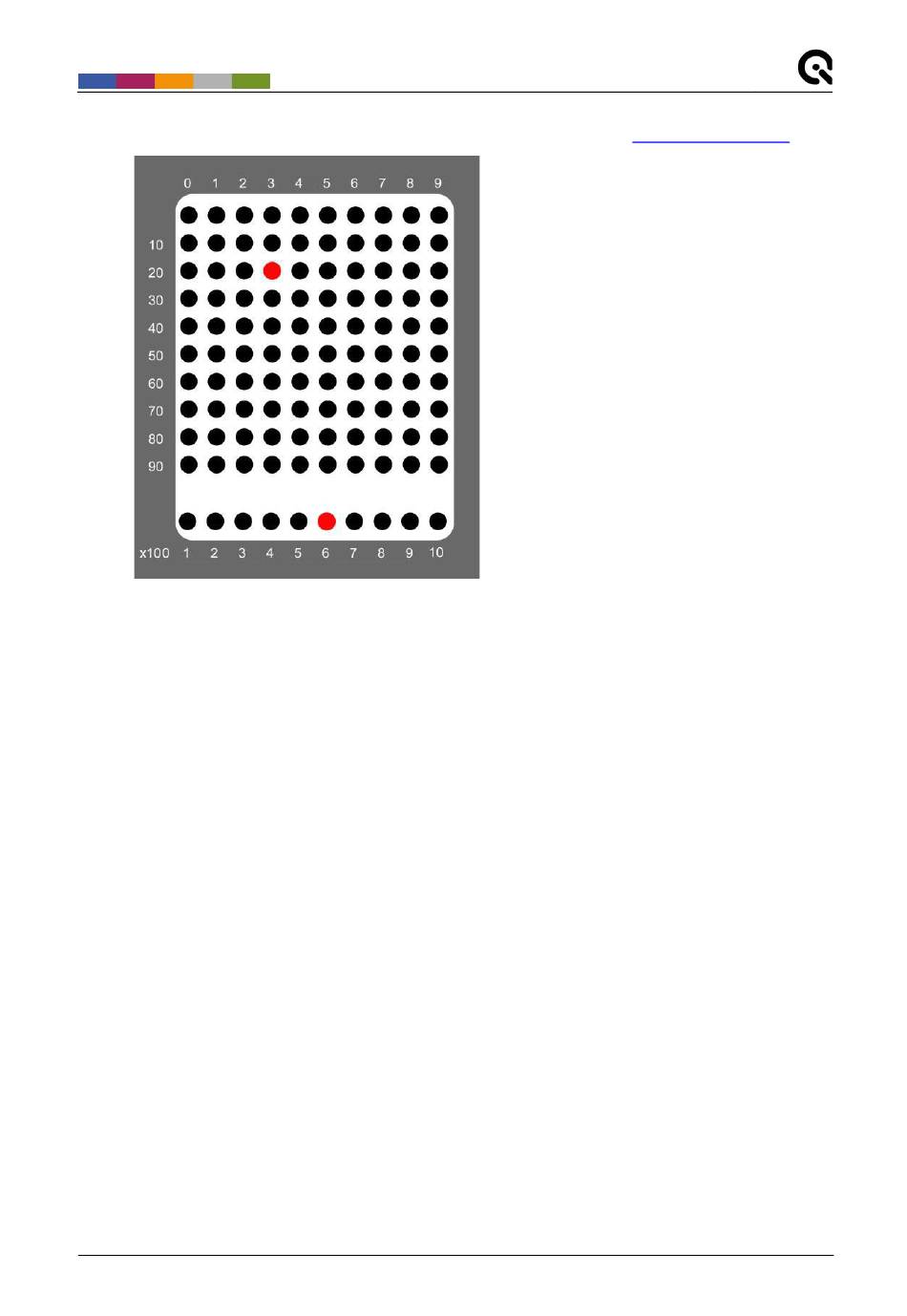

Square field of 10 x 10 LEDs and the
additional row beneath the 10 rows.
In this example, the 100 LEDs have
already passed through six times, visible
on the lighted up LED "600" in the lower
row.
datasheet.
