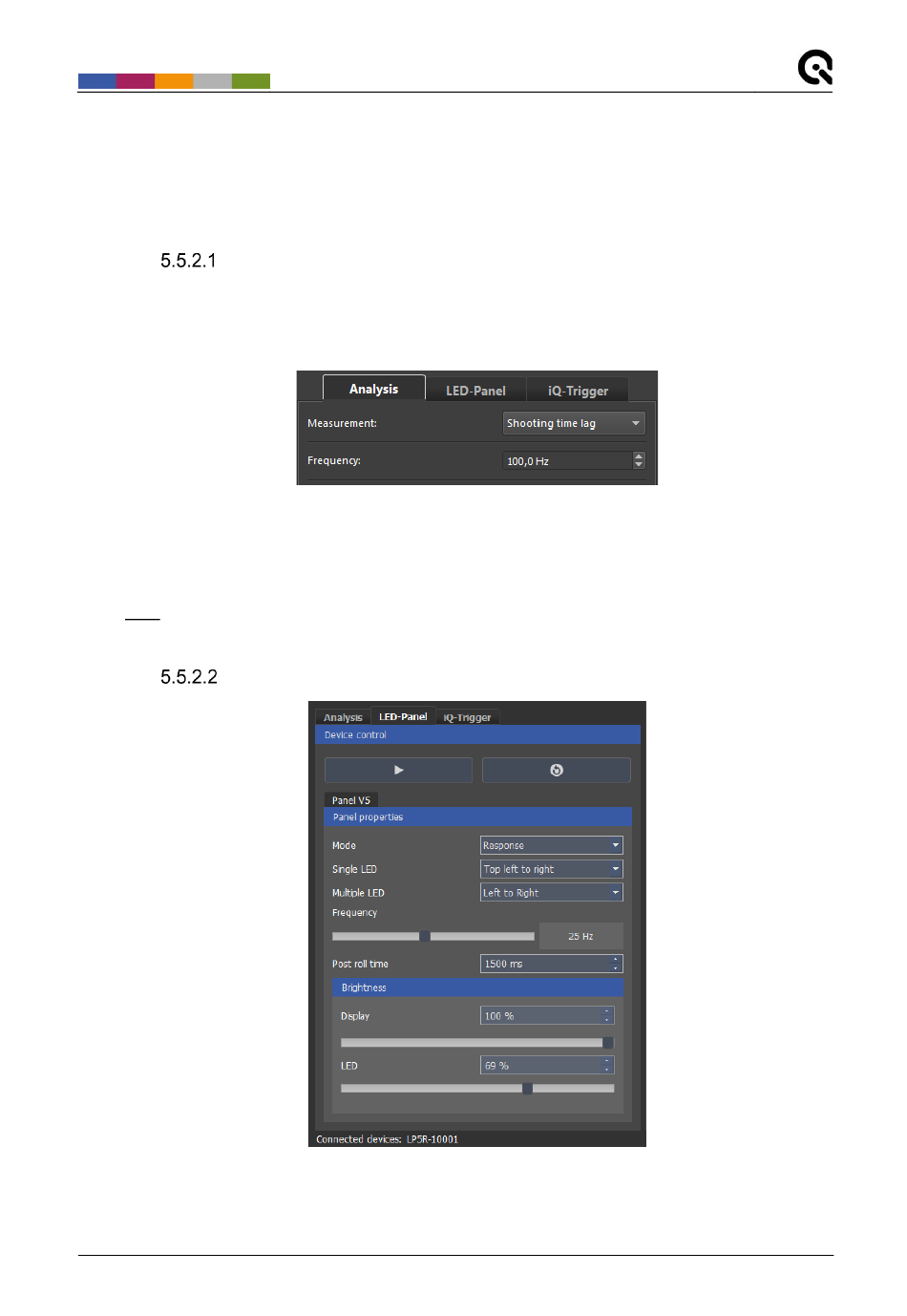

5.5.2 Control panel
The control panel is located on the bottom left side of the GUI. There you select the required
settings for your analysis.
The control panel (Figure 15, ②) is divided into three different tabs (Figure 17).
Analysis
The "Analysis" tab contains the general settings. "LED-Panel" and "iQ-Trigger" tabs are used to
control connected devices.
In the "Analysis tab" (Figure 17), you can choose the measurement method and the frequency.
The set frequency is used to calculate the time shown by the LED-Panel in your images. For
further details on measuring different camera timings, please refer to chapter 5 and ISO 15781.
Note: Ensure that the frequency setting matches the device setting used when capturing your
images.
LED-Panel
Image Engineering
Figure 17
Figure 18
Seite 20 von 45
