Assemble Back

Lay out all the parts for the back face in a staging area.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
!
The back is assembled with the outside face to the ground. ALL VIEWS ARE SHOWN FROM INSIDE.

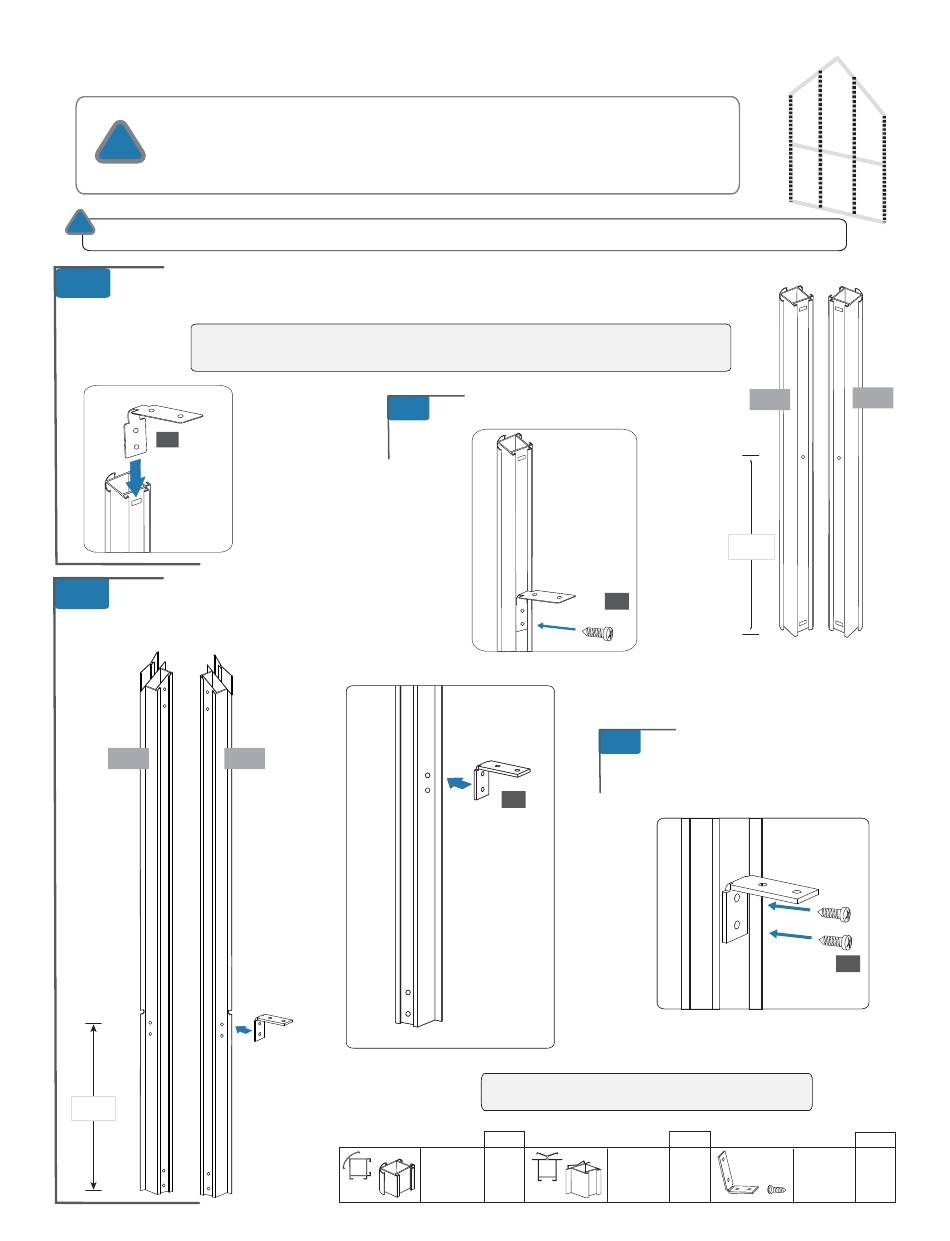

Slide short side of connector S01 into channels of profiles G02A and G02B.
1.1A
Line up last hole on connector S01 with hole in each profile.
IMPORTANT: The holes are not at the midpoint of the profile.
Arrange profile so the 26" portion will be the bottom when standing.
S01
1.2A
Line up bottom hole on short side of
connectors S01 with hole on side of
profiles G03C and G03D.
G03C G03D
26"
(600 mm)
www.stcny.com
1.1B
Secure with S02 screws.
S01
NOTE: ALL VIEWS ARE FROM INSIDE.
Profile
QTY
#G02A 1
#G02B 1
6 of 50
S02
1.2B
Secure each S01 connector
with two S02 screws.
Profile
QTY
#G03C 1
1
#G03D
G02B
G02A
26"
(600 mm)
S02
Connector
QTY
#S01 4
#S02 6
