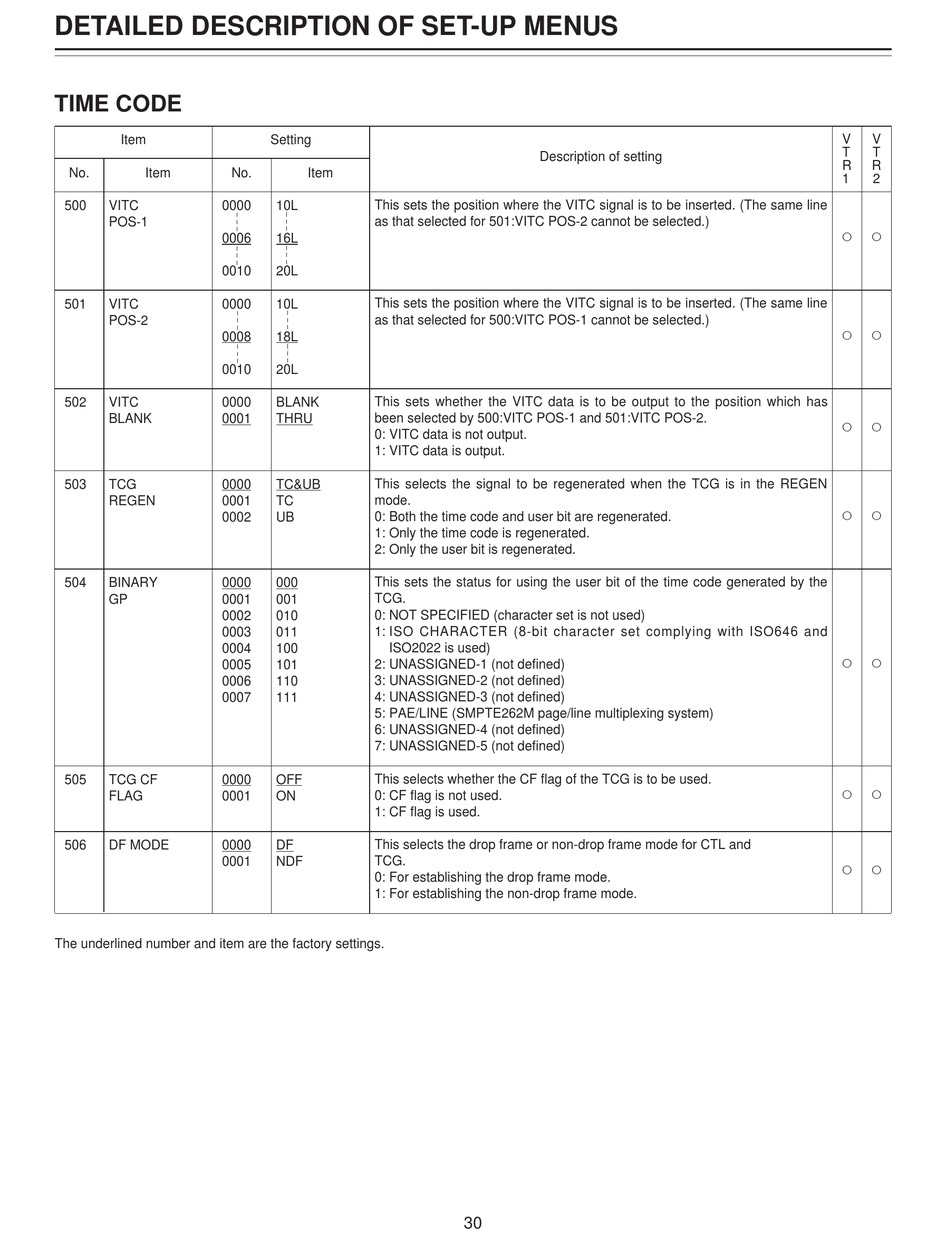

DETAILED DESCRIPTION OF SET-UP MENUS
TIME CODE
Item
No.
Item
No.
500
VITC
0000
POS-1
0006
0010
501
VITC
0000
POS-2
0008
0010
502
VITC
0000
BLANK
0001
503
TCG
0000
REGEN
0001
0002
504
BINARY
0000
GP
0001
0002
0003
0004
0005
0006
0007
505
TCG CF
0000
FLAG
0001
506
DF MODE
0000
0001
The underlined number and item are the factory settings.
Setting
Item
This sets the position where the VITC signal is to be inserted. (The same line
10L
as that selected for 501:VITC POS-2 cannot be selected.)
16L
20L
This sets the position where the VITC signal is to be inserted. (The same line
10L
as that selected for 500:VITC POS-1 cannot be selected.)
18L
20L
This sets whether the VITC data is to be output to the position which has
BLANK
been selected by 500:VITC POS-1 and 501:VITC POS-2.
THRU
0: VITC data is not output.
1: VITC data is output.
This selects the signal to be regenerated when the TCG is in the REGEN
TC&UB
mode.
TC
0: Both the time code and user bit are regenerated.
UB
1: Only the time code is regenerated.
2: Only the user bit is regenerated.
This sets the status for using the user bit of the time code generated by the
000
001
TCG.
0: NOT SPECIFIED (character set is not used)
010
011
1: ISO CHARACTER (8-bit character set complying with ISO646 and
ISO2022 is used)
100
101
2: UNASSIGNED-1 (not defined)
3: UNASSIGNED-2 (not defined)
110
111
4: UNASSIGNED-3 (not defined)
5: PAE/LINE (SMPTE262M page/line multiplexing system)
6: UNASSIGNED-4 (not defined)
7: UNASSIGNED-5 (not defined)
This selects whether the CF flag of the TCG is to be used.
OFF
ON
0: CF flag is not used.
1: CF flag is used.
This selects the drop frame or non-drop frame mode for CTL and
DF
NDF
TCG.
0: For establishing the drop frame mode.
1: For establishing the non-drop frame mode.
Description of setting
30
V
V
T
T
R
R
1
2
™ ™
™ ™
™ ™
™ ™
™ ™
™ ™
™ ™
