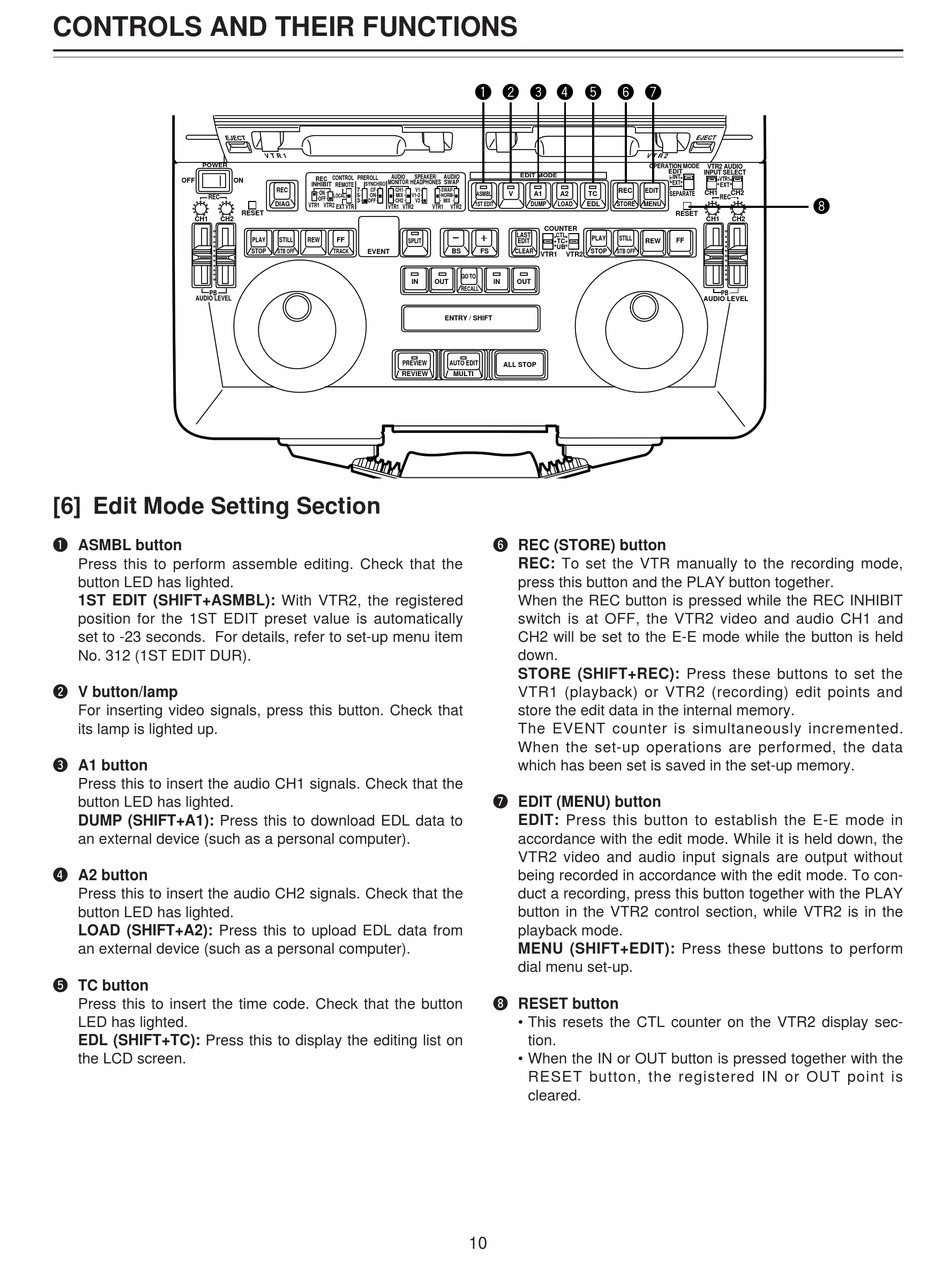

CONTROLS AND THEIR FUNCTIONS
EJECT
POWER
OFF
ON
REC
CH1
CH2
PB
AUDIO LEVEL
[6] Edit Mode Setting Section
q ASMBL button
Press this to perform assemble editing. Check that the
button LED has lighted.
1ST EDIT (SHIFT+ASMBL): With VTR2, the registered
position for the 1ST EDIT preset value is automatically
set to -23 seconds. For details, refer to set-up menu item
No. 312 (1ST EDIT DUR).
w V button/lamp
For inserting video signals, press this button. Check that
its lamp is lighted up.
e A1 button
Press this to insert the audio CH1 signals. Check that the
button LED has lighted.
DUMP (SHIFT+A1): Press this to download EDL data to
an external device (such as a personal computer).
r A2 button
Press this to insert the audio CH2 signals. Check that the
button LED has lighted.
LOAD (SHIFT+A2): Press this to upload EDL data from
an external device (such as a personal computer).
t TC button
Press this to insert the time code. Check that the button
LED has lighted.
EDL (SHIFT+TC): Press this to display the editing list on
the LCD screen.
V T R 1
AUDIO
SPEAKER/
CONTROL
PREROLL
REC
MONITOR
HEADPHONES
SYNCHRO
INHIBIT
REMOTE
REC
7
-
CF
-
-
CH1
-
V1
-
-
ON
-
LOCAL-
5
-
ON
-
-
MIX
-
V1•2
-
-
OFF
-
3
-
OFF
-
-
CH2
-
V2
-
DIAG
VTR1 VTR2
EXT VTR
VTR1 VTR2
RESET
PLAY
STILL
REW
FF
SPLIT
STOP
STB OFF
TRACK
EVENT
IN
PREVIEW
REVIEW
1 2 3 4 5 6 7
EDIT MODE
AUDIO
SWAP
-
SWAP
-
ASMBL
V
A1
A2
TC
-
NORM
-
-
MIX
-
DUMP
LOAD
EDL
1ST EDIT
VTR1
VTR2
COUNTER
LAST
CTL
PLAY
EDIT
TC
UB
BS
FS
CLEAR
STOP
VTR1
VTR2
GO TO
OUT
IN
OUT
RECALL
ENTRY / SHIFT
AUTO EDIT
ALL STOP
MULTI
y REC (STORE) button
REC: To set the VTR manually to the recording mode,
press this button and the PLAY button together.
When the REC button is pressed while the REC INHIBIT
switch is at OFF, the VTR2 video and audio CH1 and
CH2 will be set to the E-E mode while the button is held
down.
STORE (SHIFT+REC): Press these buttons to set the
VTR1 (playback) or VTR2 (recording) edit points and
store the edit data in the internal memory.
The EVENT counter is simultaneously incremented.
When the set-up operations are performed, the data
which has been set is saved in the set-up memory.
u EDIT (MENU) button
EDIT: Press this button to establish the E-E mode in
accordance with the edit mode. While it is held down, the
VTR2 video and audio input signals are output without
being recorded in accordance with the edit mode. To con-
duct a recording, press this button together with the PLAY
button in the VTR2 control section, while VTR2 is in the
playback mode.
MENU (SHIFT+EDIT): Press these buttons to perform
dial menu set-up.
i RESET button
• This resets the CTL counter on the VTR2 display sec-
tion.
• When the IN or OUT button is pressed together with the
RESET button, the registered IN or OUT point is
cleared.
10
EJECT
V T R 2
OPERATION MODE
VTR2 AUDIO
EDIT
INPUT SELECT
INT
VTR1
EXT
EXT
REC
EDIT
CH1
CH2
SEPARATE
REC
STORE
MENU
RESET
CH1
CH2
STILL
FF
REW
STB OFF
PB
AUDIO LEVEL
8
