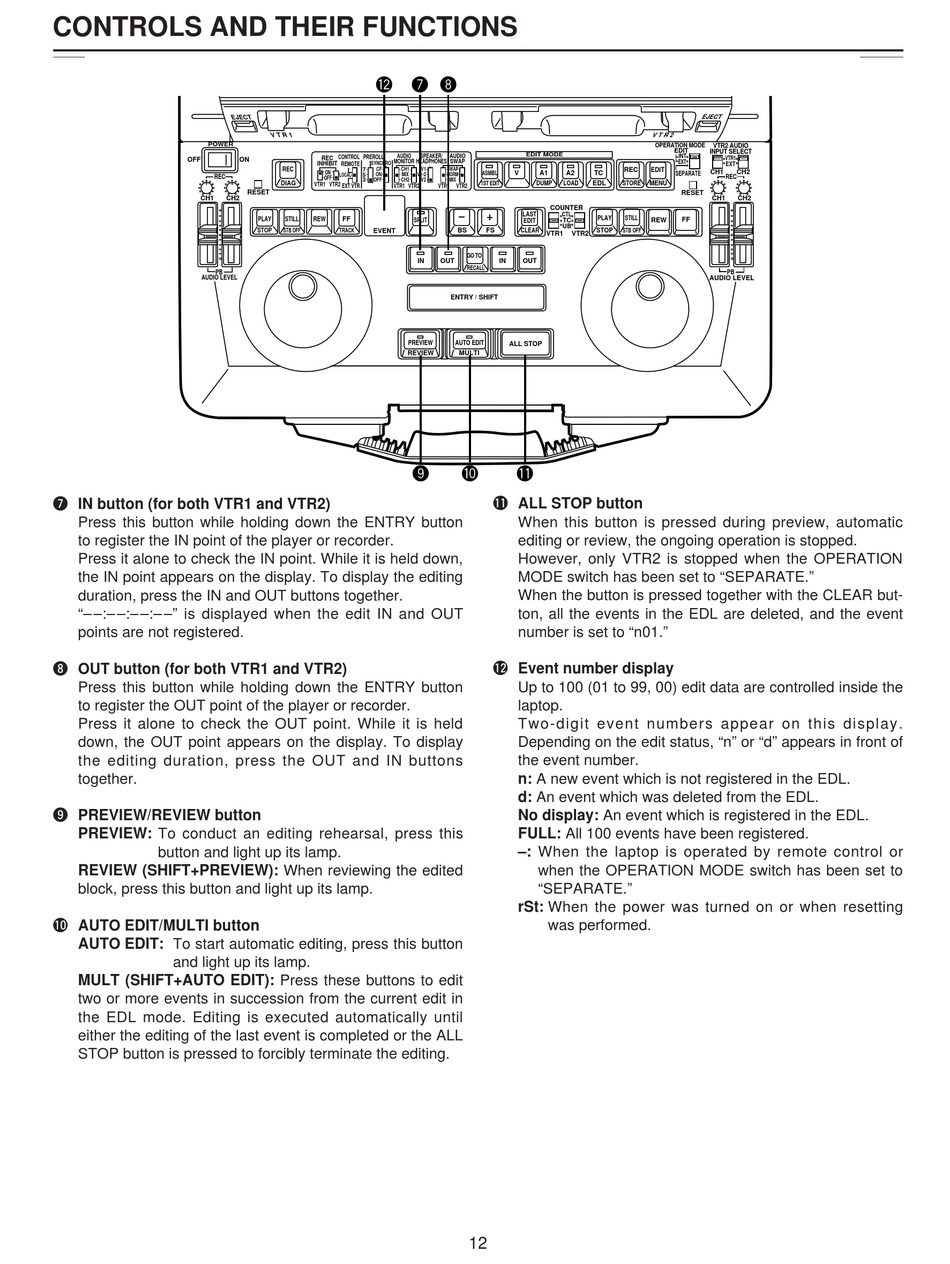

CONTROLS AND THEIR FUNCTIONS
EJECT
POWER
OFF
REC
CH1
CH2
PB
AUDIO LEVEL
u IN button (for both VTR1 and VTR2)
Press this button while holding down the ENTRY button
to register the IN point of the player or recorder.
Press it alone to check the IN point. While it is held down,
the IN point appears on the display. To display the editing
duration, press the IN and OUT buttons together.
"– –:– –:– –:– –" is displayed when the edit IN and OUT
points are not registered.
i OUT button (for both VTR1 and VTR2)
Press this button while holding down the ENTRY button
to register the OUT point of the player or recorder.
Press it alone to check the OUT point. While it is held
down, the OUT point appears on the display. To display
the editing duration, press the OUT and IN buttons
together.
o PREVIEW/REVIEW button
PREVIEW: To conduct an editing rehearsal, press this
button and light up its lamp.
REVIEW (SHIFT+PREVIEW): When reviewing the edited
block, press this button and light up its lamp.
!0 AUTO EDIT/MULTI button
AUTO EDIT: To start automatic editing, press this button
and light up its lamp.
MULT (SHIFT+AUTO EDIT): Press these buttons to edit
two or more events in succession from the current edit in
the EDL mode. Editing is executed automatically until
either the editing of the last event is completed or the ALL
STOP button is pressed to forcibly terminate the editing.
