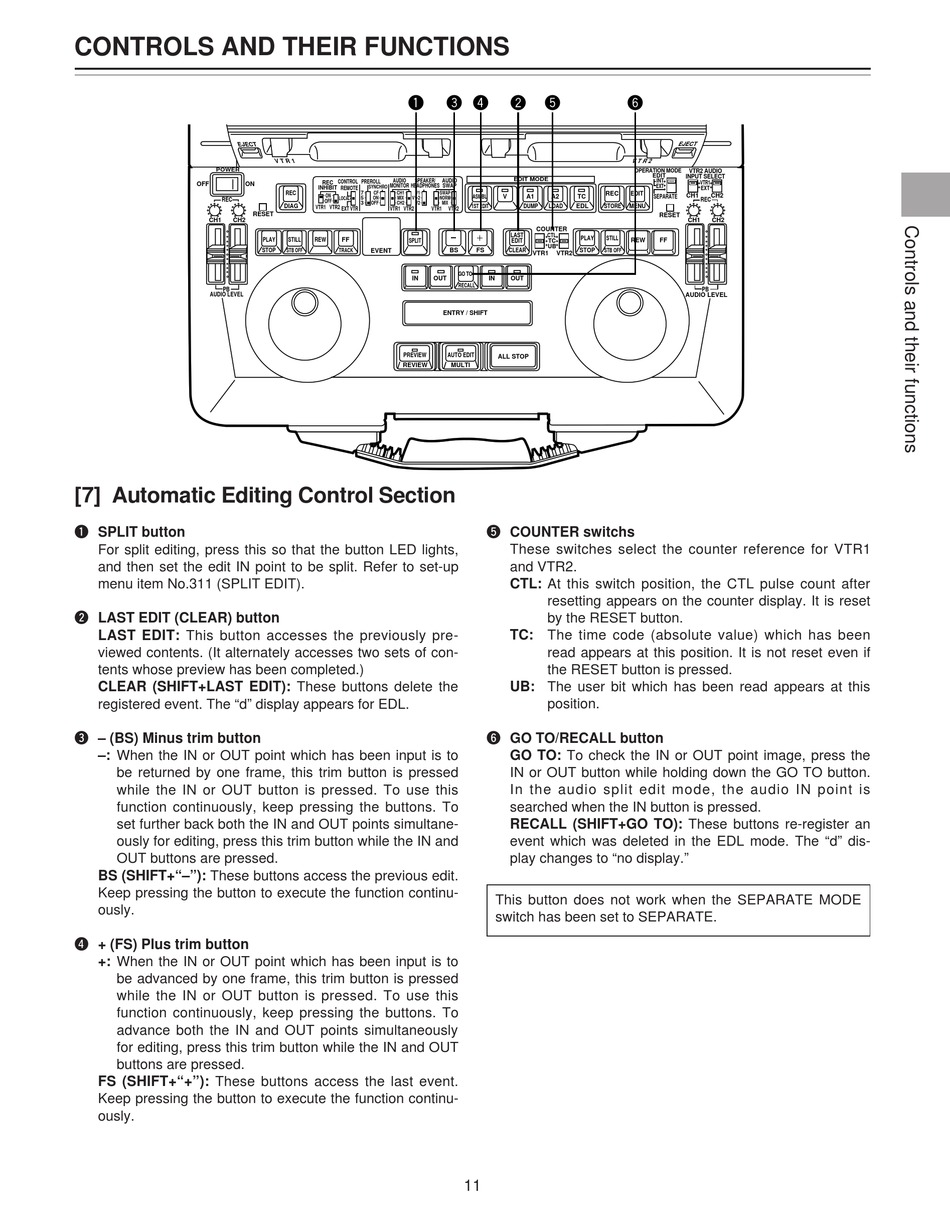

CONTROLS AND THEIR FUNCTIONS
EJECT
POWER
ON
OFF
REC
RESET
CH1
CH2
PB
AUDIO LEVEL
[7] Automatic Editing Control Section
q SPLIT button
For split editing, press this so that the button LED lights,
and then set the edit IN point to be split. Refer to set-up
menu item No.311 (SPLIT EDIT).
w LAST EDIT (CLEAR) button
LAST EDIT: This button accesses the previously pre-
viewed contents. (It alternately accesses two sets of con-
tents whose preview has been completed.)
CLEAR (SHIFT+LAST EDIT): These buttons delete the
registered event. The "d" display appears for EDL.
e – (BS) Minus trim button
–: When the IN or OUT point which has been input is to
be returned by one frame, this trim button is pressed
while the IN or OUT button is pressed. To use this
function continuously, keep pressing the buttons. To
set further back both the IN and OUT points simultane-
ously for editing, press this trim button while the IN and
OUT buttons are pressed.
BS (SHIFT+"–"): These buttons access the previous edit.
Keep pressing the button to execute the function continu-
ously.
r + (FS) Plus trim button
+: When the IN or OUT point which has been input is to
be advanced by one frame, this trim button is pressed
while the IN or OUT button is pressed. To use this
function continuously, keep pressing the buttons. To
advance both the IN and OUT points simultaneously
for editing, press this trim button while the IN and OUT
buttons are pressed.
FS (SHIFT+"+"): These buttons access the last event.
Keep pressing the button to execute the function continu-
ously.
1
V T R 1
AUDIO
SPEAKER/
AUDIO
CONTROL
PREROLL
REC
MONITOR
HEADPHONES
INHIBIT
SYNCHRO
REMOTE
REC
7
-
CF
-
-
CH1
-
V1
-
-
SWAP
-
ON
-
ON
MIX
V1•2
NORM
LOCAL-
5
-
-
-
-
-
-
-
OFF
-
OFF
CH2
V2
MIX
3
-
-
-
-
-
-
DIAG
VTR1 VTR2
EXT VTR
VTR1 VTR2
VTR1
PLAY
STILL
REW
FF
SPLIT
STOP
STB OFF
TRACK
EVENT
IN
OUT
PREVIEW
REVIEW
3 4
2
5
EDIT MODE
SWAP
-
REC
ASMBL
V
A1
A2
TC
-
-
DUMP
LOAD
EDL
STORE
1ST EDIT
VTR2
COUNTER
LAST
CTL
PLAY
STILL
EDIT
TC
UB
BS
FS
CLEAR
STOP
STB OFF
VTR1
VTR2
GO TO
IN
OUT
RECALL
ENTRY / SHIFT
AUTO EDIT
ALL STOP
MULTI
t COUNTER switchs
These switches select the counter reference for VTR1
and VTR2.
CTL: At this switch position, the CTL pulse count after
resetting appears on the counter display. It is reset
by the RESET button.
TC: The time code (absolute value) which has been
read appears at this position. It is not reset even if
the RESET button is pressed.
UB: The user bit which has been read appears at this
position.
y GO TO/RECALL button
GO TO: To check the IN or OUT point image, press the
IN or OUT button while holding down the GO TO button.
In the audio split edit mode, the audio IN point is
searched when the IN button is pressed.
RECALL (SHIFT+GO TO): These buttons re-register an
event which was deleted in the EDL mode. The "d" dis-
play changes to "no display."
This button does not work when the SEPARATE MODE
switch has been set to SEPARATE.
11
6
EJECT
V T R 2
OPERATION MODE
VTR2 AUDIO
EDIT
INPUT SELECT
INT
VTR1
EXT
EXT
EDIT
CH1
CH2
SEPARATE
REC
MENU
RESET
CH1
CH2
REW
FF
PB
AUDIO LEVEL
