Brew Group Assembly

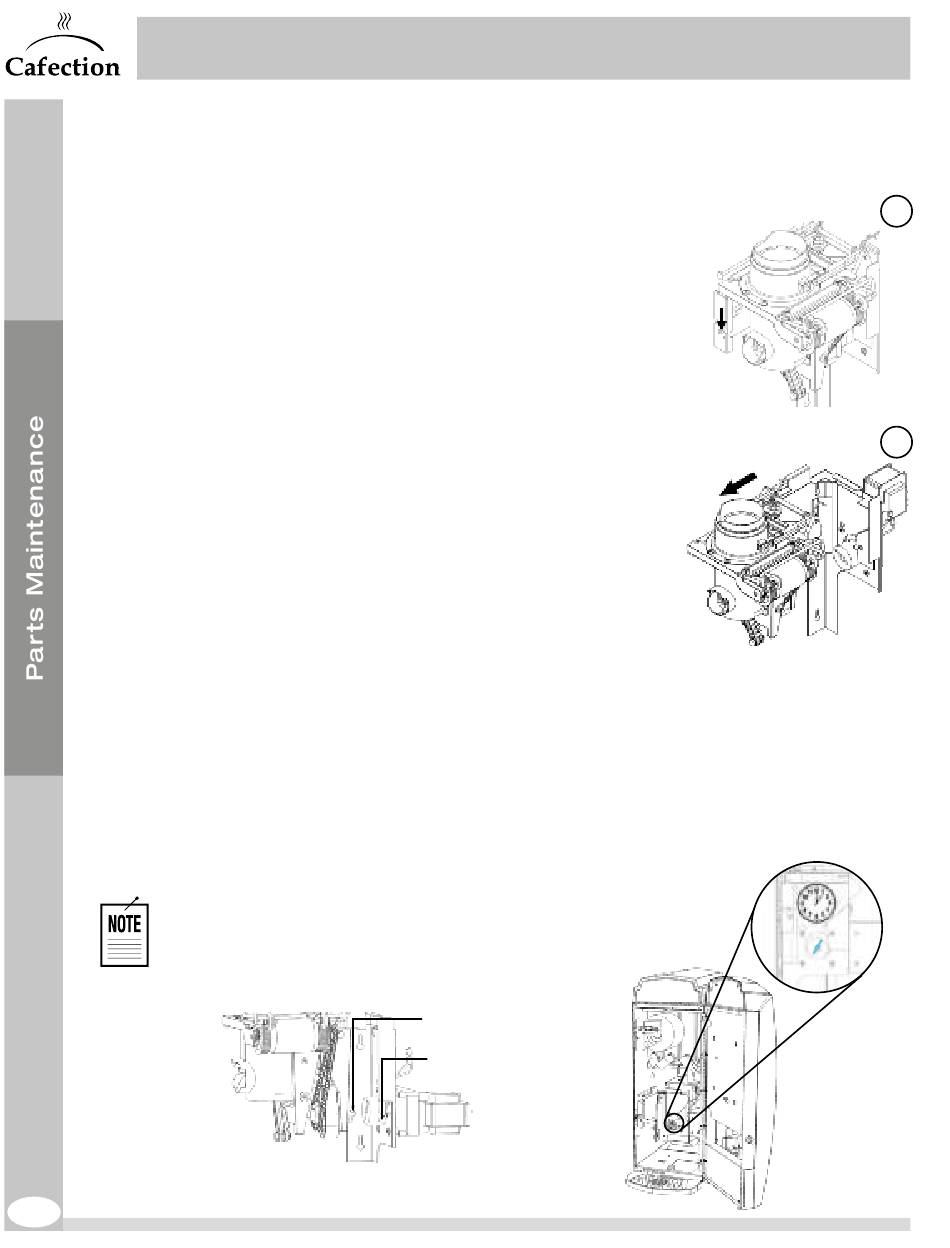

Removing the brew group
1. Open the brewer's door.
2. Access Service mode by pressing the SW1 button (white) (see
3. Press on the "Filter Paper Install" button (see section 6.2).
4. Wait for the brew chamber to open. Cut the filter paper with
5. Remove the coffee spout and the hose support bracket from
6. Support the brew group assembly by holding the aluminum
7. With the left hand, slide the locking pin down, then right.
8. Pull the brew group assembly straight
Installing the brew group
1. Make sure that the dog drive pin in the back of the brew group is at 1 o'clock.
2. Align the left edge of the brew group on the left bracket support.
3. Push the brew group back completely into the dog drive motor.
4. Slide the brew group's retaining pin left, then up.
To clean the brew group, see section 7.8.2.
72
SERVICE & INSTALLATION MANUAL for Cafection's Encore Ground
section 3.6).
scissors on both sides of the brew chamber.
the right side of the brew group assembly.
frame on the right side of the brew group assembly.
www.cafection.com
outward.
Pin
Dog drive
800-561-6162
ENCORE GROUND Rev. 1 2021-10
