Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

Key-type Vehicles

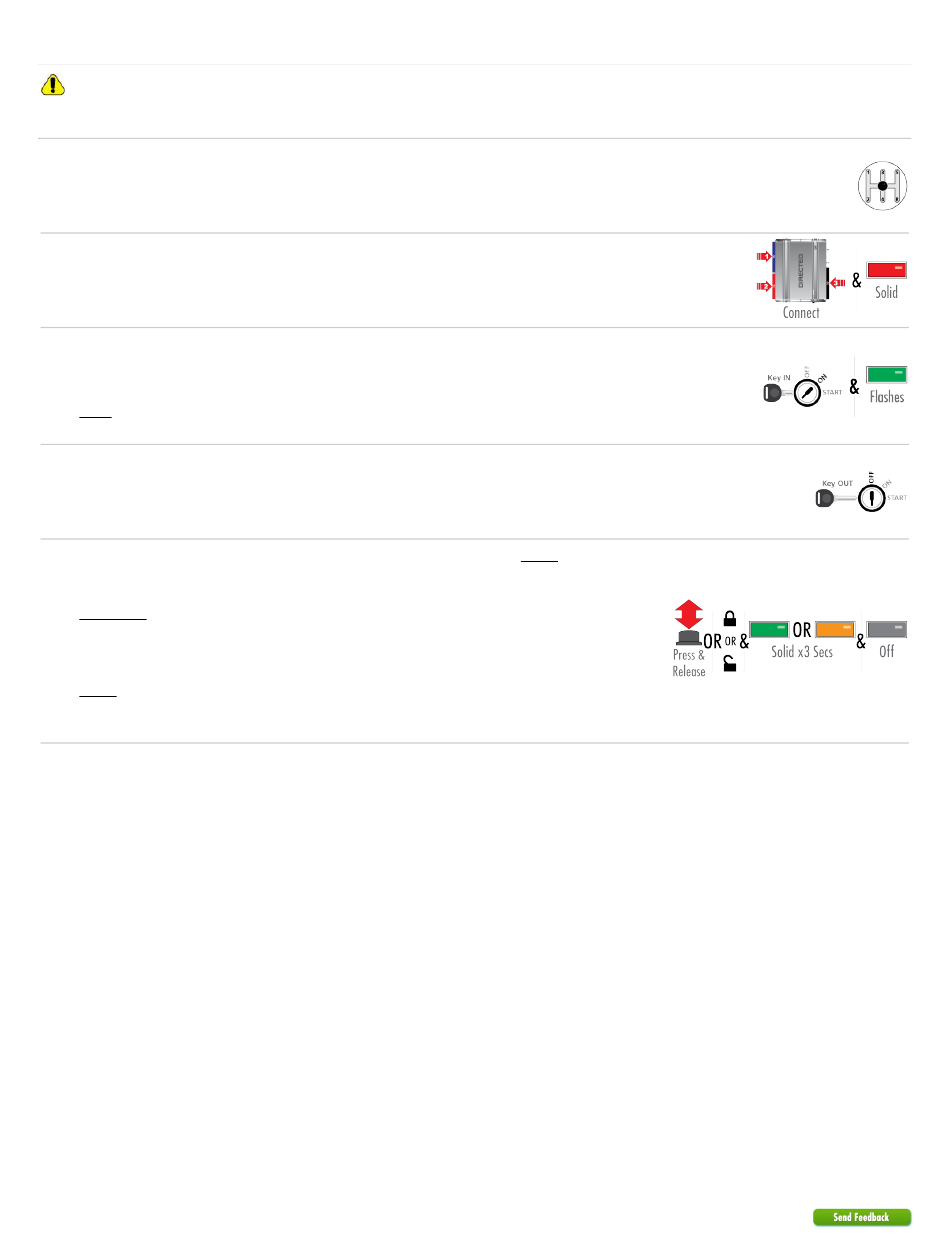

Ensure vehicle is in a safe location and cannot move forward during programming. For
1
vehicles equipped with a manual transmission, make sure the gearshift is in the neutral
position.
The harnesses must be connected in this exact order:
a) Connect the 14-pin.
2
b) Connect the 12-pin.
c) Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Insert the key into the ignition barrel and turn it to the ON position. It is important to wait for
the LED to start flashing green.
3
Note: Refer to the "LED Diagnostics" section for troubleshooting if the LED does not flash
green within 15 seconds.
4
Turn the key to the OFF position and remove it from the ignition barrel.
IMPORTANT: The module will control door locks only if you follow the WITH factory keyless
method.
WITHOUT factory keyless or if OEM remote is unavailable:
Press and release the programming button.
5
The LED will turn ON solid green OR orange for 3 seconds and then shut off.
WITH factory keyless:
Press Lock or Unlock on the factory transmitter.
The LED will turn ON solid green OR orange for 3 seconds and then shut off.
You have successfully completed the module programming sequence.
11
403.CHRYSLER 7.34 2010 Jeep Liberty
