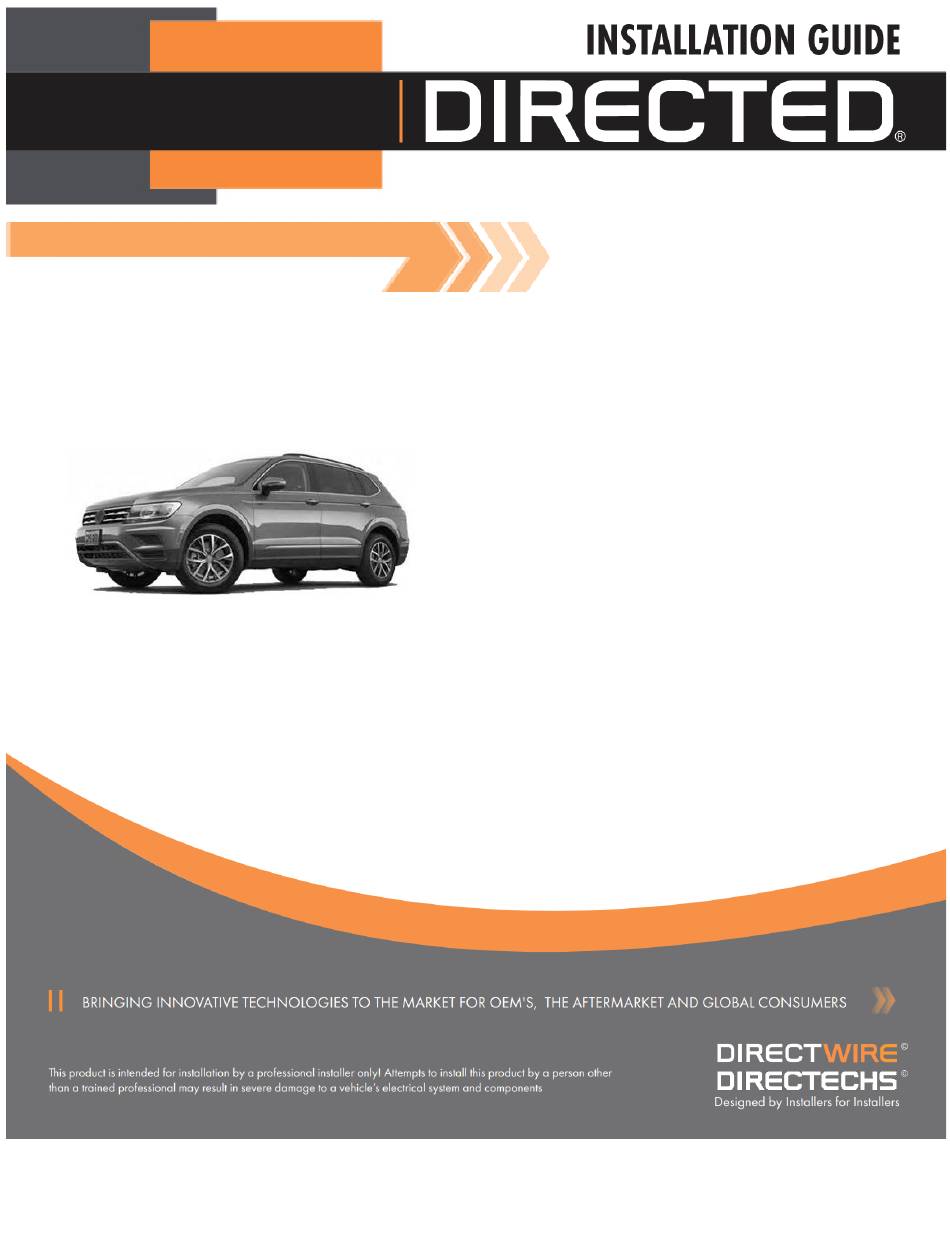

- Page 1 403.VW15 v2.00 2020 Volkswagen Tiguan...
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Immobilizer interface Vehicle connections Module programming SmartStart/XL202 installation notes Connecting the module LED diagnostics and troubleshooting Parking light error codes Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty... -
Page 3: Introduction
Introduction DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote Start Ready (RSR) mode. This solution may offer up to three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation (if applicable, refer to the “Vehicle function compatibilities” below), RF System or SmartStart (all sold separately). -
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Parking Lights Control RAP Shut Down (Retained ACC Power) Arm Factory Security Remote Start Ready Disarm Factory Security... -
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required T-Harness is not compatible. -
Page 6: Wiring Diagram
Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( You can connect to either a XL202 RFTD OR a SmartStart module. Refer to the SmartStart/XL202 (+) 12V: Red/Blue, pin 16 Black VESCM Installation Notes for more... -
Page 7: Locating Components In The Vehicle
Locating components in the vehicle 403.VW15 2.00 2020 Volkswagen Tiguan ©2022 VOXX•DEI LLC. All rights reserved. -
Page 8: Immobilizer Interface
Immobilizer interface For vehicles with Keyless Entry you must remove battery from OEM key (the OEM remote may differ from the models shown in the illustrations). Method 1: Key Wrap Common Relay 2: Yellow/Red: 11 NO Relay 2: Brown/Red: 12 Remove battery from 4-6 loops OEM Remote Control... - Page 9 Method 3: Immobilizer interface with OEM Immobilizer Receiver NC Relay 2: Orange/Red: 10 Common Relay 2: Yellow/Red: 11 NO Relay 2: Brown/Red: 12 4-6 loops 4-6 loops Remove battery from OEM Remote Control Immobilizer ECU Note: - Your OEM remote may differ from the model shown in the illustrations. - Remove Battery from OEM FOB prior to performing the Key Wrap.
-
Page 10: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2020 Volkswagen Tiguan. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green... - Page 11 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H2/12 Blue/Red No Connection No Connection Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green No Connection No Connection H3/2 Blue No Connection No Connection...
-
Page 12: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. The harnesses must be connected in this exact order: Connect the 14-pin. Connect the 12-pin. -
Page 13: Smartstart/Xl202 Installation Notes
SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202. -
Page 14: Connecting The Module
Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application. -
Page 15: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power. - Page 16 External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence.
- Page 17 RSR Error Codes Description Troubleshooting 3x OEM Lock Remote Start Activation was attempted when the RFTD feature is disabled. Make sure 3x RFTD disabled. Lock Start is selected from the web in the flashing process. Flashes red x 7 Feature error.
-
Page 18: Parking Light Error Codes
Parking light error codes The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern is described below. Flashes Diagnostic Runtime expired. Over-rev shutdown. Low or no RPM. Shutdown without remote. Brake shutdown. -
Page 19: Feature Programming
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to change the options of the selected feature. -
Page 20: Feature And Option List
Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page. -
Page 21: Limited One Year Consumer Warranty
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor. -
Page 22: Quick Reference Guide (Customer Copy)
3 possible ways you can send commands to your vehicle, using the: in Park (P). • Factory remote. • Aftermarket remote. Press the Remote Start button on the transmitter.* • Directed SmartStart application via your smartphone. & Parking lights The parking lights will flash once to indicate the vehicle is Press... - Page 23 * Press & hold for 5 seconds to activate the trunk release (optional). * Icon and remote appearance may differ depending on the model purchased. This system is compatible with Directed SmartStart. For a complete list of supported features, please visit www.mysmartstart.com.
