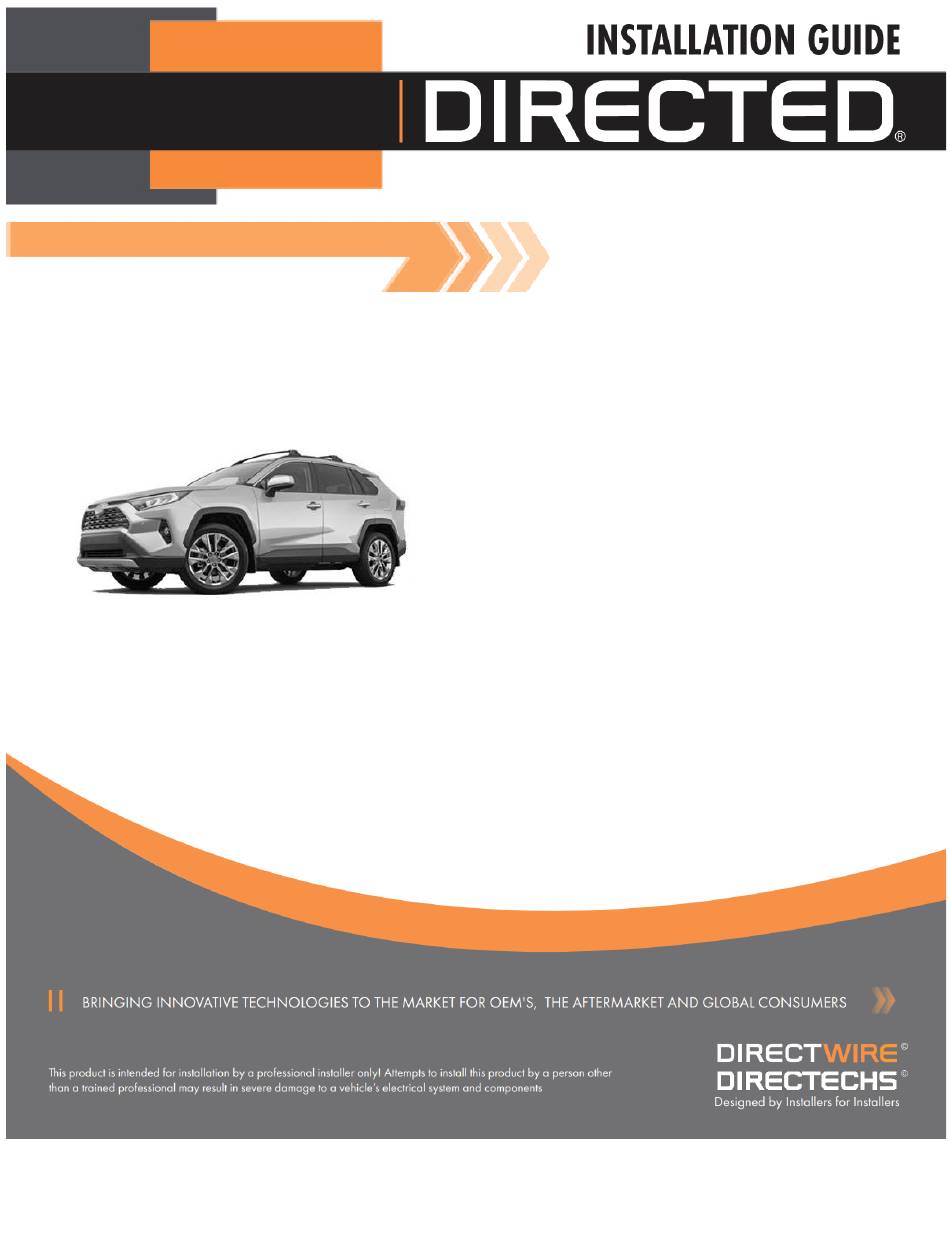

- Page 1 403.TL15 v1.15 2020 Toyota RAV4 (Smart Key)
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming Module programming for convenience only (skip transponder) SmartStart/XL202 installation notes Connecting the module LED diagnostics and troubleshooting Parking light error codes Soft reset Hard reset Feature programming... -
Page 3: Introduction
Introduction DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote Start Ready (RSR) mode. This solution may offer up to three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation (if applicable, refer to the “Vehicle function compatibilities” below), RF System or SmartStart (all sold separately). -
Page 4: Vehicle Function Compatibilities
Brake Status (foot brake) Immobilizer Bypass-Data No Key Req'd E-Brake Status 3x LOCK START (Start control using OEM Remote) Ignition Status 3x LOCK STOP (Stop control using OEM Remote) 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 5: Pre-Installation And Application Warnings
OEM Remote starter: If the vehicle is already equipped with an OEM remote starter, the installer must disconnect it before installing Š the DB3 otherwise it will not program. (For more information see "OEM remote starter detection"). Remote Start Ready (RSR) installations are not compatible with vehicles equipped with a manual transmission. -
Page 6: Wiring Diagram
Without With Start/Stop System Start/Stop System Body ECU Connector 21 20 (+) 12V (Lower conn. left side Hood Pin of steering column) Fuse 5A (-) Unlock/Disarm: Tan, pin 17 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 7: Locating Components In The Vehicle
1- To gain access to the SLP connector, remove metal clip to remove the white plastic housing. Steering Lock Connector 2. Remove white 1. Remove plastic housing metal clip 2- Move the white plastic housing over enough to access the SLP cnnector. Steering Lock connector 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 8: Vehicle Connections
No Connection H2/11 Orange/Black No Connection No Connection H2/12 Blue/Red (-) Lock Output Body ECU on dash fuse box, black 21 pin plug, pin 18 Lt. Green (key lock) 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... - Page 9 (Data) TX H4/2 Black (-) Ground H4/3 Green (Data) RX H4/4 (+) 12 Volt RF 2-pin white connector (H5) Module Conn./Pin Color Description H5/1 No Connection H5/2 No Connection 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights...
-
Page 10: Module Programming
Close all doors including trunk/tailgate then press Lock on the OEM remote. Wait two (2) seconds then press unlock. The LED turns ON solid green for 3 seconds then shuts OFF. You have successfully completed the module programming sequence. 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 11: Module Programming For Convenience Only (Skip Transponder)
Wait two (2) seconds then press Unlock. Lock Wait Unlock x3 Secs x2 Secs The LED turns ON solid orange for 3 seconds then shuts OFF. You have successfully completed the module programming sequence. 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 12: Smartstart/Xl202 Installation Notes
SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202. -
Page 13: Connecting The Module
Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application. -
Page 14: Led Diagnostics And Troubleshooting
External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... - Page 15 Lock Start is selected from the web in the flashing process. Flashes red x 7 Feature error. An RSR feature file mismatch was detected. Please contact Technical Support. Flashes red x 9 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights...
-
Page 16: Parking Light Error Codes
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the & LED starts to flash orange and red. Solid Flashes Release the programming button. The LED turns ON solid red. & Release Solid 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 17: Feature Programming
1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to change the options of the selected feature. -
Page 18: Feature And Option List
If the vehicle is unlocked or is not equipped with factory alarm, the disarm/rearm will not be executed. 3. Non Motorized Trunk Release Trunk Release (Unlock All)* Option Vehicle Takeover 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 19: Limited One Year Consumer Warranty
This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824 403.TL15 1.15 2020 Toyota RAV4 (Smart Key) ©2023 Directed. All rights... -
Page 20: Quick Reference Guide
SmartStart compatible Important! To remote start the vehicle, all doors must be closed and locked. This system is compatible with Directed SmartStart. For a complete list of supported features, please visit www.mysmartstart.com. Vehicle takeover What is SmartStart? The vehicle takeover feature is not available in this firmware. - Page 21 The application enables a “Cloud-Connected Car” like never before, providing 2-way interaction with your vehicle. Connectivity is managed through the Directed Cloud Services (DCS) network linking car, app, end user, and the Internet. For more information, visit www.mysmartstart.com. Notes 403.TL15 1.15 2020 Toyota RAV4 (Smart Key)
