INSTALLATION GUIDE
DB3
2009 Ford Flex (40-Bit). 403.FORD6 3.24
Designed by Installers for Installers
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading

Related Manuals for Directed DB3

Summary of Contents for Directed DB3

  • Page 1 2009 Ford Flex (40-Bit). 403.FORD6 3.24 Designed by Installers for Installers © 2022 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s...

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with T-Harness (THFD1) Wiring diagram Locating components in the vehicle Key2Go Vehicle connections Module programming 2 Keys required! 1 Key required! Module programming for convenience only (skip transponder) Understanding the difference between a Ford 80 bit &...

  • Page 3: Introduction

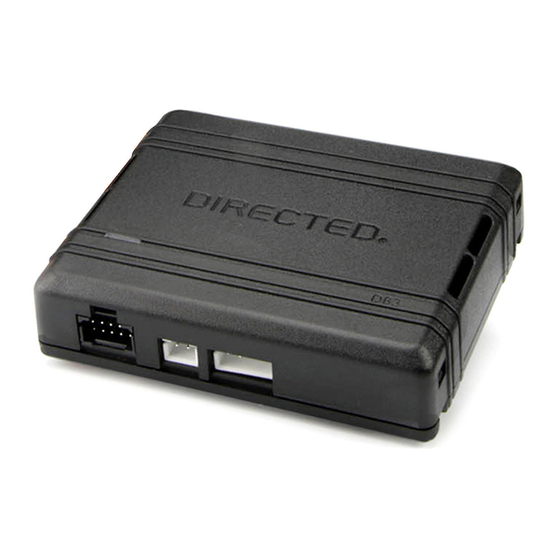

    Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.FORD6 3.24 2009 Ford Flex (40-Bit)

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Arm Factory Security SmartStart Disarm Factory Security Entry Monitoring ALL Door Pins Door Lock Control Entry Monitoring Hood Pin Door Unlock Entry Monitoring Trunk/Hatch Pin Trunk / Hatch Release Factory Alarm Trigger Monitoring...

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness THFD1 Keys required for Keys required for 1 or 2 compatible programming...

  • Page 6: Installation

    Wiring diagram with T-Harness (THFD1) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Barrel Ignition Switch P.A.T.S. (connector side) 4-pin connector (connector side) (+) Parking Light Output: White THFD1 (+) 12V Input: Yellow (optional T-Harness)

  • Page 7: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( XKD2D65 OBDII Diagnostic Ignition Switch (connector side view) (black connector at ignition switch) HS CAN High: Pin 6 MS CAN High: Pin 3 (+) 12V: Pin 4 (+) Ignition:...

  • Page 8: Locating Components In The Vehicle

    Locating components in the vehicle 403.FORD6 3.24 2009 Ford Flex (40-Bit) ©2022 VOXX•DEI LLC. All rights reserved.

  • Page 9: Key2Go

    Any first-time user must re-register to gain access to Key2GO, and some additional information will be required to complete the registration process, such as your Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application.

  • Page 10: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2009 Ford Flex (40-Bit). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 11 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 Red/Black...

  • Page 12: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. 2 Keys required! Convenience-Only programming, see next section. Ensure vehicle is in a safe location, and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral position. The harnesses must be connected in this exact order: 1.

  • Page 13: Key Required

      1 Key required! Convenience-Only programming, see next section. The harnesses must be connected in this exact order: 1. Connect the 14-pin. 2. Connect the 12-pin. 3. Connect the 10-pin. When the LED turns on solid red, proceed with the next step. Insert the key and turn the ignition ON and OFF twice. ...

  • Page 14: Module Programming For Convenience Only (Skip Transponder)

    Module programming for convenience features only (skip transponder programming) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. To connect the module: Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position.

  • Page 15: Understanding The Difference Between A Ford 80 Bit & 40 Bit

    Understanding the difference between a Ford 80 & 40 bit Ford introduced an 80-bit encryption in late 2009 and this caused a lot of confusion as to which models it was available on. The main question is which models use the 80 and which use the old 40 bit? Contrary to popular belief, the SA marking on the key does NOT indicate a vehicle uses 80-bit encryption.

  • Page 16: Connecting The Module

    Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior to moving onto programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1.

  • Page 17: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 18   Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 19: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 20: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 21: Feature And Option List

    Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 22: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 23: Quick Reference Guide

    Factory remote. Press the Remote Start button on the transmitter.* • Aftermarket remote. • Directed SmartStart application via your smartphone. & The parking lights will flash once to indicate the Parking lights flash x1 Press Remote vehicle is now in Pit Stop Mode.
  • Page 24 Notes 403.FORD6 3.24 2009 Ford Flex (40-Bit) ©2022 VOXX•DEI LLC. All rights reserved.
