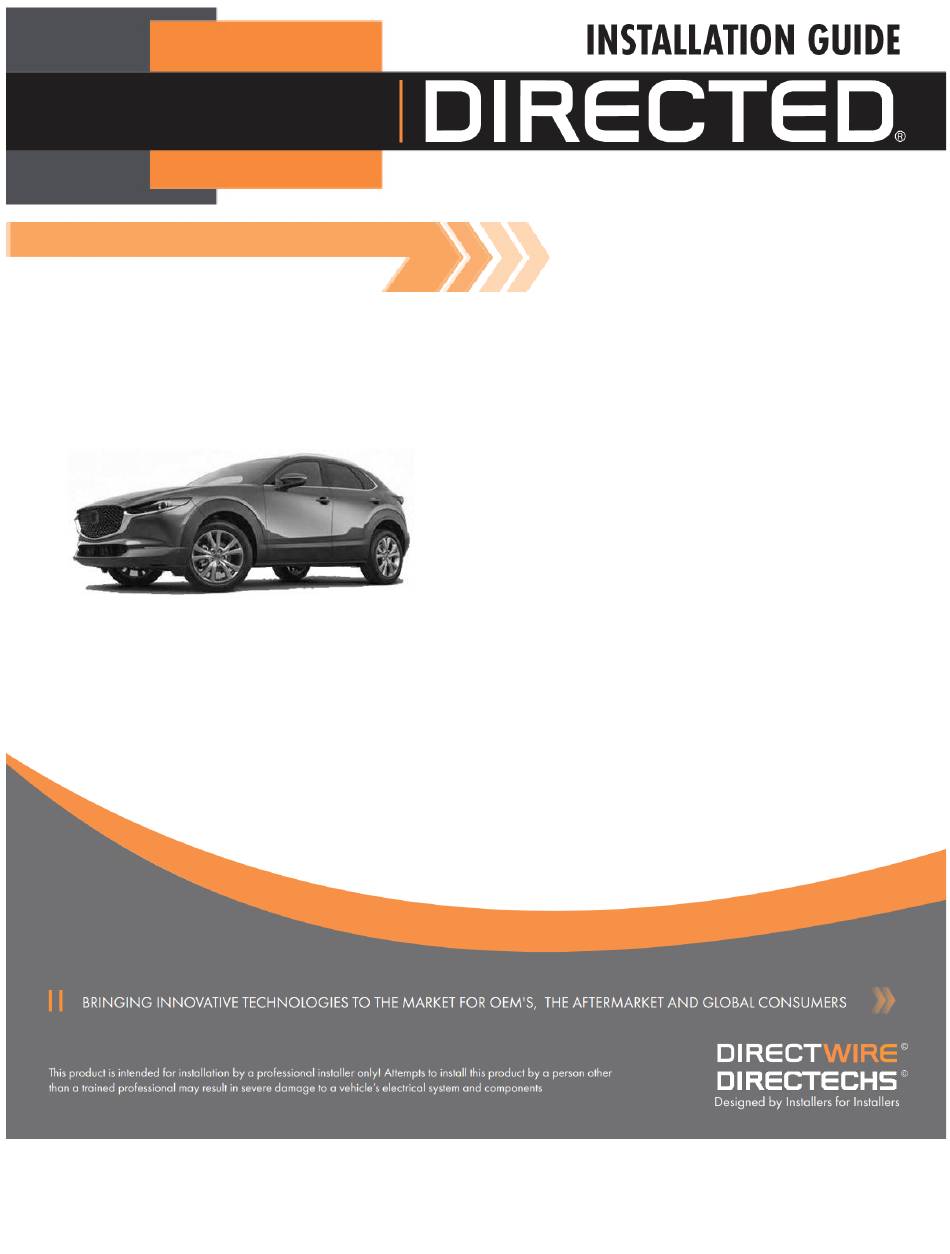

  • Page 1 403.MA5 v1.10 2021 Mazda CX-30 (Smart Key)

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming Module programming for convenience only (skip transponder) Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick Reference Guide (customer copy)

  • Page 3: Introduction

    Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.MA5 1.10 2021 Mazda CX-30 (Smart Key)

  • Page 4: Vehicle Function Compatibilities

    Control of aftermarket alarm with OEM remote Brake Status (foot brake) Fuel level/EV battery level Door Locks Status Key2GO E-Brake Status * Odometer Ignition Status Immobilizer Bypass-Data No Key Req'd 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 5: Pre-Installation And Application Warnings

    [2] Tach: An optional connection required on some remote starters, which do not support a tach signal in D2D. [3] Clutch Activation: Required only for vehicles with manual transmission. [4] Trunk Release: Connection required for trunk release to operate during runtime. 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 6: Wiring Diagram

    Keyless Data: at BCM in (-) Push-to-Start 2 Output: Blue/Red: 12 Brown, pin 5 driver kick) (-) PTS 2: Gray, pin 28 (gray conn. at BCM in driver kick) 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 7: Locating Components In The Vehicle

    (black conn. under hood on driver firewall) (+)12V (-) Clutch Activation Output: Red/Black: 4 (MUX) Clutch (connector side): Lavender, pin 68 (MUX) Clutch Activation (MUX) Clutch (vehicle side) Output: Violet/Brown: 9 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 8: Vehicle Connections

    Power Liftgate Switch, black 5 pin plug, pin 3 Connection required for trunk release to operate during runtime. H2/11 Orange/Black (Data) Keyless Data Output BCM in driver kick, gray 24 pin plug, pin 5 Data Brown 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.
  • Page 9 (Data) TX H4/2 Black (-) Ground H4/3 Green (Data) RX H4/4 (+) 12 Volt RF 2-pin white connector (H5) Module Conn./Pin Color Description H5/1 No Connection H5/2 No Connection 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.
  • Page 10 Yellow (15A) Starter BCM in driver kick, white 32 pin plug, pin 26 Tachometer [2] Camshaft Position Sensor, engine driver side front, gray 3 pin plug, Blue pin 1 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 11: Module Programming

    If the LED flashes orange rapidly, a second Key2GO programming sequence is required. Repeat from step 3. Press unlock on the OEM remote. The LED turns solid green for 3 seconds. You have successfully completed the module programming sequence. 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 12: Module Programming For Convenience Only (Skip Transponder)

    Press the Unlock button once (1) on the OEM remote. Press Solid The LED will turn solid green for 3 seconds then shuts OFF. Unlock x 3 Secs You have successfully completed the module programming sequence. 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 13: Connecting The Module

    (12-pin) (D2D) (10-pin) (14-pin) W2W installation If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin harness to the module. (12-pin) (10-pin) (14-pin) 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 14: Led Diagnostics And Troubleshooting

    External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.
  • Page 15 The smart key was not detected, which prevents the system from shutting down the vehicle. Flashes red x 3 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down. Flashes red x 4 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 16: Soft Reset

    Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the & LED starts to flash orange and red. Solid Flashes Release the programming button. The LED turns ON solid red. & Release Solid 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 17: Feature Programming

    To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence. 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 18: Feature And Option List

    1. No Trunk Trunk/Hatch release* 2. Sedan Model 3. Motorized TailGate 1. Without OEM OEM Alarm Alarm* 2. With OEM Alarm 1. Type 1* Runtime Doorlock Type 2. Type 2 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 19: Limited One Year Consumer Warranty

    This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.

  • Page 20: Quick Reference Guide (Customer Copy)

    With Get In and Go, you simply remote start the vehicle, unlock the doors, get in and go... All that's left to do is put the gear in drive and drive off. 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.
  • Page 21 Notes 403.MA5 1.10 2021 Mazda CX-30 (Smart Key) ©2023 Directed. All rights reserved.
