Directed DB3 Installation Manual
Hide thumbs
Also See for DB3:
- Installation manual (25 pages) ,
- Manual (6 pages) ,
- Installation manual (21 pages)
Related Manuals for Directed DB3
Summary of Contents for Directed DB3

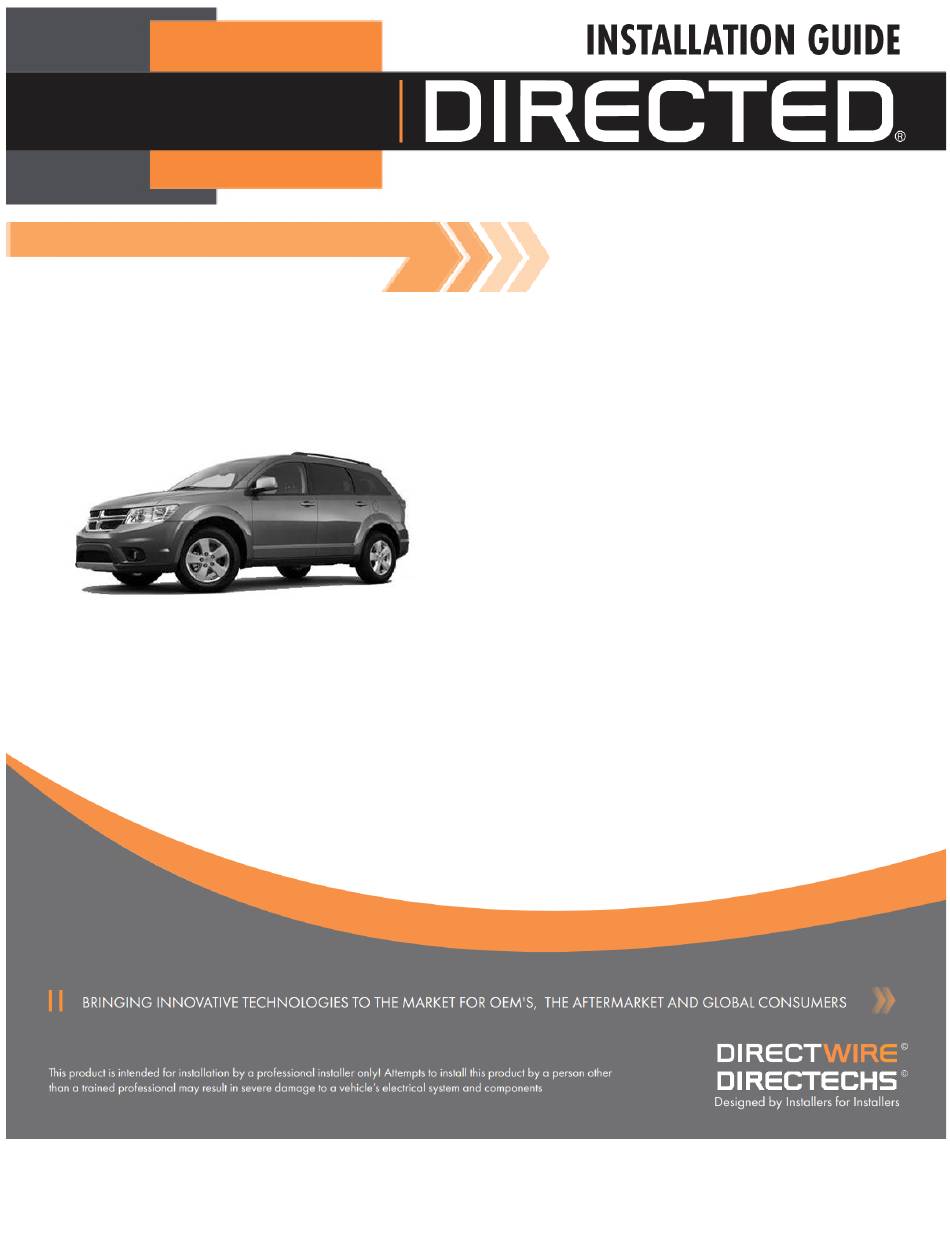

- Page 1 403.CHRYSLER3 v4.32 2012 Dodge/Ram Journey (Smart Key) THCHD3 Compatible (Sold Separately)
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with T-Harness (THCHD3 Rev 1 & 2) Wiring diagram Locating components in the vehicle Vehicle connections Module programming Module programming for convenience only (skip transponder) Module programming for convenience only (skip transponder) Module programming for convenience only (skip transponder) Key2GO Connecting the module... -
Page 3: Introduction
Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.CHRYSLER3 4.32 2012 Dodge/Ram Journey (Smart Key) -
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Parking Lights Control OEM Remote Start Activation using XL-202 or RF kit Heated Seats Activation Remote Start Ready Rear Window Defogger Activation... -
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required THCHD3 Rev. -
Page 6: Wiring Diagram With T-Harness (Thchd3 Rev 1 & 2)
Wiring diagram with T-Harness (THCHD3 Rev. 1 & 2) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( male Keyless Ignition Node Connect T-Harness OBDII (black connector only male connector Diagnostic Connector... -
Page 7: Wiring Diagram
Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( OBDII Keyless Ignition Node Diagnostic Connector (black connector at PTS Switch) CAN IHS High: Gray, pin 3 CAN C High: Gray/White, pin 6 CAN IHS Low: White, pin 11... -
Page 8: Locating Components In The Vehicle
Locating components in the vehicle 403.CHRYSLER3 4.32 2012 Dodge/Ram Journey (Smart Key) ©2022 VOXX•DEI LLC. All rights reserved. -
Page 9: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2012 Dodge/Ram Journey (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1... - Page 10 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 Red/Black No Connection...
-
Page 11: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Wait until the LED turns on solid red. Note: To use this firmware as convenience only, you can skip the bypass by pressing the programming button 5 times and proceed to step 3. Remove the battery from the factory keyless remote. -
Page 12: Module Programming For Convenience Only (Skip Transponder)
Module programming for convenience features only (skip transponder) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. The harnesses must be connected in this exact order: a) Connect the 14-pin. -
Page 13: Module Programming For Convenience Only (Skip Transponder)
Module programming for convenience features only (skip transponder) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. The harnesses must be connected in this exact order: 1. -
Page 14: Key2Go
Any first-time user must re-register to gain access to Key2GO, and some additional information will be required to complete the registration process, such as your Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. -
Page 15: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power. - Page 16 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
-
Page 17: Soft Reset
Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness. -
Page 18: Feature Programming
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g. -
Page 19: Feature And Option List
Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page. -
Page 20: Limited One Year Consumer Warranty
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor. -
Page 21: Quick Reference Guide (Customer Copy)
Park (P). Park Factory remote. Press the Remote Start button on the transmitter.* 2. Aftermarket remote. 3. Directed SmartStart application via your smartphone. & ® The parking lights will flash once to indicate the vehicle is Parking lights flash x1 Press Remote now in Pit Stop Mode. - Page 22 Notes 403.CHRYSLER3 4.32 2012 Dodge/Ram Journey (Smart Key) ©2022 VOXX•DEI LLC. All rights reserved.
