INSTALLATION GUIDE
DB3
2016 Volkswagen Golf (Smart Key) - 403.VW06 1.27 RSR
Designed by Installers for Installers
© 2017 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB3 and is the answer not in the manual?

Questions and answers

Ed
January 24, 2025

Can db3 work with only 14 and 4 pin connected?

0
mario
March 4, 2025

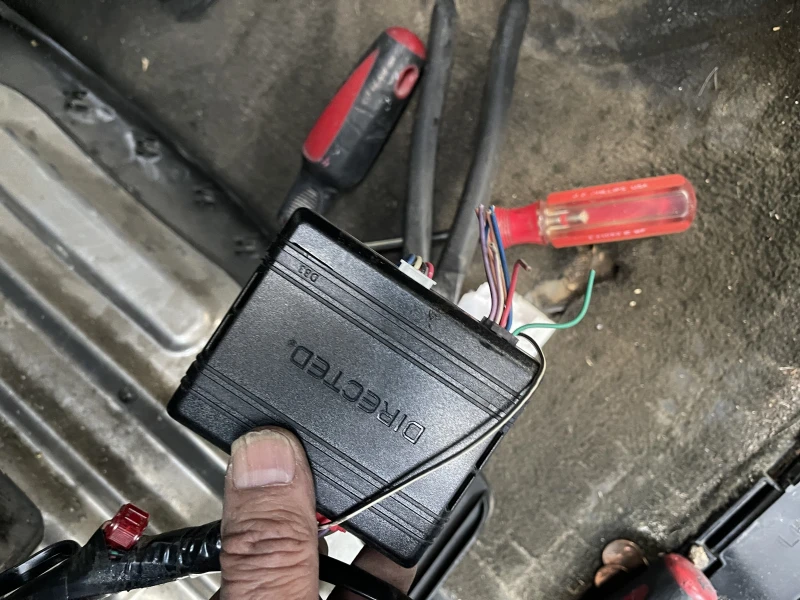

I just bought a 2017 GMC Sierra 1500 and we try to start the truck and won’t do nothing and we find out that we have the DB three model in the car how do I reset the DB three without remote control?

User image 67c65f82083ba
0

Related Manuals for Directed DB3

Summary of Contents for Directed DB3

  • Page 1 2016 Volkswagen Golf (Smart Key) - 403.VW06 1.27 RSR Designed by Installers for Installers © 2017 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s...

  • Page 2: Table Of Contents

    Contents Introduction Pre-installation and application warnings Wiring diagram Locating components in the vehicle Immobilizer interface with OEM immobilizer receiver Vehicle connections SmartStart/XL202 installation notes Connecting the module Module programming LED diagnostics and troubleshooting Parking light error codes Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty...
  • Page 3 The following safety warnings must be observed at all times: • Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer. • When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.

  • Page 4: Introduction

    Introduction DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote Start Ready (RSR) mode. This solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF System or SmartStart (all sold separately).

  • Page 5: Pre-Installation And Application Warnings

    For Key Wrap instructions, refer to "Immobilizer interface with OEM immobilizer receiver". Additional parts required (maximum required): Resistor 100Ω Fuse 7.5A Diode 6A 0 x 1A Diode 0 x Resistor 0 x Fuse 0 x Relay 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 6: Wiring Diagram

    Remote Start Safety Override Switch (-) PTS 2 Output: Violet/Brown: 9 6: White/Black: (-) Hood Input (+) 12V:Red/White or Red/Gray, pin 1 13 38 (+) Brake: Black/Red, pin 58 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 7: Locating Components In The Vehicle

    VESCM - Vehicle Electrical System Control Module at Driver Side under dash, above Driver Kick Panel ESCLCM - Electronic Steering Column Lock Control Module at Steering Column 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 8: Immobilizer Interface With Oem Immobilizer Receiver

    IMPORTANT!: Not all OEM keys can be inserted in 556U because of their size. Make sure the key will fit, otherwise it is recommended to use a different method. 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.
  • Page 9 - Connect with OEM Immobilier Ring as shown in the above diagram. - When possible, use valet key for key wrap. if blade key is used, battery must be removed. 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 10: Vehicle Connections

    (+) Brake Output H2/7 Gray/Black No Connection H2/8 Violet/Green (MUX) No Connection H2/9 Violet/Brown (MUX) PTS H2/10 Yellow/Black No Connection H2/11 Orange/Black No Connection H2/12 Blue/Red No Connection 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.
  • Page 11 H4/1 Green (Data) TX H4/2 Black (-) Ground H4/3 Blue (Data) RX H4/4 (+) 12 Volt RF 2-pin white connector (H5) Module Conn./Pin Color Description H5/1 H5/2 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 12: Smartstart/Xl202 Installation Notes

    SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202.

  • Page 13: Connecting The Module

    Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application.

  • Page 14: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Connect the 10-pin, 12-pin and 14-pin harnesses to DB3, then wait until the LED turns ON solid red. Press the Push-to-Start (PTS) button once to turn the ignition ON. The LED flashes orange, then flashes green.

  • Page 15: Led Diagnostics And Troubleshooting

    Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.
  • Page 16 3x Lock Start is selected from the web in the flashing process. Flashes red x 7 Feature error. An RSR feature file mismatch was detected. Please contact Technical Support. Flashes red x 9 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 17: Parking Light Error Codes

    Hood shutdown/Remote start safety override switch is ON.* Remote start safety override switch is ON.* * If the vehicle hood status is supported through data, the safety override switch input will report 7 flashes. 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 18: Soft Reset

    (14-pin) Wait 3 seconds until the LED turns ON solid orange then release the programming button. & & The LED turns ON solid red. Solid Release Solid 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 19: Hard Reset

    Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the & LED starts to flash orange and red. Solid Flashes Release the programming button. The LED turns ON solid red. & Release Solid 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 20: Feature Programming

    1. Press the lock/arm or unlock/disarm button on aftermarket transmitter to change the option of the selected feature. When installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to change the options of the selected feature.

  • Page 21: Feature And Option List

    Smart OEM Alarm Control will monitor the alarm and door lock status to detect if the disarm or rearm is required. If the vehicle is unlocked or is not equipped with factory alarm, the disarm/rearm will not be executed. 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.

  • Page 22: Limited One Year Consumer Warranty

    This warranty gives you specific legal rights and you may also have other rights that vary from State to State. DIRECTED does not and has not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with this Part.

  • Page 23: Quick Reference Guide

    * If the vehicle hood status is supported through data, it will also report a 7 flash speed sensor and door sensor, in order to perform takeover securily. safety override code. 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.
  • Page 24 Press once, then to reset the x1 + remote starter runtime. * This output is configurable. see your authorized installation center for more information. 403.VW06 1.27 2016 Volkswagen Golf (Smart Key) © 2017-02-08 Directed. All rights reserved.
  • Page 25 3.0 enables a "Cloud-Connected Car" like never before, providing an entirely new level of 2-way interaction with your vehicle. Connectivity is managed through the Directed Cloud Services (DCS) network linking car, app, end user, and the Internet. For more information, visit www.mysmartstart.com.
