INSTALLATION GUIDE
DB3
2011 Mitsubishi Lancer Evolution. 403.MIT3 2.11
Designed by Installers for Installers
© 2021 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading

Related Manuals for Directed DB3

Summary of Contents for Directed DB3

  • Page 1 2011 Mitsubishi Lancer Evolution. 403.MIT3 2.11 Designed by Installers for Installers © 2021 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s...

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Connecting the module Module programming LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide...

  • Page 3: Introduction

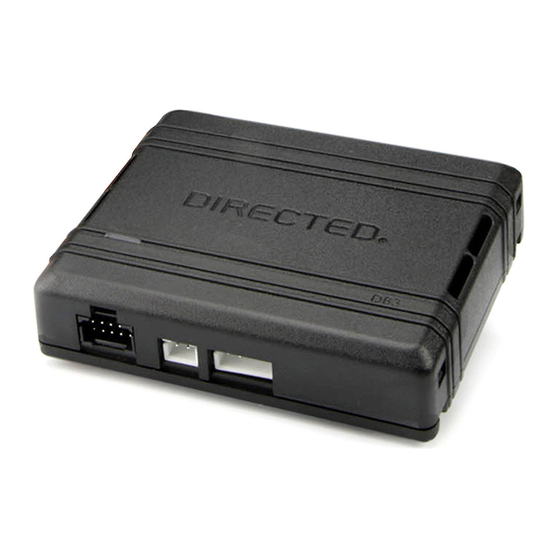

    Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.

  • Page 4: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for compatible programming operation Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic...
  • Page 5 Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Connector OBDII Diagnostic Clutch Pedal Immobilizer Connector (connector side view) (white conn. left side of steering column) (black and white conn., HS CAN High: XKD2D65...

  • Page 6: Locating Components In The Vehicle

    Locating components in the vehicle 403.MIT3 2.11 2011 Mitsubishi Lancer Evolution ©2021 VOXX•DEI LLC. All rights reserved.

  • Page 7: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2011 Mitsubishi Lancer Evolution. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 8 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Output [2] Remote Starter H3/4 White/Violet No Connection No Connection H3/5 Violet/Black No Connection [3] No Connection H3/6...

  • Page 9: Connecting The Module

    Connecting the module Important! Make all the required connections to the vehicle, as described in this guide, and double check to ensure everything is correct prior to moving onto programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1.

  • Page 10: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times. Wait until the LED turns ON solid orange, then proceed with step 2.

  • Page 11: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black Module has no power.
  • Page 12 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 13: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 14: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 15: Feature And Option List

    Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 16: Limited One Year Consumer Warranty

    This warranty gives you specific legal rights and you may also have other rights that vary from State to State. DIRECTED does not and has not authorized any person or entity to create for it any other obligation, promise, duty or obligation in connection with this Part.

  • Page 17: Quick Reference Guide

    Factory remote. Press the Remote Start button on the transmitter.* • Aftermarket remote. • Directed SmartStart application via your smartphone. & The parking lights will flash once to indicate the Parking lights flash x1 Press Remote vehicle is now in Pit Stop Mode.
  • Page 18 The application enables a “Cloud-Connected Car” like never before, providing 2-way interaction with your vehicle. Connectivity is managed through the Directed Cloud Services (DCS) network linking car, app, end user, and the Internet.
