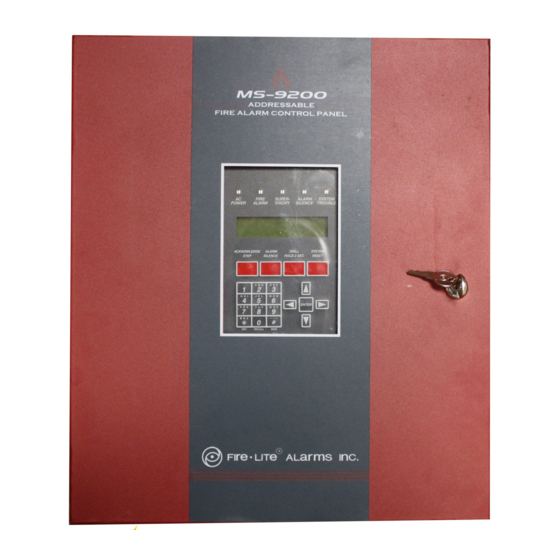

Fire-Lite Alarms MS-9200 Programming, Installation, Maintenance And Operating Instruction Manual

Addressable control panel
Hide thumbs Also See for MS-9200:
Table of Contents

Advertisement

Quick Links

Programming, Installation, Maintenance
Technical Manuals Online! - http://www.tech-man.com
MS-9200 (C)
Addressable
Fire Alarm Control Panel
and Operating Instruction Manual
firealarmresources.com
12 Clintonville Road
Northford, CT 06472
Phone (203) 484-7161
FAX: (203) 484-7118
I
Document
#15668
04/20/98
Rev.
P/N 15668:I
ECN 97-332
© 1998 Fire•Lite

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-9200 and is the answer not in the manual?

Questions and answers

Related Manuals for Fire-Lite Alarms MS-9200

Summary of Contents for Fire-Lite Alarms MS-9200

  • Page 1 12 Clintonville Road Northford, CT 06472 Phone (203) 484-7161 FAX: (203) 484-7118 MS-9200 (C) Addressable Fire Alarm Control Panel Programming, Installation, Maintenance and Operating Instruction Manual Document #15668 04/20/98 Rev. P/N 15668:I ECN 97-332 © 1998 Fire•Lite Technical Manuals Online! - http://www.tech-man.com...
  • Page 2 Installation Precautions - Adherence to the following will aid in problem-free installation with long-term relia WARNING - Several different sources of power can be connected Like all solid state electronic devices, this system may oper- to the fire alarm control panel. Disconnect all sources of power ate erratically or can be damaged when subjected to lightning before servicing.

  • Page 3: Table Of Contents

    1.7.5: FCPS-24F Remote Field Charger Power Supply for System Power Expansion ......20 CHAPTER 2: Installation............................21 FIGURE 2-1: MS-9200 Cabinet Dimensions - older version (manufactured through 7/1/98) ...21 2.1: Backbox Mounting ............................22 FIGURE 2-2: MS-9200 Cabinet Mounting - older version (manufactured through 7/1/98)....22 FIGURE 2-3: MS-9200 Cabinet Dimensions - new version ...............
  • Page 4 2.15.1: UDACT-F Universal Digital Alarm Communicator/Transmitter ............46 FIGURE 2-29: UBS-1F........................46 FIGURE 2-30: ABS-8RF ........................47 FIGURE 2-31: UDACT-F Mounting to MS-9200................47 FIGURE 2-32: External UDACT-F Mounting in ABS-8RF ...............48 2.15.2: ACM-8RF Relay Control Module....................49 FIGURE 2-33: ABS-8RF Enclosure ....................49 FIGURE 2-34: ACM-8RF Relay Control Module Installation............49...
  • Page 5 Appendix E: NFPA Standard-Specific Requirements ..................93 FIGURE E-1: Central Station Service Using MS-5012 ..............94 TABLE E-1: MS-5012 Connections to MS-9200 ................94 FIGURE E-2: Municipal Box Connected to RTM-8F Relay Transmitter Module ......95 FIGURE E-3: Remote Station Connection Using RTM-8F Module ..........96 FIGURE E-4: Proprietary Protective Signaling System ..............97...
  • Page 6 Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...
  • Page 7 Document #15668 Rev.I 04/20/98 P/N 15668:I Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...
  • Page 8 Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...
  • Page 9 This control panel has been designed to comply with standards set forth by the following regulatory agencies: • Underwriters Laboratories Standard UL 864 • NFPA 72 National Fire Alarm Code • CAN/ULC - S527-M87 Standard for Control Units for Fire Alarm Systems Before proceeding, the installer should be familiar with the following documents.
  • Page 10 MS-9200(C) Main Circuit Board Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...

  • Page 11: Chapter 1: Product Description

    Product Description CHAPTER 1 The Fire•Lite MS-9200(C) is a compact, cost effective, addressable FACP (Fire Alarm Control Panel) with an exten- sive list of powerful features. The combination of Fire•Lite's 300 Series Addressable Devices and the MS-9200 FACP offers the latest in fire protection technology. The power supply and all electronics are contained on a single circuit board housed in an attractive metal cabinet, providing a complete fire control system for most applications.

  • Page 12: Specifications

    UL listed battery cabinet). For 25 to 120 Amp Hour batteries, use the CHG-120F Battery Charger only if the newer MS-9200 main circuit board #71741, with jumper JP1, is installed. Note: Jumper JP1, on the FACP main circuit board, must be cut to disable FACP battery charger when using the CHG-120F.

  • Page 13: Controls And Indicators

    Power-limited circuit Controls and Indicators LCD Display 6<67(06$//1250$/ The MS-9200 uses a 40-character (2 lines X 20 characters) high viewing angle LCD display with a $021 character height of 3/16". The display includes a long-life LED backlight that remains illuminated. If AC power is lost and the system is not in alarm, the LED backlight will turn off to conserve batteries.

  • Page 14: Circuits

    LEDs. The membrane panel, which is visible with the cabinet door closed, has 21 keys, including a 12 key alpha-numeric pad similar to a telephone keypad. Function switches: MS-9200 Membrane/Display Panel FIGURE 1-1: • Acknowledge/Step • Alarm Silence •...

  • Page 15: Components

    The MS-9200 cabinet is red with an attractive navy blue front overlay. The backbox provides space for two batteries (up to 7 Amp Hour in old version, up to 12 Amp Hour in new version). Refer to Figure 2-1, “MS-9200 Cabinet Dimensions - older version (manufactured through 9/1/98),” on page 21 through Figure 2-4, “MS-9200 Cabinet Mounting - new version,”...

  • Page 16: 1: Addressable Devices: 300 Series Detectors

    CP300 Ionization smoke detector. The detectors communicate with the main circuit board CPU via an SLC loop. The MS-9200 CPU determines the alarm, maintenance or normal status of each device. Each detector responds to an address that is manually set via built-in rotary decimal switches. Each detector head has a removable plug-in connector for ease of wiring and maintenance (or service), as well as a single LED and test connections.

  • Page 17: 3: Addressable Device Accessories

    Components M302 The M302 is an addressable monitor module that can be used to interface and monitor conventional 2-wire smoke detectors. All 2-wire detectors being monitored must be UL compatible with the module (refer to the Fire•Lite Device Compatibility Docu- ment).

  • Page 18: Optional Modules

    Refer to Figure 2-37, “Remote Serial Printer and Computer Connections,” on page 52, for information on connec- tions and “System Edit” on page 61, for information on programming the MS-9200 for use with a printer or PC. Note that the PIM-24 option cannot be used simultaneously with the DIM-485/LCD-40 option.

  • Page 19: Accessories

    The BB-17F battery box may be used to house two 12 AH (required with older backbox) or 18 AH (required with older or newer backbox) batteries. The battery box mounts directly below the MS-9200 cabinet. The box is red and is provided with knockouts.

  • Page 20: 3: Chg-120F Battery Charger

    1.7.3 CHG-120F Battery Charger The CHG-120F is capable of charging 25 AH to 120 AH lead-acid batteries with the newer version of the MS-9200 main circuit board which allows disabling of the FACP battery charger. The batteries and charger can be housed in the Fire•Lite BB-55F Battery Box which can be mounted up to 20 feet away from the control panel.

  • Page 21: 4: Annunciators

    AFM Annunciator manual. Refer to “AFM and LDM Series Wir- ing” on page 89, for detailed wiring requirements and “System Edit” on page 61, for information on programming the MS-9200 for annunciator use. AFM-16ATX...
  • Page 22 Note: If software with either the Part Number 73750 or 73829 is installed in the MS-9200, the LCD-40 Series must have software with a Part Number of 73779 or 73829 to operate with the FACP. If software with a Part Number of #M9200V20 or higher is installed in the MS-9200, the LCD-40 Series must have software with a Part Number of #LCD40V20 or higher to operate with the FACP.

  • Page 23: 5: Fcps-24F Remote Field Charger Power Supply For System Power Expansion

    Accessories 1.7.5 FCPS-24F Remote Field Charger Power Supply for System Power Expansion The FCPS-24F is a compact, remote power supply with battery charger. This remote power supply consists of a fil- tered 24 VDC output that may be configured to drive up to four Notification Appliance Circuits [four Style Y (Class B) or two Style Z (Class A) and two Style Y (Class B)].

  • Page 24: Chapter 2: Installation

    Note: Effective September 1, 1998, the cabinet illustrated in Figure 2-1 and Figure 2-2 will be discontinued. The dimensions for the new cabinet, which will be shipped beginning 9/1/98, are illustrated in Figure 2-3 and Figure 2-4. To remove entire MS-9200 Cabinet Dimensions - older version (manufactured through 9/1/98) FIGURE 2-1: knockout, strike here.

  • Page 25: Backbox Mounting

    Mark and drill the lower two holes. Secure backbox by installing the remaining fasteners. Tighten all screws. When the location is dry and free of construction dust, reinstall the main PC board. MS-9200 Cabinet Mounting - older version (manufactured through 9/1/98) FIGURE 2-2: TR-1-R Trim Ring...
  • Page 26 Backbox Mounting The new cabinet illustrated in this Figure, will begin shipping on September 1, 1998. MS-9200 Cabinet Dimensions - new version FIGURE 2-3: To remove To remove entire inner knockout, knockout, strike here. strike here. BB-17F Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev.
  • Page 27 Backbox Mounting The new cabinet illustrated in this figure will begin shipping on September 1, 1998. MS-9200 Cabinet Mounting - new version FIGURE 2-4: TR-4-R Trim Ring Document #15668 Rev.I 04/20/98 P/N 15668:I Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...

  • Page 28: Power

    2.2.2 Battery Power Observe polarity when connecting the battery. Connect the battery cable to J3 on the MS-9200 main circuit board using the plug-in connector provided. See “Power Supply Calculations” on page 77, for calculation of the correct battery rating.

  • Page 29: Standard Relays

    Standard Relays The MS-9200 provides a set of Form-C alarm and Form-C trouble contacts rated for 2.0 amps @ 30 VDC (resistive). The panel also provides a Form-A supervisory contact rated for 2.0 amps @ 30 VDC (resistive). Refer to Figure 2-4 for UL power-limited wiring requirements.

  • Page 30: Ul Power-Limited Wiring Requirements

    0.25" (6.35 mm) away from any nonpower-limited circuit wiring. Furthermore, all power-limited circuit wiring and nonpower-limited circuit wiring must enter and exit the cabinet through different knockouts and/or conduits. A typical wiring diagram for the MS-9200 is shown in Figure 2-8. Typical UL Power-limited Wiring Requirements...

  • Page 31: Wiring The Signaling Line Circuit

    (see Figure 2-27). Device Capacity The capacity of each MS-9200 includes up to 99 addressable detectors and an additional combination of up to 99 addressable pull stations, control modules and monitor modules. In addition, the panel supports two NACs.
  • Page 32 Wiring the Signaling Line Circuit Style 4 Wiring and T-tapping T-tapping of the SLC loop wiring is allowed for 2-wire (Style 4) configurations. The total resistance of any branch cannot exceed 40 ohms. Measure the resistance as illustrated below. The total wire length of all combined branches cannot exceed 10,000 feet (3,000 m).
  • Page 33 Wiring the Signaling Line Circuit Style 4 Two-Wire Communications Loop (supervised and Power-limited) The 2-wire communication loop meets NFPA 72 Style 4 requirements and may be T-tapped. Two-Wire Communications Loop FIGURE 2-11: BG-10LX SD300 M300 C304 Separate T-tap to other loop devices. I300 I300 CAUTION! Do not...
  • Page 34 Wiring the Signaling Line Circuit Style 6 Four-Wire Communications Loop (Supervised and Power-limited) The 4-wire communications loop meets NFPA 72 Style 6 requirements. Style 6 cannot be T-tapped. Four-Wire Communications Loop FIGURE 2-12: BG-10LX SD300 M300 C304 I300 I300 CAUTION! Do not loop wiring under any terminals.
  • Page 35 Zone 02 will open the loop. Zone 01 will still operate from power on Loop Out and Zone 03 will operate from Loop Return. Since the MS-9200 will no longer be able to communicate with Zone 02, a trouble signal(s) will be generated for that device.
  • Page 36 Do not allow the shield drain wire to enter the system cabinet. Connect the drain wire to the outside of the cabinet SLC Loop - via a BX-type connector. MS-9200 Cabinet Shield Termination in Full Conduit FIGURE 2-15: All Styles of Wiring The shield drain wire must...

  • Page 37: The Isolator Module

    Communications Loop,” on page 32, illustrates a 4-wire loop meeting NFPA Style 7 requirements. Note: During a fault condition, the MS-9200 will register a trouble for each device isolated on the loop branch. In Figure 2-17, a short on any T-tapped branch off an I300 Isolator Module on the communication loop meeting NFPA Style 4 wiring requirements, will be isolated from all devices installed both upstream of the I300 (Communica- tion Loop In) and on the continuation of the loop (shown as a dotted line).

  • Page 38: The M300 Monitor Module

    Communications Loop Connections Connect the MS-9200 Communications SLC loop to M300 Terminals 1(-) and 2(+). The M300 occupies one module address on the loop. Use the rotary switches on the M300 to set the module to the required loop address.

  • Page 39: The M302 Monitor Module

    Communications SLC Loop Connections Connect the MS-9200 Communications SLC loop to M302 Terminals 1(-) and 2(+). The M302 occupies one module address on the loop. Use rotary switches on the M302 to set the module to the required loop address.
  • Page 40 Resettable 24 VDC M300 4-wire smoke detector power Loop Out (300 mA max.) Shield B B+ A+ B- A- MS-9200 SLC (+) TB6-3 24V (+) TB4-5 SLC (-) TB6-5 24V (-) TB4-6 Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I...
  • Page 41 4-wire smoke detector power Loop Out (300 mA max.) Shield B B+ A+ B- A- MS-9200 SLC (+) TB6-3 24V (+) TB4-5 SLC (-) TB6-5 24V (-) TB4-6 Note: An ELR is not required when wiring Style D (Class A).
  • Page 42 Resettable 24 VDC M302 4-wire smoke detector power Loop Out (300 mA max.) Shield B B+ A+ B- A- MS-9200 SLC (+) TB6-3 24V (+) TB4-5 SLC (-) TB6-5 24V (-) TB4-6 Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I...
  • Page 43 Resettable 24 VDC M302 4-wire smoke detector power Loop Out (300 mA max.) Shield B B+ A+ B- A- MS-9200 SLC (+) TB6-3 24V (+) TB4-5 SLC (-) TB6-5 24V (-) TB4-6 Document #15668 Rev.I 04/20/98 P/N 15668:I Technical Manuals Online! - http://www.tech-man.com...

  • Page 44: The Control Module

    24 VDC Power (+) Communications Loop Connections Connect the MS-9200 Communications SLC loop to C304 Terminals 1(-) and 2(+). The C304 occupies one module address on the loop. Set the rotary switches on the C304 to the particular loop address required.
  • Page 45 Communications Loop Connections Connect the MS-9200 Communications SLC loop to C304 Terminals 1(-) and 2(+). The C304 occupies one module address on the loop. Set the rotary switches on the module to the particular loop address required. Contact Connections Wire the common and the normally-open or normally closed contacts to the module as needed.
  • Page 46 CAUTION! Do not loop wiring under any terminals. Break wire run to maintain supervision. C304 Loop Out Shield B B+ A+ B- A- MS-9200 Resettable 24 VDC SLC (+) TB6-3 24V (+) TB4-1 4-wire smoke SLC (-) TB6-5 24V (-) TB4-2 detector power (300 mA max.)

  • Page 47: The Addressable Manual Pull Station

    To install a BG-10LX pull station: Connect the MS-9200 Communications SLC loop to Terminal screws (+) and (-) on the BG-10LX. The BG-10LX is factory preset to address '00'. Set the address by using a screwdriver to turn the rotary address switches on the back of the unit to the appropriate settings.

  • Page 48: Wiring Detectors

    2.14 Wiring Detectors To install addressable detectors: Connect the MS-9200 Communications SLC loop to Terminal (-) and (+) on the removable terminal block. If an RA400Z Remote LED Annunciator is being employed, connect the RA400Z positive terminal to the RA+ terminal on the removable terminal block and the negative terminal to the RA(-) terminal on the remov- able block.

  • Page 49: Optional Modules

    Optional Modules 2.15 Optional Modules The MS-9200 supports option modules using connectors J6, J11 and J16 on the main circuit board. There are four optional modules available for the MS-9200: • RTM-8F Relay/transmitter Module • PIM-24 Printer/PC Interface Module • UDACT-F Universal Digital Alarm Communicator/Transmitter •...
  • Page 50 EOL resistor is not required on the UDACT-F EIA-485 terminals when it is installed inside the MS-9200 cabi- net. The EOL resistor is required at the last device (if any are installed) on the EIA-485 line external to the MS-9200 panel.
  • Page 51 Install 120 ohm EOL resistor (P/N 71244) on TB1 Terminals 3 & 4, if last or only device on EIA-485 line. MS-9200 Cabinet UDACT-F in ABS-8RF (shown with cover removed) MS-9200 Notes: This arrangement allows use of the UDACT-F simultaneously with the RTM-8F module.

  • Page 52: 2: Acm-8Rf Relay Control Module

    The ACM-8RF module provides eight Form-C relays with contacts rated for 5 amps. When installed with an MS-9200 FACP, the ACM-8RF modules provide relay activation for each of the 56 possible FACP zones plus special functions.

  • Page 53: 3: Rtm-8F Option Module Installation

    Insert the three supplied nylon standoffs into the holes located on the right-side edge of the MS-9200 main circuit board. Insert the supplied metal standoff on the lower-right corner. Carefully align the pins of J6 on the main circuit board with connector J1 on the RTM-8F option board.
  • Page 54 Optional Modules RTM-8F Relay Transmitter Module Components RTM-8F Relay Transmitter Module FIGURE 2-36: Local Energy Municipal Box Trouble LED (yellow) JP1 - Cut for Polarity Reversal Remote Station operation Zone 1 JP2 - Jumper Settings: Zone 2 Alarm/Trouble Polarity Reversal Remote Station (Power-limited) Zone 3 Note: If relays are used as...

  • Page 55: Printer/Pc Interface Module

    The PIM-24 module cannot be used simultaneously with the DIM-485/LCD-40 option. CAUTION: DO NOT connect a printer or PC to the MS-9200 FACP if a ground fault exists on the control panel. Circuit damage may result. Remove all power (AC and DC) before installing or removing any modules or wiring.

  • Page 56: Chapter 3: Programming/Read Status

    SW1 Write Protect switch in the down position. SW1 is located on the lower- right side of the MS-9200 main circuit board. Refer to the illustration on page 6. If the switch is in the up 'Write Protect' position while attempting to enter the Programming Mode, the LCD will display the following: :5,7(3527(&7...

  • Page 57: Initial Power-Up

    Initial Power-up 1 = Programming: There are two programming levels. • Program Level 1 is for system configuration in which data relating to device types, zoning, messages, etc. is entered into the system memory • Program Level 2 is where a qualified operator can access features such as Disable, Clear History, Walktest, Time Change and Program Check.

  • Page 58: Programming

    Programming Programming Press the ENTER key. The screen below will appear:  352*5$00,1*  5'67$786 $&%$7 To enter the programming mode, press '1'. The display will read as follows: .(<3$66:25'(17(5 Entering the Level 1 password (default 00000) will cause the following screen to appear (refer to “Program Change - Level One”...

  • Page 59: Program Change - Level One

    Program Change - Level One When the correct password is entered, the MS-9200 will enter Level 1 program mode. In this mode, the trouble relay is activated and the System Trouble LED flashes and cannot be changed to steady and the piezo sounder is off. The following display will appear:  &/5 $872 32,17...
  • Page 60 The MS-9200 will lead you through the program editing process. A blinking cursor moves through the fields as you press the right arrow key (triangle to the right of ENTER). After moving into other fields, you may return to a previ- ous field by pressing the left arrow.
  • Page 61 Program Change - Level One arrow key is pressed with the blinking cursor on the last letter of the ADJ label, the cursor will move to the first letter of the NOUN field. Altering the NOUN field is done in a similar way. Use the up or down arrow keys to step through the NOUN library which is listed below: HVAC_ROOM _________ (default of blanks)
  • Page 62 Program Change - Level One If ENTER is pressed, the device is deleted from memory and autoprogram displays the next new device. If the left arrow is pressed, the program is unchanged and the next new device is displayed. After all new detectors are presented for editing, the autoprogram feature displays the modules on the SLC loop start- ing with the device found at the lowest address.

  • Page 63: 3: Point Edit

    Program Change - Level One Control modules default to Zone 00 (general alarm). All type code options are silenceable except Relay and Strobes. The selection of control module type codes may change their function. Select the type code from the library list below.

  • Page 64: 4: System Edit

    Program Change - Level One 3.3.4 System Edit The System Edit function is selected by pressing '3'. The system edit screen appears as shown below for software releases prior to P/N 73750. This software does not support the LCD-40 Annunciator. 9) 16, 1$6 136 1 &' 1$1 167 5(0 1 Use the up and down arrow keys to scroll through the choices for each option and the left and right arrow keys to...

  • Page 65: 5: Password Change

    Program Change - Level One There are nine system function options for software P/N 73750 or greater. The factory default selections and user option selections are shown below: FUNCTION DEFAULT SELECTION V = Alarm Verification (N)one (Y) 120 seconds I = Silence Inhibit (N)one (Y) 60 seconds A = Autosilence...

  • Page 66: 6: Load

    DOS-based or Window-based computer. This may be used to save the program that exists in an MS-9200 for security and future service reasons; or may be used to transfer a program created off-line to the MS-9200. Refer to the PK-9200(W) Manual for additional information. When the Load option is selected, the fol- lowing screen will be displayed: &211(&7&20387(512:...

  • Page 67: 1: Disable

    Program Change - Level 2 Enter the Level 2 password (default = 11111) then press the ENTER key to access Programming Change Level 2. The screen shown below will appear:  ',6$%/ &/5+,67  :$/. 7,0( &+(. From this screen, the available function choices include point Disable, Clear History, Walktest, Set Time and Check programming.

  • Page 68: 2: Clear History

    Program Change - Level 2 3.4.2 Clear History Pressing '2' displays the following screen: (17(572&/($5+,67 %$&.63$&(72(6&$3( Press the ENTER key to clear the 500-event History file. Press the left arrow key (backspace) to exit without clearing the History file. Caution: Pressing Enter will clear all History events associated with this panel. Care should be taken to ensure this is the appropriate action.

  • Page 69: 4: Set Time And Date

    Level 2 screen. 3.4.5 Check Program selection '5' performs a check on software zone assignments. The MS-9200 looks for output devices assigned to a software zone that does not contain any input devices (detectors, monitor modules). If multiple devices fail the check, the up and down arrow keys are used to step through the list of devices.

  • Page 70: Chapter 4: Operating Instructions

    4.1.3 Drill Hold 2 Sec. When the Drill key is held for two seconds (time required to prevent accidental activations), the MS-9200 turns on both main panel NAC outputs and all silenceable circuits (all control modules/NACs that are programmed silence- able) and turns off the Alarm Silence LED.

  • Page 71: Led Indicators

    To set the time and date, see “Set Time and Date” on page 66. 6<67(06$//1250$/ $021 The MS-9200 performs the following functions at regular intervals while in normal mode: Polls all devices on SLC loop. Checks for valid reply, alarms, troubles, etc. Monitors AC input voltage and battery capacity...

  • Page 72: Trouble Operation

    Trouble Operation Trouble Operation With no alarms, the detection of a trouble in the system will cause the piezo to sound, the System Trouble LED to flash and the trouble relay to activate. A message will appear on the LCD display indicating the trouble condition. The same message is sent to the printer and history file along with time and date.
  • Page 73 Trouble Operation Monitor and Control Modules The following is a typical message that could appear on the LCD display for monitor modules and control modules in trouble. 75%/021,7250 $'-!1281!= The information displayed in the first line in the previous example provides the following information: •...

  • Page 74: Alarm Operation

    Alarm Operation item for one minute or until the Acknowledge/Step key is pressed again. As the Acknowledge/Step key is pressed, the MS-9200 displays events in the following priority order: Alarms in address order Supervisories in address order Troubles in address order...

  • Page 75: Nac (Notification Appliance Circuit) Operation

    NAC (Notification Appliance Circuit) Operation There are two NACs on the MS-9200. For software releases prior to P/N 73750, NAC 1 is programmable and factory defaulted to general alarm, silenceable and March Time coding operation. NAC 2 is not programmable and is fixed as general alarm, nonsilenceable and may not perform coded functions.

  • Page 76: Time Functions: Real-Time Clock

    4.10 Time Functions: Real-Time Clock The MS-9200 includes a crystal-based clock that provides time of day, date and day of week. Time is displayed as 12 hour time with month/day/year and is stored in RAM. If both AC and battery power are lost, the time must be reset.

  • Page 77: 4: Alarm Verification (None Or Two Minutes)

    4.15 Read Status Read Status functions do not require a password. The MS-9200 will continue to provide fire protection while in Read Status mode. Read Status may be entered while the control panel is in alarm or trouble. If a new alarm or trouble occurs during these functions, the Read Status is exited to prevent confusion.
  • Page 78 Read Status Read Status Entry The operator presses the Enter key and the LCD display shows:  352*5$00,1*  5'67$786 $&%$7 The operator presses '2' and the display shows: ',63/$<32,17 $$ +,6725< 35,17  From the display shown above, an operator may select one of the choices as listed below: •...
  • Page 79 Read History The MS-9200 has a 500-event history buffer. Stored events include Point Status, System Troubles, and Acknowl- edge/Step, Alarm Silence, Drill and System Reset key presses. All events are recorded with the time and date. His- tory events are stored in volatile memory, therefore, removal of primary AC power and secondary battery power will clear the history buffer.

  • Page 80: Appendix A: Power Supply Calculations

    A.1 The AC Branch Circuit The MS-9200 requires connection to a separate dedicated 120 VAC branch circuit, which must be labeled Fire Alarm. The branch circuit must connect to the line side of the main power feed of the protected premises. No other equip- ment may be powered from the fire alarm branch circuit.

  • Page 81: A.2: The Main Power Supply

    The power for operating external devices is limited. Use Table A-2 (standby or nonalarm) and Table A-3 (alarm) to determine if external loading is within the capabilities of the MS-9200 power supply. Concerning smoke detectors: refer to the manufacturer's data sheet packaged with each smoke detector to find the standby and alarm current draws to use in the following tables.
  • Page 82 Power Supply Calculations Filtered Load in Alarm - External Devices Connected to TB2 & TB4 Only TABLE A-3: Alarm Current Total Current Device Type # of Devices (amps) (amps) Main Circuit Board 0.168 0.168 RTM-8F ] one max. 0.146 ACM-8RF 0.158 AFM-16ATX ] one max.
  • Page 83 __________ Notes: Up to 7 AH batteries can be located in the older MS-9200 backbox, up to 12 AH batteries can be located in the newer MS-9200 backbox 12 AH (older backbox) to 18 AH (older and newer backbox) batteries require the Fire•Lite BB-17F battery...

  • Page 84: Appendix B: Software Zones

    'software zones'. Setup of an MS-9200 software zone is straightforward. Any zone may have a minimum of one and a maximum of 99 addressable input devices. Each detector is automatically assigned to a general alarm output. A zone may also have a minimum of one and a maximum of 99 addressable output devices.
  • Page 85 Software Zones Correlation of Inputs and Outputs to Zones Zoning Example FIGURE B-1: Input Devices Zones Output Devices SD300 SD300 ZONE C304 M300 C304 M301 C304 CP300 ZONE C304 CP300 C304 SD300 SD300 ZONE C304 CP300 C304 Document #15668 Rev.I 04/20/98 P/N 15668:I Technical Manuals Online! - http://www.tech-man.com...
  • Page 86 Software Zones Detector Programming Sheet Example TABLE B-1: DETECTOR ZONE ASSIGNMENT Device Zone Device Zone ADJ (5 charact. max) ADJ (5 charact. max) Address Type Number Address Type Number NOUN (9 charact. max) NOUN (9 charact. max) SD300 FIRST HALL SD300 ELEV.
  • Page 87 Software Zones Module Programming Sheet Example TABLE B-2: MONITOR/CONTROL MODULE ZONE ASSIGNMENT Device Zone Device Zone ADJ (5 charact. max) ADJ (5 charact. max) Address Type Number Address Type Number NOUN (9 charact. max) NOUN (9 charact. max) M300 WEST HALL M301 EAST STAIRWELL C304...
  • Page 88 Software Zones Blank Zoning Sheet FIGURE B-2: Input Devices Zones Output Devices Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...
  • Page 89 Software Zones Blank Detector Programming Sheet TABLE B-3: DETECTOR ZONE ASSIGNMENT Device Zone Device Zone ADJ (5 charact. max) ADJ (5 charact. max) Address Type Number Address Type Number NOUN (9 charact. max) NOUN (9 charact. max) Document #15668 Rev.I 04/20/98 P/N 15668:I Technical Manuals Online! - http://www.tech-man.com...
  • Page 90 Software Zones Blank Module Programming Sheet TABLE B-4: MONITOR/CONTROL MODULE ZONE ASSIGNMENT Device Zone Device Zone ADJ (5 charact. max) ADJ (5 charact. max) Address Type Number Address Type Number NOUN (9 charact. max) NOUN (9 charact. max) Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev.

  • Page 91: Appendix C: Lcd-40 Series Annunciator Wiring

    The DIM-485 interface module is required when using the LCD-40 Series. Insert the plastic standoff, supplied with the DIM-485, into the hole located near the J11 connector on the top right side of the MS-9200 main circuit board. Note that older MS-9200 circuit boards do not have a hole near J11, thus preventing the insertion of the standoff.

  • Page 92: Appendix D: Afm And Ldm Series Wiring

    LDM Series Annunciators may be used in a similar manner. All illustrations show power supplied to annunciators by the MS-9200. For system applications requiring greater than the 300 mA of nonresettable power the MS-9200 can supply, use the Fire•Lite FCPS-24F Field Charger Power Supply.
  • Page 93 Silence/Acknowledge switch. AFM-32AX AFM-32AX Ribbon Cable MS-9200 The following configuration provides 16 alarm and trouble LEDs, System Trouble LED, On Line/Power LED, local Silence/Acknowledge, Drill and Reset remote switches and piezo sounder. Only one per system. AFM-16ATF MS-9200 The following configuration provides 32 alarm LEDs, On Line/Power LED, System Trouble LED and local Silence/ Acknowledge switch.
  • Page 94 The following configuration provides 16 red alarm LEDs, System Trouble LED, On Line/Power LED, local Silence/ Acknowledge switch and piezo sounder. All AFM-16AF annunciators will show the same information. EIA-485 Power MS-9200 Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I...
  • Page 95 The same 56 zones are annunciated on the last four annunciators (which dupli- cate the previous set). AFM-32AX AEM-32AF Ribbon Cable Receive Only No Control Switches MS-9200 AFM-16ATX AEM-16ATF AEM-16ATF AEM-16ATF Ribbon Ribbon Ribbon...

  • Page 96: Appendix E: Nfpa Standard-Specific Requirements

    NFPA Standard-Specific Requirements Appendix E The Fire•Lite MS-9200 has been designed for use in commercial, industrial and institutional applications and meets the requirements for service under the National Fire Protection Association (NFPA) Standards outlined in this Appen- dix. The minimum system components required for compliance with the appropriate NFPA standard are listed below: MS-9200 Control Panel Contains the main control board, cabinet (backbox and door), main power supply transformer and power supply.
  • Page 97 The following figure illustrates an example of Central Station Reporting using an MS-5012. The relay contacts from the MS-9200 may be used to trip any dialer UL listed for Central Station Services. The UDACT-F may also be used. Refer to Figure 2-31, “UDACT-F Mounting to MS-9200,” on page 47 and Figure 2-32, “External UDACT-F Mount- ing in ABS-8RF,”...
  • Page 98 3 ohms maximum loop resistance allowed for wiring from control panel to Municipal Box. Cut JP4 on the MS-9200 main circuit board to supervise placement of RTM-8F module and circuit. Refer to Figure 2-8, “Typical UL Power-limited Wiring Requirements,” on page 27, and “UL Power-limited Wiring Requirements”...
  • Page 99 NFPA 72 Remote Station Protective Signaling System Notes: Cut Jumper JP4 on the MS-9200 main circuit board to supervise placement of the RTM-8F module. Refer to Figure 2-8, “Typical UL Power-limited Wiring Requirements,” on page 27, and “UL Power-limited Wiring Requirements” on page 27, for information on UL Power-limited wiring requirements.
  • Page 100 Trouble condition. Form-A relay contact programmed to activate on Supervisory condition. Notes: Connection between the MS-9200 and the transmitter are supervised by the transmitter. This MS-9200/Transmitter arrangement can be employed for NFPA 72 Proprietary Pro- tective Signaling System.

  • Page 101: Appendix F: Wire Requirements

    Connecting external system accessories to the MS-9200 main circuits must be carefully considered to ensure proper operation. It is important to use the correct type of wire, wire gauge and wire run length for each MS-9200 circuit. Reference the chart below to specify wire requirements and limitations for each MS-9200 circuit.

  • Page 102: Appendix G: Screen Options Flowchart

    Screen Options Flowchart Screen Options Flowchart Appendix G (Software P/N 73750 or greater) Trouble in System No Device Installed SYSTEM TRBL_#<type><addr> NORMAL <adj><noun> Z## (SYSTEM (UNPROGRAMMED SYSTEM) TROUBLE) Trouble in System Press Program Corrupted 'ENTER' 1=Programming 2=Read Status 3=AC/BAT Write Protect Press '1' Press '2'...
  • Page 103 Program/Status Print History Print LEGEND Text inside box actually appears in LCD display Text inside oval indi- cates key press Write Protect Switch on Write Protect the MS-9200 motherboard Document #15668 Rev.I 04/20/98 P/N 15668:I Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...
  • Page 104 Notes Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...
  • Page 105 Notes Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...
  • Page 106 Notes Technical Manuals Online! - http://www.tech-man.com Document #15668 Rev. I 04/20/98 P/N 15668:I firealarmresources.com...
  • Page 107 Limited Warranty Fire•Lite ® warrants its products to be free from defects in materials and workmanship for eighteen (18) months from the date of manufacture, under normal use and service. Products are date stamped at time of manufacture. The sole and exclusive obligation ®...
