Remote fire annunciator for use with the fire-lite ms-5210ud fire alarm control panel

Advertisement

Quick Links

Remote Fire Ann unciator
Remote Fire Ann
Remote Fire Ann
Remote Fire Ann
Remote Fire Ann
Technical Manuals Online! - http://www.tech-man.com
The LED-10
The LED-10
The LED-10
The LED-10
The LED-10
for use with the Fire
Fire Alarm Control Panel
12 Clintonville Road, Northford, CT 06472
firealarmresources.com
unciator
unciator
MS-5210UD
unciator
unciator
Lite
Document # 50400
Document # 50400
Document # 50400
Document # 50400
Document # 50400
5/15/96 Revision:
5/15/96 Revision:
5/15/96 Revision:
5/15/96 Revision:
5/15/96 Revision:
P/N 50400:A ECN 96-088
P/N 50400:A ECN 96-088
P/N 50400:A ECN 96-088
P/N 50400:A ECN 96-088
P/N 50400:A ECN 96-088
A A A A A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fire-Lite Alarms LED-10

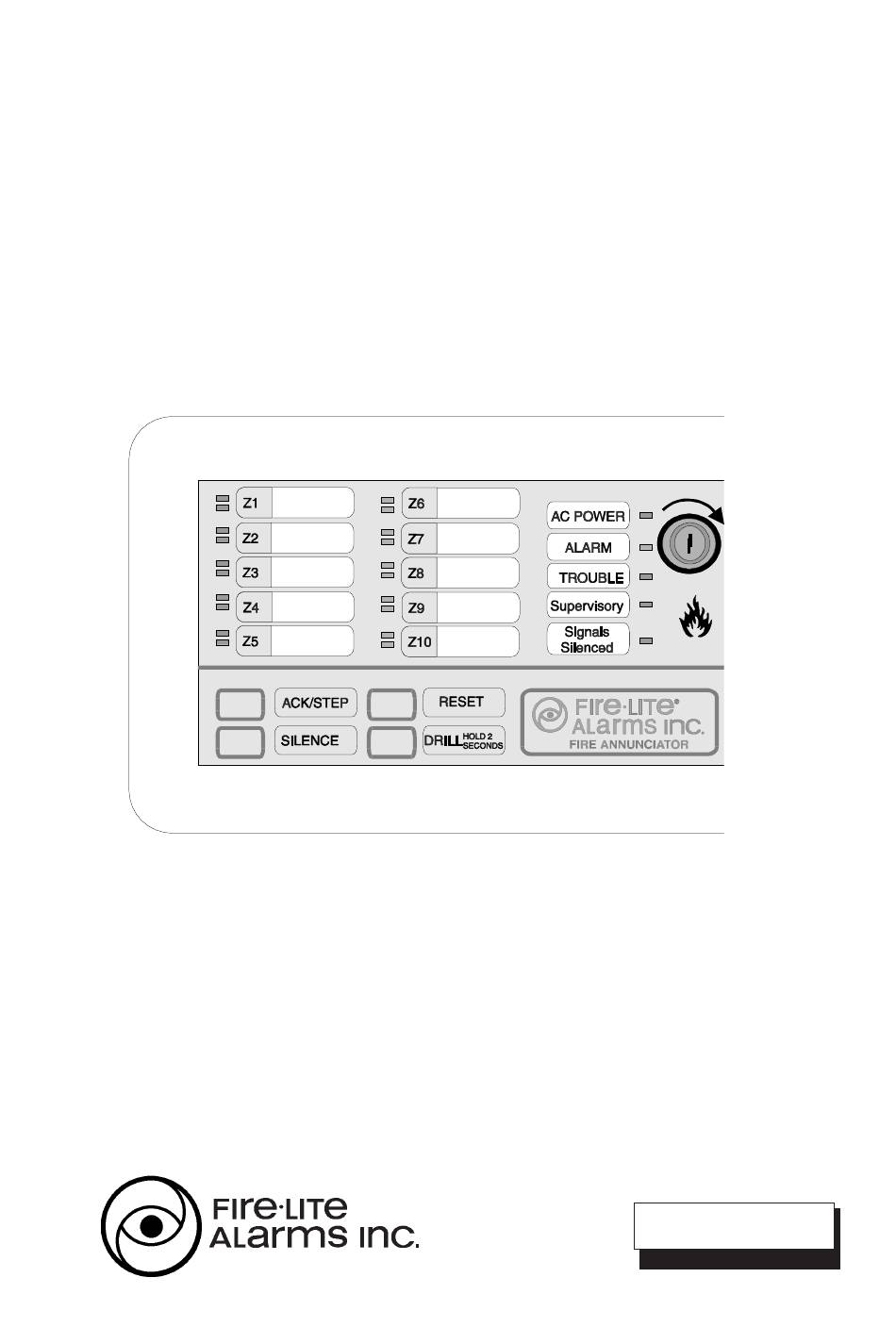

  • Page 1 The LED-10 The LED-10 The LED-10 The LED-10 The LED-10 Remote Fire Ann Remote Fire Ann unciator Remote Fire Ann unciator unciator unciator Remote Fire Ann Remote Fire Ann unciator for use with the Fire Lite • MS-5210UD Fire Alarm Control Panel...
  • Page 2 Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...
  • Page 3: Table Of Contents

    ..................14 Figure 4-1: Power Connection ................14 Figure 4-2: LED-10IM Installation ..............15 Figure 4-3: EIA-485 Connection ................. 16 Figure 4-4: Wiring FACP to LED-10 ..............17 Section Fiv Section Fiv Section Fiv Section Fiv Section Five: e: e: e: e: EIA-485 Shield...
  • Page 4: Section One

    The LED-10 is also capable of performing system acknowledge, silence, drill and reset remotely. Communication between the control panel and the LED-10 is accomplished over a two- wire serial interface employing the EIA-485 communication standard. Up to 32 LED-10s may be connected to the two-wire EIA-485 circuit.
  • Page 5 Membrane Connectors Membrane Connectors Membrane Connectors Membrane Connectors The LED-10 sounder, if enabled, will be activated when Membrane switch connectors any new alarm or trouble is received from the panel. It is silenced by the ACKNOWLEDGE or SILENCE switch. Piezo must not be disabled without approval of LAHJ (Local Authority Having Jurisdiction).
  • Page 6: Sw1 Dip Switch Settings

    DIP switch positions. SW1 switch settings are as follows: 1 through 6 - LED10 address switches. The first six switches are used to set the address of the LED-10. The OFF (OPEN) up position equals a binary 1 and the ON down position equals a binary 0.
  • Page 7 LED-10 Addressing LED-10 Addressing SW1 DIP switches 1 through 6 are used for addressing the LED-10. Each device connected to the EIA-485 communication bus must have a unique address. This allows specific data to be transmitted between the FACP and that device and for individual supervision of each LED-10 annunciator by the FACP.
  • Page 8 (Power supplies used for this purpose must have their negative terminals commoned together). 3) Between each LED-10 are four wires: A twisted-shielded pair for data communications and a pair for 24 VDC power. Figure 1-4: Typical Configuration...
  • Page 9: Section T T T T T W W W W W O: O: O: O: O: Oper

    LED Indicators and Piezo Sounder LED Indicators and Piezo Sounder LED Indicators and Piezo Sounder LED Indicators and Piezo Sounder The LED-10 is an LED annunciator which indicates the system and zone status of its associated MS-5210UD fire alarm control panel. Power Power...
  • Page 10: Silence Switch

    Note: The key-switch should normally be in the disabled position (fully counter- clockwise), with the key removed and access to the key restricted to authorized personnel only. Do not leave the key unattended in the LED-10. Acknowledge Acknowledge...
  • Page 11: Drill Switch

    NAC outputs only and causes the FACP ALARM SILENCE LED and the LED-10 SIGNAL SILENCE LED to turn on. It also sends an ALARM SILENCED message to the printer and the history file within the MS-5210UD. A subsequent new alarm will resound the appropriate Notification Appliance Circuits (NACs) and local sounders.
  • Page 12: Section Section Three: Three: Three: Mounting Mounting Mounting

    Never use the shield of the communications wiring for static protection. To mount the LED-10 in the electrical box, the trim ring must first be removed. The trim ring is held in place by two screws inserted through the top and bottom edge as illus- trated above.
  • Page 13 Set DIP switches SW1 and SW2 for the desired options (refer to Figures 1-1 and 1-2 and Table 1-1). Mount the LED-10 to the three-gang electrical box using the four mounting holes on the LED-10 flange and the four screws provided for this purpose. Replace the trim ring and secure with the two screws which were previously removed.
  • Page 14: Section Four

    UL listed, filtered, regulated power supply such as the Fire•Lite FCPS-24F. The power run to the LED-10 must be power-limited but need not contain a power supervi- sion relay since loss of power is inherently supervised through loss of communication with the LED-10.
  • Page 15 LED-10IM LED-10IM The LED-10IM Interface Module provides an EIA-485 port to support the LED-10, AFM Series and LDM Series annunciators as well as the ACM-8RF Remote Relay Module and is therefore required when connecting these devices to the MS-5210UD. The MS- 5210UD supervises EIA-485 wiring for open circuits via the LED-10IM Interface Module.
  • Page 16 5) The EIA-485 circuit is rated at 5.5 VDC maximum and 60 mA maximum. 6) The LED-10 must have the supplied R120 (120 ohm) resistor installed across the EIA-485 terminals on the last or only device connected to the EIA-485 bus as shown. The resistor is required for impedance matching.
  • Page 17 3) Refer to Figures 4-2, 4-2 and 4-3 for LED-10 and LED-10IM terminal designations. 4) The LED-10 must have the supplied R120 (120 ohm) resistor installed across the EIA-485 terminals on the last or only device connected to the EIA-485 bus as shown. The resistor is required for impedance matching.
  • Page 18: Section Five: E: E: E: E: Eia-485 Shield Section Fiv

    FACP but must be left floating (no connection) at the LED-10 if it is the first or only device on the EIA-485 loop. If a second LED-10 is connected, the shield leaving the first LED-10 must be left floating. The shield entering the second LED-10 must be connected to the 3-gang box or Earth Ground terminal (TB1-6 &...
  • Page 19: When The Eia-485 Shield Is In Full Conduit

    FACP, but must be left floating (no connection) at the LED-10 if it is the first or only device on the EIA-485 loop. If a second LED-10 is connected, the shield leaving the first LED-10 must be left floating. The shield entering the second LED-10 must be connected to the Earth Ground Terminal (TB1- 6 &...
  • Page 20 Notes Document 50400 Rev A 5/15/96 P/N 50400:A Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...
  • Page 21: Spare Slide-In Labels For Led-10 Spare Slide-In Labels For Led-10

    Slide-In Labels for the LED-10 Slide-In Labels for the LED-10 Slide-in labels for Zones 1 -10 are included with the LED-10(s). In the event that these labels are damaged or lost, remove this page from the manual and type the appropri- ate information on the labels shown below.
  • Page 22 Document 50400 Rev A 5/15/96 P/N 50400:A Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...
  • Page 23 Document 50400 Rev A 5/15/96 P/N 50400:A Technical Manuals Online! - http://www.tech-man.com firealarmresources.com...
  • Page 24 Limited Limited W W W W W arr Limited anty anty Limited Limited arr anty anty anty Fire-Lite Fire-Lite ® ® ® ® ® Fire-Lite Fire-Lite Fire-Lite warrants its products to be free from defects in materials and workmanship for eighteen (18) months from the date of manufacture, under normal use and service.
