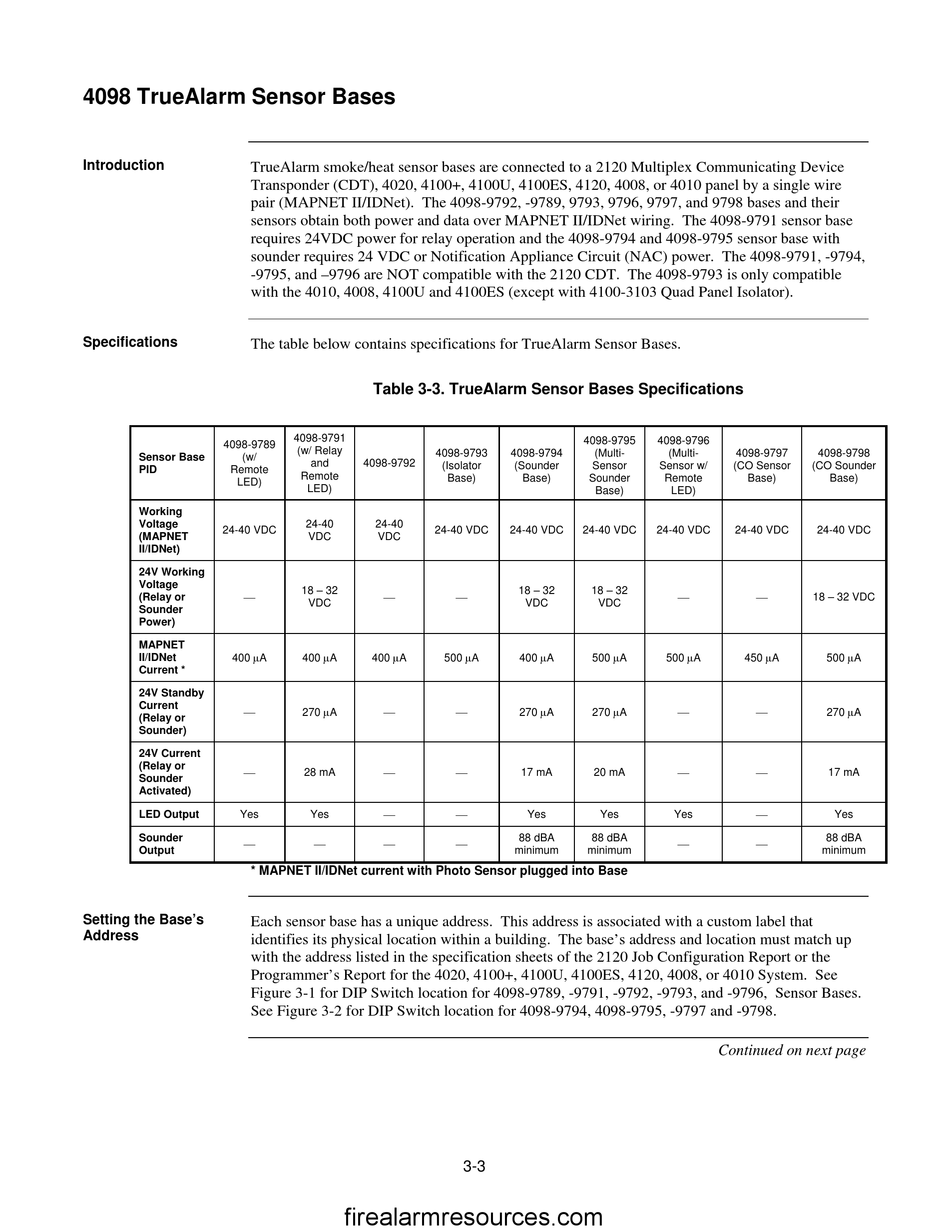

4098 TrueAlarm Sensor Bases

Introduction

TrueAlarm smoke/heat sensor bases are connected to a 2120 Multiplex Communicating Device
Transponder (CDT), 4020, 4100+, 4100U, 4100ES, 4120, 4008, or 4010 panel by a single wire
pair (MAPNET II/IDNet). The 4098-9792, -9789, 9793, 9796, 9797, and 9798 bases and their
sensors obtain both power and data over MAPNET II/IDNet wiring. The 4098-9791 sensor base
requires 24VDC power for relay operation and the 4098-9794 and 4098-9795 sensor base with
sounder requires 24 VDC or Notification Appliance Circuit (NAC) power. The 4098-9791, -9794,
-9795, and –9796 are NOT compatible with the 2120 CDT. The 4098-9793 is only compatible
with the 4010, 4008, 4100U and 4100ES (except with 4100-3103 Quad Panel Isolator).

Specifications

The table below contains specifications for TrueAlarm Sensor Bases.
4098-9789
Sensor Base (w/
PID Remote
LED)
Working
Voltage
24-40 VDC
(MAPNET
II/IDNet)
24V Working
Voltage

(Relay or
Sounder
Power)
MAPNET
400 A
II/IDNet
Current *
24V Standby
Current

(Relay or
Sounder)
24V Current
(Relay or

Sounder
Activated)
LED Output Yes
Sounder

Output
* MAPNET II/IDNet current with Photo Sensor plugged into Base
Setting the Base's
Each sensor base has a unique address. This address is associated with a custom label that
Address
identifies its physical location within a building. The base's address and location must match up
with the address listed in the specification sheets of the 2120 Job Configuration Report or the
Programmer's Report for the 4020, 4100+, 4100U, 4100ES, 4120, 4008, or 4010 System. See
Figure 3-1 for DIP Switch location for 4098-9789, -9791, -9792, -9793, and -9796, Sensor Bases.
See Figure 3-2 for DIP Switch location for 4098-9794, 4098-9795, -9797 and -9798.
Table 3-3. TrueAlarm Sensor Bases Specifications
4098-9791
(w/ Relay
4098-9793
and 4098-9792
(Isolator
Remote
Base)
LED)
24-40 24-40
24-40 VDC
VDC VDC
18 – 32
 
VDC
400 A 400 A 500 A
270 A  
 
28 mA
 
Yes
  
3-3
firealarmresources.com
4098-9795 4098-9796
4098-9794 (Multi- (Multi-
Sensor w/
(Sounder Sensor
Base) Sounder Remote
Base) LED)
24-40 VDC 24-40 VDC 24-40 VDC
18 – 32 18 – 32

VDC VDC
400 A 500 A 500 A
270 A 270 A 

17 mA 20 mA
Yes Yes Yes
88 dBA 88 dBA

minimum minimum
4098-9797 4098-9798
(CO Sensor (CO Sounder
Base) Base)
24-40 VDC 24-40 VDC

18 – 32 VDC
450 A 500 A
 270 A

17 mA

Yes
88 dBA

minimum
