Simplex 4098 Applications Manual page 30

4098 Bases,
Continued
Wiring
FigureTag FD4-709-07
-
+
INITIATING
CIRCUIT
+
-
LISTED
SIMPLEX
FIRE ALARM
CONTROL
PANEL
2120,
4001, 4002
4020, 4100+, 4100U
4100ES ,
4004, 4005 OR 4006

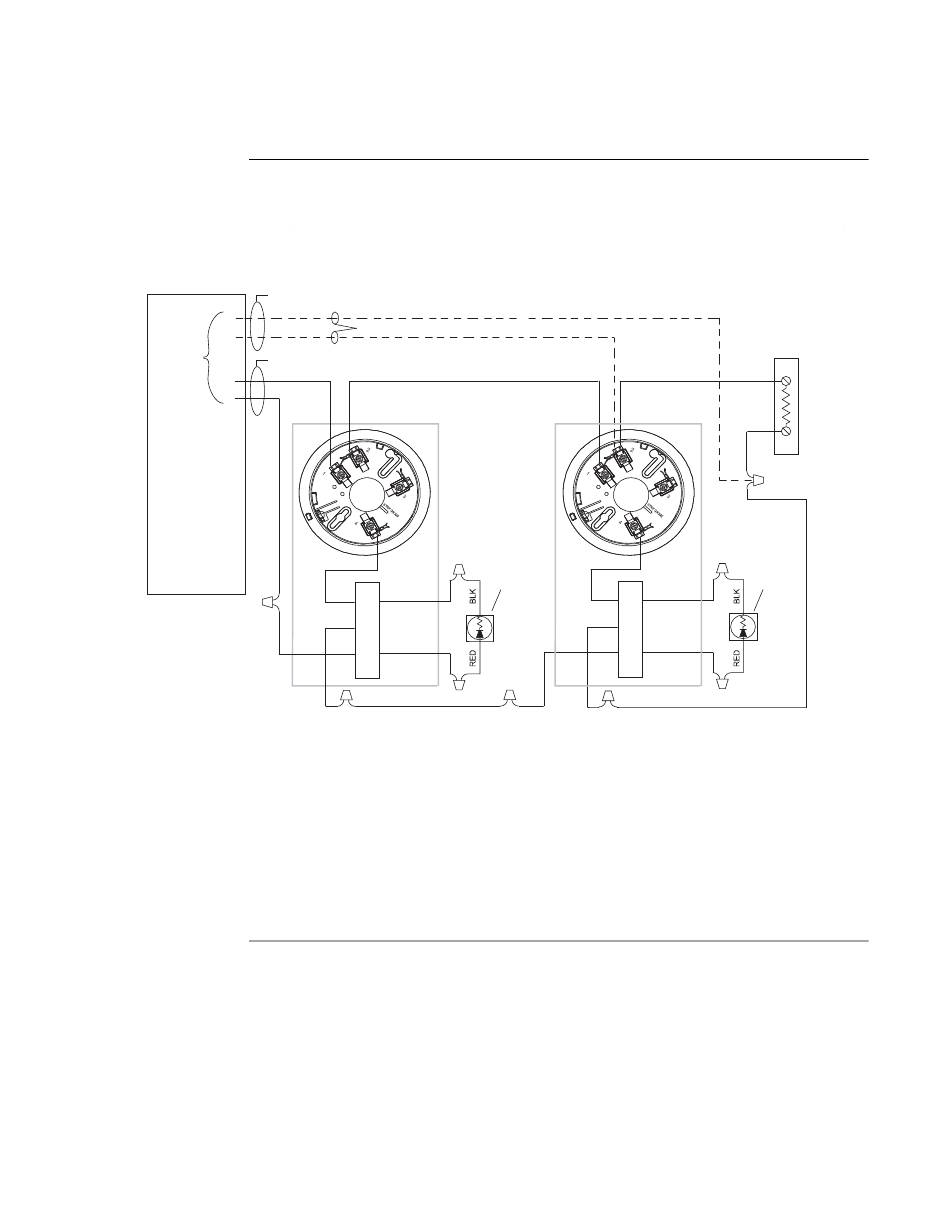

Figure 2-6. 4098-9684 Heat Detector LED Base Connections for Style B or D Initiating Circuits
Notes:
1. If used, 4098-9830 remote LED is polarized; observe color-coded wiring.
2. It is recommended that the Primary-1 and the Backup-2 lines be in separate wire runs and in
3. For Style D initiating circuit, wire per dotted lines and do not use EOL resistor. If Style B
BACKUP 2
SEE NOTE 2
SEE NOTE 3
PRIMARY 1
SEE NOTE 2
4098-9684
HEAT DETECTOR
BASE
RED BROWN
BLK
BLK
WHITE
compliance with local requirements.
initiating circuit, refer to wiring diagrams provided with the system panel for proper EOL
resistor value.
firealarmresources.com
4098-9684
HEAT DETECTOR
BASE
4098-9830
REMOTE LED
(SEE
NOTE 1)
RED BROWN
BLK
BLK
WHITE
2-14
SEE
NOTE
3
EOL
RESISTOR
(IF USED)
4098-9830
REMOTE LED
(SEE
NOTE 1)
